| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_036T17_9000005858_43216cztM0_level2.fits | modeM0/AS1A09_036T17_9000005858_43216cztM0_level2_quad_clean.evt |
| Size (bytes) | 363,663,360 | 85,896,000 |
| Size | 346.8 MB | 81.9 MB |
| Events in quadrant A | 3,786,505 | 560,236 |
| Events in quadrant B | 2,660,240 | 592,851 |
| Events in quadrant C | 2,488,714 | 572,423 |
| Events in quadrant D | 4,111,136 | 501,402 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14631 | 2 |
| B | 0 | 11470 | 3 |
| C | 0 | 10781 | 2 |
| D | 0 | 15885 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 110 | 0 |
| B | 0 | 110 | 0 |
| C | 0 | 110 | 0 |
| D | 0 | 110 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5332 | 206 | 3.863466% |
| B | 5332 | 13 | 0.243811% |
| C | 5332 | 3 | 0.056264% |
| D | 5332 | 349 | 6.545386% |

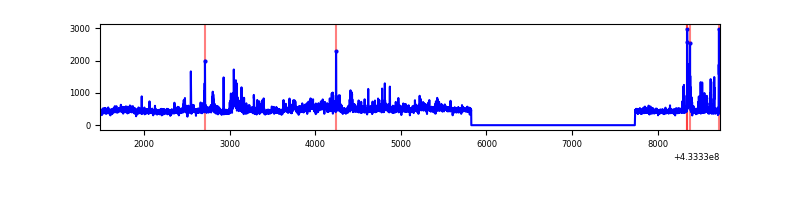

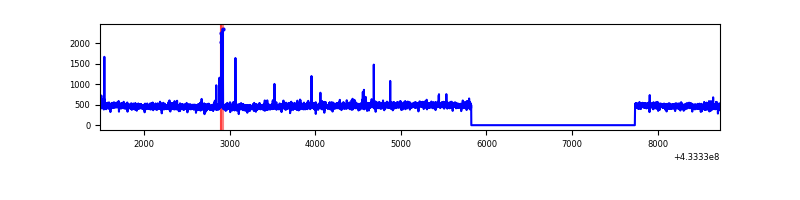

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7245 | 5333 | 155 | 155 | 2.14% | 2.91% |  |
| B | 7245 | 5333 | 6 | 6 | 0.08% | 0.11% |  |
| C | 7245 | 5333 | 3 | 3 | 0.04% | 0.06% |  |
| D | 7245 | 5333 | 294 | 294 | 4.06% | 5.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 614669 | 5244.32 | 570 | 558 | 117.1 |
| A | 15 | 237 | 469339 | 4003.25 | 570 | 558 | 117.1 |
| A | 13 | 248 | 341286 | 2909.71 | 570 | 558 | 117.1 |
| B | 0 | 189 | 264700 | 2345.16 | 576 | 561 | 112.6 |
| B | 0 | 186 | 52079 | 457.4 | 576 | 561 | 112.6 |
| B | 5 | 172 | 39515 | 345.85 | 576 | 561 | 112.6 |
| C | 15 | 214 | 227761 | 1679.6 | 568 | 570 | 135.3 |
| C | 7 | 220 | 22039 | 158.72 | 568 | 570 | 135.3 |
| C | 14 | 254 | 17554 | 125.56 | 568 | 570 | 135.3 |
| D | 1 | 52 | 1362794 | 9811.48 | 557 | 541 | 138.8 |
| D | 13 | 249 | 329642 | 2370.31 | 557 | 541 | 138.8 |
| D | 2 | 249 | 65230 | 465.92 | 557 | 541 | 138.8 |

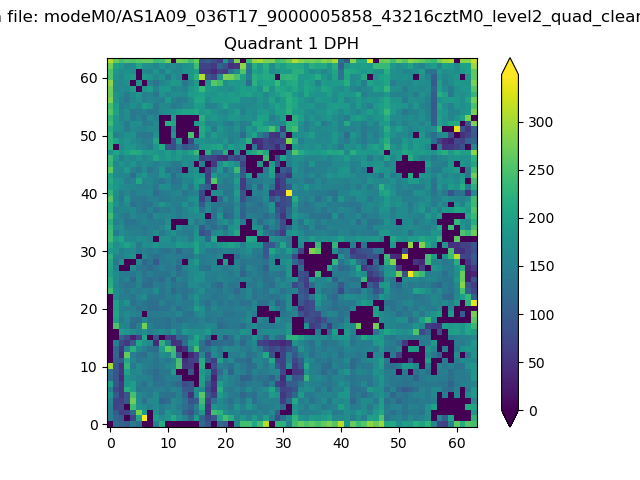

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

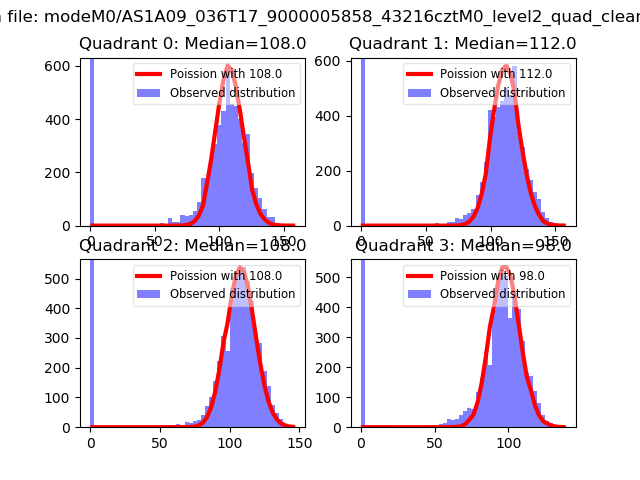

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

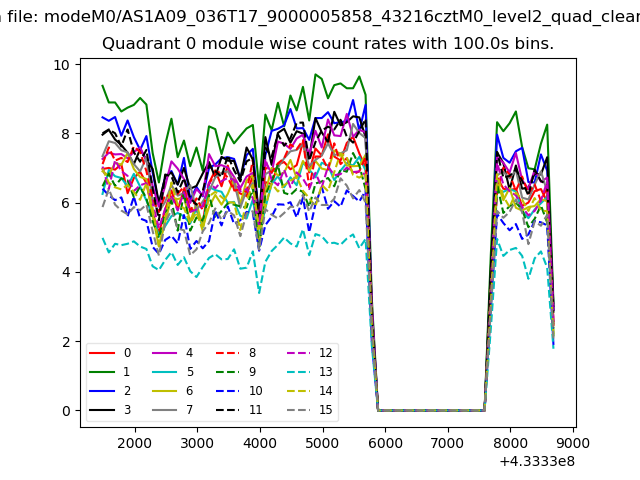

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

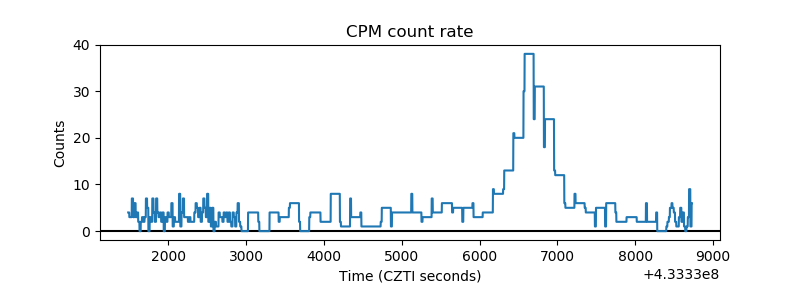

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

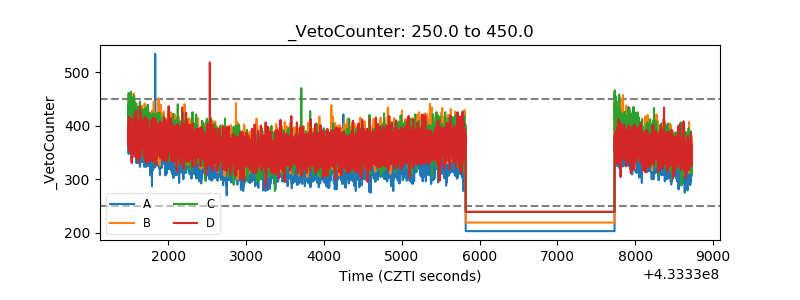

| Veto Counter |  |
