| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_036T17_9000005858_43218cztM0_level2.fits | modeM0/AS1A09_036T17_9000005858_43218cztM0_level2_quad_clean.evt |
| Size (bytes) | 421,450,560 | 92,972,160 |
| Size | 401.9 MB | 88.7 MB |
| Events in quadrant A | 4,750,182 | 584,096 |
| Events in quadrant B | 2,889,404 | 647,802 |
| Events in quadrant C | 2,830,462 | 624,354 |
| Events in quadrant D | 4,665,389 | 541,400 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17803 | 2 |
| B | 0 | 12838 | 2 |
| C | 0 | 12298 | 2 |
| D | 0 | 18047 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5979 | 562 | 9.399565% |
| B | 5979 | 61 | 1.020237% |
| C | 5979 | 14 | 0.234153% |
| D | 5978 | 567 | 9.484778% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

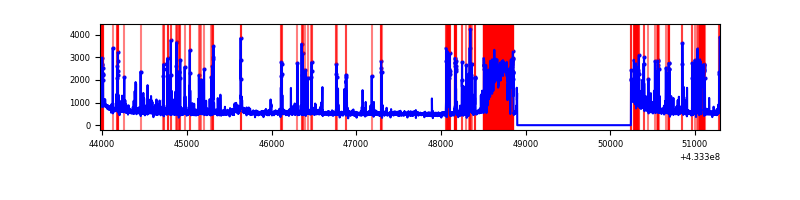

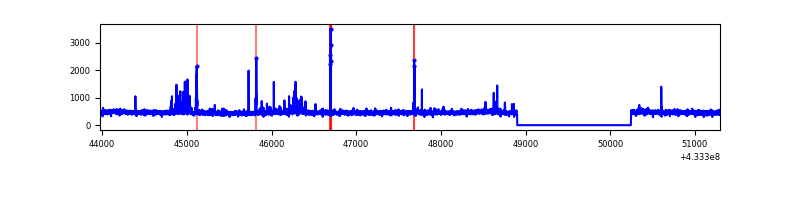

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7322 | 5980 | 468 | 468 | 6.39% | 7.83% |  |
| B | 7322 | 5980 | 56 | 56 | 0.76% | 0.94% |  |
| C | 7322 | 5980 | 9 | 9 | 0.12% | 0.15% |  |
| D | 7321 | 5979 | 507 | 507 | 6.93% | 8.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 237 | 1364699 | 10632.63 | 617 | 603 | 128.3 |
| A | 10 | 83 | 663625 | 5168.01 | 617 | 603 | 128.3 |
| A | 13 | 248 | 202821 | 1576.22 | 617 | 603 | 128.3 |
| B | 5 | 172 | 178979 | 1420.84 | 640 | 621 | 125.5 |
| B | 0 | 186 | 95650 | 757.02 | 640 | 621 | 125.5 |
| B | 0 | 189 | 60795 | 479.36 | 640 | 621 | 125.5 |
| C | 15 | 214 | 251874 | 1702.73 | 628 | 633 | 147.6 |
| C | 14 | 254 | 103849 | 699.52 | 628 | 633 | 147.6 |
| C | 7 | 220 | 23337 | 153.87 | 628 | 633 | 147.6 |
| D | 1 | 52 | 1446256 | 9614.55 | 605 | 589 | 150.4 |
| D | 13 | 249 | 305738 | 2029.42 | 605 | 589 | 150.4 |
| D | 1 | 47 | 176542 | 1170.19 | 605 | 589 | 150.4 |

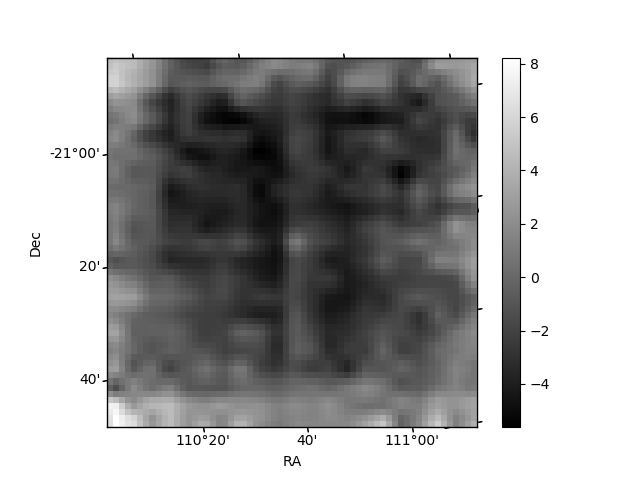

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

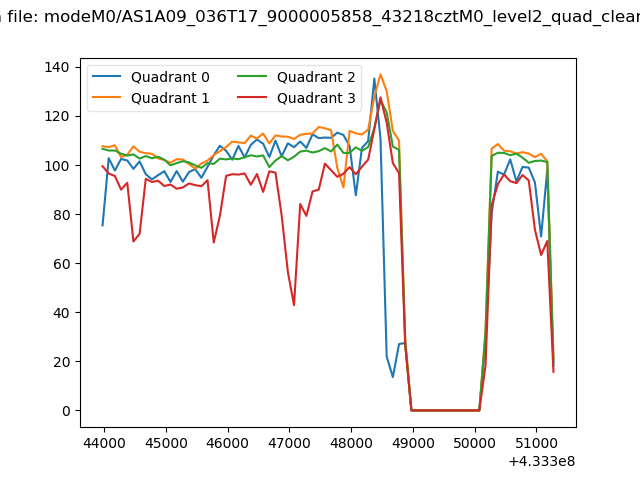

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

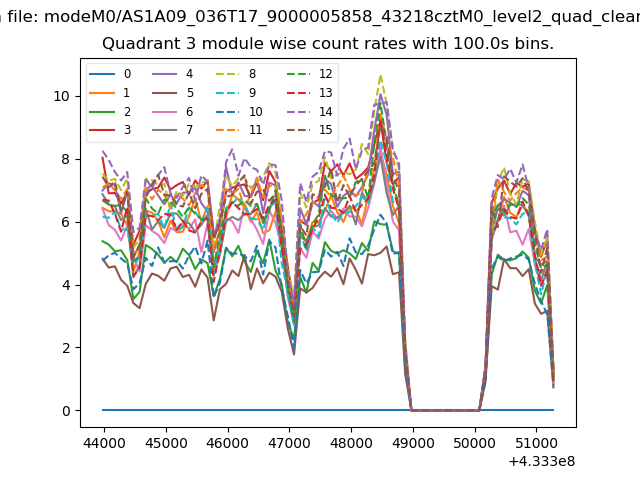

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

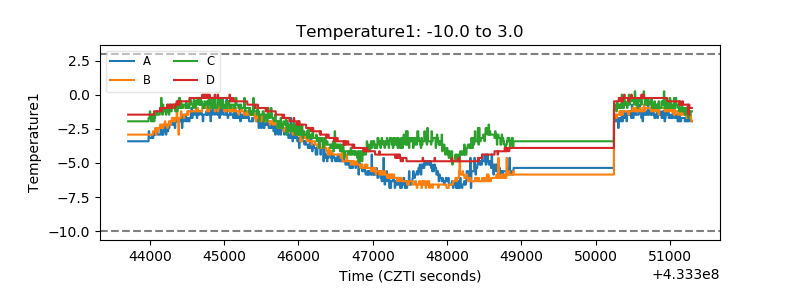

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

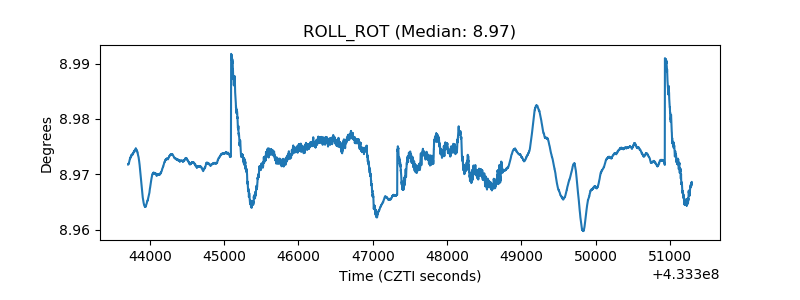

| _ROLL_ROT |  |

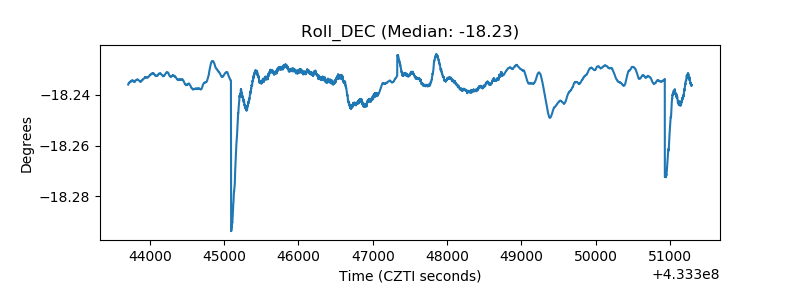

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
