| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_036T17_9000005858_43219cztM0_level2.fits | modeM0/AS1A09_036T17_9000005858_43219cztM0_level2_quad_clean.evt |
| Size (bytes) | 188,830,080 | 36,910,080 |
| Size | 180.1 MB | 35.2 MB |
| Events in quadrant A | 1,893,219 | 239,040 |
| Events in quadrant B | 1,077,625 | 257,404 |
| Events in quadrant C | 1,146,773 | 247,440 |
| Events in quadrant D | 2,681,900 | 199,680 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7130 | 1 |
| B | 0 | 4952 | 1 |
| C | 0 | 5011 | 1 |
| D | 0 | 9665 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 48 | 0 |
| B | 0 | 48 | 0 |
| C | 0 | 48 | 0 |
| D | 0 | 48 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2421 | 170 | 7.021892% |
| B | 2421 | 3 | 0.123916% |
| C | 2421 | 9 | 0.371747% |
| D | 2421 | 440 | 18.174308% |

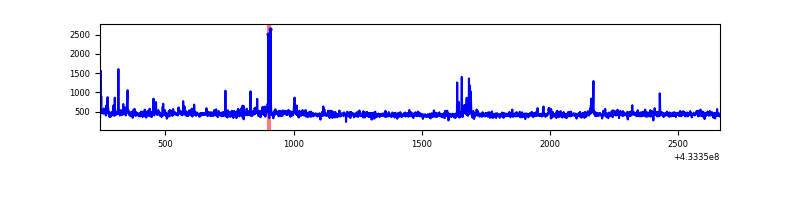

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2421 | 2421 | 120 | 120 | 4.96% | 4.96% |  |
| B | 2421 | 2421 | 2 | 2 | 0.08% | 0.08% |  |
| C | 2421 | 2421 | 6 | 6 | 0.25% | 0.25% |  |
| D | 2421 | 2421 | 388 | 388 | 16.03% | 16.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 237 | 442885 | 8162.4 | 254 | 248 | 54.2 |
| A | 10 | 83 | 313799 | 5782.01 | 254 | 248 | 54.2 |
| A | 13 | 248 | 74383 | 1367.08 | 254 | 248 | 54.2 |
| B | 0 | 186 | 25612 | 494.42 | 258 | 252 | 51.3 |
| B | 0 | 189 | 19708 | 379.32 | 258 | 252 | 51.3 |
| B | 12 | 111 | 6311 | 118.13 | 258 | 252 | 51.3 |
| C | 15 | 214 | 103767 | 1707.21 | 250 | 251 | 60.6 |
| C | 14 | 254 | 65713 | 1079.61 | 250 | 251 | 60.6 |
| C | 13 | 61 | 1634 | 22.81 | 250 | 251 | 60.6 |
| D | 1 | 52 | 1514284 | 25351.71 | 236 | 229 | 59.7 |
| D | 12 | 16 | 66597 | 1111.28 | 236 | 229 | 59.7 |
| D | 13 | 249 | 46762 | 779.16 | 236 | 229 | 59.7 |

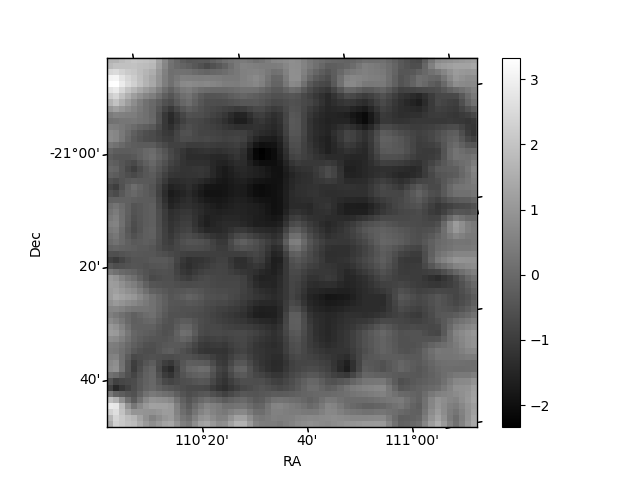

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

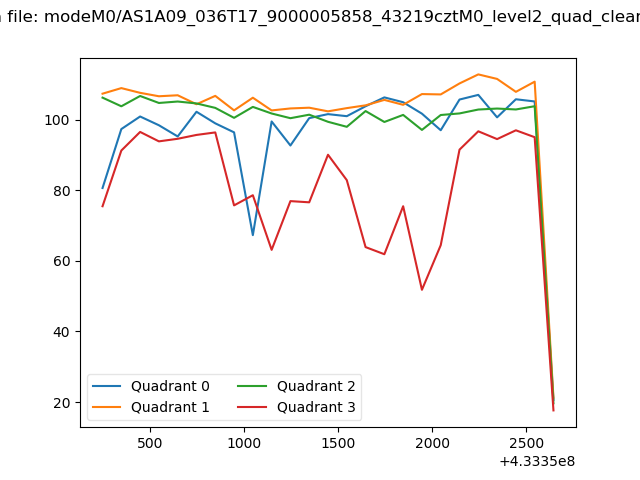

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

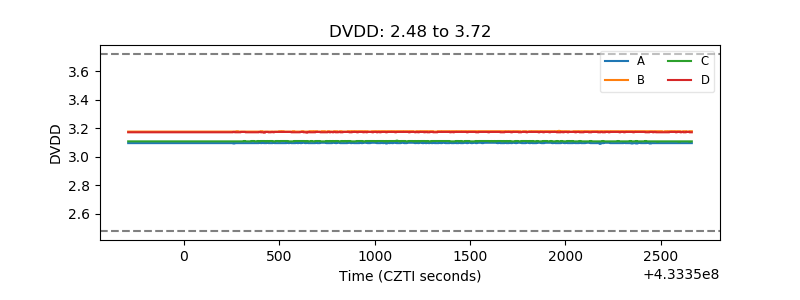

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

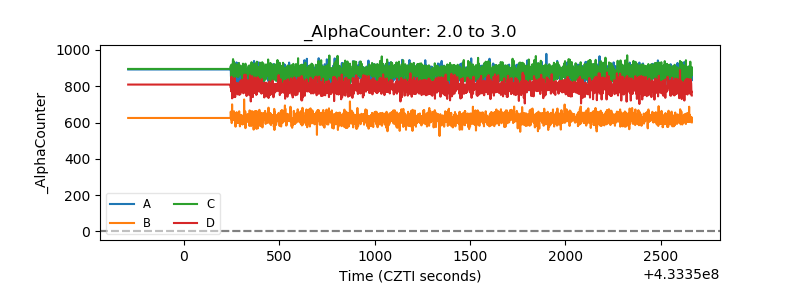

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

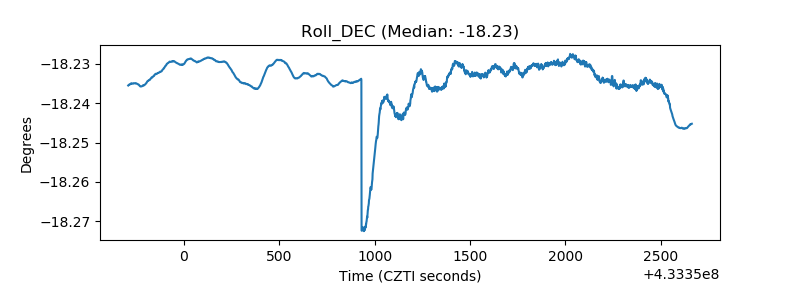

| _Roll_DEC |  |

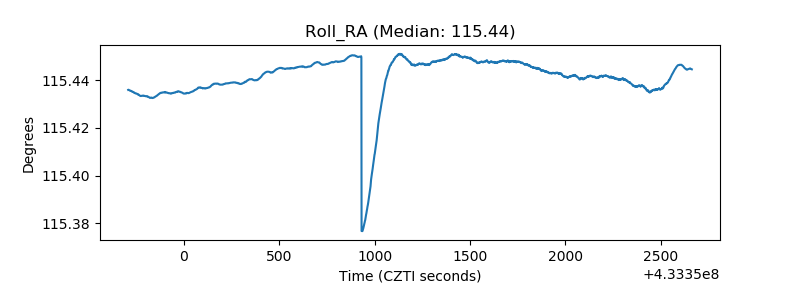

| _Roll_RA |  |

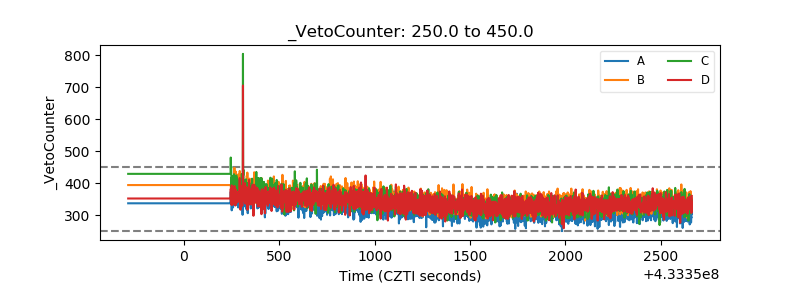

| Veto Counter |  |
