| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_006T01_9000005860_43245cztM0_level2.fits | modeM0/AS1A06_006T01_9000005860_43245cztM0_level2_quad_clean.evt |
| Size (bytes) | 310,973,760 | 83,243,520 |
| Size | 296.6 MB | 79.4 MB |
| Events in quadrant A | 2,895,273 | 550,695 |
| Events in quadrant B | 2,428,448 | 570,411 |
| Events in quadrant C | 2,393,219 | 551,171 |
| Events in quadrant D | 3,398,953 | 493,201 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38 | 0 |
| B | 0 | 39 | 0 |
| C | 0 | 39 | 0 |
| D | 0 | 39 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11583 | 2 |
| B | 0 | 10797 | 2 |
| C | 0 | 10265 | 2 |
| D | 0 | 13590 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5071 | 50 | 0.985999% |
| B | 5071 | 31 | 0.611319% |
| C | 5071 | 5 | 0.098600% |
| D | 5070 | 214 | 4.220907% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6984 | 5072 | 36 | 36 | 0.52% | 0.71% |  |
| B | 6984 | 5072 | 17 | 17 | 0.24% | 0.34% |  |
| C | 6984 | 5072 | 1 | 1 | 0.01% | 0.02% |  |
| D | 6983 | 5071 | 207 | 207 | 2.96% | 4.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 546021 | 4737.21 | 554 | 540 | 115.1 |
| A | 15 | 237 | 138597 | 1198.95 | 554 | 540 | 115.1 |
| A | 12 | 189 | 55997 | 481.61 | 554 | 540 | 115.1 |
| B | 5 | 255 | 248525 | 2306.61 | 551 | 535 | 107.5 |
| B | 12 | 111 | 13735 | 122.78 | 551 | 535 | 107.5 |
| B | 11 | 111 | 13009 | 116.02 | 551 | 535 | 107.5 |
| C | 15 | 214 | 215085 | 1678.8 | 546 | 547 | 127.8 |
| C | 7 | 220 | 25352 | 194.1 | 546 | 547 | 127.8 |
| C | 3 | 233 | 10394 | 77.05 | 546 | 547 | 127.8 |
| D | 1 | 52 | 528495 | 3895.06 | 539 | 522 | 135.5 |
| D | 12 | 233 | 390142 | 2874.38 | 539 | 522 | 135.5 |
| D | 2 | 249 | 165161 | 1214.61 | 539 | 522 | 135.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

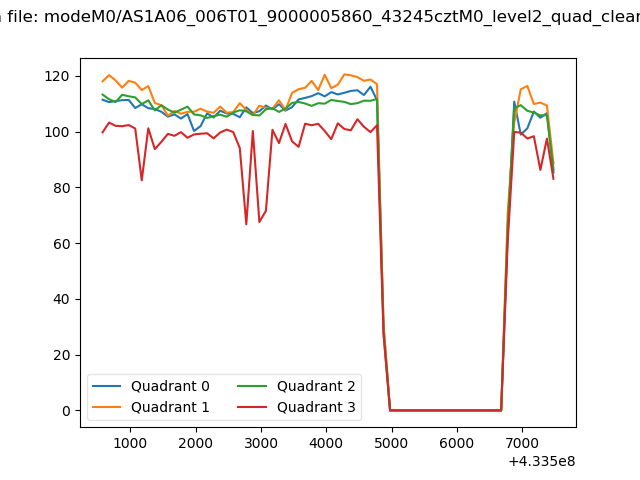

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

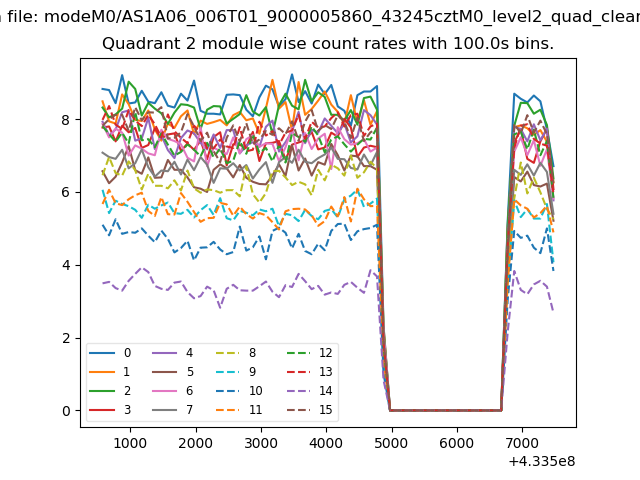

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

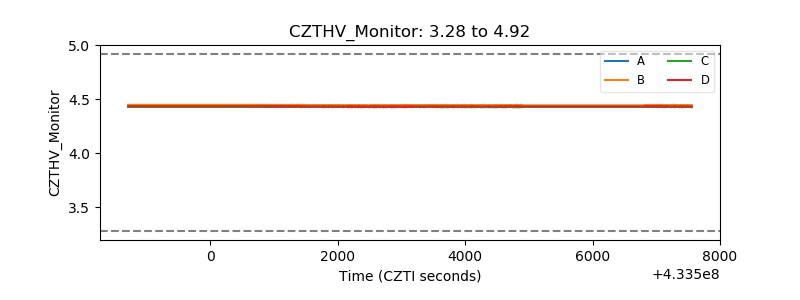

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

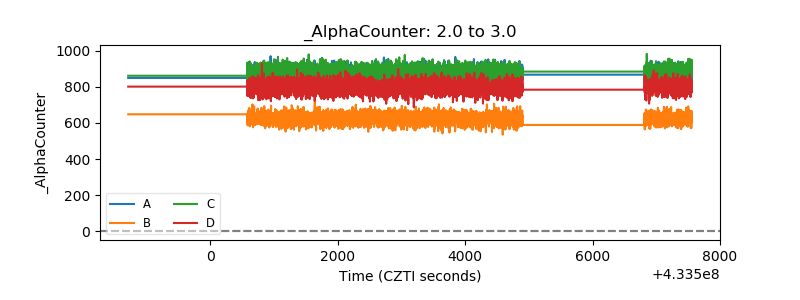

| Alpha Counter |  |

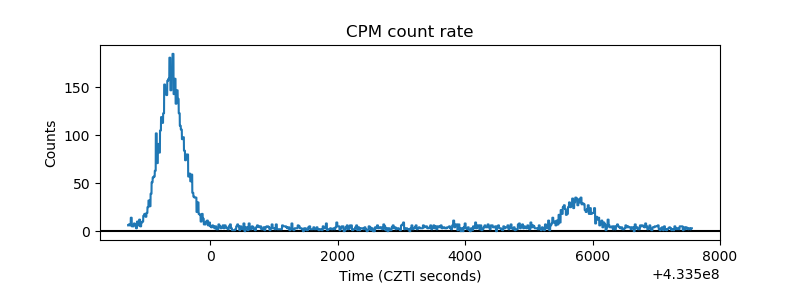

| _CPM_Rate |  |
| CZT Counter |  |

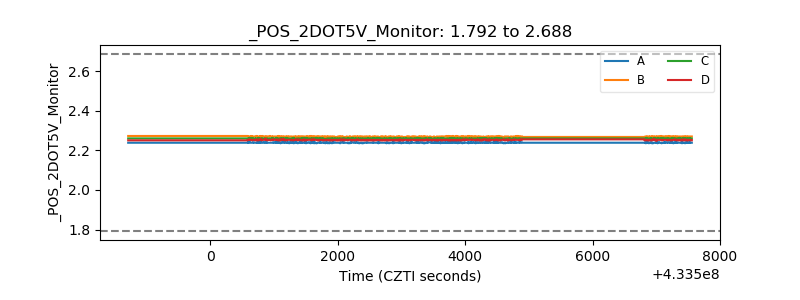

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

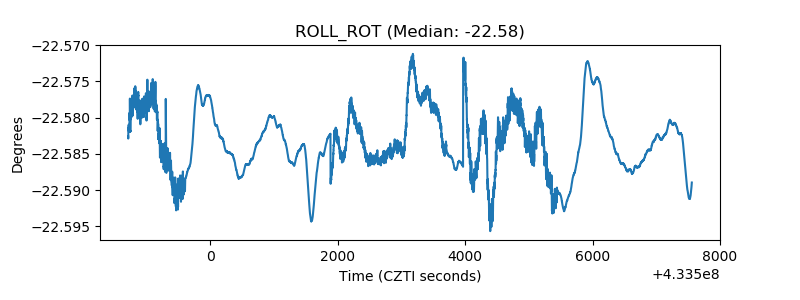

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

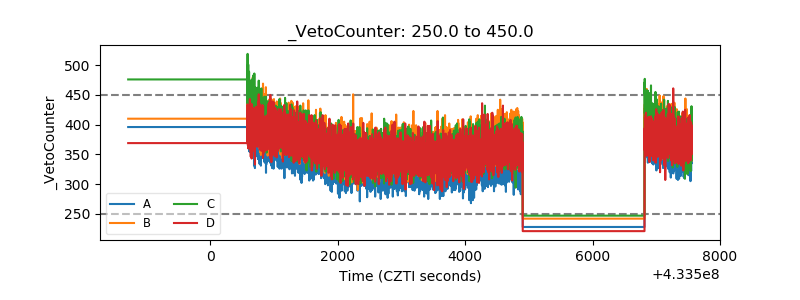

| Veto Counter |  |
