| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_006T01_9000005860_43252cztM0_level2.fits | modeM0/AS1A06_006T01_9000005860_43252cztM0_level2_quad_clean.evt |
| Size (bytes) | 992,833,920 | 271,036,800 |
| Size | 946.8 MB | 258.5 MB |
| Events in quadrant A | 9,323,893 | 1,785,583 |
| Events in quadrant B | 7,429,815 | 1,887,497 |
| Events in quadrant C | 8,461,714 | 1,772,337 |
| Events in quadrant D | 10,227,198 | 1,596,688 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 344 | 0 |
| B | 0 | 344 | 0 |
| C | 0 | 344 | 0 |
| D | 0 | 344 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 60 | 0 |
| B | 0 | 60 | 0 |
| C | 0 | 60 | 0 |
| D | 0 | 60 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38150 | 4 |
| B | 0 | 34222 | 4 |
| C | 0 | 36070 | 4 |
| D | 0 | 42706 | 4 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 16892 | 166 | 0.982714% |
| B | 16893 | 30 | 0.177588% |
| C | 16893 | 110 | 0.651157% |
| D | 16892 | 521 | 3.084300% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 22861 | 16896 | 70 | 70 | 0.31% | 0.41% |  |
| B | 22862 | 16897 | 8 | 8 | 0.03% | 0.05% |  |
| C | 22862 | 16897 | 83 | 83 | 0.36% | 0.49% |  |
| D | 22861 | 16896 | 470 | 470 | 2.06% | 2.78% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1517778 | 4062.68 | 1815 | 1777 | 373.2 |
| A | 12 | 189 | 354818 | 946.1 | 1815 | 1777 | 373.2 |
| A | 15 | 237 | 353342 | 942.15 | 1815 | 1777 | 373.2 |
| B | 5 | 255 | 153613 | 427.22 | 1828 | 1773 | 355.4 |
| B | 0 | 189 | 85457 | 235.46 | 1828 | 1773 | 355.4 |
| B | 12 | 111 | 45706 | 123.61 | 1828 | 1773 | 355.4 |
| C | 15 | 214 | 697533 | 1653.86 | 1802 | 1816 | 420.7 |
| C | 14 | 254 | 457363 | 1082.93 | 1802 | 1816 | 420.7 |
| C | 0 | 207 | 171638 | 403.7 | 1802 | 1816 | 420.7 |
| D | 12 | 6 | 1024065 | 2355.53 | 1776 | 1727 | 434.0 |
| D | 2 | 249 | 948379 | 2181.14 | 1776 | 1727 | 434.0 |
| D | 1 | 52 | 822186 | 1890.39 | 1776 | 1727 | 434.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

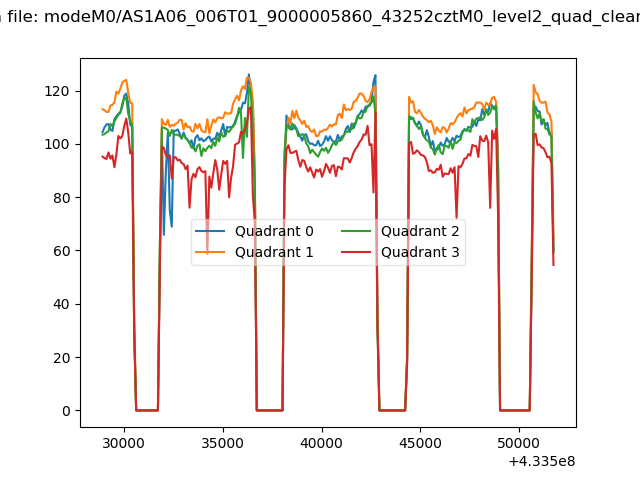

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

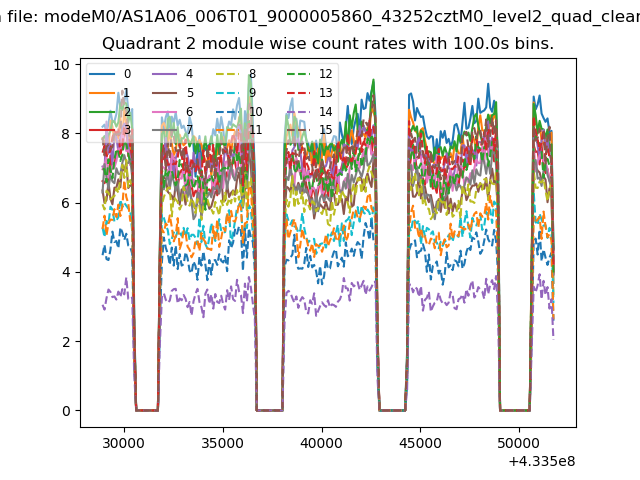

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

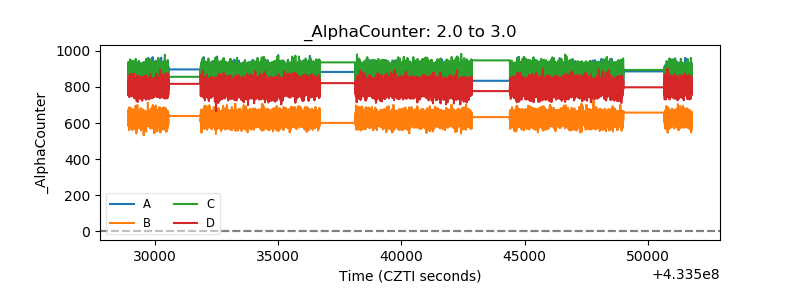

| Alpha Counter |  |

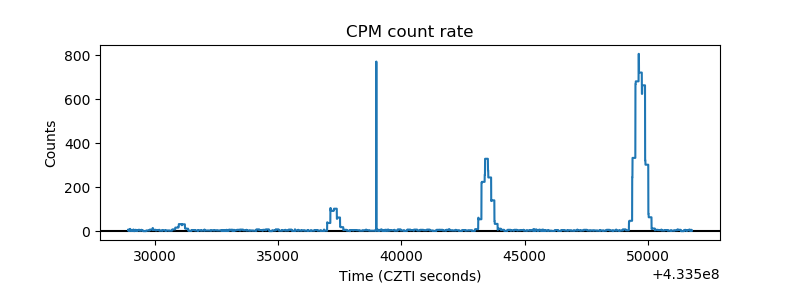

| _CPM_Rate |  |
| CZT Counter |  |

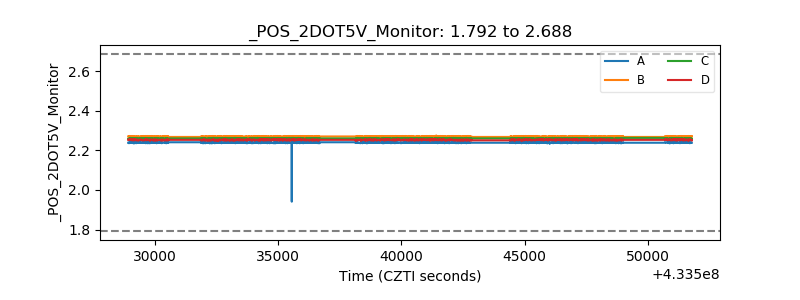

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

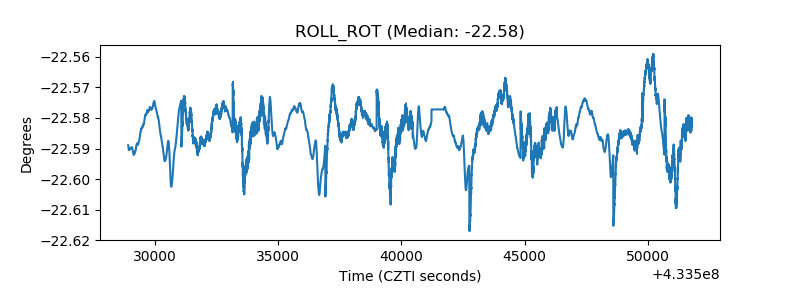

| _ROLL_ROT |  |

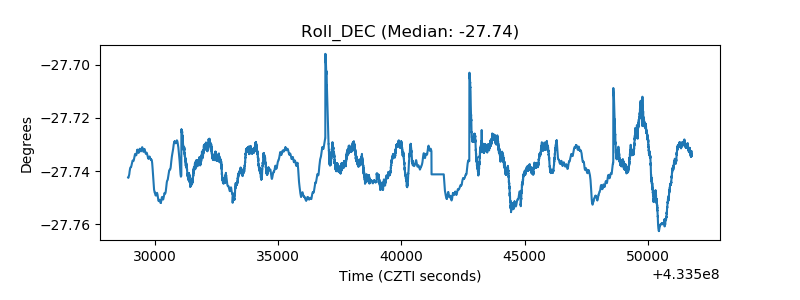

| _Roll_DEC |  |
| _Roll_RA |  |

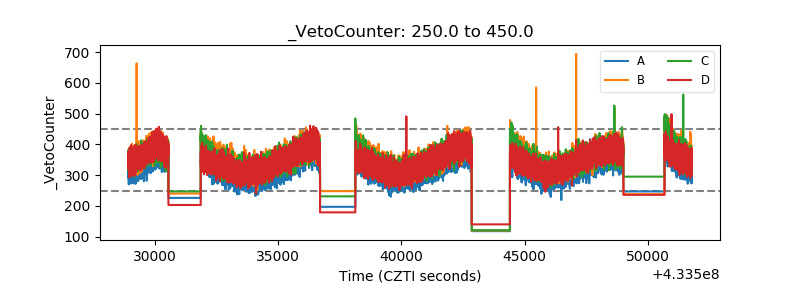

| Veto Counter |  |
