| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_006T01_9000005860_43259cztM0_level2.fits | modeM0/AS1A06_006T01_9000005860_43259cztM0_level2_quad_clean.evt |
| Size (bytes) | 302,359,680 | 82,889,280 |
| Size | 288.4 MB | 79.0 MB |
| Events in quadrant A | 2,835,389 | 544,852 |
| Events in quadrant B | 2,405,448 | 571,024 |
| Events in quadrant C | 2,519,406 | 549,977 |
| Events in quadrant D | 3,043,621 | 494,706 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 35 | 0 |
| B | 0 | 36 | 0 |
| C | 0 | 36 | 0 |
| D | 0 | 36 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11243 | 2 |
| B | 0 | 10359 | 2 |
| C | 0 | 10506 | 2 |
| D | 0 | 12374 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4983 | 46 | 0.923139% |
| B | 4983 | 15 | 0.301023% |
| C | 4983 | 24 | 0.481638% |
| D | 4982 | 152 | 3.050984% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7014 | 4984 | 17 | 17 | 0.24% | 0.34% |  |
| B | 7014 | 4984 | 9 | 9 | 0.13% | 0.18% |  |
| C | 7014 | 4984 | 21 | 21 | 0.30% | 0.42% |  |
| D | 7013 | 4983 | 134 | 134 | 1.91% | 2.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 553070 | 4860.49 | 553 | 541 | 113.7 |
| A | 15 | 237 | 119972 | 1050.61 | 553 | 541 | 113.7 |
| A | 13 | 6 | 10903 | 91.15 | 553 | 541 | 113.7 |
| B | 5 | 255 | 88684 | 811.21 | 548 | 532 | 108.7 |
| B | 0 | 189 | 82492 | 754.23 | 548 | 532 | 108.7 |
| B | 0 | 230 | 65247 | 595.53 | 548 | 532 | 108.7 |
| C | 15 | 214 | 223516 | 1726.0 | 545 | 547 | 129.2 |
| C | 14 | 254 | 120018 | 924.82 | 545 | 547 | 129.2 |
| C | 7 | 220 | 31291 | 237.99 | 545 | 547 | 129.2 |
| D | 2 | 249 | 393388 | 2943.66 | 539 | 523 | 133.5 |
| D | 13 | 249 | 307935 | 2303.38 | 539 | 523 | 133.5 |
| D | 1 | 52 | 99935 | 744.88 | 539 | 523 | 133.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

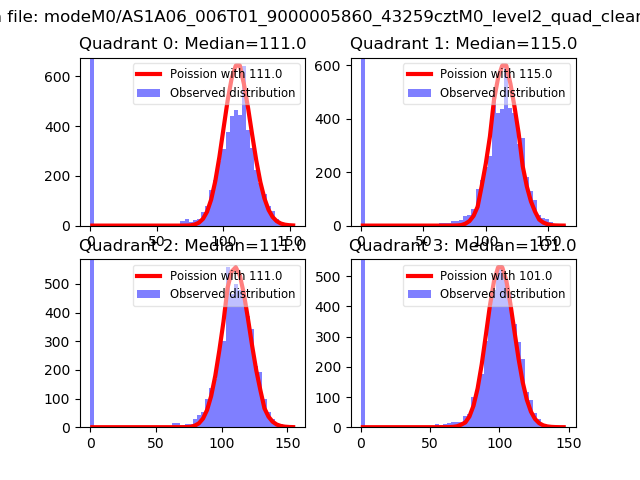

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

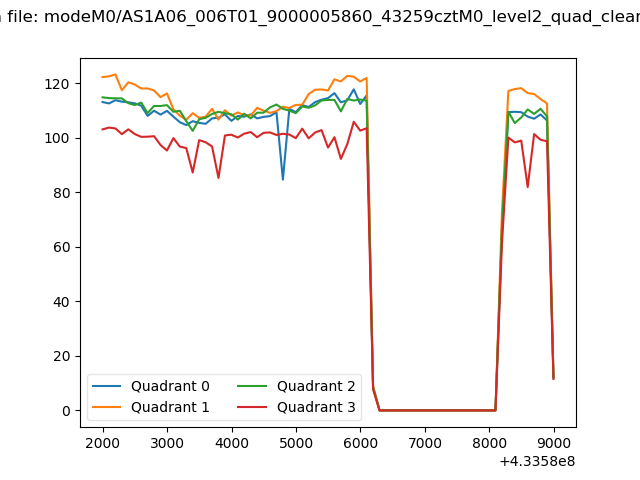

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

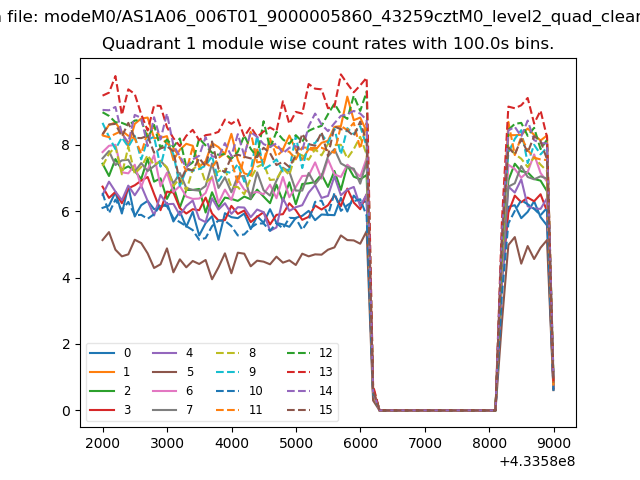

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
