| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_006T01_9000005860_43261cztM0_level2.fits | modeM0/AS1A06_006T01_9000005860_43261cztM0_level2_quad_clean.evt |
| Size (bytes) | 386,432,640 | 94,354,560 |
| Size | 368.5 MB | 90.0 MB |
| Events in quadrant A | 3,650,863 | 607,475 |
| Events in quadrant B | 2,729,010 | 648,449 |
| Events in quadrant C | 3,182,791 | 622,303 |
| Events in quadrant D | 4,281,568 | 564,937 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 29 | 0 |
| C | 0 | 29 | 0 |
| D | 0 | 29 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14495 | 2 |
| B | 0 | 12336 | 2 |
| C | 0 | 13186 | 2 |
| D | 0 | 16814 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5916 | 224 | 3.786342% |
| B | 5916 | 17 | 0.287356% |
| C | 5916 | 87 | 1.470588% |
| D | 5916 | 253 | 4.276538% |

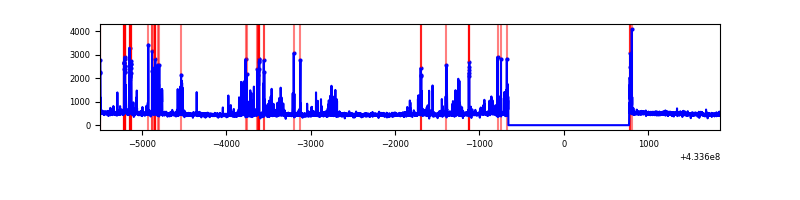

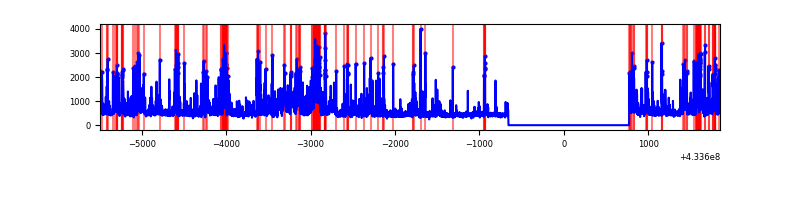

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7347 | 5917 | 91 | 91 | 1.24% | 1.54% |  |
| B | 7347 | 5917 | 6 | 6 | 0.08% | 0.10% |  |
| C | 7347 | 5917 | 67 | 67 | 0.91% | 1.13% |  |
| D | 7347 | 5917 | 244 | 244 | 3.32% | 4.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 631437 | 4951.78 | 625 | 611 | 127.4 |
| A | 15 | 237 | 542862 | 4256.5 | 625 | 611 | 127.4 |
| A | 13 | 248 | 50767 | 393.71 | 625 | 611 | 127.4 |
| B | 5 | 255 | 179102 | 1430.73 | 638 | 621 | 124.7 |
| B | 0 | 189 | 20217 | 157.08 | 638 | 621 | 124.7 |
| B | 12 | 111 | 16107 | 124.14 | 638 | 621 | 124.7 |
| C | 14 | 254 | 457513 | 3123.25 | 626 | 630 | 146.3 |
| C | 15 | 214 | 261791 | 1785.3 | 626 | 630 | 146.3 |
| C | 3 | 233 | 16602 | 109.18 | 626 | 630 | 146.3 |
| D | 1 | 52 | 622698 | 4021.66 | 619 | 600 | 154.7 |
| D | 13 | 249 | 429572 | 2773.16 | 619 | 600 | 154.7 |
| D | 2 | 249 | 381823 | 2464.48 | 619 | 600 | 154.7 |

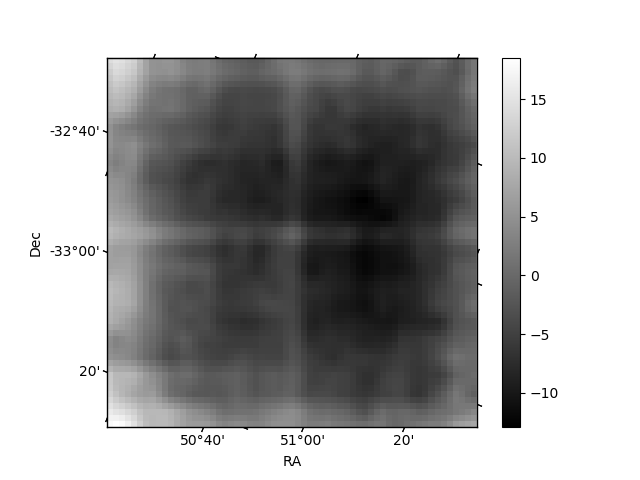

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

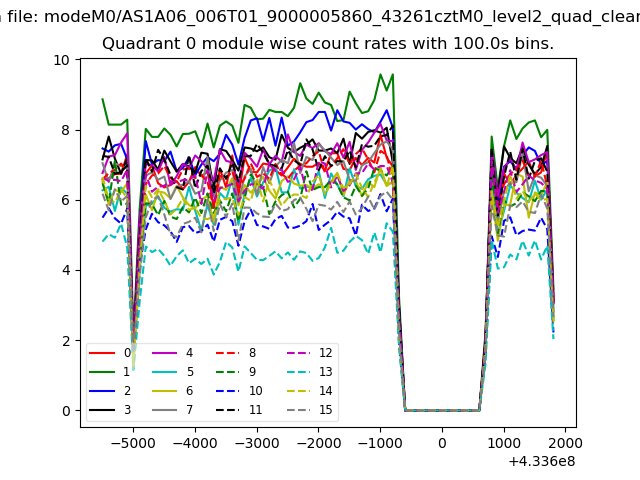

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

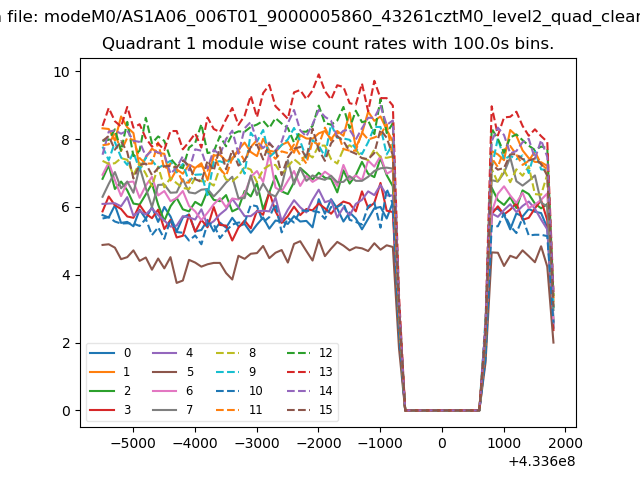

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

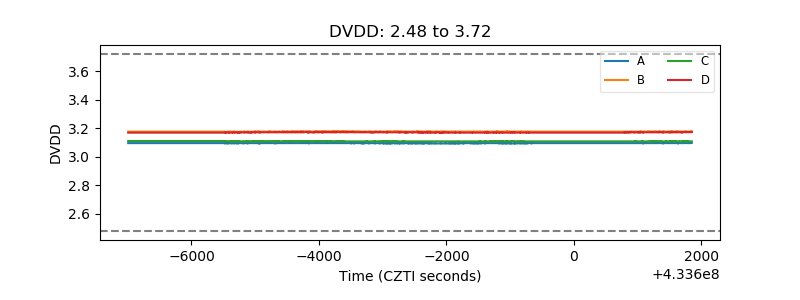

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

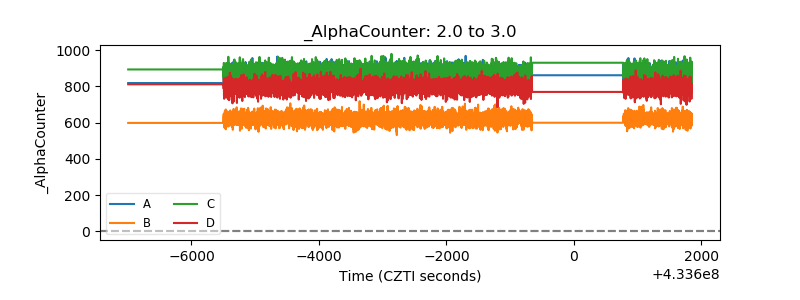

| Alpha Counter |  |
| _CPM_Rate |  |

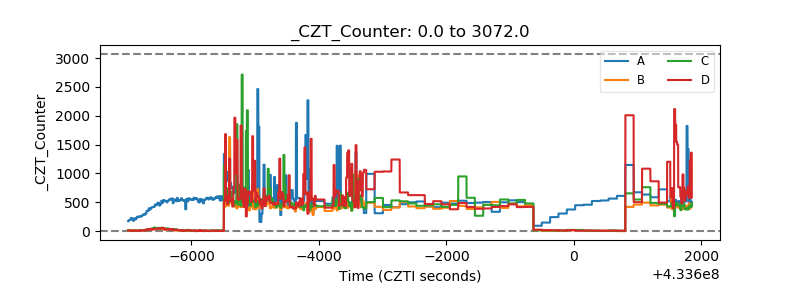

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
