| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_006T01_9000005860_43270cztM0_level2.fits | modeM0/AS1A06_006T01_9000005860_43270cztM0_level2_quad_clean.evt |
| Size (bytes) | 307,635,840 | 92,396,160 |
| Size | 293.4 MB | 88.1 MB |
| Events in quadrant A | 3,165,511 | 609,362 |
| Events in quadrant B | 2,394,929 | 650,342 |
| Events in quadrant C | 2,737,551 | 614,446 |
| Events in quadrant D | 2,677,628 | 553,578 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29 | 0 |
| B | 0 | 30 | 0 |
| C | 0 | 30 | 0 |
| D | 0 | 30 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12556 | 2 |
| B | 0 | 10699 | 2 |
| C | 0 | 11179 | 2 |
| D | 0 | 11705 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5286 | 83 | 1.570185% |
| B | 5286 | 15 | 0.283768% |
| C | 5286 | 28 | 0.529701% |
| D | 5286 | 84 | 1.589103% |

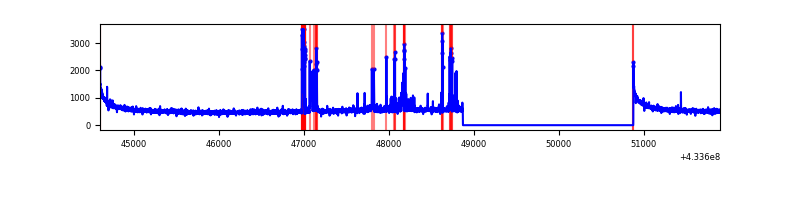

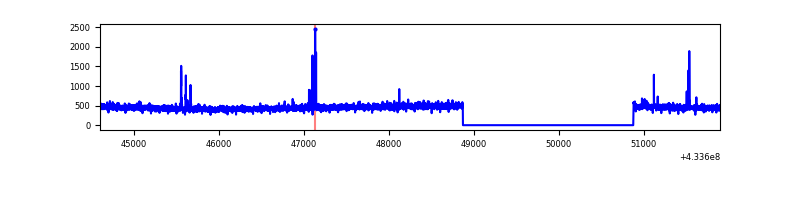

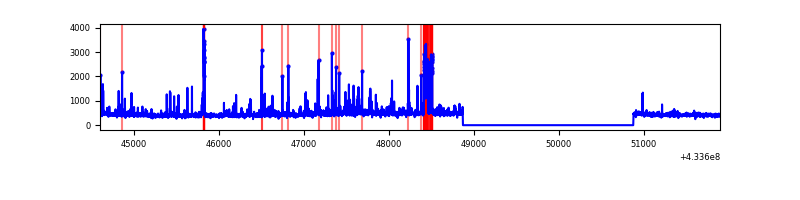

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7290 | 5287 | 62 | 62 | 0.85% | 1.17% |  |
| B | 7290 | 5287 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7290 | 5287 | 25 | 25 | 0.34% | 0.47% |  |
| D | 7290 | 5287 | 78 | 78 | 1.07% | 1.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 564205 | 4616.53 | 594 | 580 | 122.1 |
| A | 15 | 237 | 265722 | 2171.72 | 594 | 580 | 122.1 |
| A | 13 | 248 | 39892 | 322.0 | 594 | 580 | 122.1 |
| B | 5 | 172 | 37316 | 318.53 | 597 | 580 | 115.3 |
| B | 12 | 111 | 14497 | 120.67 | 597 | 580 | 115.3 |
| B | 11 | 111 | 13487 | 111.91 | 597 | 580 | 115.3 |
| C | 15 | 214 | 222543 | 1585.06 | 595 | 599 | 140.0 |
| C | 14 | 254 | 166729 | 1186.46 | 595 | 599 | 140.0 |
| C | 12 | 249 | 14159 | 96.84 | 595 | 599 | 140.0 |
| D | 2 | 249 | 302760 | 2120.44 | 586 | 572 | 142.5 |
| D | 1 | 52 | 56317 | 391.16 | 586 | 572 | 142.5 |
| D | 13 | 249 | 37473 | 258.93 | 586 | 572 | 142.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

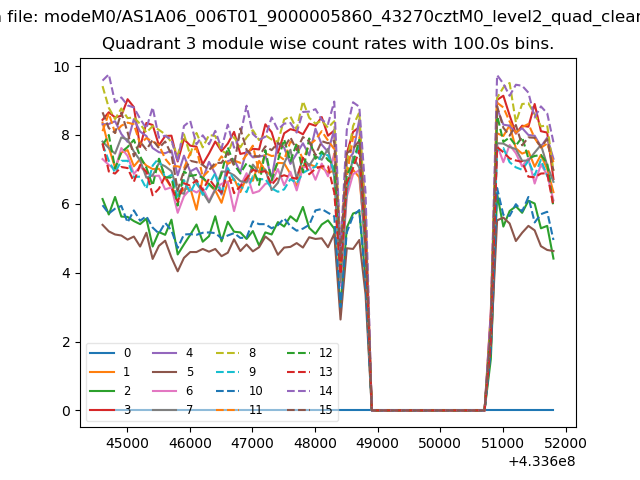

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

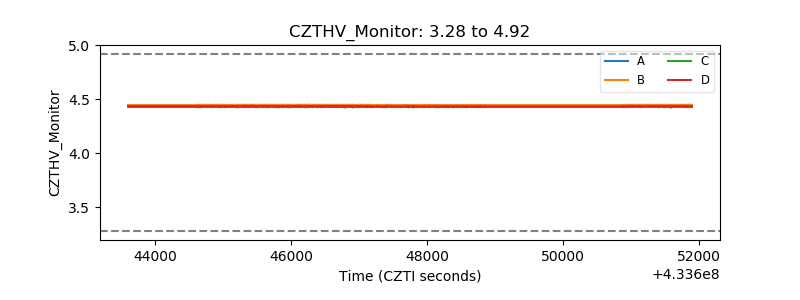

| CZT HV Monitor |  |
| D_VDD |  |

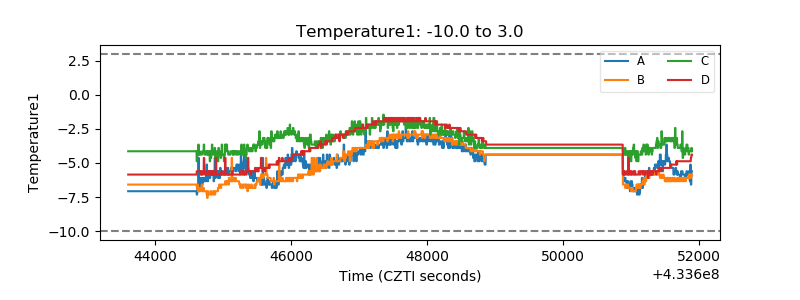

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

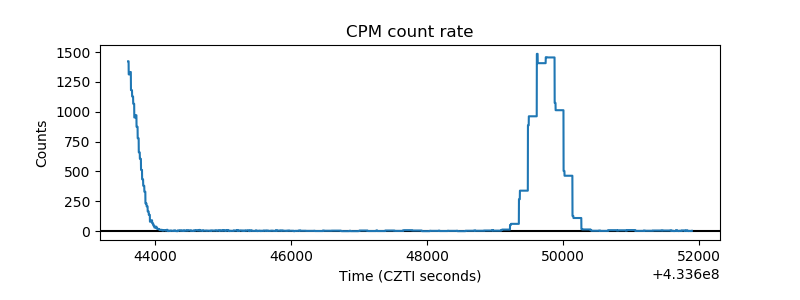

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

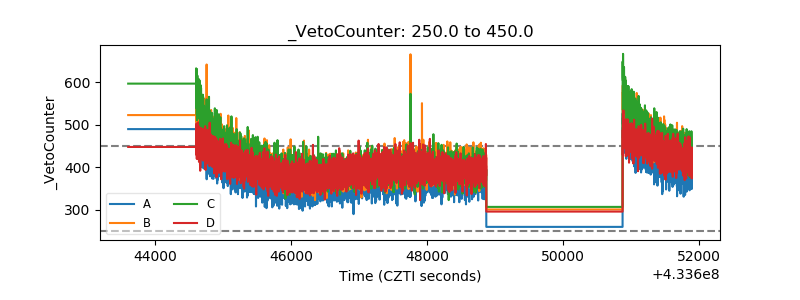

| Veto Counter |  |
