| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_006T01_9000005860_43272cztM0_level2.fits | modeM0/AS1A06_006T01_9000005860_43272cztM0_level2_quad_clean.evt |
| Size (bytes) | 303,408,000 | 86,045,760 |
| Size | 289.4 MB | 82.1 MB |
| Events in quadrant A | 3,374,341 | 556,419 |
| Events in quadrant B | 2,237,744 | 602,602 |
| Events in quadrant C | 2,606,718 | 575,228 |
| Events in quadrant D | 2,626,750 | 524,180 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13050 | 2 |
| B | 0 | 9942 | 2 |
| C | 0 | 10633 | 2 |
| D | 0 | 11052 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4947 | 197 | 3.982211% |
| B | 4947 | 6 | 0.121286% |
| C | 4947 | 17 | 0.343643% |
| D | 4947 | 34 | 0.687285% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7069 | 4948 | 156 | 156 | 2.21% | 3.15% |  |
| B | 7069 | 4948 | 2 | 2 | 0.03% | 0.04% |  |
| C | 7069 | 4948 | 11 | 11 | 0.16% | 0.22% |  |
| D | 7069 | 4948 | 23 | 23 | 0.33% | 0.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 539708 | 4745.75 | 555 | 543 | 113.6 |
| A | 15 | 237 | 469237 | 4125.47 | 555 | 543 | 113.6 |
| A | 13 | 248 | 206824 | 1815.69 | 555 | 543 | 113.6 |
| B | 12 | 111 | 13618 | 119.79 | 564 | 549 | 109.1 |
| B | 5 | 255 | 13268 | 116.58 | 564 | 549 | 109.1 |
| B | 11 | 111 | 12804 | 112.33 | 564 | 549 | 109.1 |
| C | 15 | 214 | 208724 | 1587.06 | 561 | 563 | 131.2 |
| C | 14 | 254 | 138582 | 1052.28 | 561 | 563 | 131.2 |
| C | 3 | 233 | 52150 | 393.31 | 561 | 563 | 131.2 |
| D | 2 | 249 | 172691 | 1256.19 | 559 | 544 | 137.0 |
| D | 1 | 52 | 169257 | 1231.13 | 559 | 544 | 137.0 |
| D | 12 | 6 | 66152 | 478.75 | 559 | 544 | 137.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

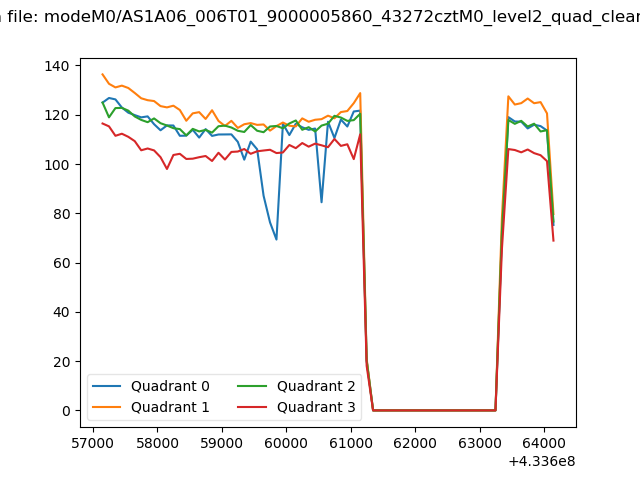

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

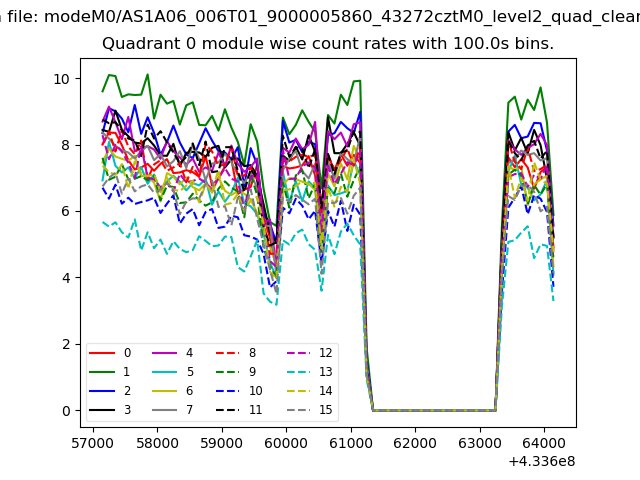

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

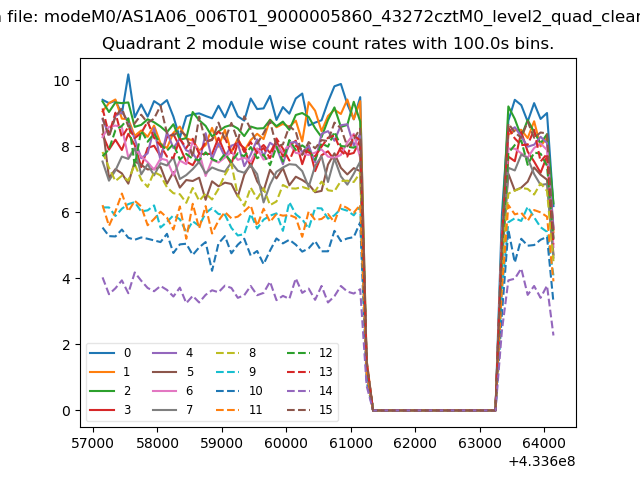

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

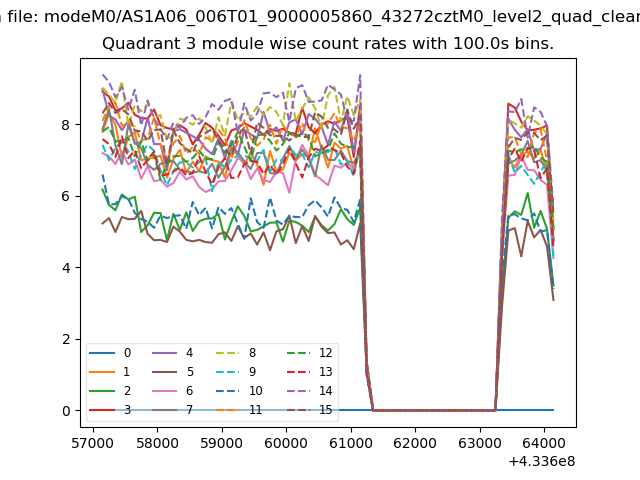

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

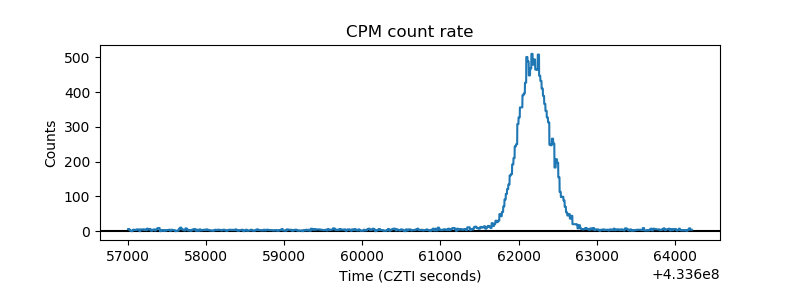

| _CPM_Rate |  |
| CZT Counter |  |

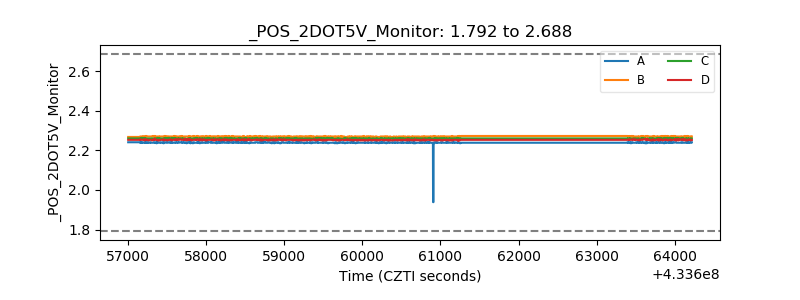

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

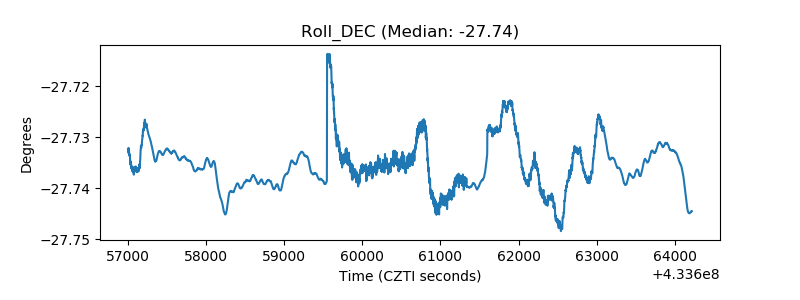

| _Roll_RA |  |

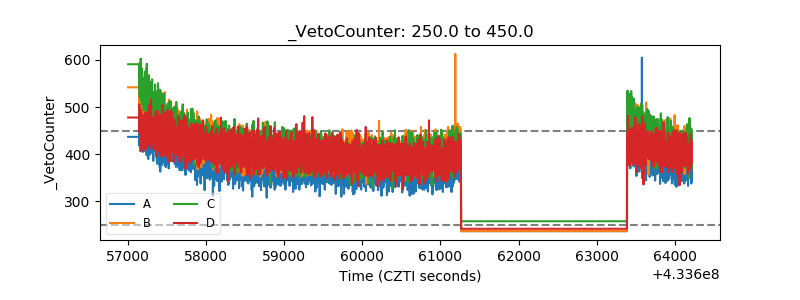

| Veto Counter |  |
