| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_089T01_9000005864_43286cztM0_level2.fits | modeM0/AS1A12_089T01_9000005864_43286cztM0_level2_quad_clean.evt |
| Size (bytes) | 314,441,280 | 86,342,400 |
| Size | 299.9 MB | 82.3 MB |
| Events in quadrant A | 3,264,221 | 577,904 |
| Events in quadrant B | 2,506,049 | 604,630 |
| Events in quadrant C | 2,583,937 | 574,441 |
| Events in quadrant D | 2,909,643 | 518,822 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 28 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12648 | 2 |
| B | 0 | 10421 | 2 |
| C | 0 | 10337 | 2 |
| D | 0 | 11815 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4823 | 116 | 2.405142% |
| B | 4823 | 50 | 1.036699% |
| C | 4823 | 7 | 0.145138% |
| D | 4823 | 91 | 1.886792% |

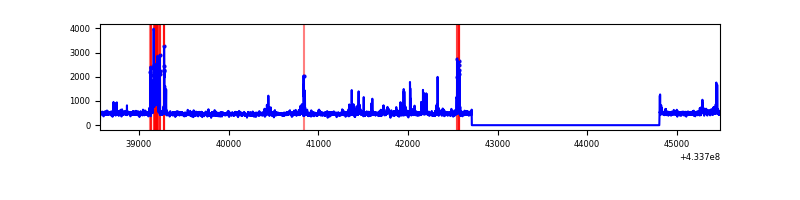

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6916 | 4824 | 95 | 95 | 1.37% | 1.97% |  |
| B | 6916 | 4824 | 31 | 31 | 0.45% | 0.64% |  |
| C | 6916 | 4824 | 2 | 2 | 0.03% | 0.04% |  |
| D | 6916 | 4824 | 84 | 84 | 1.21% | 1.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 545380 | 4682.8 | 565 | 554 | 116.3 |
| A | 15 | 237 | 447549 | 3841.94 | 565 | 554 | 116.3 |
| A | 12 | 189 | 72675 | 619.88 | 565 | 554 | 116.3 |
| B | 5 | 172 | 116855 | 1070.15 | 566 | 552 | 108.7 |
| B | 0 | 189 | 46308 | 421.02 | 566 | 552 | 108.7 |
| B | 0 | 186 | 42812 | 388.85 | 566 | 552 | 108.7 |
| C | 15 | 214 | 205905 | 1587.99 | 554 | 559 | 129.3 |
| C | 3 | 233 | 154091 | 1187.3 | 554 | 559 | 129.3 |
| C | 14 | 254 | 26593 | 201.33 | 554 | 559 | 129.3 |
| D | 12 | 6 | 170279 | 1271.3 | 548 | 534 | 133.5 |
| D | 1 | 47 | 150317 | 1121.8 | 548 | 534 | 133.5 |
| D | 13 | 249 | 149000 | 1111.94 | 548 | 534 | 133.5 |

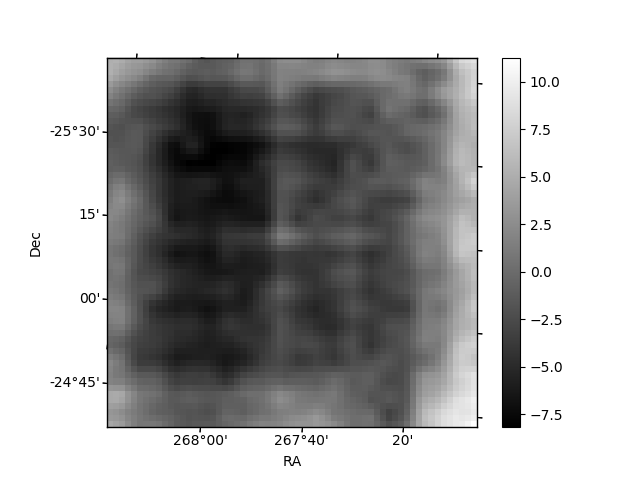

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

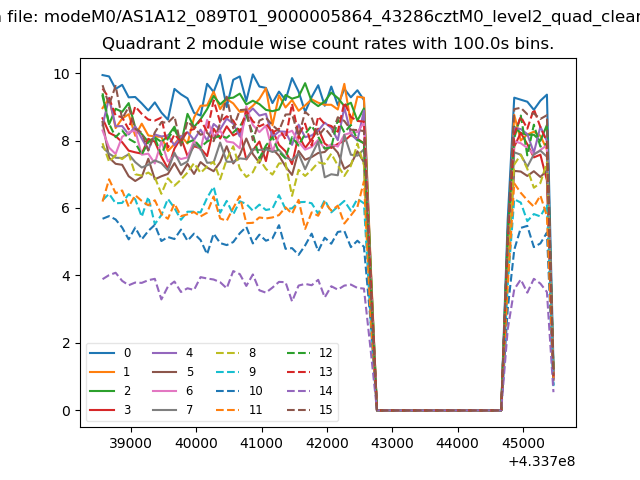

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

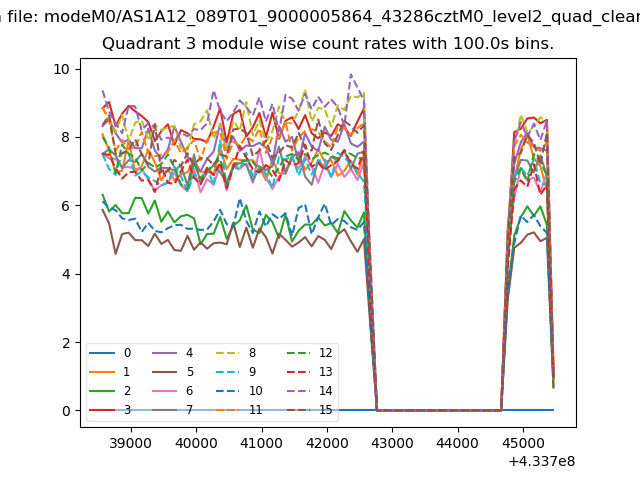

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

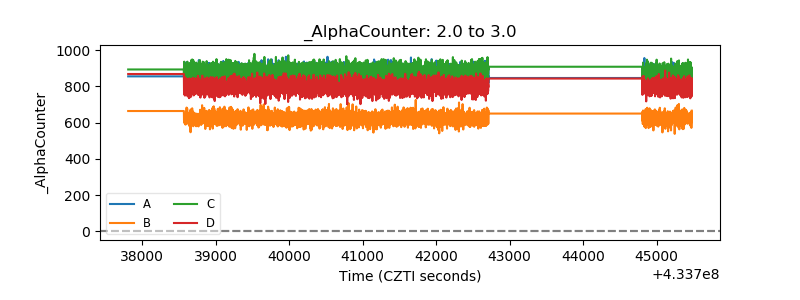

| Alpha Counter |  |
| _CPM_Rate |  |

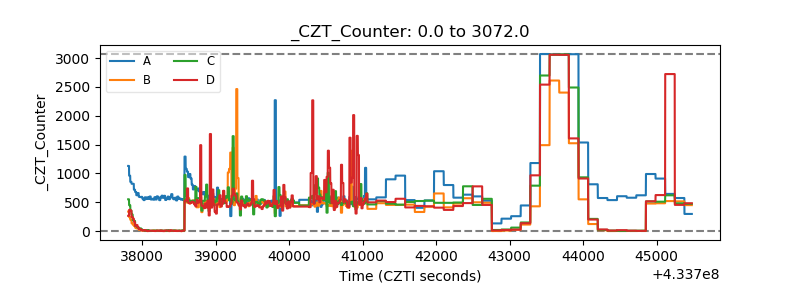

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

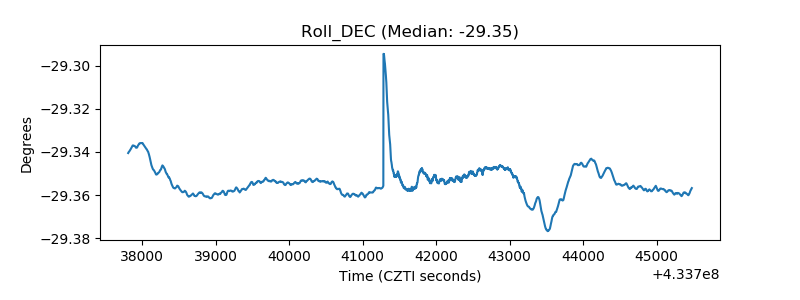

| _Roll_DEC |  |

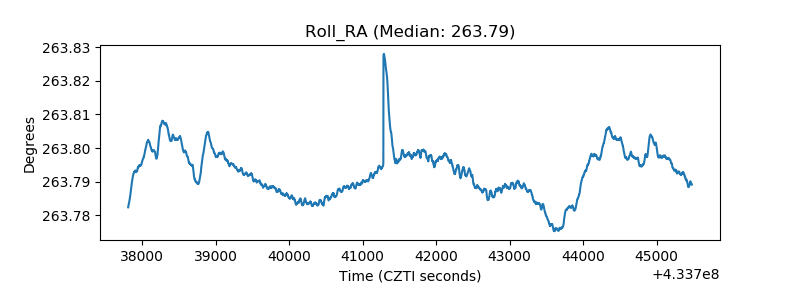

| _Roll_RA |  |
