| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_089T01_9000005864_43298cztM0_level2.fits | modeM0/AS1A12_089T01_9000005864_43298cztM0_level2_quad_clean.evt |
| Size (bytes) | 340,145,280 | 93,772,800 |
| Size | 324.4 MB | 89.4 MB |
| Events in quadrant A | 3,364,854 | 628,676 |
| Events in quadrant B | 2,722,841 | 657,320 |
| Events in quadrant C | 2,741,950 | 616,930 |
| Events in quadrant D | 3,333,127 | 551,696 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 28 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13354 | 2 |
| B | 0 | 11603 | 2 |
| C | 0 | 11387 | 2 |
| D | 0 | 13694 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5500 | 74 | 1.345455% |
| B | 5500 | 32 | 0.581818% |
| C | 5500 | 17 | 0.309091% |
| D | 5500 | 155 | 2.818182% |

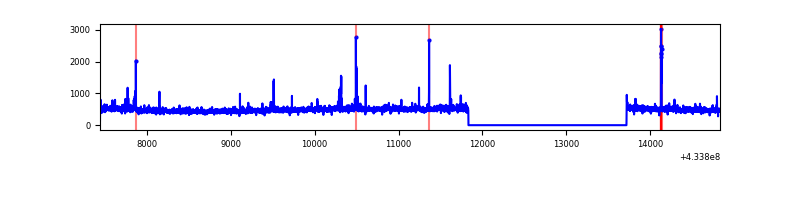

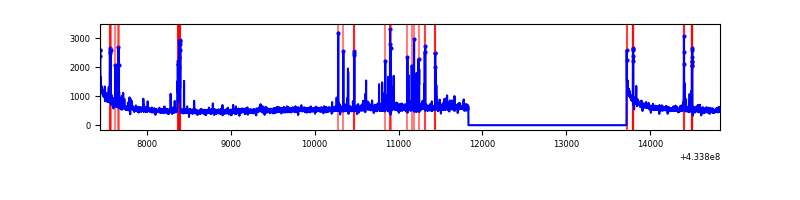

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

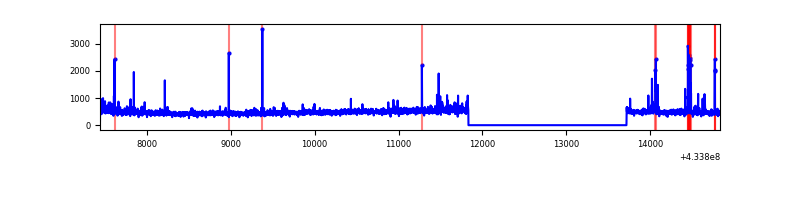

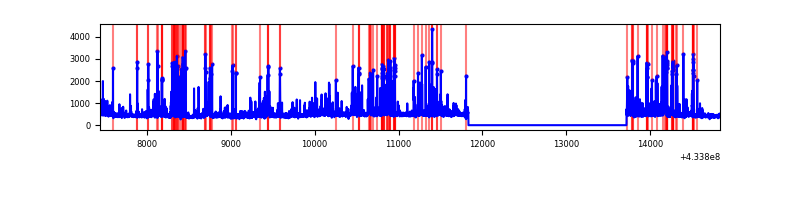

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7383 | 5501 | 57 | 57 | 0.77% | 1.04% |  |
| B | 7383 | 5501 | 18 | 18 | 0.24% | 0.33% |  |
| C | 7383 | 5501 | 10 | 10 | 0.14% | 0.18% |  |
| D | 7383 | 5501 | 144 | 144 | 1.95% | 2.62% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 593475 | 4649.26 | 620 | 608 | 127.5 |
| A | 15 | 237 | 197480 | 1543.87 | 620 | 608 | 127.5 |
| A | 12 | 189 | 107823 | 840.78 | 620 | 608 | 127.5 |
| B | 5 | 172 | 100621 | 833.28 | 625 | 607 | 120.0 |
| B | 0 | 189 | 55772 | 459.62 | 625 | 607 | 120.0 |
| B | 5 | 255 | 39729 | 325.95 | 625 | 607 | 120.0 |
| C | 15 | 214 | 231689 | 1613.37 | 610 | 613 | 143.2 |
| C | 15 | 159 | 93818 | 650.76 | 610 | 613 | 143.2 |
| C | 3 | 233 | 21674 | 147.05 | 610 | 613 | 143.2 |
| D | 13 | 249 | 392179 | 2670.14 | 597 | 580 | 146.7 |
| D | 1 | 52 | 305051 | 2076.05 | 597 | 580 | 146.7 |
| D | 12 | 6 | 160062 | 1087.44 | 597 | 580 | 146.7 |

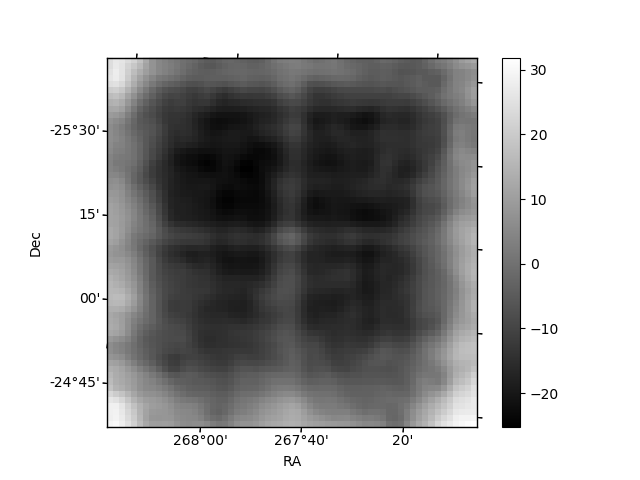

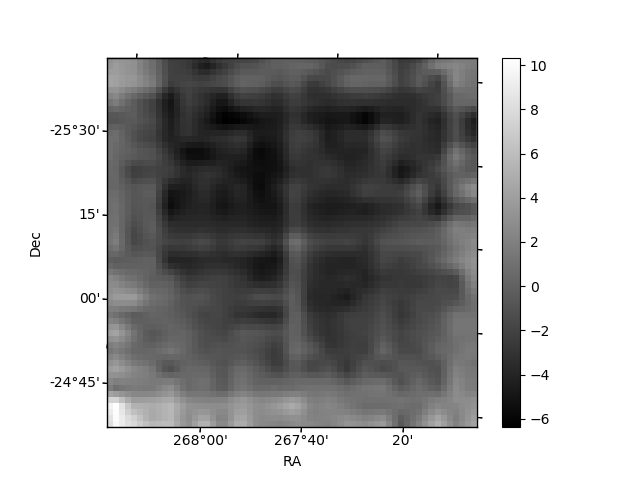

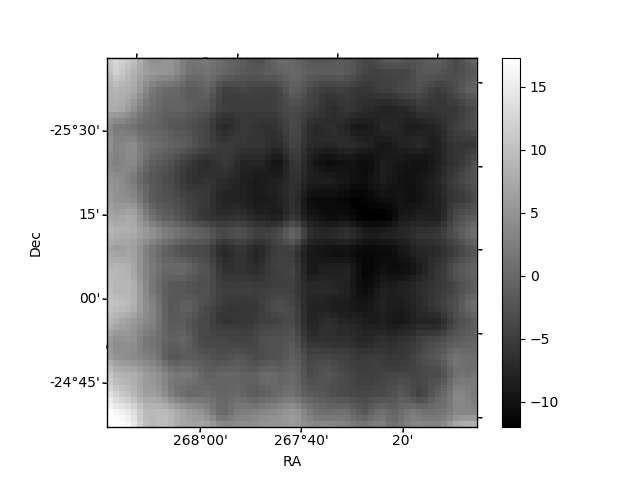

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

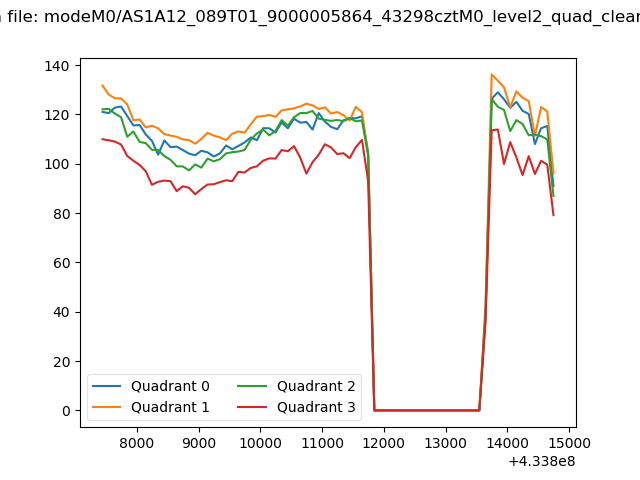

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

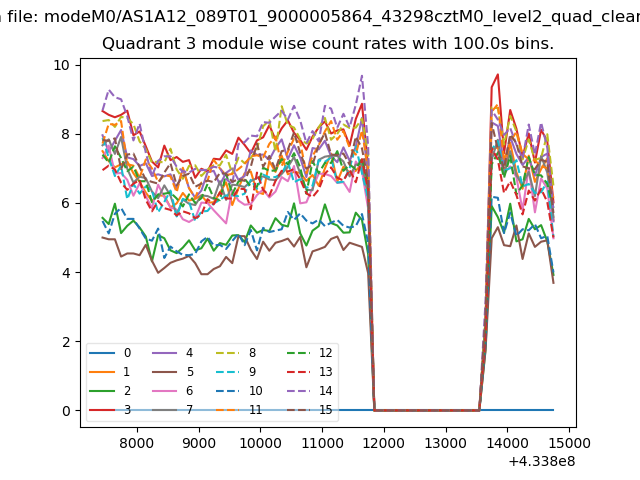

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

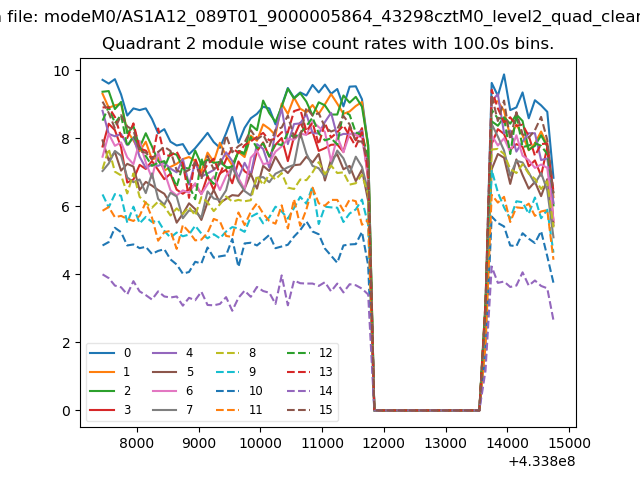

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

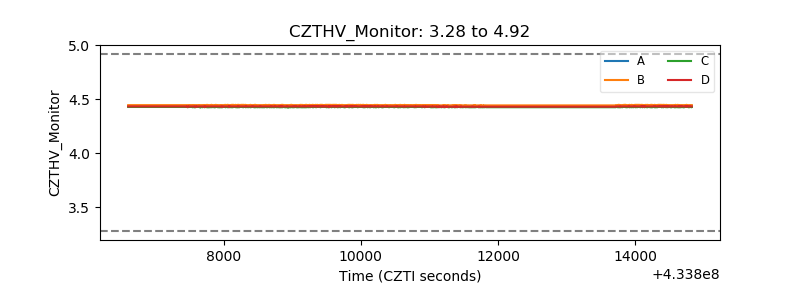

| CZT HV Monitor |  |

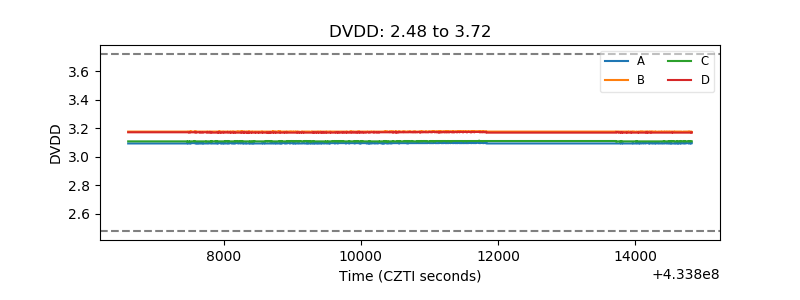

| D_VDD |  |

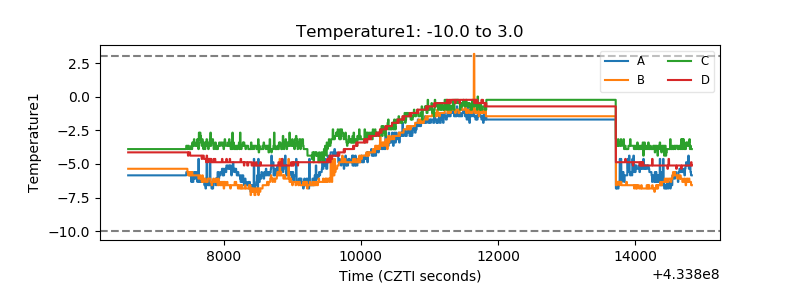

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

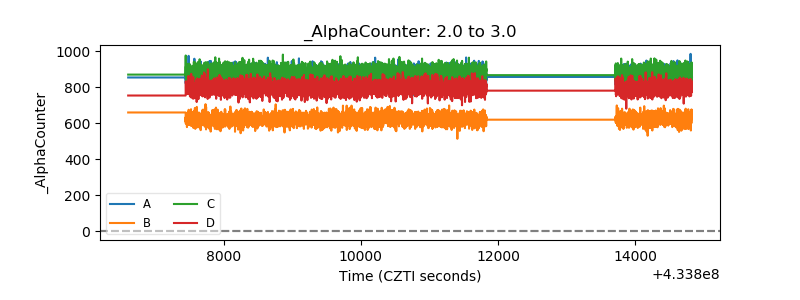

| Alpha Counter |  |

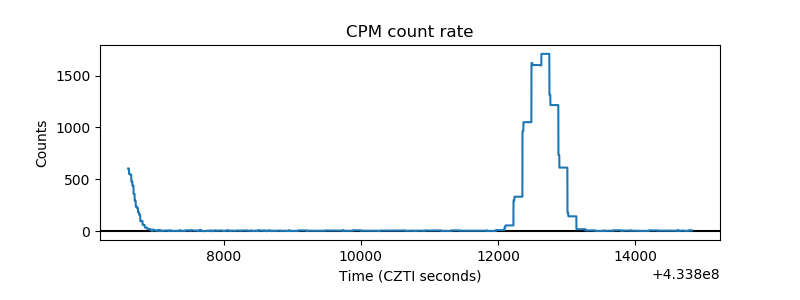

| _CPM_Rate |  |

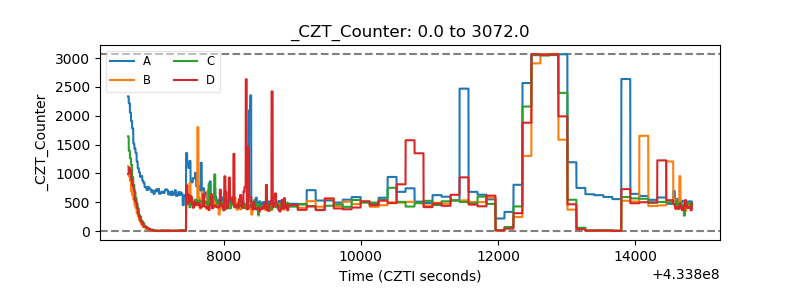

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

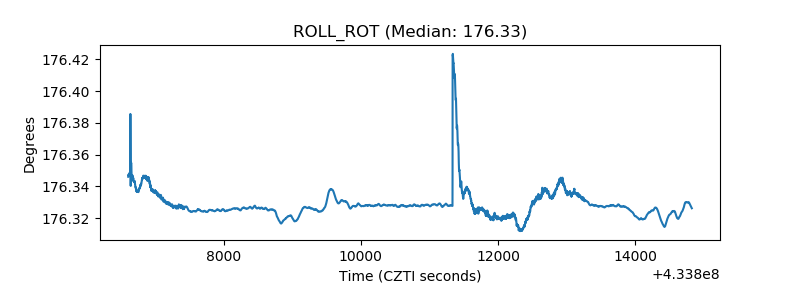

| _ROLL_ROT |  |

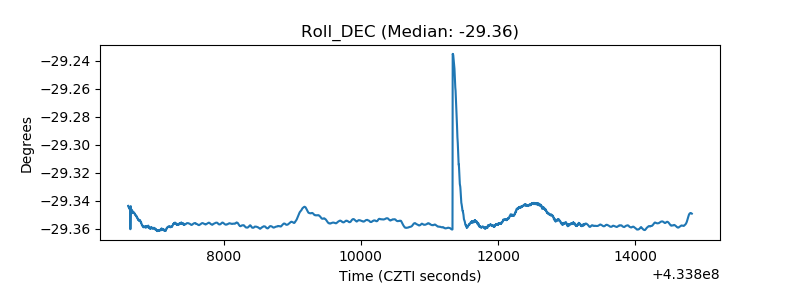

| _Roll_DEC |  |

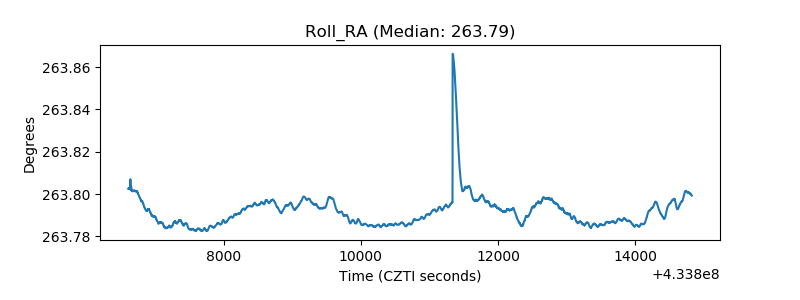

| _Roll_RA |  |
| Veto Counter |  |
