| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_089T01_9000005864_43299cztM0_level2.fits | modeM0/AS1A12_089T01_9000005864_43299cztM0_level2_quad_clean.evt |
| Size (bytes) | 332,049,600 | 92,566,080 |
| Size | 316.7 MB | 88.3 MB |
| Events in quadrant A | 3,347,356 | 624,042 |
| Events in quadrant B | 2,911,551 | 647,891 |
| Events in quadrant C | 2,635,370 | 613,127 |
| Events in quadrant D | 2,987,761 | 550,082 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13306 | 2 |
| B | 0 | 11915 | 2 |
| C | 0 | 10726 | 2 |
| D | 0 | 12437 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5254 | 73 | 1.389418% |
| B | 5254 | 107 | 2.036544% |
| C | 5255 | 12 | 0.228354% |
| D | 5254 | 128 | 2.436239% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7227 | 5255 | 60 | 60 | 0.83% | 1.14% |  |
| B | 7227 | 5255 | 84 | 84 | 1.16% | 1.60% |  |
| C | 7228 | 5256 | 7 | 7 | 0.10% | 0.13% |  |
| D | 7227 | 5255 | 122 | 122 | 1.69% | 2.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 566603 | 4503.49 | 612 | 600 | 125.7 |
| A | 15 | 237 | 263728 | 2093.62 | 612 | 600 | 125.7 |
| A | 12 | 189 | 111704 | 884.02 | 612 | 600 | 125.7 |
| B | 4 | 36 | 242082 | 2058.26 | 613 | 597 | 117.3 |
| B | 5 | 172 | 154988 | 1315.93 | 613 | 597 | 117.3 |
| B | 0 | 189 | 48802 | 410.87 | 613 | 597 | 117.3 |
| C | 15 | 214 | 224013 | 1592.59 | 602 | 605 | 140.3 |
| C | 15 | 159 | 39631 | 278.2 | 602 | 605 | 140.3 |
| C | 14 | 254 | 12108 | 82.0 | 602 | 605 | 140.3 |
| D | 13 | 249 | 259716 | 1786.44 | 591 | 574 | 145.1 |
| D | 1 | 47 | 219426 | 1508.69 | 591 | 574 | 145.1 |
| D | 12 | 6 | 76115 | 520.75 | 591 | 574 | 145.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

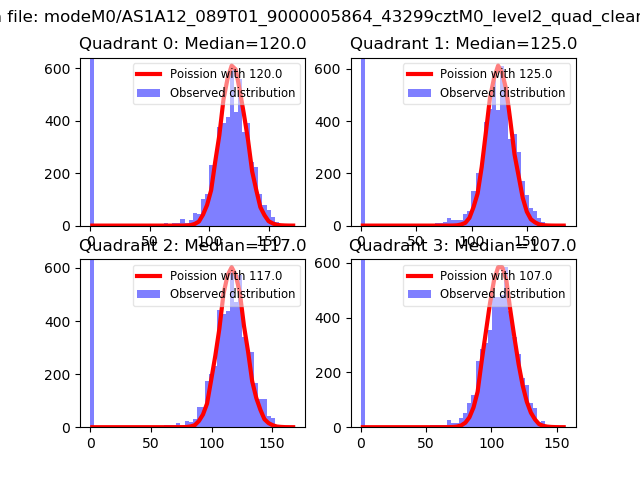

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

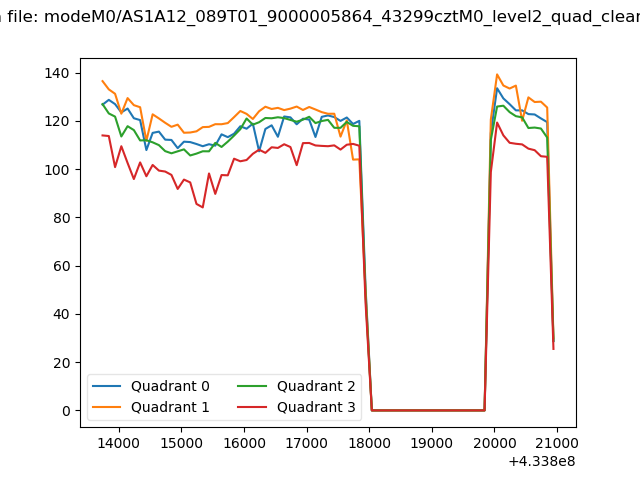

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

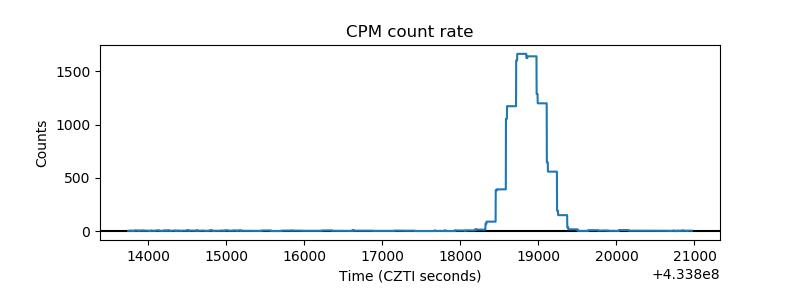

| _CPM_Rate |  |

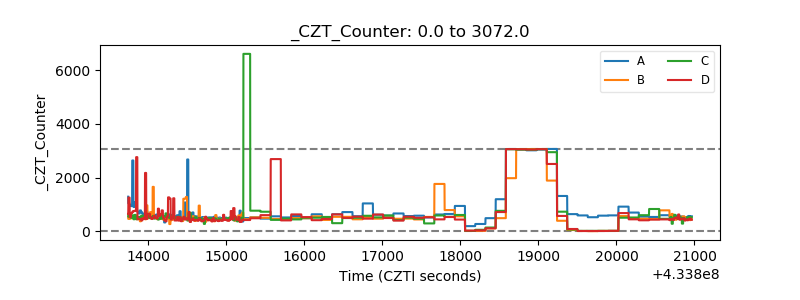

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

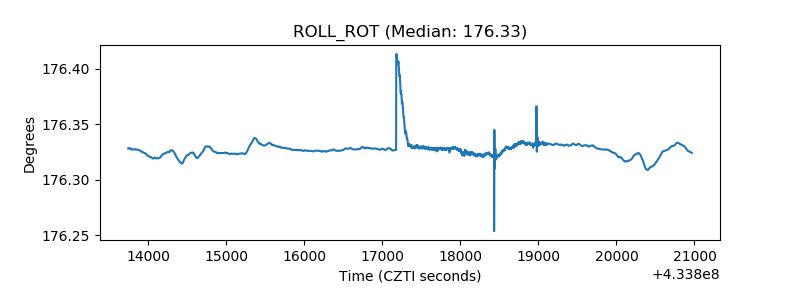

| _ROLL_ROT |  |

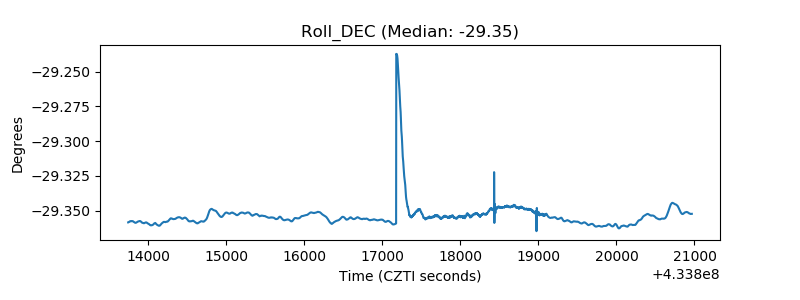

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
