| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_089T01_9000005864_43303cztM0_level2.fits | modeM0/AS1A12_089T01_9000005864_43303cztM0_level2_quad_clean.evt |
| Size (bytes) | 208,517,760 | 60,108,480 |
| Size | 198.9 MB | 57.3 MB |
| Events in quadrant A | 2,171,274 | 395,205 |
| Events in quadrant B | 1,783,225 | 413,264 |
| Events in quadrant C | 1,674,847 | 398,636 |
| Events in quadrant D | 1,811,524 | 361,652 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 72 | 0 |
| B | 0 | 72 | 0 |
| C | 0 | 72 | 0 |
| D | 0 | 72 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8492 | 1 |
| B | 0 | 7669 | 1 |
| C | 0 | 7192 | 1 |
| D | 0 | 7893 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3548 | 64 | 1.803833% |
| B | 3548 | 4 | 0.112740% |
| C | 3548 | 4 | 0.112740% |
| D | 3548 | 37 | 1.042841% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3548 | 3548 | 37 | 37 | 1.04% | 1.04% |  |
| B | 3548 | 3548 | 4 | 4 | 0.11% | 0.11% |  |
| C | 3548 | 3548 | 2 | 2 | 0.06% | 0.06% |  |
| D | 3548 | 3548 | 34 | 34 | 0.96% | 0.96% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 389071 | 4740.7 | 391 | 383 | 82.0 |
| A | 15 | 237 | 208134 | 2533.87 | 391 | 383 | 82.0 |
| A | 15 | 222 | 23161 | 277.82 | 391 | 383 | 82.0 |
| B | 0 | 245 | 139681 | 1815.82 | 389 | 379 | 76.7 |
| B | 0 | 189 | 63883 | 827.78 | 389 | 379 | 76.7 |
| B | 0 | 186 | 27376 | 351.91 | 389 | 379 | 76.7 |
| C | 15 | 214 | 151220 | 1678.83 | 380 | 383 | 89.8 |
| C | 14 | 254 | 21848 | 238.91 | 380 | 383 | 89.8 |
| C | 3 | 233 | 15501 | 168.27 | 380 | 383 | 89.8 |
| D | 2 | 249 | 84135 | 878.14 | 382 | 371 | 95.4 |
| D | 13 | 249 | 82963 | 865.85 | 382 | 371 | 95.4 |
| D | 12 | 233 | 68592 | 715.2 | 382 | 371 | 95.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

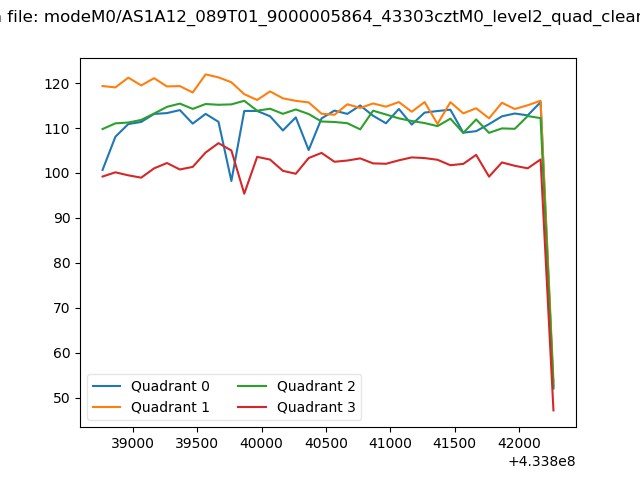

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

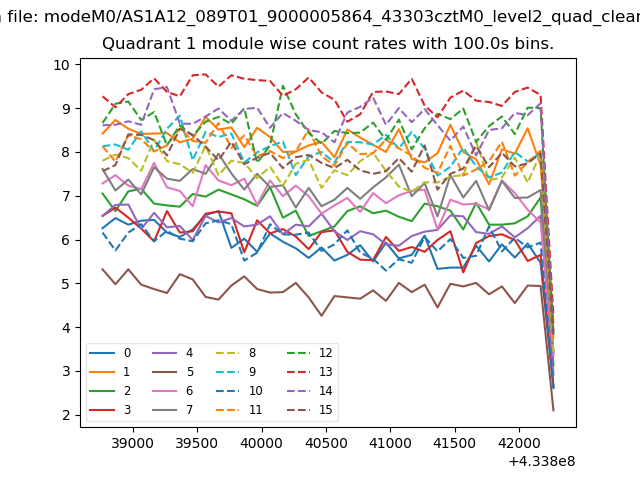

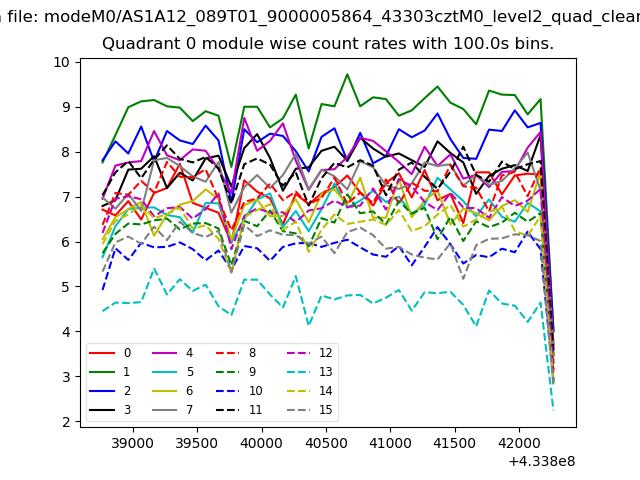

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

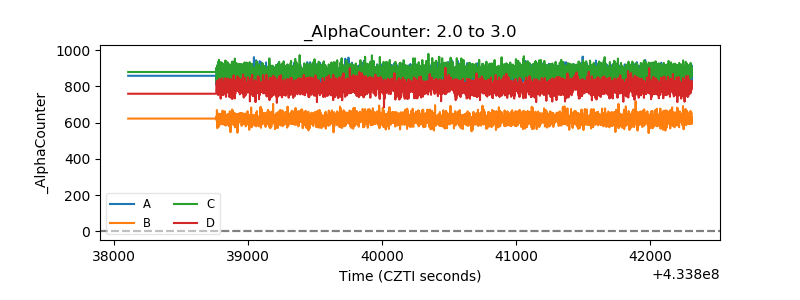

| Alpha Counter |  |

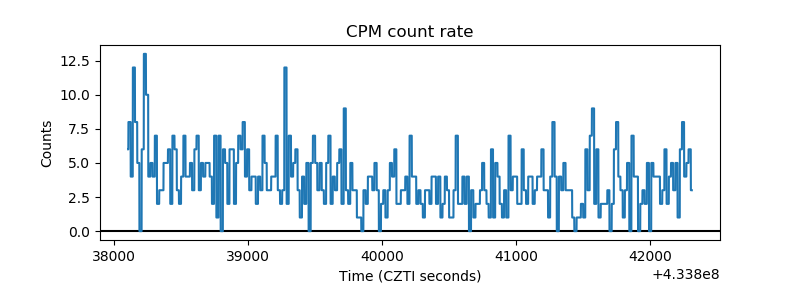

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

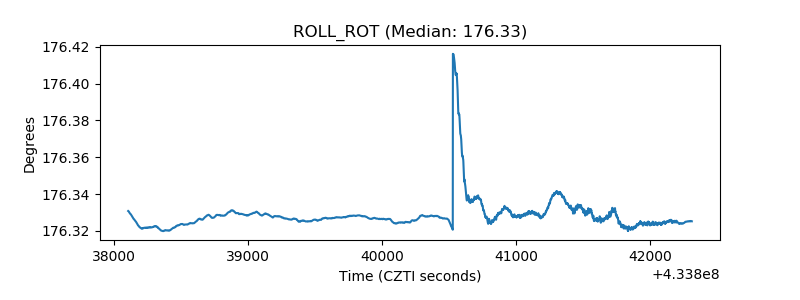

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

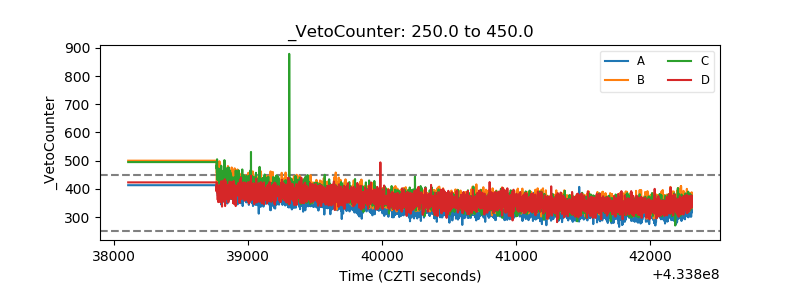

| Veto Counter |  |
