| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_088T25_9000005866_43318cztM0_level2.fits | modeM0/AS1A12_088T25_9000005866_43318cztM0_level2_quad_clean.evt |
| Size (bytes) | 356,466,240 | 90,907,200 |
| Size | 340.0 MB | 86.7 MB |
| Events in quadrant A | 3,670,489 | 607,983 |
| Events in quadrant B | 2,660,387 | 634,448 |
| Events in quadrant C | 2,599,305 | 608,779 |
| Events in quadrant D | 3,845,916 | 524,453 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 110 | 0 |
| B | 0 | 110 | 0 |
| C | 0 | 110 | 0 |
| D | 0 | 110 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14358 | 2 |
| B | 0 | 11336 | 2 |
| C | 0 | 10935 | 2 |
| D | 0 | 15042 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5382 | 131 | 2.434039% |
| B | 5382 | 30 | 0.557414% |
| C | 5382 | 6 | 0.111483% |
| D | 5382 | 332 | 6.168711% |

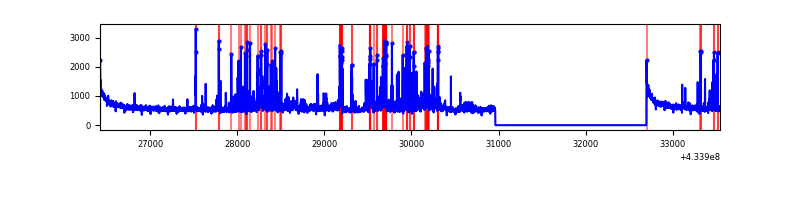

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7116 | 5383 | 101 | 101 | 1.42% | 1.88% |  |
| B | 7116 | 5383 | 19 | 19 | 0.27% | 0.35% |  |
| C | 7116 | 5383 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7116 | 5383 | 340 | 340 | 4.78% | 6.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 613045 | 4772.71 | 605 | 591 | 128.3 |
| A | 15 | 237 | 538103 | 4188.71 | 605 | 591 | 128.3 |
| A | 12 | 189 | 149786 | 1162.64 | 605 | 591 | 128.3 |
| B | 0 | 190 | 104827 | 852.63 | 606 | 587 | 122.3 |
| B | 5 | 172 | 58143 | 470.78 | 606 | 587 | 122.3 |
| B | 0 | 186 | 30422 | 244.04 | 606 | 587 | 122.3 |
| C | 15 | 214 | 230799 | 1627.77 | 592 | 595 | 141.4 |
| C | 14 | 254 | 22607 | 155.65 | 592 | 595 | 141.4 |
| C | 3 | 233 | 20989 | 144.21 | 592 | 595 | 141.4 |
| D | 1 | 52 | 608029 | 4144.56 | 577 | 557 | 146.6 |
| D | 2 | 249 | 587790 | 4006.48 | 577 | 557 | 146.6 |
| D | 1 | 47 | 194280 | 1321.7 | 577 | 557 | 146.6 |

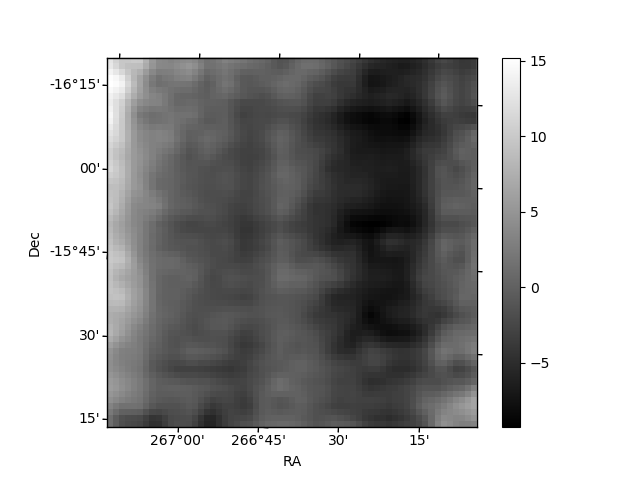

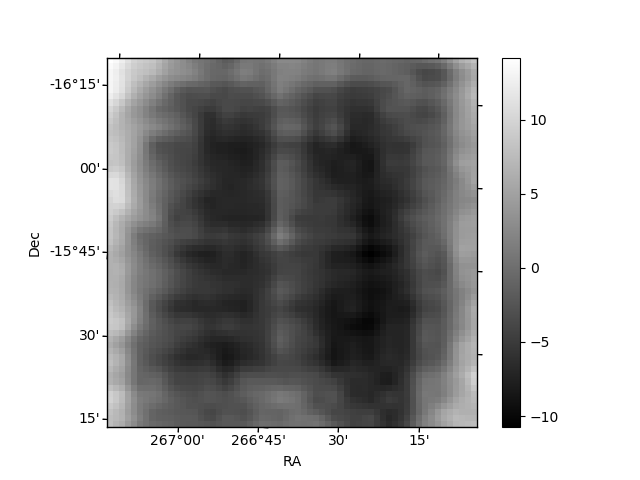

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

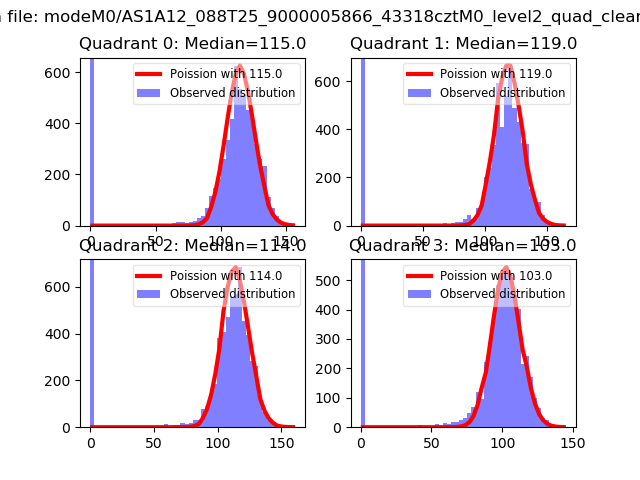

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

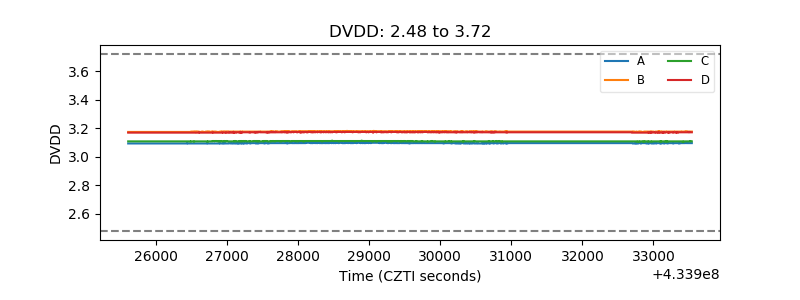

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

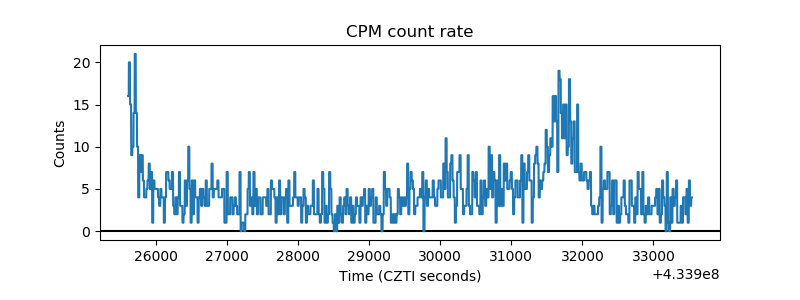

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

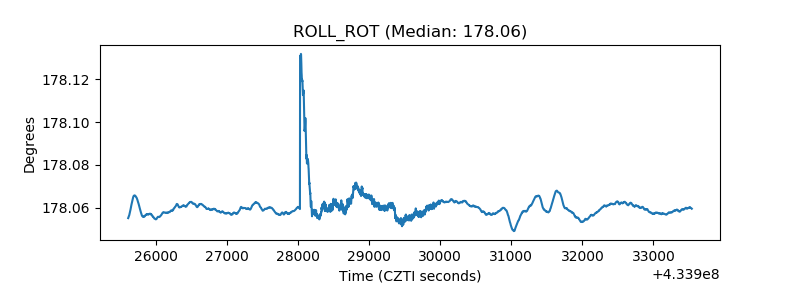

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

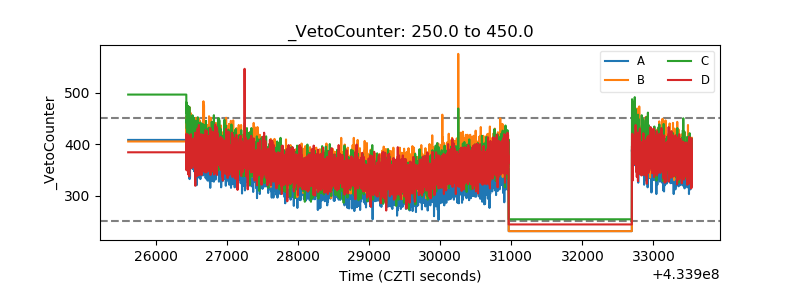

| Veto Counter |  |
