| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_158T01_9000005868_43329cztM0_level2.fits | modeM0/AS1T05_158T01_9000005868_43329cztM0_level2_quad_clean.evt |
| Size (bytes) | 284,209,920 | 88,804,800 |
| Size | 271.0 MB | 84.7 MB |
| Events in quadrant A | 2,852,351 | 600,444 |
| Events in quadrant B | 2,362,675 | 620,115 |
| Events in quadrant C | 2,518,658 | 588,487 |
| Events in quadrant D | 2,401,673 | 534,043 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11314 | 2 |
| B | 0 | 10132 | 2 |
| C | 0 | 10129 | 2 |
| D | 0 | 10532 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32 | 0 |
| B | 0 | 33 | 0 |
| C | 0 | 33 | 0 |
| D | 0 | 33 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4937 | 32 | 0.648167% |
| B | 4937 | 15 | 0.303828% |
| C | 4937 | 2 | 0.040510% |
| D | 4937 | 39 | 0.789953% |

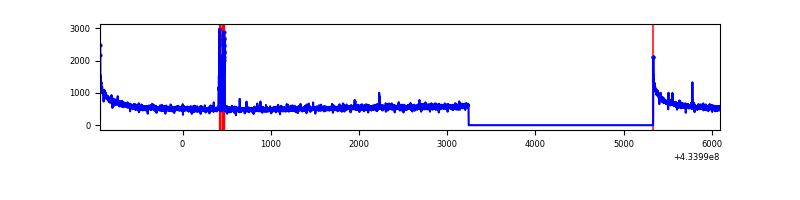

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7029 | 4938 | 26 | 26 | 0.37% | 0.53% |  |
| B | 7029 | 4938 | 5 | 5 | 0.07% | 0.10% |  |
| C | 7029 | 4938 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7029 | 4938 | 30 | 30 | 0.43% | 0.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 522913 | 4408.06 | 582 | 570 | 118.5 |
| A | 15 | 237 | 74718 | 625.74 | 582 | 570 | 118.5 |
| A | 13 | 6 | 6533 | 50.32 | 582 | 570 | 118.5 |
| B | 5 | 172 | 48377 | 431.74 | 574 | 558 | 110.8 |
| B | 0 | 245 | 34819 | 309.33 | 574 | 558 | 110.8 |
| B | 12 | 111 | 14208 | 123.24 | 574 | 558 | 110.8 |
| C | 15 | 214 | 208159 | 1547.07 | 572 | 577 | 134.2 |
| C | 3 | 233 | 57349 | 423.11 | 572 | 577 | 134.2 |
| C | 2 | 16 | 20737 | 150.25 | 572 | 577 | 134.2 |
| D | 13 | 249 | 102939 | 726.7 | 567 | 552 | 140.9 |
| D | 1 | 47 | 49049 | 344.21 | 567 | 552 | 140.9 |
| D | 2 | 249 | 42582 | 298.31 | 567 | 552 | 140.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

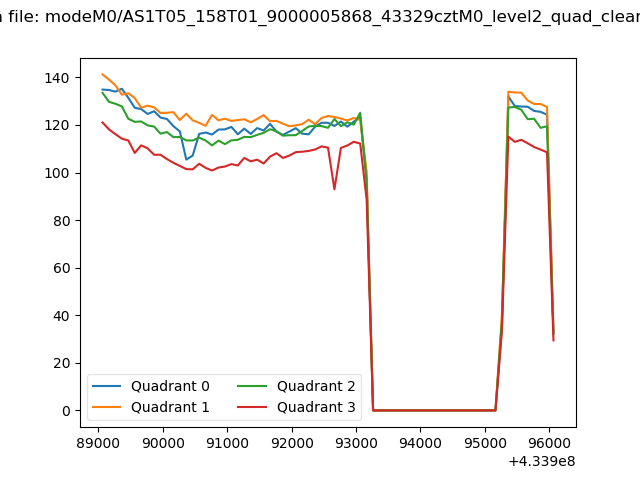

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

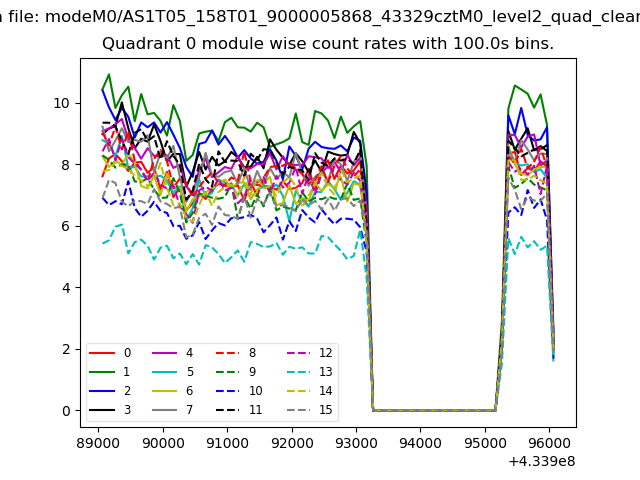

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

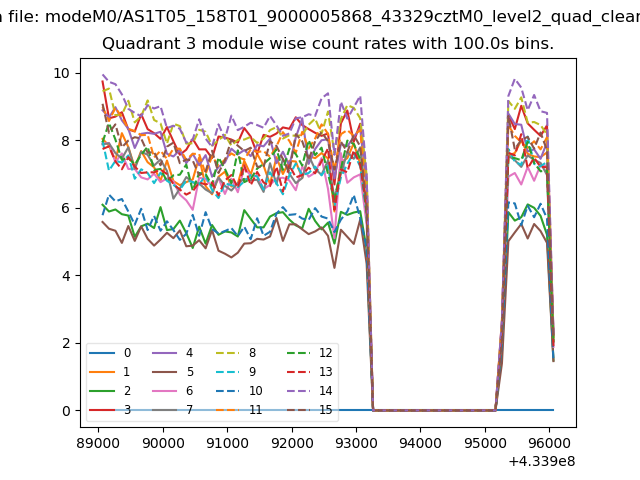

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

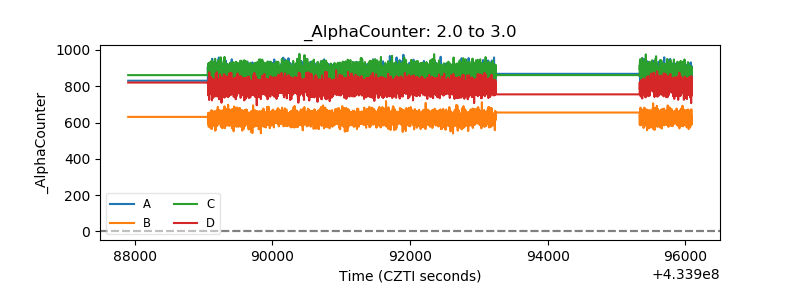

| Alpha Counter |  |

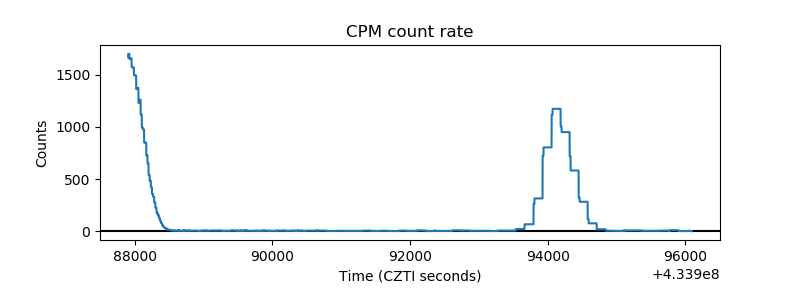

| _CPM_Rate |  |

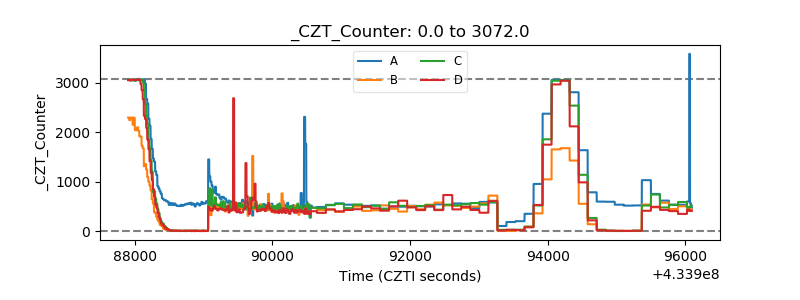

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

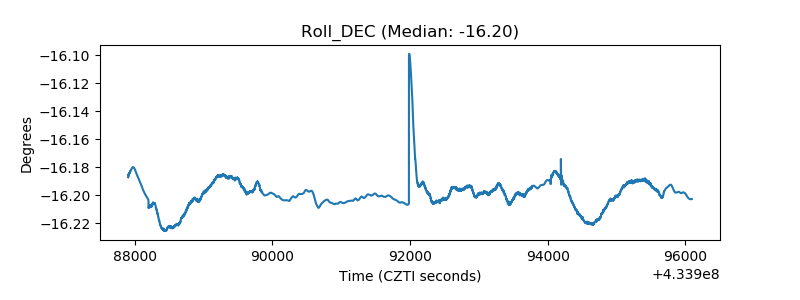

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
