| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_158T01_9000005868_43352cztM0_level2.fits | modeM0/AS1T05_158T01_9000005868_43352cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,025,740,800 | 286,326,720 |
| Size | 978.2 MB | 273.1 MB |
| Events in quadrant A | 9,862,070 | 1,908,511 |
| Events in quadrant B | 8,341,960 | 1,945,380 |
| Events in quadrant C | 8,599,866 | 1,866,920 |
| Events in quadrant D | 9,775,494 | 1,711,759 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 40156 | 4 |
| B | 0 | 37035 | 4 |
| C | 0 | 36857 | 4 |
| D | 0 | 41901 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 46 | 0 |
| B | 0 | 47 | 0 |
| C | 0 | 47 | 0 |
| D | 0 | 47 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 364 | 0 |
| B | 0 | 364 | 0 |
| C | 0 | 364 | 0 |
| D | 0 | 364 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 17944 | 172 | 0.958538% |
| B | 17944 | 67 | 0.373384% |
| C | 17944 | 14 | 0.078021% |
| D | 17944 | 296 | 1.649576% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 21941 | 17947 | 121 | 121 | 0.55% | 0.67% |  |
| B | 21941 | 17947 | 27 | 27 | 0.12% | 0.15% |  |
| C | 21941 | 17947 | 3 | 3 | 0.01% | 0.02% |  |
| D | 21941 | 17947 | 262 | 262 | 1.19% | 1.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1625740 | 4063.0 | 1952 | 1911 | 399.7 |
| A | 15 | 237 | 561402 | 1399.91 | 1952 | 1911 | 399.7 |
| A | 13 | 248 | 98865 | 242.59 | 1952 | 1911 | 399.7 |
| B | 0 | 189 | 223380 | 583.92 | 1944 | 1886 | 379.3 |
| B | 5 | 172 | 208107 | 543.66 | 1944 | 1886 | 379.3 |
| B | 0 | 245 | 93023 | 240.26 | 1944 | 1886 | 379.3 |
| C | 15 | 214 | 734457 | 1638.4 | 1920 | 1935 | 447.1 |
| C | 15 | 208 | 266565 | 591.89 | 1920 | 1935 | 447.1 |
| C | 14 | 254 | 42470 | 90.66 | 1920 | 1935 | 447.1 |
| D | 1 | 52 | 963414 | 2077.37 | 1896 | 1843 | 462.9 |
| D | 2 | 249 | 825251 | 1778.88 | 1896 | 1843 | 462.9 |
| D | 12 | 6 | 226671 | 485.72 | 1896 | 1843 | 462.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

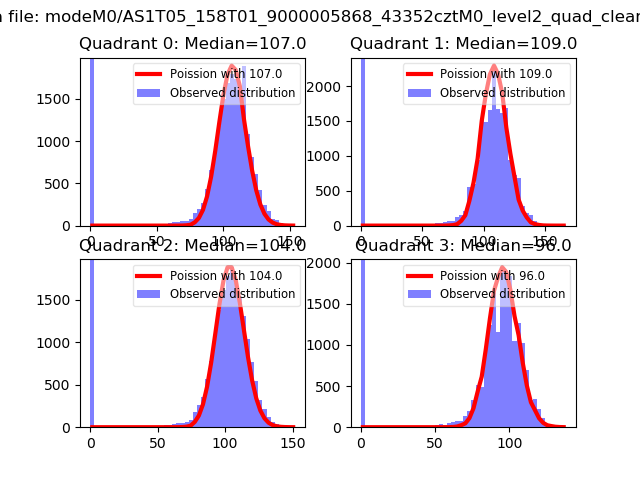

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

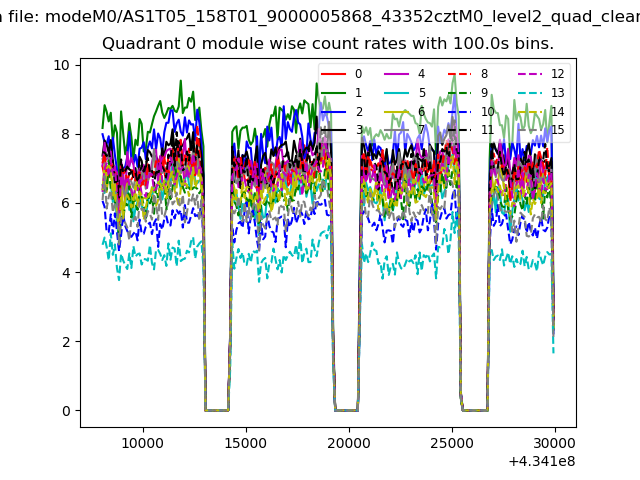

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

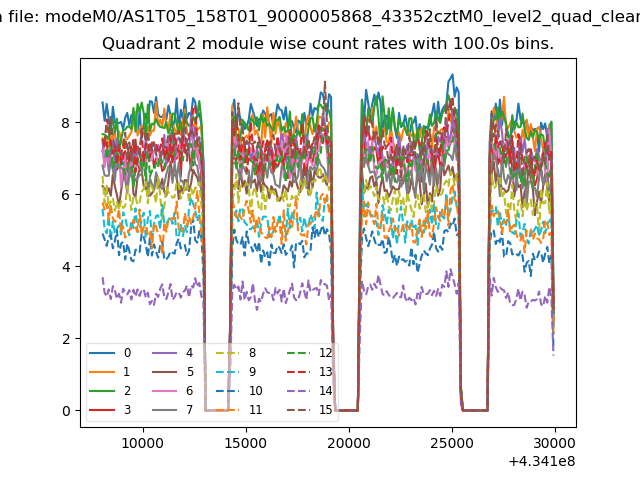

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

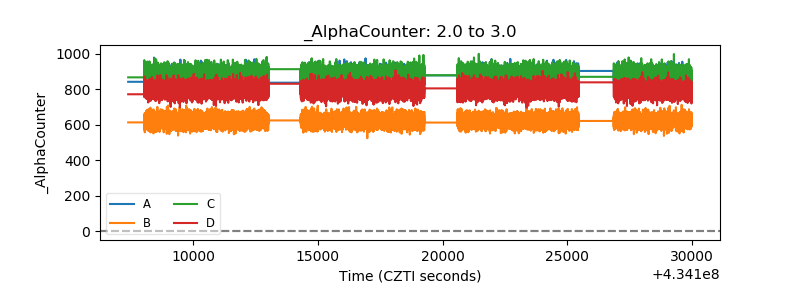

| Alpha Counter |  |
| _CPM_Rate |  |

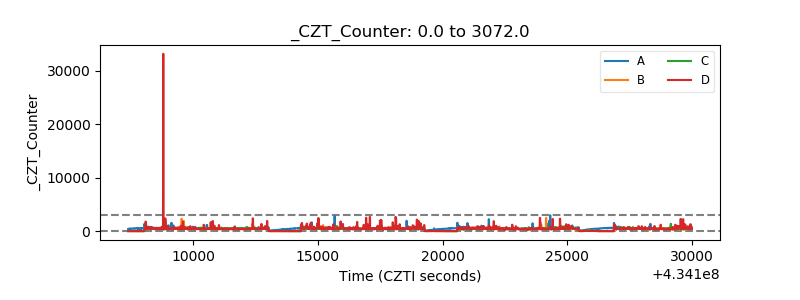

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

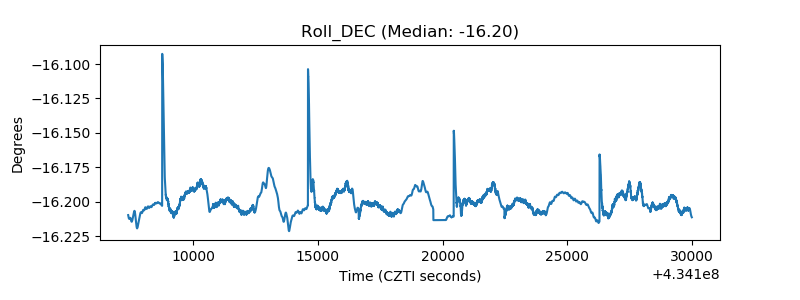

| _Roll_DEC |  |
| _Roll_RA |  |

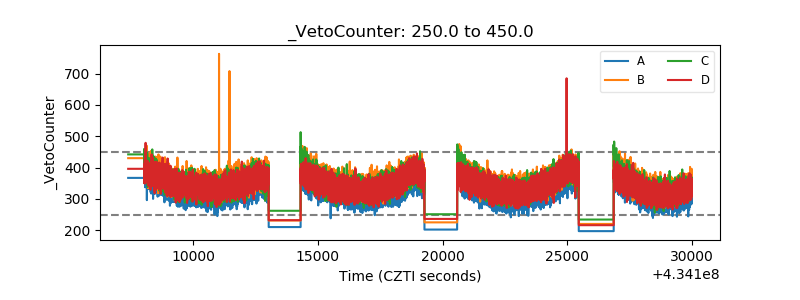

| Veto Counter |  |
