| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_143T01_9000005870_43352cztM0_level2.fits | modeM0/AS1A09_143T01_9000005870_43352cztM0_level2_quad_clean.evt |
| Size (bytes) | 89,184,960 | 22,867,200 |
| Size | 85.1 MB | 21.8 MB |
| Events in quadrant A | 968,849 | 153,537 |
| Events in quadrant B | 746,018 | 155,827 |
| Events in quadrant C | 678,116 | 146,689 |
| Events in quadrant D | 799,676 | 135,126 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 28 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3701 | 1 |
| B | 0 | 3067 | 1 |
| C | 0 | 2754 | 1 |
| D | 0 | 3221 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1361 | 22 | 1.616458% |
| B | 1361 | 8 | 0.587803% |
| C | 1361 | 1 | 0.073475% |
| D | 1360 | 17 | 1.250000% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2854 | 1362 | 14 | 14 | 0.49% | 1.03% |  |
| B | 2854 | 1362 | 3 | 3 | 0.11% | 0.22% |  |
| C | 2854 | 1362 | 0 | 0 | 0.00% | 0.00% |  |
| D | 2853 | 1361 | 14 | 14 | 0.49% | 1.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 209074 | 5883.19 | 161 | 157 | 35.5 |
| A | 13 | 248 | 118550 | 3334.0 | 161 | 157 | 35.5 |
| A | 15 | 237 | 6632 | 182.34 | 161 | 157 | 35.5 |
| B | 0 | 189 | 37670 | 1136.39 | 158 | 154 | 33.0 |
| B | 0 | 186 | 35244 | 1062.9 | 158 | 154 | 33.0 |
| B | 0 | 190 | 22040 | 662.94 | 158 | 154 | 33.0 |
| C | 15 | 214 | 60283 | 1560.45 | 157 | 157 | 38.5 |
| C | 3 | 233 | 2405 | 58.34 | 157 | 157 | 38.5 |
| C | 15 | 208 | 2326 | 56.29 | 157 | 157 | 38.5 |
| D | 1 | 52 | 157936 | 3825.2 | 158 | 153 | 41.2 |
| D | 2 | 249 | 13467 | 322.78 | 158 | 153 | 41.2 |
| D | 13 | 249 | 9074 | 216.28 | 158 | 153 | 41.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

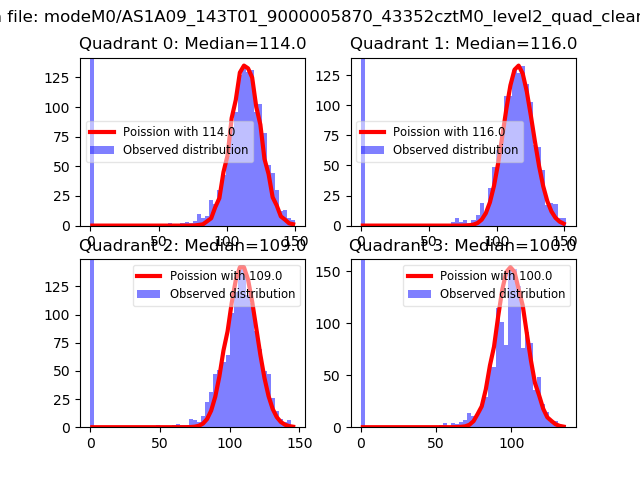

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

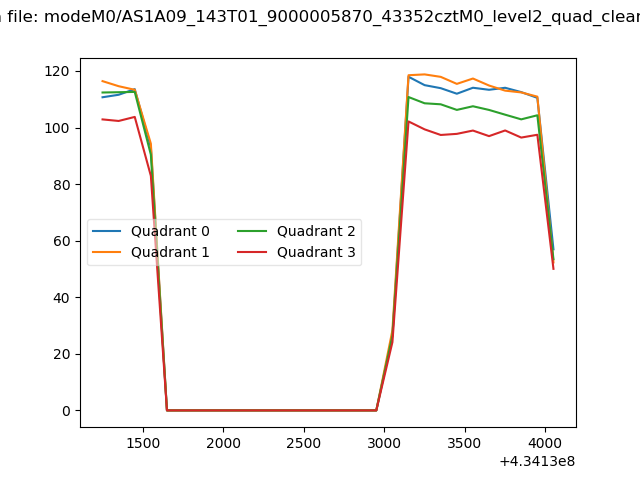

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

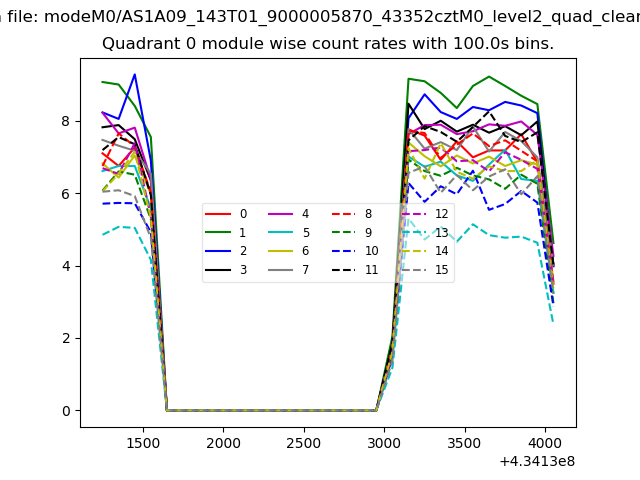

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

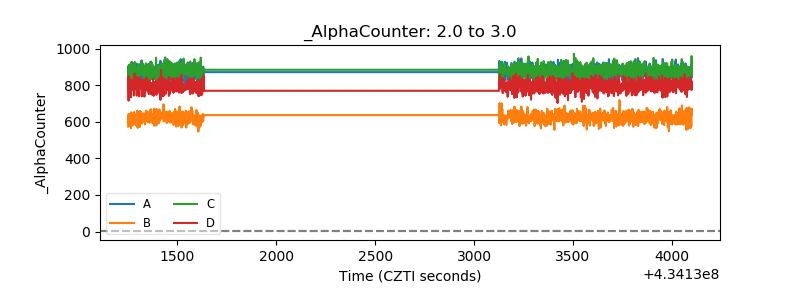

| Alpha Counter |  |

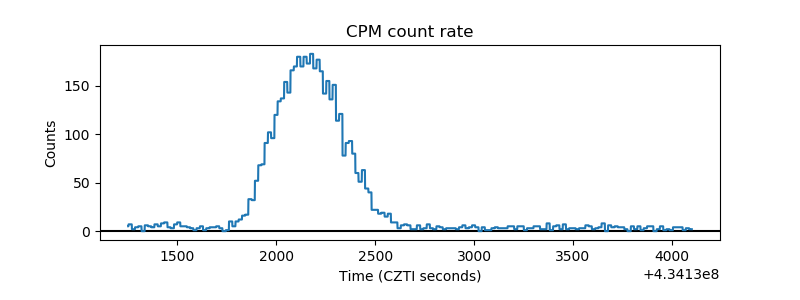

| _CPM_Rate |  |
| CZT Counter |  |

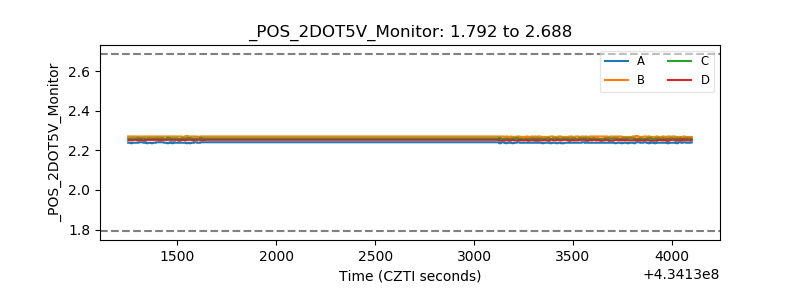

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
