| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_143T01_9000005870_43363cztM0_level2.fits | modeM0/AS1A09_143T01_9000005870_43363cztM0_level2_quad_clean.evt |
| Size (bytes) | 370,175,040 | 92,684,160 |
| Size | 353.0 MB | 88.4 MB |
| Events in quadrant A | 3,530,895 | 620,843 |
| Events in quadrant B | 2,922,785 | 642,630 |
| Events in quadrant C | 2,887,384 | 609,100 |
| Events in quadrant D | 3,909,282 | 528,114 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13810 | 1 |
| B | 0 | 12539 | 1 |
| C | 0 | 12115 | 1 |
| D | 0 | 15894 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5807 | 127 | 2.187016% |
| B | 5808 | 37 | 0.637052% |
| C | 5808 | 10 | 0.172176% |
| D | 5807 | 413 | 7.112106% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7149 | 5808 | 101 | 101 | 1.41% | 1.74% |  |
| B | 7150 | 5809 | 22 | 22 | 0.31% | 0.38% |  |
| C | 7150 | 5809 | 9 | 9 | 0.13% | 0.15% |  |
| D | 7149 | 5808 | 415 | 415 | 5.81% | 7.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 596543 | 4624.62 | 620 | 607 | 128.9 |
| A | 15 | 237 | 501204 | 3884.77 | 620 | 607 | 128.9 |
| A | 13 | 6 | 10975 | 80.46 | 620 | 607 | 128.9 |
| B | 0 | 189 | 255563 | 2121.52 | 619 | 602 | 120.2 |
| B | 5 | 172 | 110836 | 917.25 | 619 | 602 | 120.2 |
| B | 0 | 245 | 36796 | 301.17 | 619 | 602 | 120.2 |
| C | 15 | 214 | 240838 | 1687.85 | 607 | 610 | 142.3 |
| C | 3 | 233 | 202328 | 1417.28 | 607 | 610 | 142.3 |
| C | 15 | 111 | 68007 | 473.53 | 607 | 610 | 142.3 |
| D | 1 | 52 | 1031742 | 7051.48 | 593 | 575 | 146.2 |
| D | 12 | 218 | 270817 | 1848.01 | 593 | 575 | 146.2 |
| D | 13 | 249 | 76798 | 521.24 | 593 | 575 | 146.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

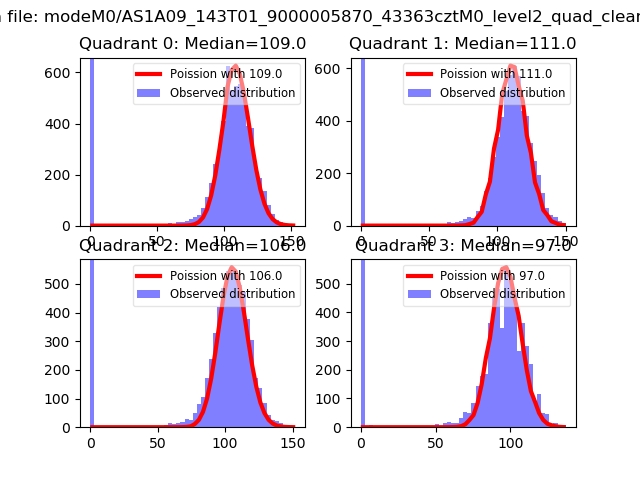

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

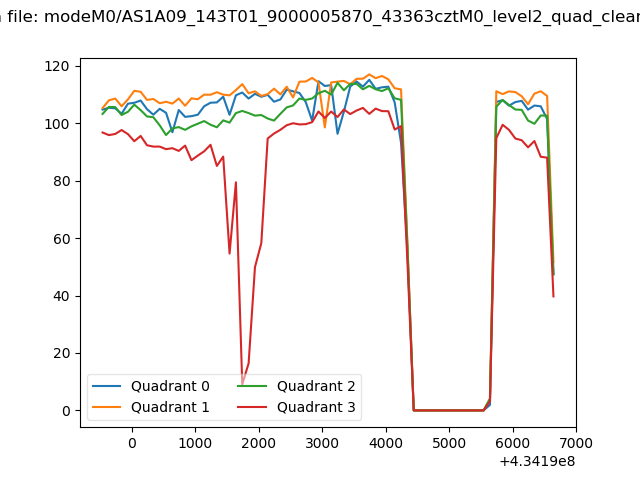

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

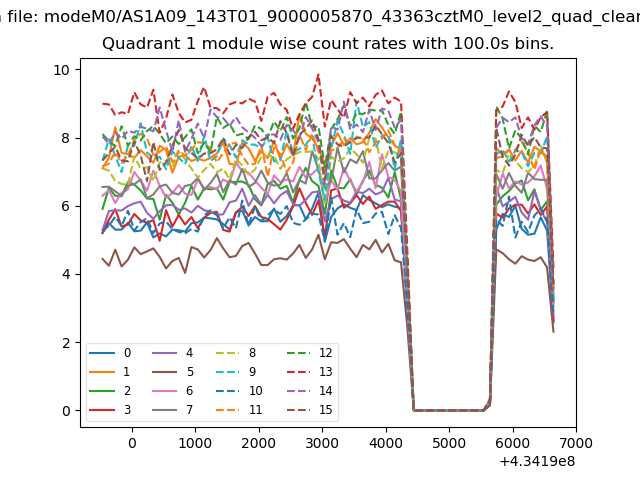

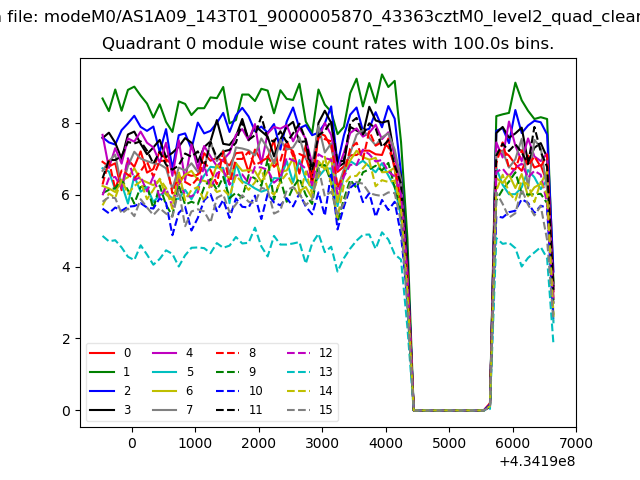

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

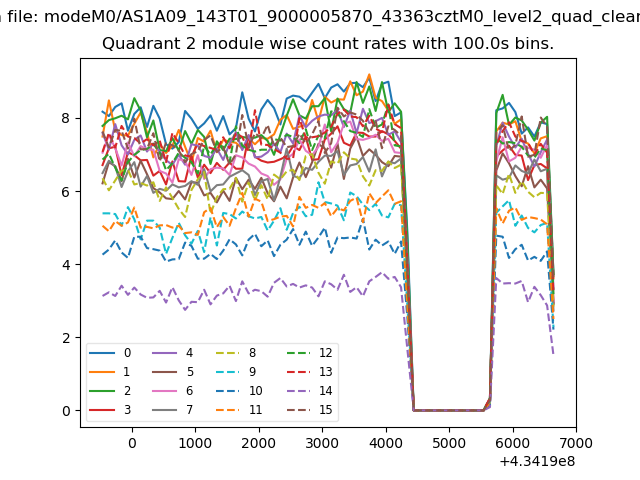

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

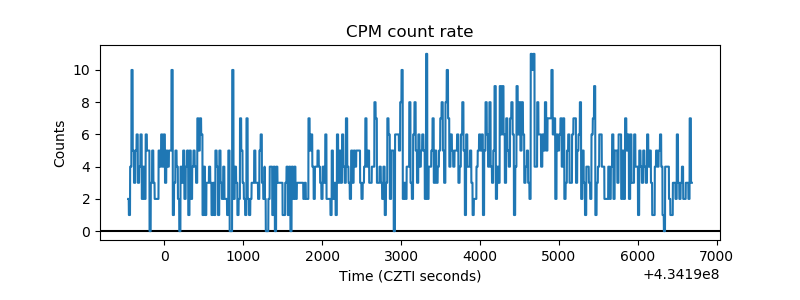

| _CPM_Rate |  |
| CZT Counter |  |

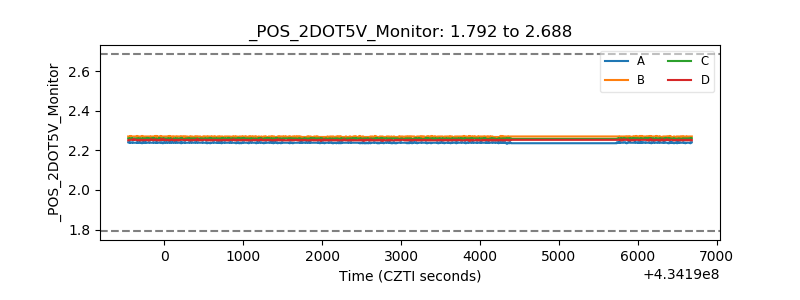

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

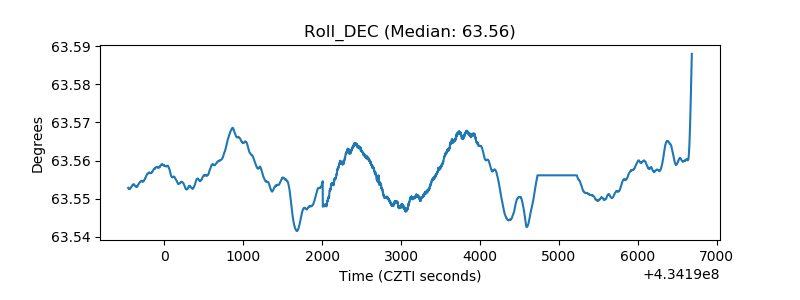

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
