| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_143T01_9000005870_43367cztM0_level2.fits | modeM0/AS1A09_143T01_9000005870_43367cztM0_level2_quad_clean.evt |
| Size (bytes) | 349,816,320 | 90,722,880 |
| Size | 333.6 MB | 86.5 MB |
| Events in quadrant A | 3,742,556 | 585,414 |
| Events in quadrant B | 2,675,901 | 625,792 |
| Events in quadrant C | 3,134,959 | 589,376 |
| Events in quadrant D | 2,955,377 | 550,711 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14592 | 2 |
| B | 0 | 11668 | 2 |
| C | 0 | 12761 | 2 |
| D | 0 | 12888 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5653 | 305 | 5.395365% |
| B | 5653 | 16 | 0.283036% |
| C | 5653 | 86 | 1.521316% |
| D | 5653 | 58 | 1.026004% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7206 | 5654 | 230 | 230 | 3.19% | 4.07% |  |
| B | 7206 | 5654 | 5 | 5 | 0.07% | 0.09% |  |
| C | 7206 | 5654 | 80 | 80 | 1.11% | 1.41% |  |
| D | 7206 | 5654 | 51 | 51 | 0.71% | 0.90% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 673518 | 5307.22 | 605 | 591 | 126.8 |
| A | 10 | 83 | 628887 | 4955.22 | 605 | 591 | 126.8 |
| A | 15 | 237 | 78494 | 614.4 | 605 | 591 | 126.8 |
| B | 0 | 189 | 88283 | 736.11 | 616 | 599 | 119.1 |
| B | 0 | 186 | 36522 | 301.58 | 616 | 599 | 119.1 |
| B | 3 | 112 | 34827 | 287.35 | 616 | 599 | 119.1 |
| C | 0 | 239 | 404947 | 2844.59 | 604 | 607 | 142.1 |
| C | 15 | 214 | 231460 | 1624.08 | 604 | 607 | 142.1 |
| C | 15 | 111 | 65236 | 454.67 | 604 | 607 | 142.1 |
| D | 12 | 218 | 170508 | 1135.76 | 606 | 588 | 149.6 |
| D | 5 | 32 | 134513 | 895.17 | 606 | 588 | 149.6 |
| D | 12 | 233 | 84603 | 561.56 | 606 | 588 | 149.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

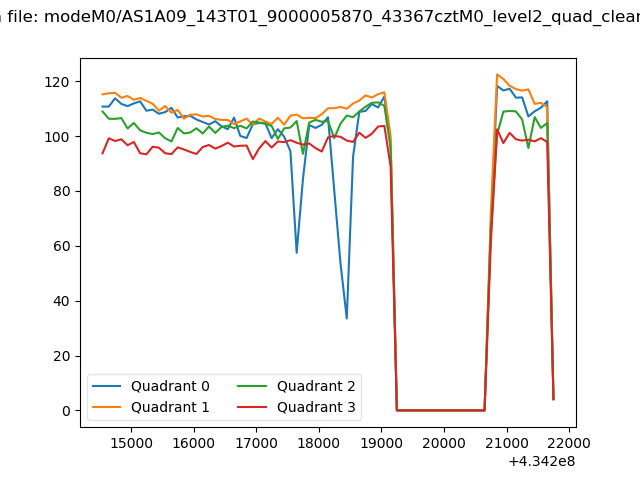

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

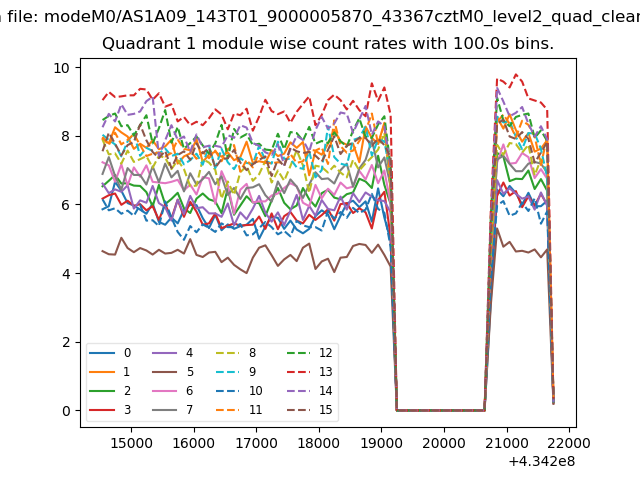

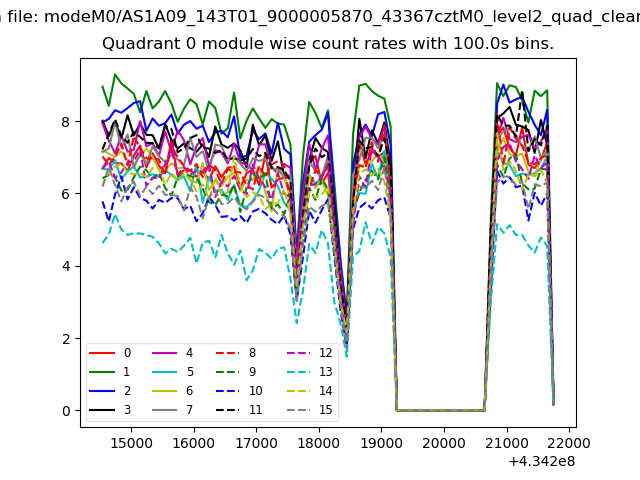

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

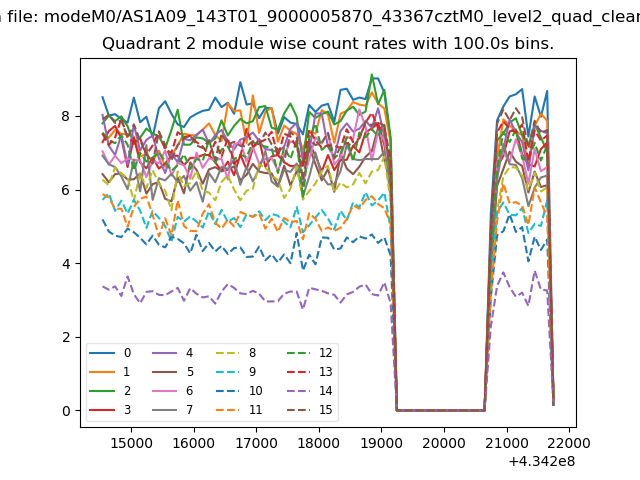

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

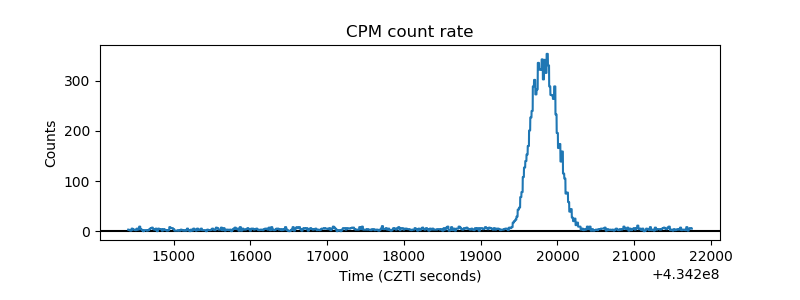

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

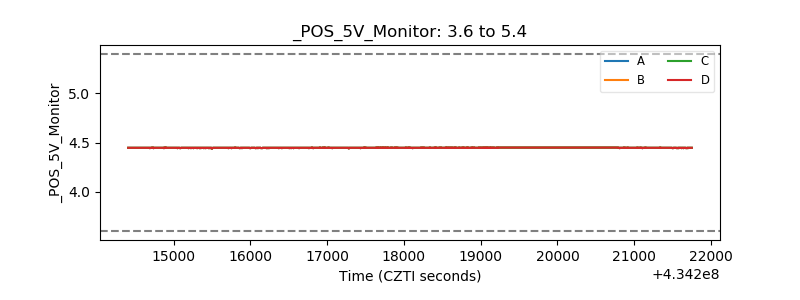

| +5 Volts monitor |  |
| _ROLL_ROT |  |

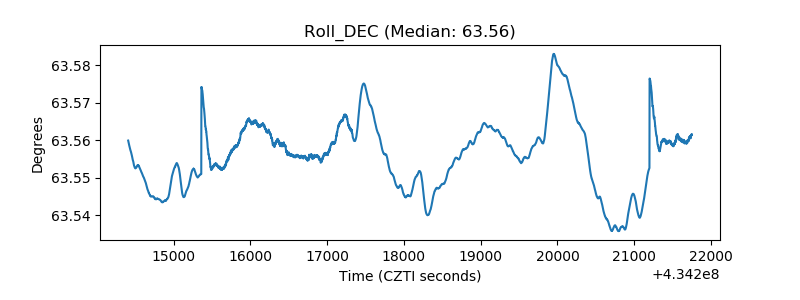

| _Roll_DEC |  |
| _Roll_RA |  |

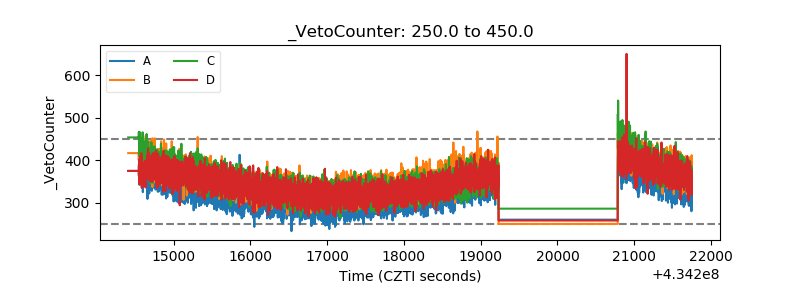

| Veto Counter |  |
