| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_143T01_9000005870_43373cztM0_level2.fits | modeM0/AS1A09_143T01_9000005870_43373cztM0_level2_quad_clean.evt |
| Size (bytes) | 292,504,320 | 90,823,680 |
| Size | 279.0 MB | 86.6 MB |
| Events in quadrant A | 2,868,707 | 607,153 |
| Events in quadrant B | 2,357,751 | 629,586 |
| Events in quadrant C | 2,489,641 | 605,803 |
| Events in quadrant D | 2,706,166 | 543,781 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33 | 0 |
| B | 0 | 34 | 0 |
| C | 0 | 34 | 0 |
| D | 0 | 34 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11654 | 2 |
| B | 0 | 10628 | 2 |
| C | 0 | 10559 | 2 |
| D | 0 | 11961 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5196 | 37 | 0.712086% |
| B | 5196 | 14 | 0.269438% |
| C | 5196 | 4 | 0.076982% |
| D | 5196 | 82 | 1.578137% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7319 | 5197 | 21 | 21 | 0.29% | 0.40% |  |
| B | 7319 | 5197 | 5 | 5 | 0.07% | 0.10% |  |
| C | 7319 | 5197 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7319 | 5197 | 91 | 91 | 1.24% | 1.75% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 561150 | 4759.99 | 569 | 557 | 117.8 |
| A | 15 | 237 | 91814 | 774.86 | 569 | 557 | 117.8 |
| A | 13 | 6 | 10581 | 85.11 | 569 | 557 | 117.8 |
| B | 0 | 189 | 43910 | 394.49 | 572 | 556 | 109.9 |
| B | 5 | 255 | 33459 | 299.39 | 572 | 556 | 109.9 |
| B | 12 | 111 | 13879 | 121.23 | 572 | 556 | 109.9 |
| C | 15 | 214 | 214450 | 1645.57 | 559 | 563 | 130.0 |
| C | 3 | 233 | 69606 | 531.19 | 559 | 563 | 130.0 |
| C | 15 | 111 | 14197 | 104.9 | 559 | 563 | 130.0 |
| D | 12 | 218 | 167596 | 1240.75 | 548 | 531 | 134.6 |
| D | 12 | 6 | 146932 | 1087.28 | 548 | 531 | 134.6 |
| D | 13 | 249 | 145501 | 1076.66 | 548 | 531 | 134.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

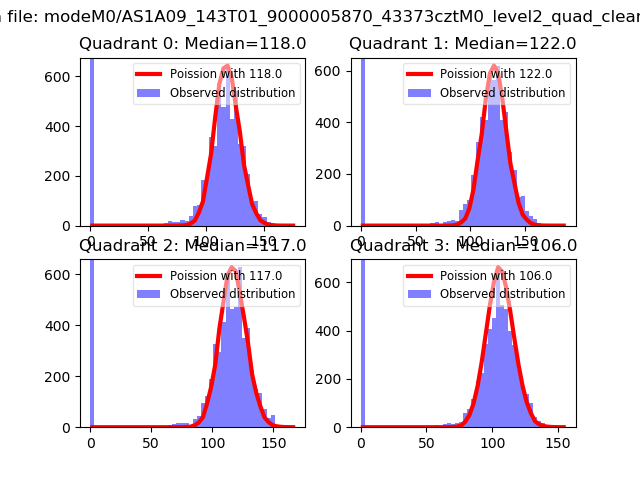

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

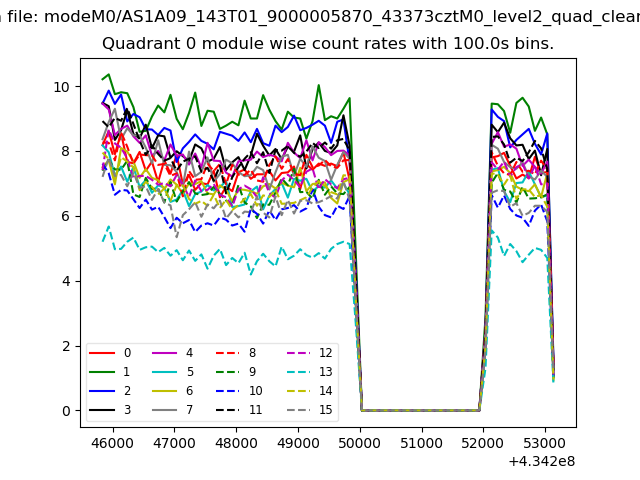

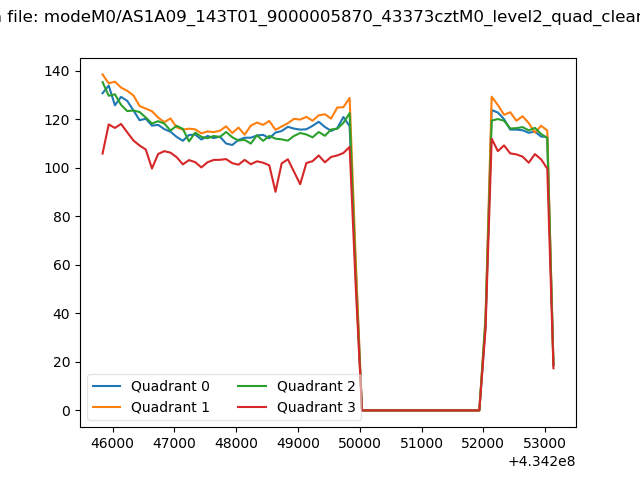

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

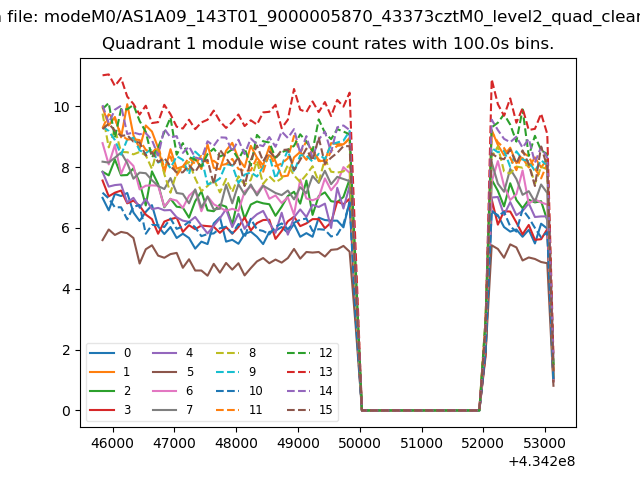

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

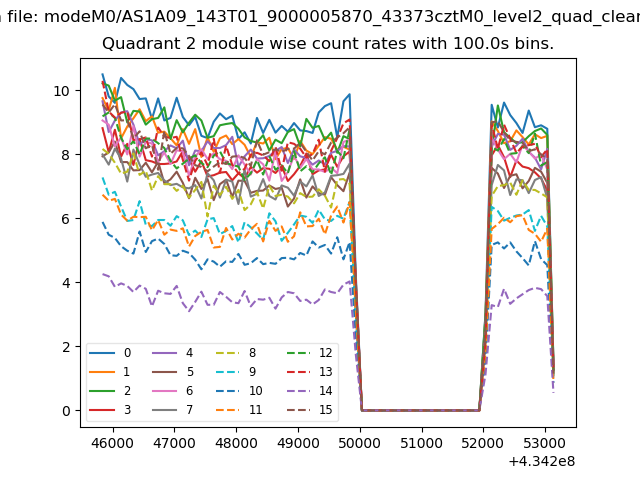

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

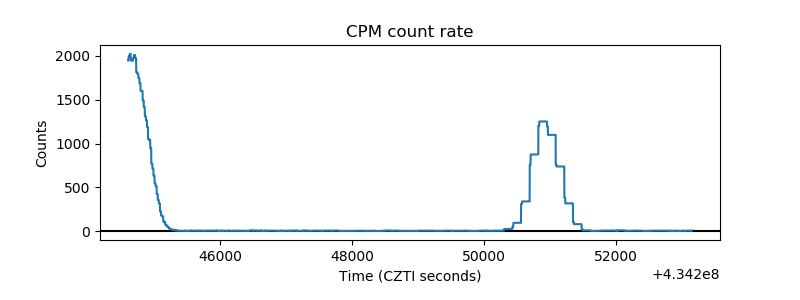

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

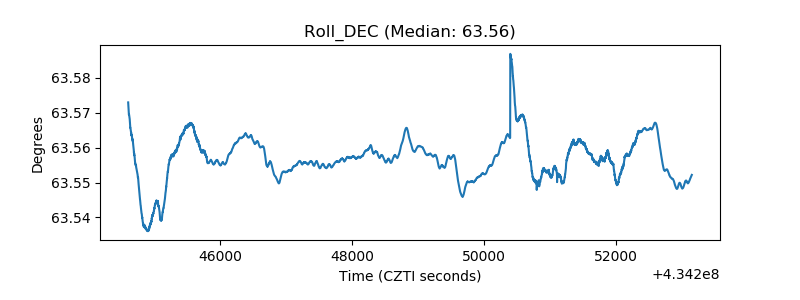

| _Roll_DEC |  |
| _Roll_RA |  |

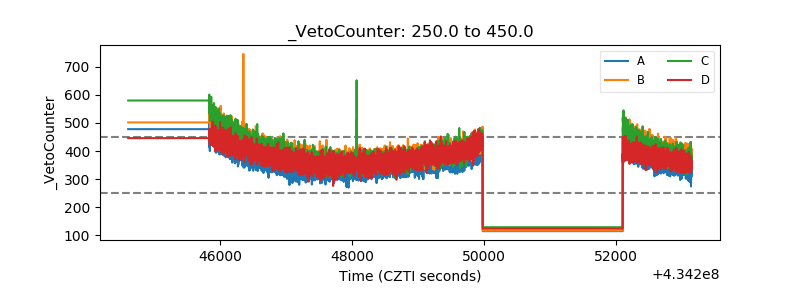

| Veto Counter |  |
