| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_018T01_9000005874_43401cztM0_level2.fits | modeM0/AS1A12_018T01_9000005874_43401cztM0_level2_quad_clean.evt |
| Size (bytes) | 287,225,280 | 86,774,400 |
| Size | 273.9 MB | 82.8 MB |
| Events in quadrant A | 2,969,727 | 573,414 |
| Events in quadrant B | 2,257,149 | 607,586 |
| Events in quadrant C | 2,485,191 | 576,624 |
| Events in quadrant D | 2,533,442 | 522,769 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11888 | 2 |
| B | 0 | 10081 | 2 |
| C | 0 | 10584 | 3 |
| D | 0 | 11084 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30 | 0 |
| B | 0 | 31 | 0 |
| C | 0 | 31 | 0 |
| D | 0 | 31 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4956 | 118 | 2.380952% |
| B | 4956 | 5 | 0.100888% |
| C | 4955 | 12 | 0.242180% |
| D | 4955 | 55 | 1.109990% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

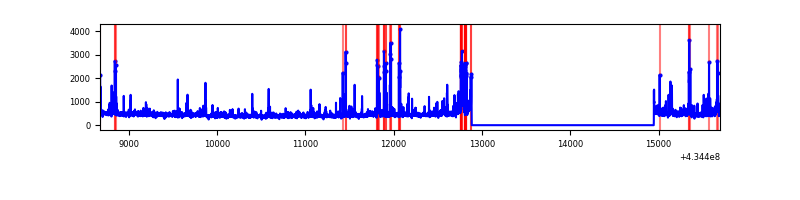

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7019 | 4957 | 91 | 91 | 1.30% | 1.84% |  |
| B | 7019 | 4957 | 2 | 2 | 0.03% | 0.04% |  |
| C | 7018 | 4956 | 7 | 7 | 0.10% | 0.14% |  |
| D | 7018 | 4956 | 53 | 53 | 0.76% | 1.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 531717 | 4844.7 | 537 | 526 | 109.6 |
| A | 15 | 237 | 222617 | 2025.57 | 537 | 526 | 109.6 |
| A | 13 | 248 | 119657 | 1086.53 | 537 | 526 | 109.6 |
| B | 0 | 189 | 51559 | 492.04 | 548 | 533 | 103.7 |
| B | 0 | 245 | 30967 | 293.47 | 548 | 533 | 103.7 |
| B | 5 | 255 | 15033 | 139.82 | 548 | 533 | 103.7 |
| C | 15 | 214 | 205928 | 1637.82 | 537 | 541 | 125.4 |
| C | 3 | 233 | 85786 | 679.77 | 537 | 541 | 125.4 |
| C | 15 | 159 | 64885 | 513.1 | 537 | 541 | 125.4 |
| D | 1 | 47 | 178770 | 1379.25 | 528 | 512 | 129.2 |
| D | 12 | 6 | 122874 | 946.76 | 528 | 512 | 129.2 |
| D | 1 | 52 | 110315 | 849.59 | 528 | 512 | 129.2 |

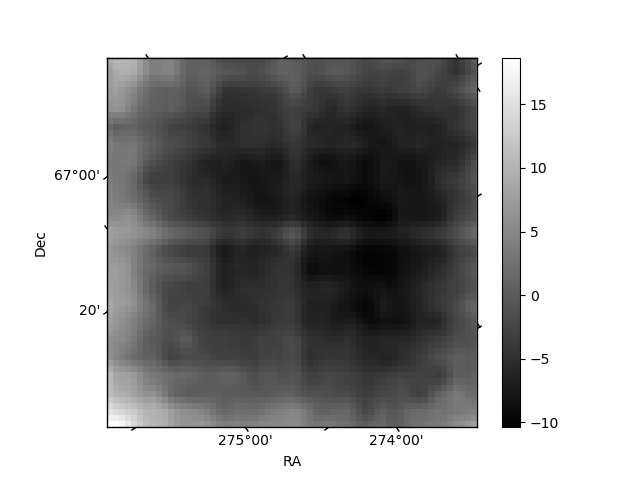

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

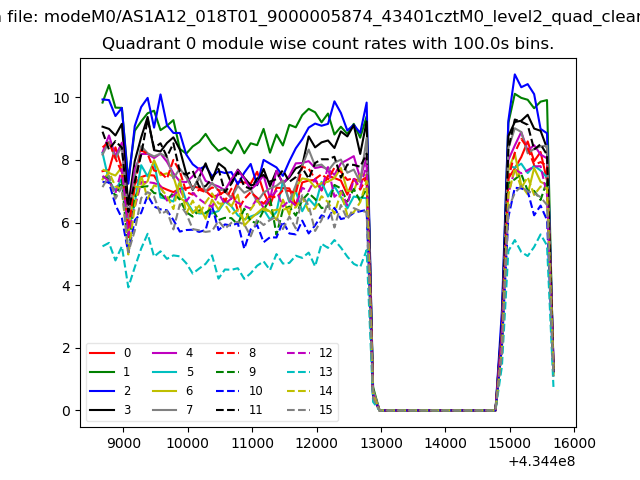

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

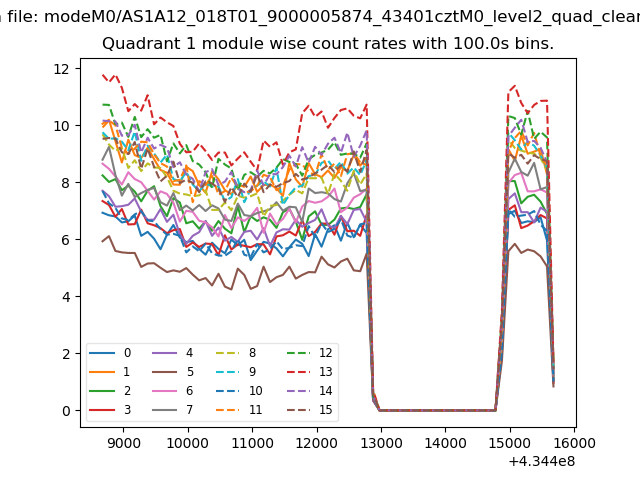

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

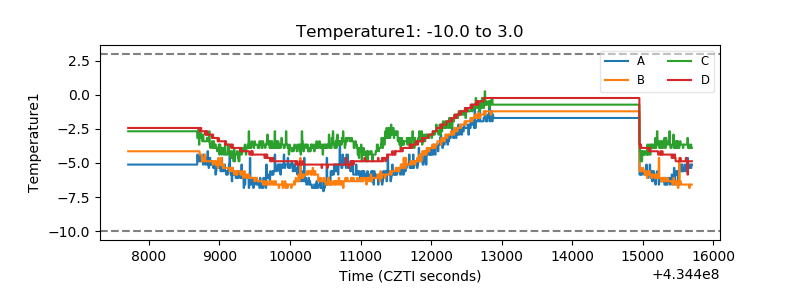

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

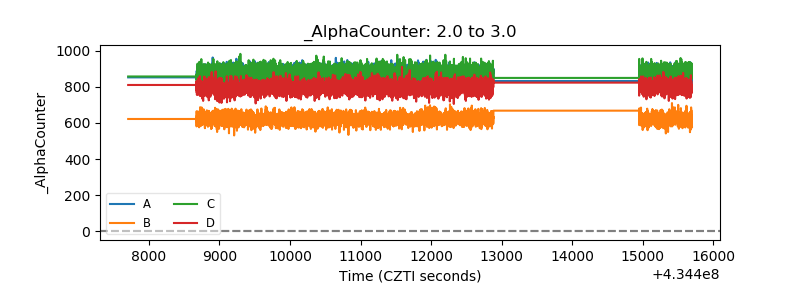

| Alpha Counter |  |

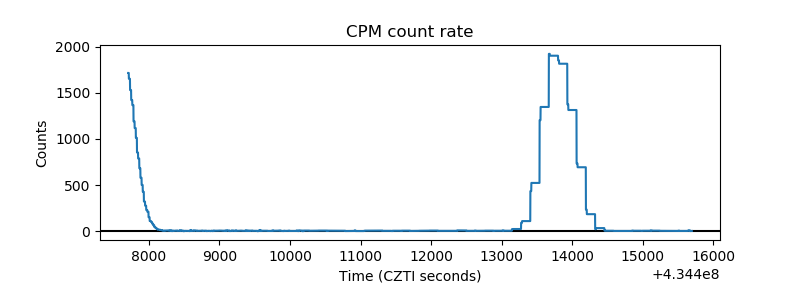

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

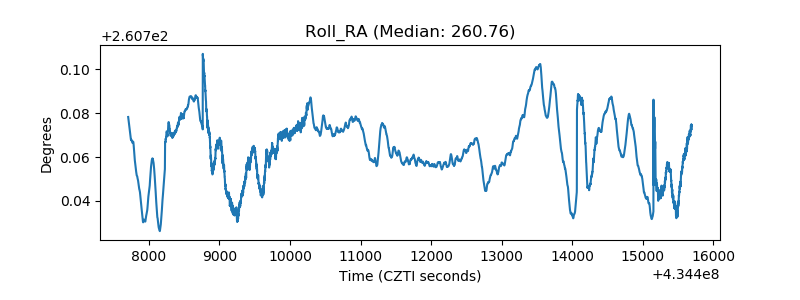

| _Roll_RA |  |
| Veto Counter |  |
