| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_018T01_9000005874_43403cztM0_level2.fits | modeM0/AS1A12_018T01_9000005874_43403cztM0_level2_quad_clean.evt |
| Size (bytes) | 298,316,160 | 86,247,360 |
| Size | 284.5 MB | 82.3 MB |
| Events in quadrant A | 3,001,178 | 569,593 |
| Events in quadrant B | 2,488,045 | 594,799 |
| Events in quadrant C | 2,462,767 | 570,604 |
| Events in quadrant D | 2,688,791 | 515,380 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12156 | 2 |
| B | 0 | 11040 | 2 |
| C | 0 | 10599 | 2 |
| D | 0 | 11814 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31 | 0 |
| B | 0 | 32 | 0 |
| C | 0 | 32 | 0 |
| D | 0 | 32 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5152 | 79 | 1.533385% |
| B | 5152 | 30 | 0.582298% |
| C | 5152 | 2 | 0.038820% |
| D | 5152 | 73 | 1.416925% |

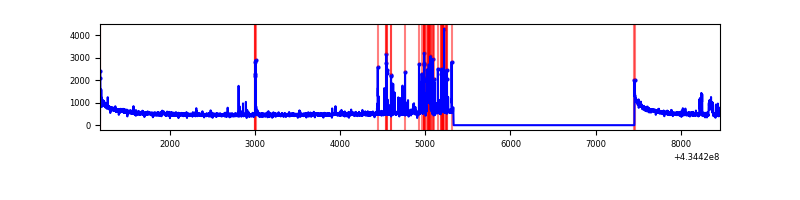

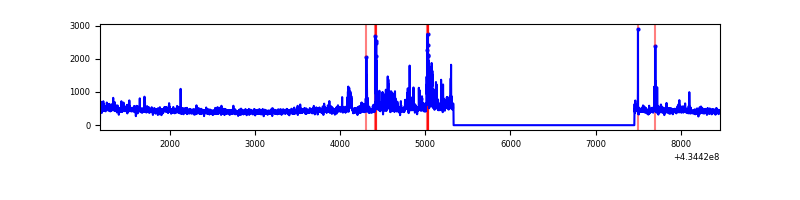

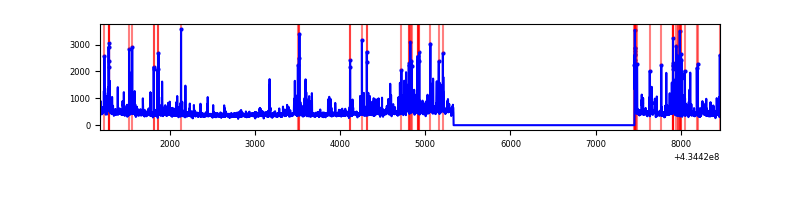

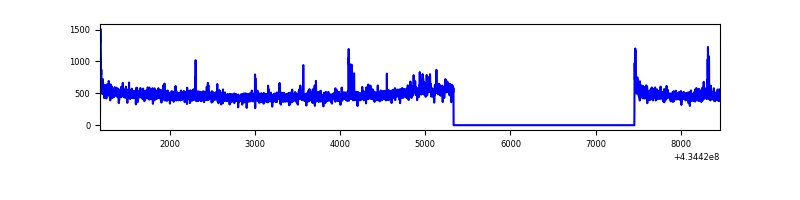

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7274 | 5153 | 55 | 55 | 0.76% | 1.07% |  |
| B | 7274 | 5153 | 12 | 12 | 0.16% | 0.23% |  |
| C | 7274 | 5153 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7274 | 5153 | 63 | 63 | 0.87% | 1.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 560310 | 4990.34 | 546 | 536 | 112.2 |
| A | 15 | 237 | 227858 | 2026.56 | 546 | 536 | 112.2 |
| A | 13 | 248 | 80539 | 713.22 | 546 | 536 | 112.2 |
| B | 0 | 189 | 167710 | 1571.99 | 552 | 537 | 106.3 |
| B | 0 | 186 | 64028 | 597.03 | 552 | 537 | 106.3 |
| B | 0 | 190 | 35587 | 329.59 | 552 | 537 | 106.3 |
| C | 15 | 214 | 213733 | 1704.57 | 538 | 539 | 125.1 |
| C | 3 | 233 | 127717 | 1016.84 | 538 | 539 | 125.1 |
| C | 15 | 159 | 23408 | 182.85 | 538 | 539 | 125.1 |
| D | 13 | 249 | 244039 | 1894.44 | 529 | 513 | 128.5 |
| D | 1 | 52 | 223740 | 1736.53 | 529 | 513 | 128.5 |
| D | 12 | 6 | 105097 | 813.58 | 529 | 513 | 128.5 |

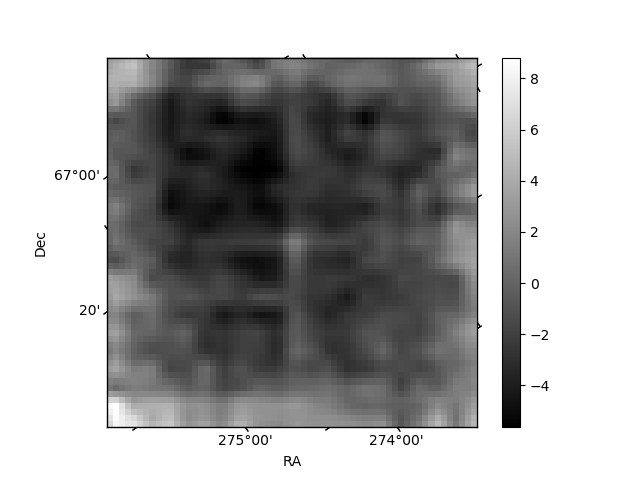

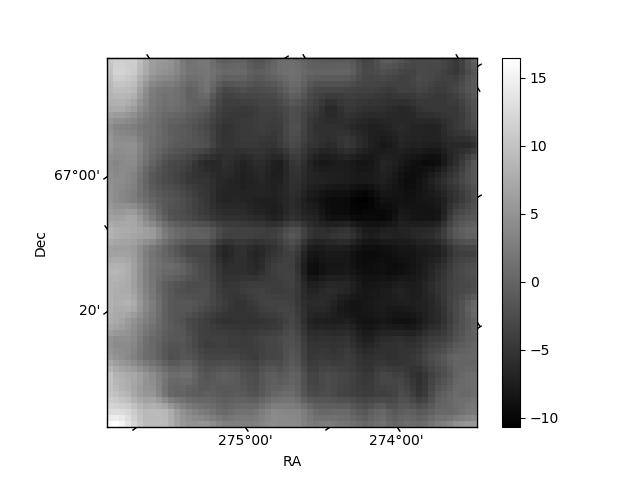

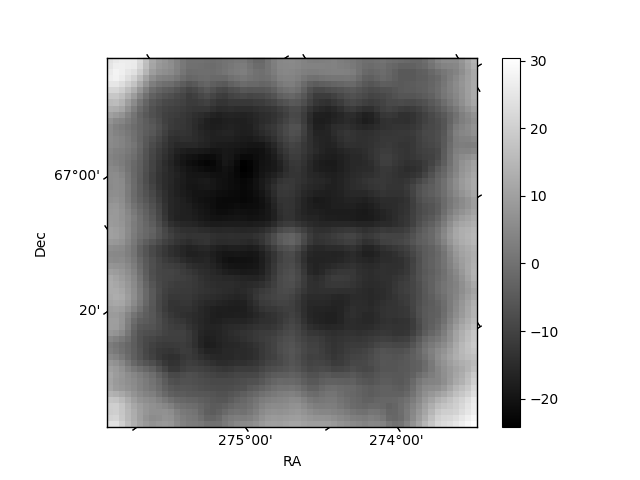

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

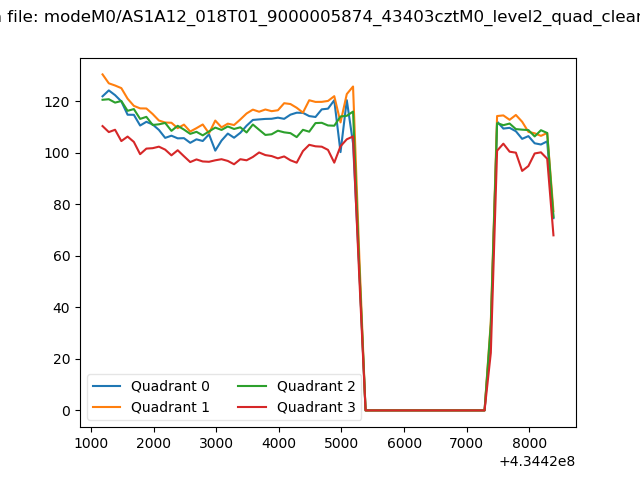

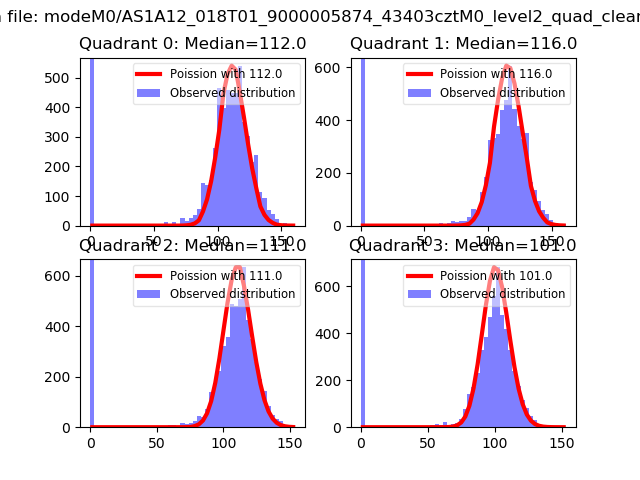

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

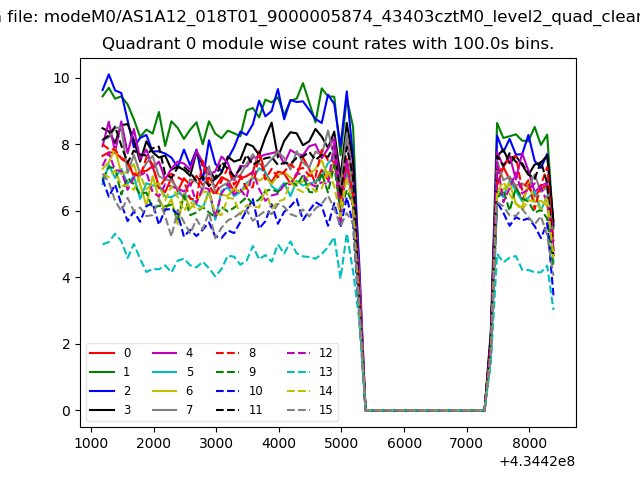

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

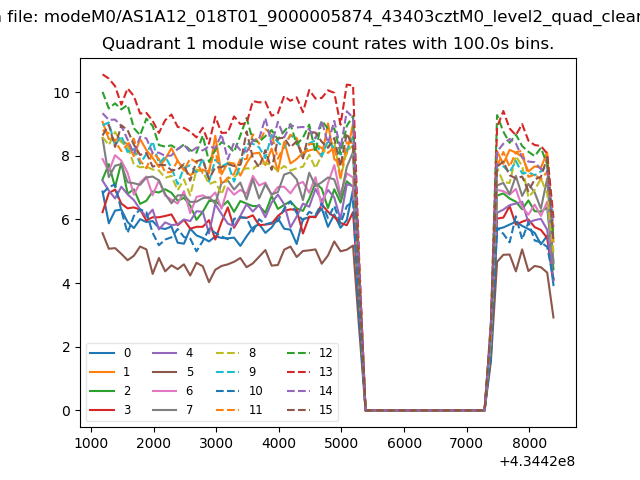

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

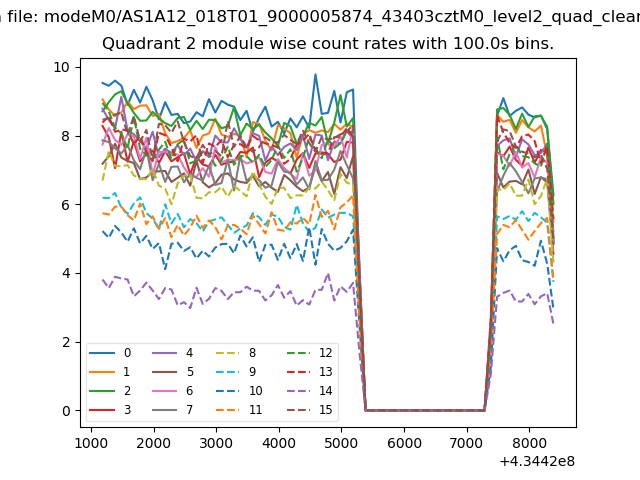

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

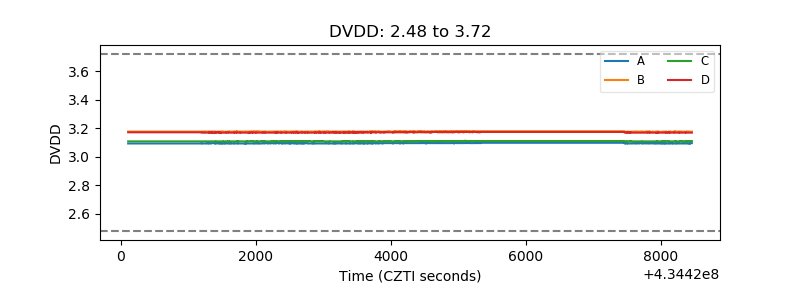

| D_VDD |  |

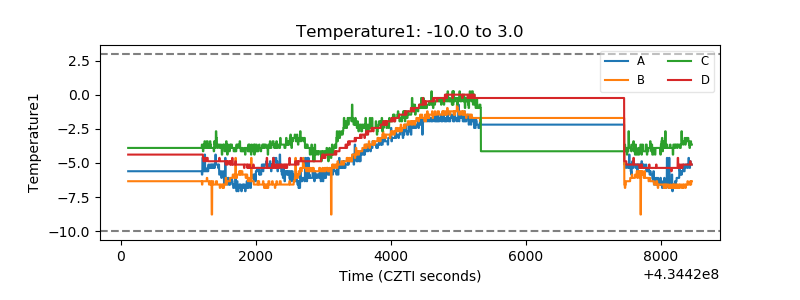

| Temperature 1 |  |

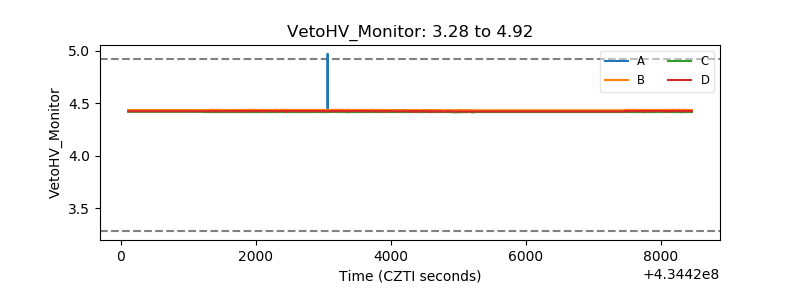

| Veto HV Monitor |  |
| Veto LLD |  |

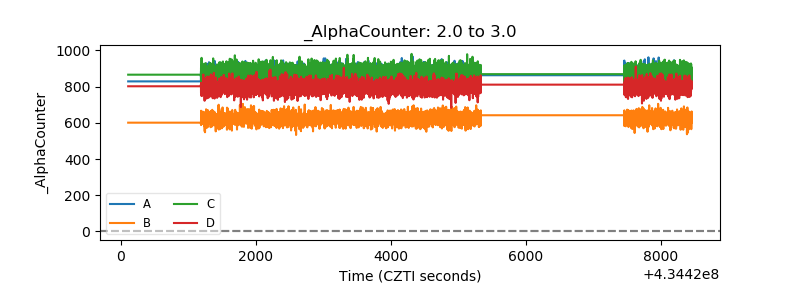

| Alpha Counter |  |

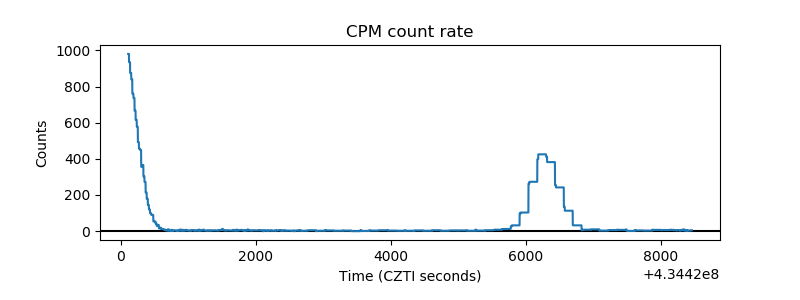

| _CPM_Rate |  |

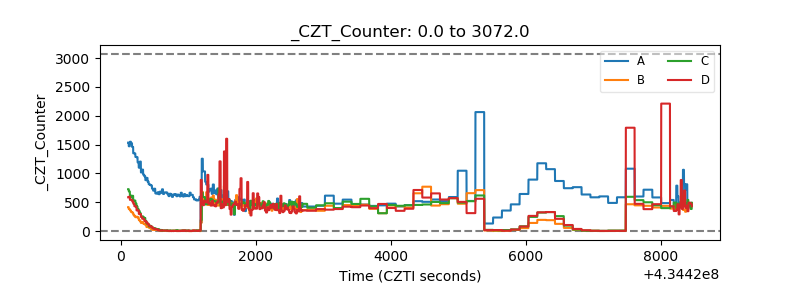

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

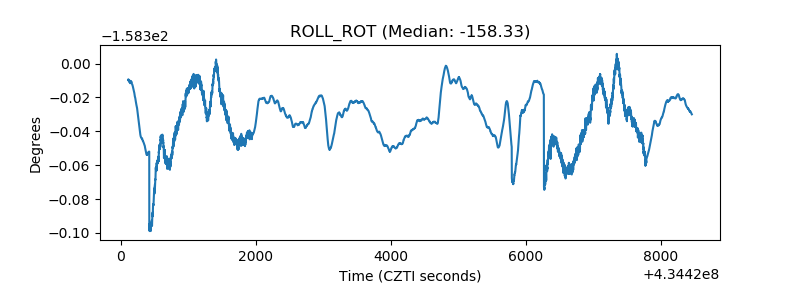

| _ROLL_ROT |  |

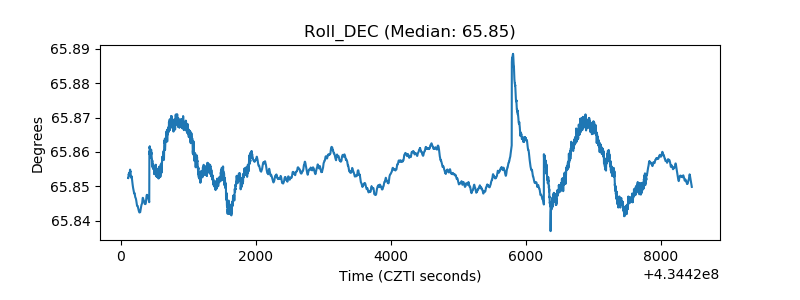

| _Roll_DEC |  |

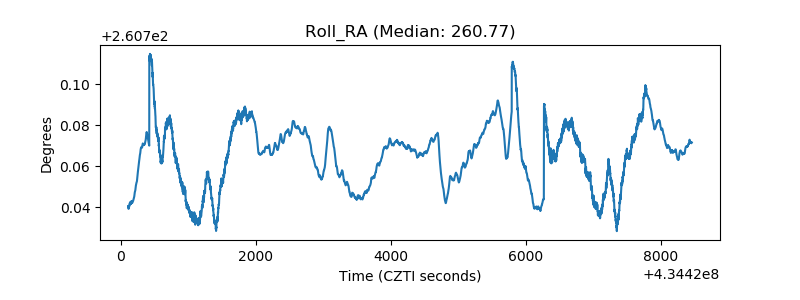

| _Roll_RA |  |

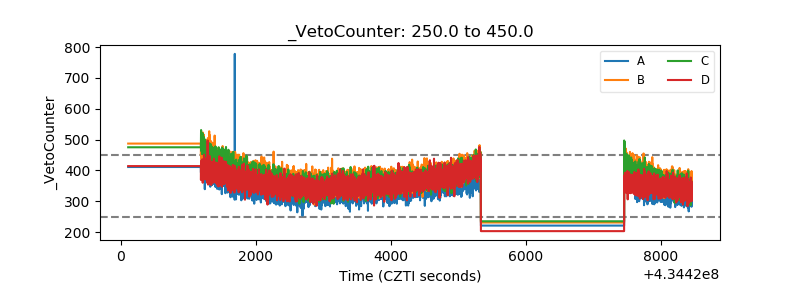

| Veto Counter |  |
