| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_018T01_9000005874_43405cztM0_level2.fits | modeM0/AS1A12_018T01_9000005874_43405cztM0_level2_quad_clean.evt |
| Size (bytes) | 343,416,960 | 86,598,720 |
| Size | 327.5 MB | 82.6 MB |
| Events in quadrant A | 3,632,271 | 566,317 |
| Events in quadrant B | 2,666,752 | 598,925 |
| Events in quadrant C | 2,492,010 | 568,637 |
| Events in quadrant D | 3,498,163 | 508,255 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14130 | 2 |
| B | 0 | 11788 | 2 |
| C | 0 | 10992 | 2 |
| D | 0 | 14204 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 27 | 0 |
| C | 0 | 27 | 0 |
| D | 0 | 27 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 110 | 0 |
| B | 0 | 110 | 0 |
| C | 0 | 110 | 0 |
| D | 0 | 110 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5430 | 205 | 3.775322% |
| B | 5430 | 40 | 0.736648% |
| C | 5430 | 4 | 0.073665% |
| D | 5430 | 192 | 3.535912% |

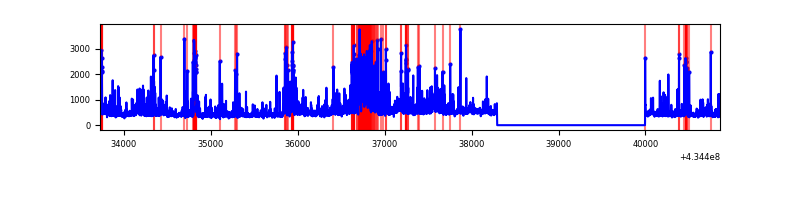

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7133 | 5431 | 167 | 167 | 2.34% | 3.07% |  |
| B | 7133 | 5431 | 24 | 24 | 0.34% | 0.44% |  |
| C | 7133 | 5431 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7133 | 5431 | 168 | 168 | 2.36% | 3.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 612716 | 5333.55 | 566 | 556 | 114.8 |
| A | 15 | 237 | 538128 | 4683.69 | 566 | 556 | 114.8 |
| A | 13 | 248 | 271237 | 2358.36 | 566 | 556 | 114.8 |
| B | 0 | 189 | 121961 | 1098.54 | 572 | 556 | 110.5 |
| B | 5 | 255 | 86308 | 775.93 | 572 | 556 | 110.5 |
| B | 0 | 186 | 67582 | 606.49 | 572 | 556 | 110.5 |
| C | 15 | 214 | 225482 | 1718.01 | 558 | 560 | 130.9 |
| C | 3 | 233 | 65407 | 495.32 | 558 | 560 | 130.9 |
| C | 15 | 159 | 17380 | 128.48 | 558 | 560 | 130.9 |
| D | 1 | 52 | 1020322 | 7590.11 | 550 | 533 | 134.4 |
| D | 2 | 249 | 108385 | 802.72 | 550 | 533 | 134.4 |
| D | 12 | 6 | 89902 | 665.16 | 550 | 533 | 134.4 |

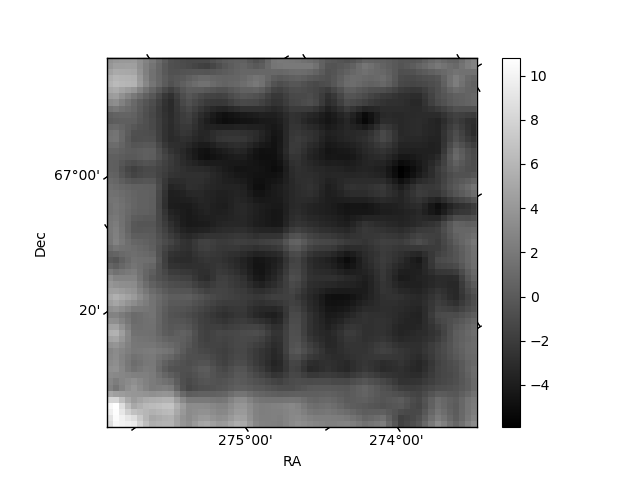

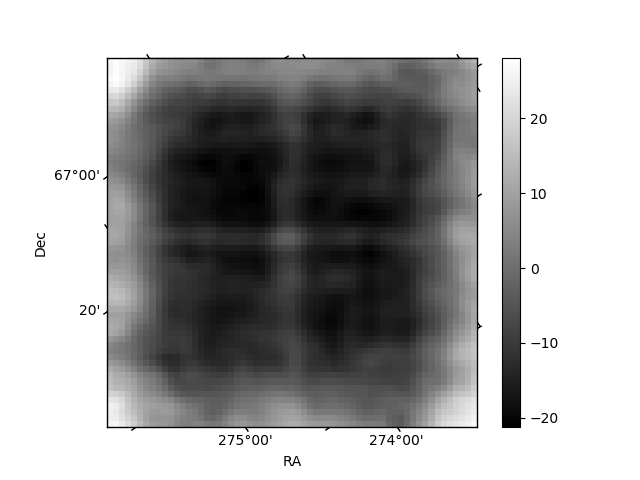

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

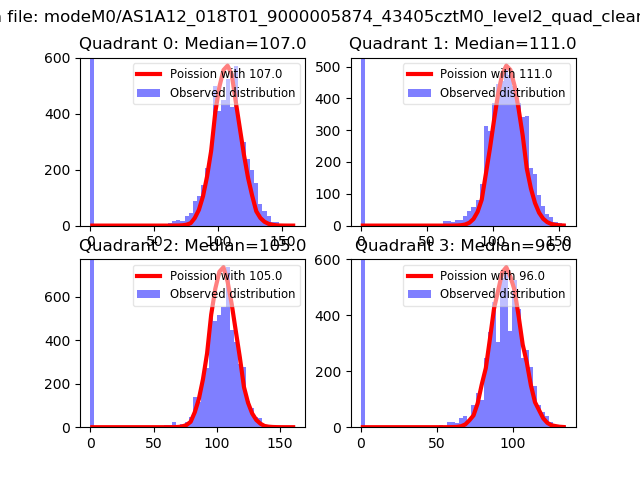

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

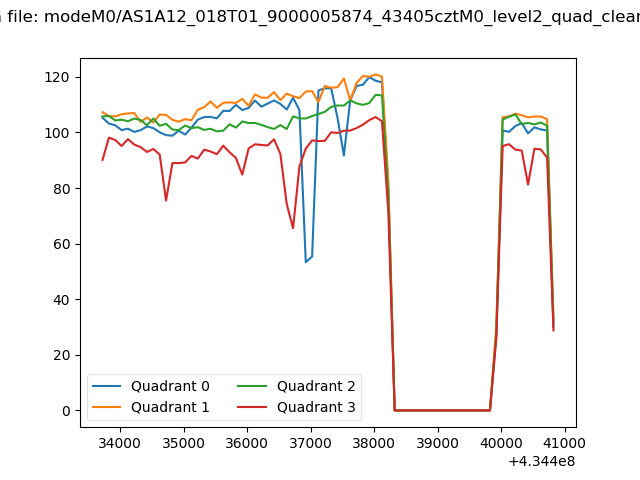

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

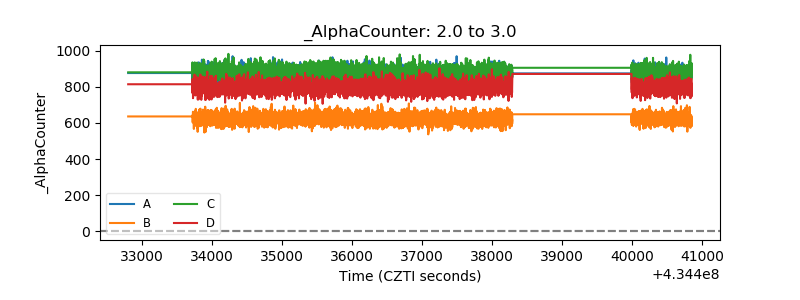

| Alpha Counter |  |

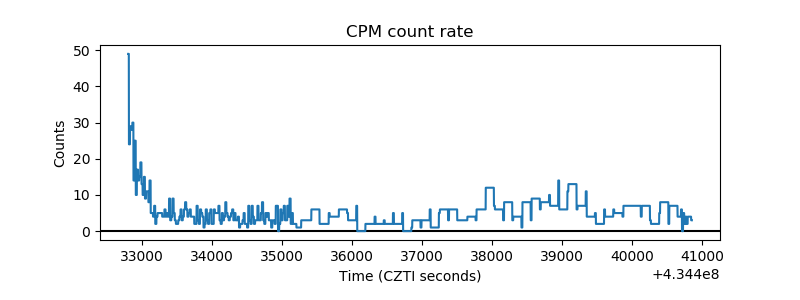

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

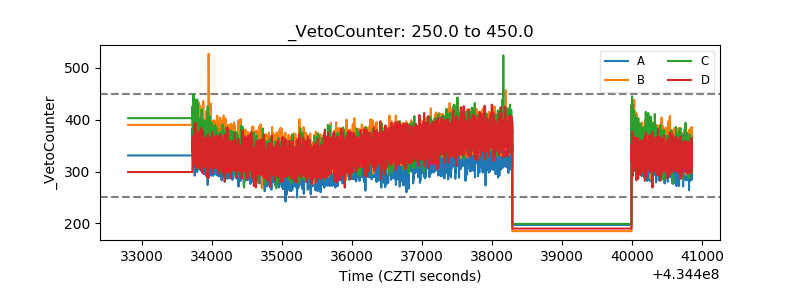

| Veto Counter |  |
