| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_018T01_9000005874_43419cztM0_level2.fits | modeM0/AS1A12_018T01_9000005874_43419cztM0_level2_quad_clean.evt |
| Size (bytes) | 312,076,800 | 84,588,480 |
| Size | 297.6 MB | 80.7 MB |
| Events in quadrant A | 3,051,098 | 559,230 |
| Events in quadrant B | 2,457,077 | 581,097 |
| Events in quadrant C | 2,432,219 | 552,756 |
| Events in quadrant D | 3,202,324 | 500,779 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12314 | 2 |
| B | 0 | 11150 | 2 |
| C | 0 | 10665 | 2 |
| D | 0 | 13455 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5249 | 82 | 1.562202% |
| B | 5249 | 45 | 0.857306% |
| C | 5249 | 3 | 0.057154% |
| D | 5249 | 136 | 2.590970% |

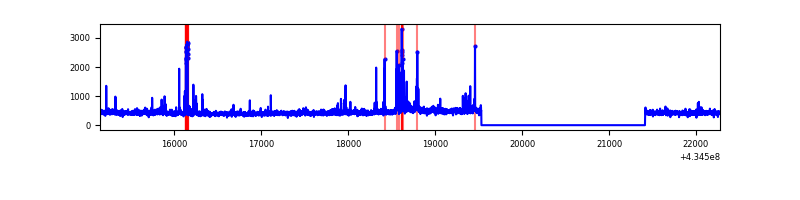

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7132 | 5250 | 60 | 60 | 0.84% | 1.14% |  |
| B | 7132 | 5250 | 34 | 34 | 0.48% | 0.65% |  |
| C | 7132 | 5250 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7132 | 5250 | 127 | 127 | 1.78% | 2.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 586098 | 5165.09 | 552 | 541 | 113.4 |
| A | 15 | 237 | 292517 | 2575.47 | 552 | 541 | 113.4 |
| A | 13 | 6 | 20025 | 171.86 | 552 | 541 | 113.4 |
| B | 0 | 245 | 109308 | 1032.35 | 551 | 536 | 105.4 |
| B | 0 | 186 | 83699 | 789.3 | 551 | 536 | 105.4 |
| B | 5 | 255 | 51198 | 480.83 | 551 | 536 | 105.4 |
| C | 15 | 214 | 219333 | 1739.39 | 537 | 539 | 125.8 |
| C | 3 | 233 | 65258 | 514.51 | 537 | 539 | 125.8 |
| C | 14 | 254 | 39031 | 306.01 | 537 | 539 | 125.8 |
| D | 1 | 52 | 534206 | 4078.5 | 532 | 514 | 130.9 |
| D | 2 | 16 | 251926 | 1921.3 | 532 | 514 | 130.9 |
| D | 2 | 249 | 187205 | 1426.7 | 532 | 514 | 130.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

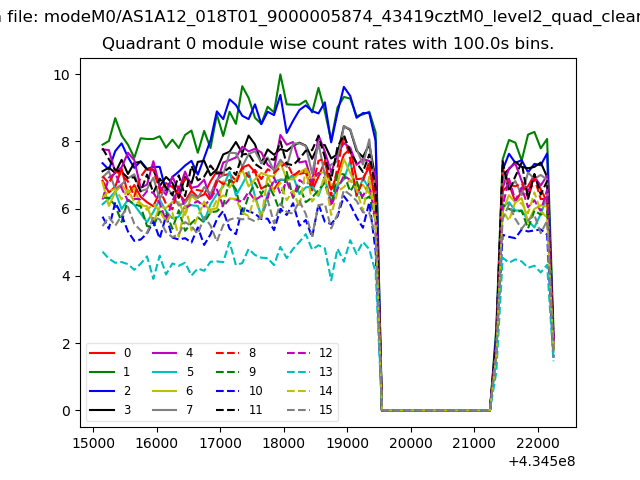

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

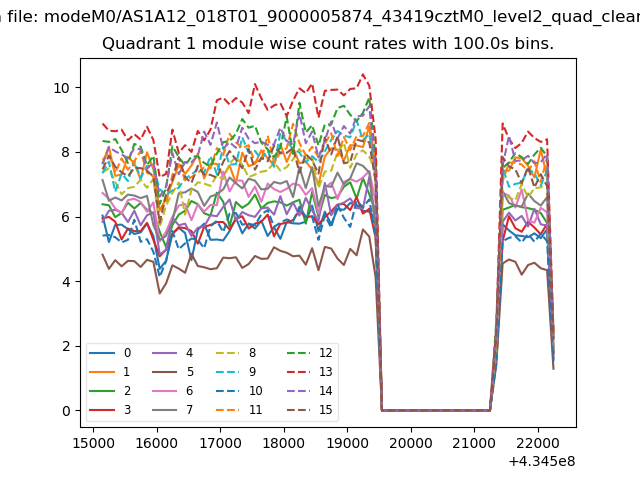

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

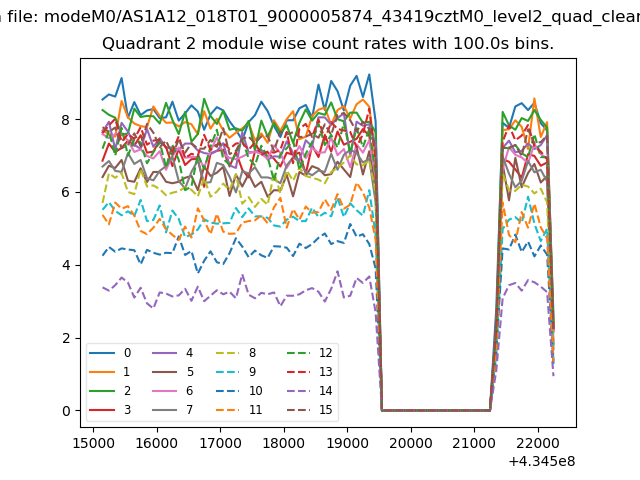

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

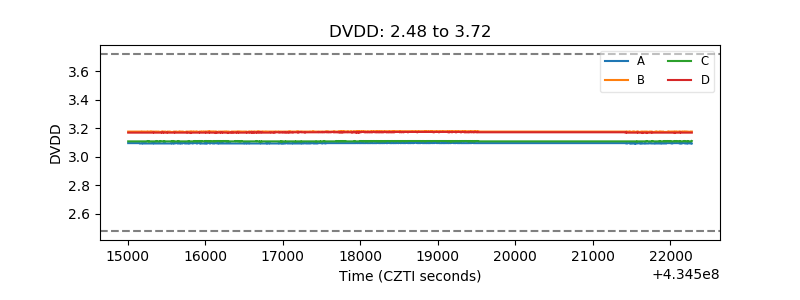

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

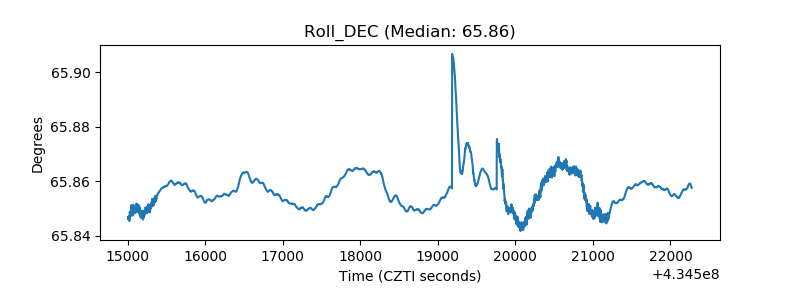

| _Roll_DEC |  |

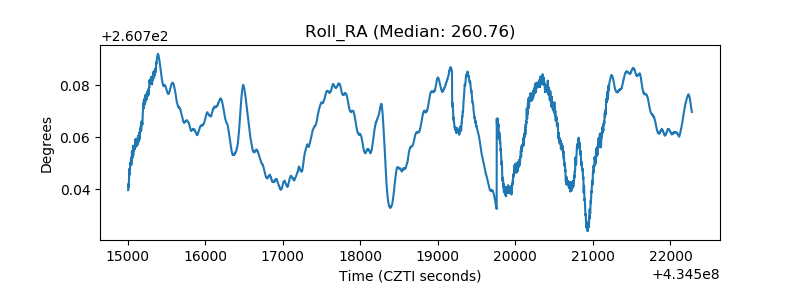

| _Roll_RA |  |

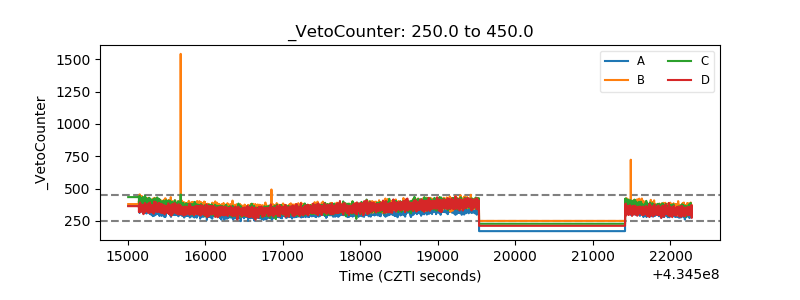

| Veto Counter |  |
