| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_018T01_9000005874_43426cztM0_level2.fits | modeM0/AS1A12_018T01_9000005874_43426cztM0_level2_quad_clean.evt |
| Size (bytes) | 342,325,440 | 87,442,560 |
| Size | 326.5 MB | 83.4 MB |
| Events in quadrant A | 3,160,497 | 587,213 |
| Events in quadrant B | 2,515,749 | 603,768 |
| Events in quadrant C | 2,554,768 | 569,438 |
| Events in quadrant D | 4,019,484 | 508,516 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12781 | 28 |
| B | 0 | 11279 | 28 |
| C | 0 | 11162 | 26 |
| D | 0 | 15703 | 52 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 110 | 0 |
| B | 0 | 110 | 0 |
| C | 0 | 110 | 0 |
| D | 0 | 110 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5411 | 105 | 1.940492% |
| B | 5408 | 19 | 0.351331% |
| C | 5406 | 7 | 0.129486% |
| D | 5407 | 297 | 5.492880% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7127 | 5423 | 63 | 63 | 0.88% | 1.16% |  |
| B | 7127 | 5420 | 9 | 9 | 0.13% | 0.17% |  |
| C | 7127 | 5421 | 3 | 3 | 0.04% | 0.06% |  |
| D | 7127 | 5419 | 289 | 289 | 4.06% | 5.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 637566 | 5438.99 | 575 | 563 | 117.1 |
| A | 15 | 237 | 267856 | 2282.26 | 575 | 563 | 117.1 |
| A | 13 | 6 | 16868 | 139.22 | 575 | 563 | 117.1 |
| B | 0 | 189 | 134723 | 1205.29 | 579 | 563 | 111.3 |
| B | 5 | 255 | 43640 | 387.0 | 579 | 563 | 111.3 |
| B | 3 | 112 | 14908 | 128.88 | 579 | 563 | 111.3 |
| C | 15 | 214 | 221537 | 1661.52 | 568 | 570 | 133.0 |
| C | 3 | 233 | 76146 | 568.28 | 568 | 570 | 133.0 |
| C | 2 | 16 | 19823 | 144.77 | 568 | 570 | 133.0 |
| D | 12 | 6 | 916557 | 6911.85 | 552 | 535 | 132.5 |
| D | 1 | 52 | 372032 | 2803.13 | 552 | 535 | 132.5 |
| D | 13 | 249 | 240818 | 1813.06 | 552 | 535 | 132.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

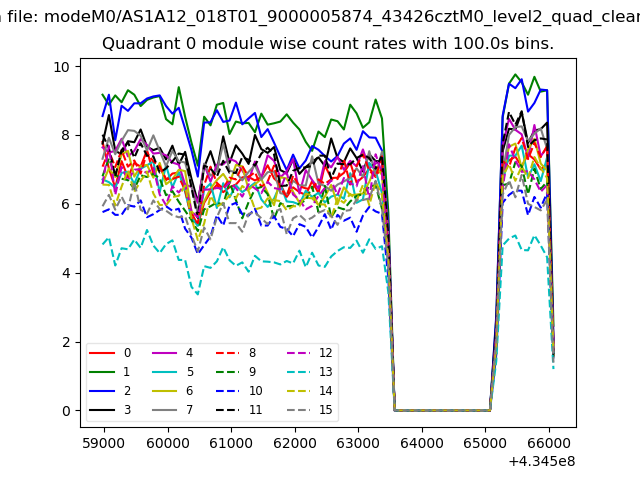

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

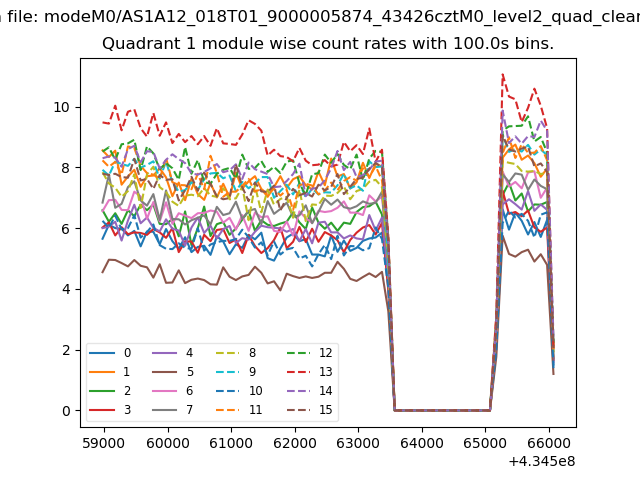

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

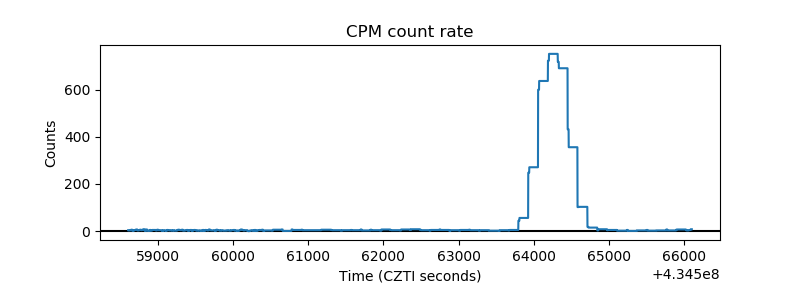

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

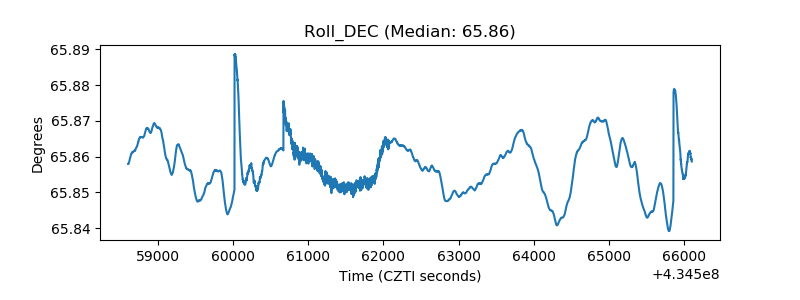

| _Roll_DEC |  |
| _Roll_RA |  |

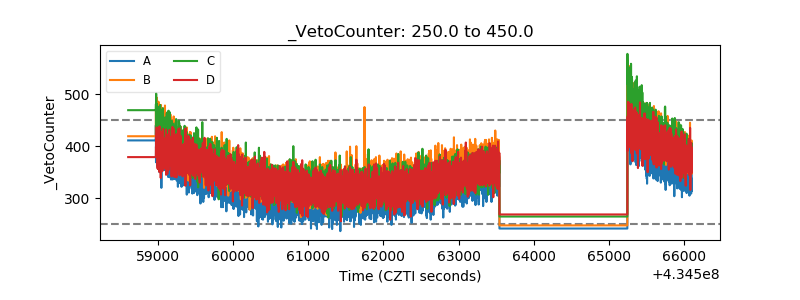

| Veto Counter |  |
