| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_018T01_9000005874_43444cztM0_level2.fits | modeM0/AS1A12_018T01_9000005874_43444cztM0_level2_quad_clean.evt |
| Size (bytes) | 510,998,400 | 79,081,920 |
| Size | 487.3 MB | 75.4 MB |
| Events in quadrant A | 7,358,130 | 363,297 |
| Events in quadrant B | 3,930,457 | 582,572 |
| Events in quadrant C | 2,438,347 | 593,860 |
| Events in quadrant D | 4,794,465 | 499,374 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25236 | 2 |
| B | 0 | 15063 | 3 |
| C | 0 | 10380 | 2 |
| D | 0 | 17826 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31 | 0 |
| B | 0 | 32 | 0 |
| C | 0 | 32 | 0 |
| D | 0 | 32 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5070 | 2039 | 40.216963% |
| B | 5069 | 380 | 7.496548% |
| C | 5069 | 9 | 0.177550% |
| D | 5069 | 496 | 9.784967% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7072 | 5070 | 1916 | 1916 | 27.09% | 37.79% |  |
| B | 7072 | 5070 | 324 | 324 | 4.58% | 6.39% |  |
| C | 7072 | 5070 | 2 | 2 | 0.03% | 0.04% |  |
| D | 7072 | 5070 | 510 | 510 | 7.21% | 10.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 222 | 5011913 | 57094.66 | 426 | 417 | 87.8 |
| A | 10 | 83 | 441962 | 5030.4 | 426 | 417 | 87.8 |
| A | 15 | 237 | 237468 | 2700.65 | 426 | 417 | 87.8 |
| B | 0 | 190 | 1126386 | 10795.98 | 547 | 531 | 104.3 |
| B | 4 | 36 | 314269 | 3008.48 | 547 | 531 | 104.3 |
| B | 0 | 189 | 160243 | 1531.5 | 547 | 531 | 104.3 |
| C | 15 | 214 | 207515 | 1610.91 | 556 | 561 | 128.5 |
| C | 3 | 233 | 36759 | 281.76 | 556 | 561 | 128.5 |
| C | 12 | 249 | 12402 | 92.17 | 556 | 561 | 128.5 |
| D | 1 | 52 | 1429731 | 11296.17 | 526 | 511 | 126.5 |
| D | 12 | 6 | 542225 | 4281.56 | 526 | 511 | 126.5 |
| D | 2 | 16 | 300962 | 2374.68 | 526 | 511 | 126.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

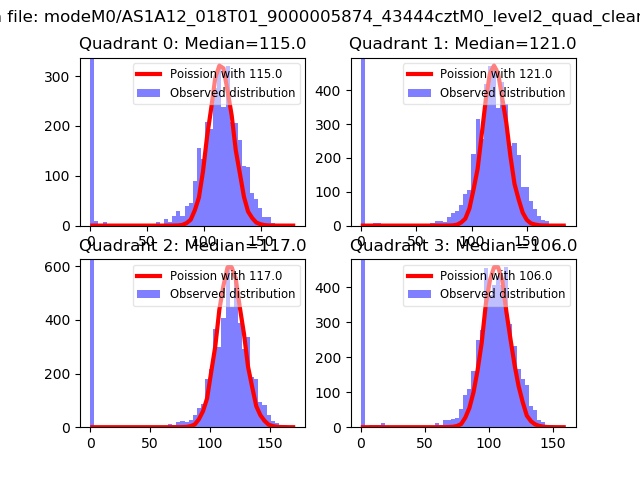

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

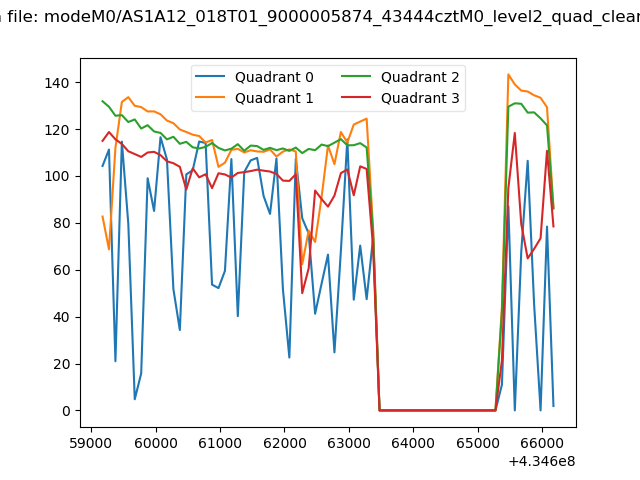

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

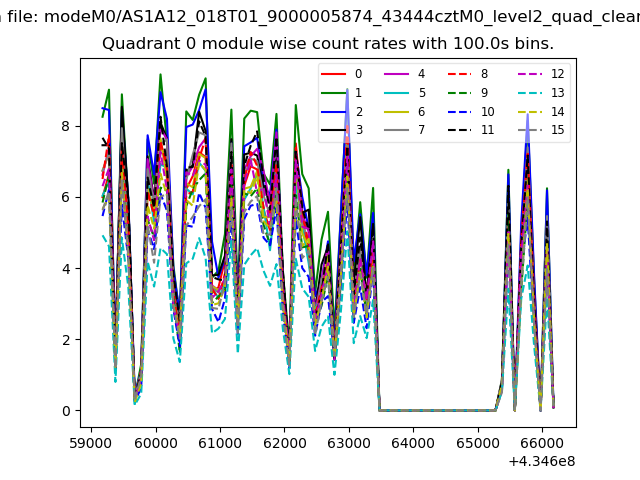

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

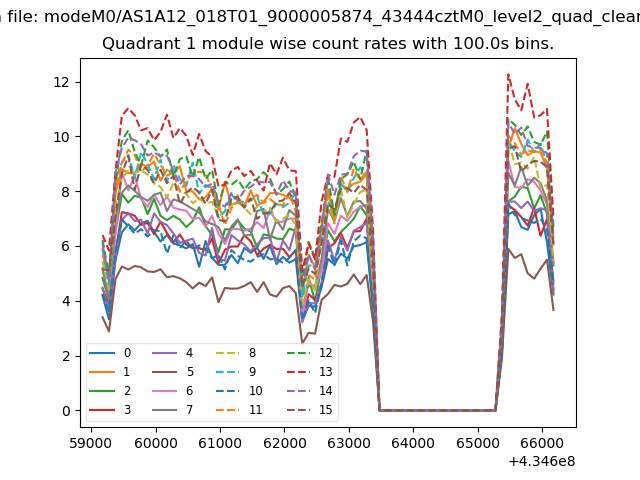

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

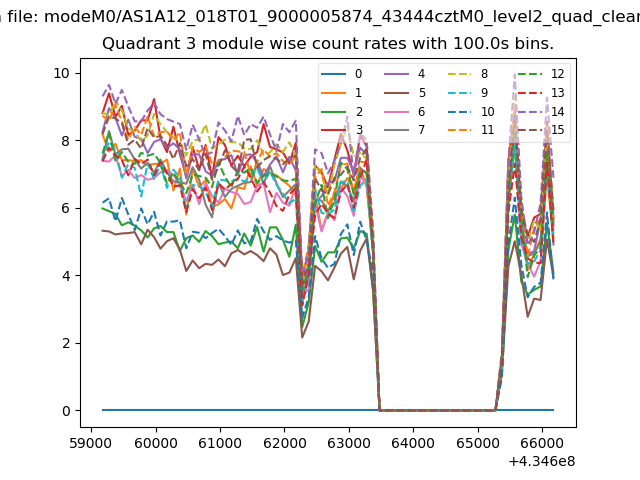

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

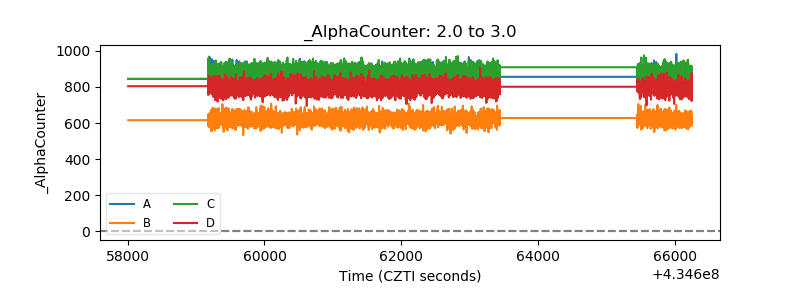

| Alpha Counter |  |

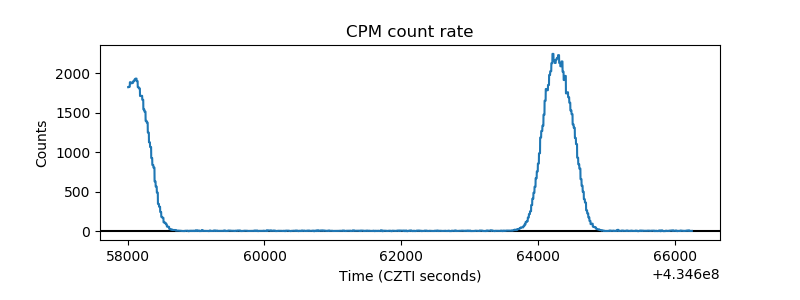

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
