| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_018T01_9000005874_43449cztM0_level2.fits | modeM0/AS1A12_018T01_9000005874_43449cztM0_level2_quad_clean.evt |
| Size (bytes) | 661,296,960 | 72,048,960 |
| Size | 630.7 MB | 68.7 MB |
| Events in quadrant A | 12,868,852 | 110,118 |
| Events in quadrant B | 2,764,031 | 607,923 |
| Events in quadrant C | 2,535,407 | 583,367 |
| Events in quadrant D | 5,877,486 | 489,758 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 42046 | 5 |
| B | 0 | 12220 | 2 |
| C | 0 | 11292 | 2 |
| D | 0 | 21464 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5575 | 4647 | 83.354260% |
| B | 5575 | 26 | 0.466368% |
| C | 5575 | 5 | 0.089686% |
| D | 5575 | 627 | 11.246637% |

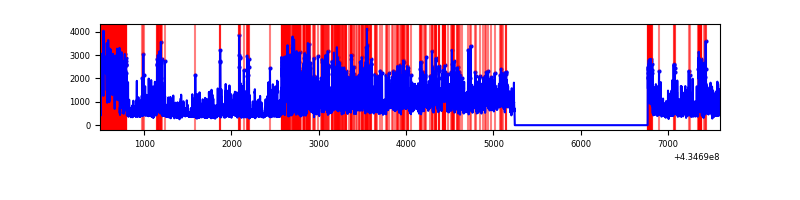

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7098 | 5576 | 4518 | 4518 | 63.65% | 81.03% |  |
| B | 7098 | 5576 | 14 | 14 | 0.20% | 0.25% |  |
| C | 7098 | 5576 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7098 | 5576 | 603 | 603 | 8.50% | 10.81% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 222 | 10880688 | 154637.17 | 340 | 333 | 70.4 |
| A | 10 | 83 | 380153 | 5398.2 | 340 | 333 | 70.4 |
| A | 15 | 237 | 284461 | 4038.17 | 340 | 333 | 70.4 |
| B | 0 | 199 | 117465 | 1032.27 | 589 | 572 | 113.2 |
| B | 0 | 190 | 111200 | 976.95 | 589 | 572 | 113.2 |
| B | 3 | 112 | 69062 | 604.83 | 589 | 572 | 113.2 |
| C | 15 | 214 | 234662 | 1753.73 | 575 | 579 | 133.5 |
| C | 3 | 233 | 35756 | 263.54 | 575 | 579 | 133.5 |
| C | 14 | 254 | 16842 | 121.84 | 575 | 579 | 133.5 |
| D | 1 | 52 | 2644795 | 19502.71 | 550 | 533 | 135.6 |
| D | 2 | 16 | 780394 | 5751.85 | 550 | 533 | 135.6 |
| D | 10 | 118 | 158841 | 1167.6 | 550 | 533 | 135.6 |

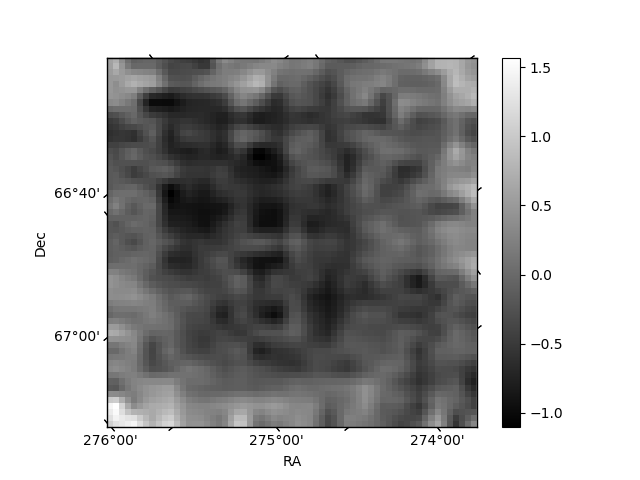

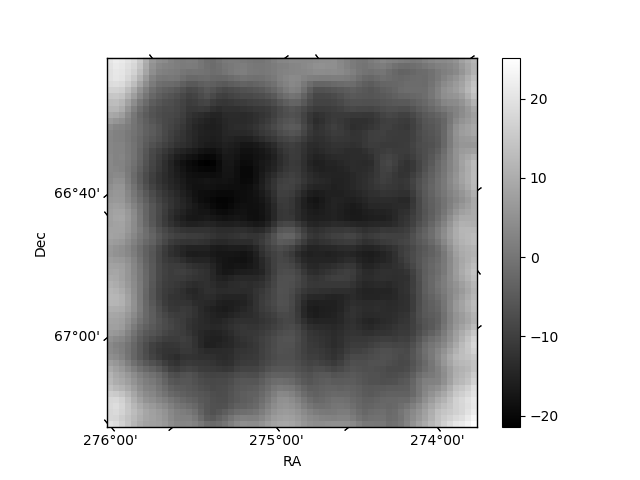

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

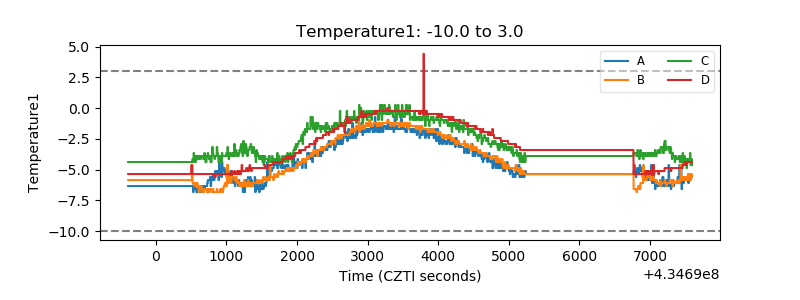

| Temperature 1 |  |

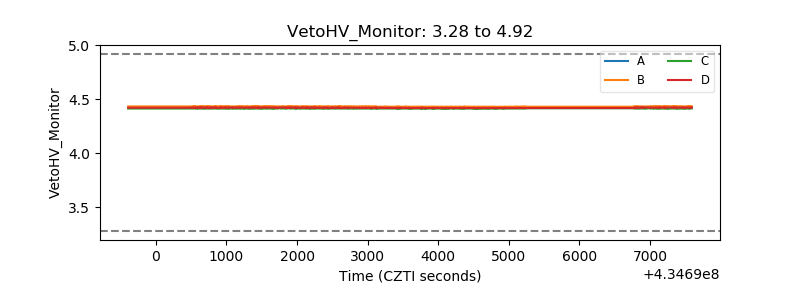

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

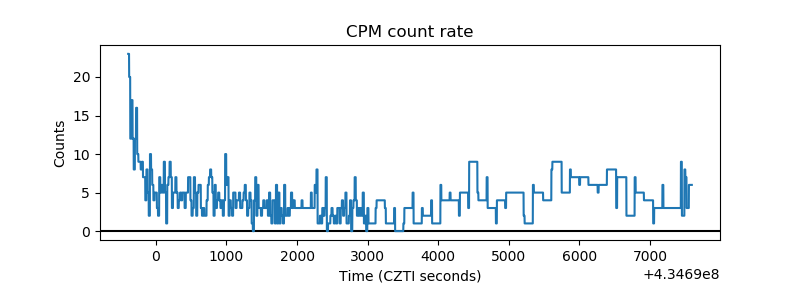

| _CPM_Rate |  |

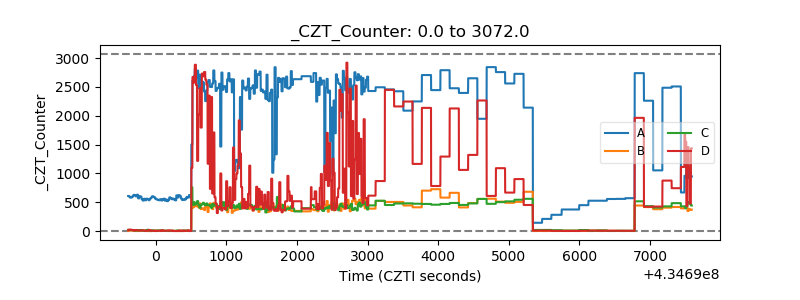

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
