| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_018T01_9000005874_43489cztM0_level2.fits | modeM0/AS1A12_018T01_9000005874_43489cztM0_level2_quad_clean.evt |
| Size (bytes) | 325,128,960 | 83,059,200 |
| Size | 310.1 MB | 79.2 MB |
| Events in quadrant A | 2,848,272 | 558,391 |
| Events in quadrant B | 2,628,417 | 575,580 |
| Events in quadrant C | 2,317,484 | 559,204 |
| Events in quadrant D | 3,867,467 | 485,306 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11477 | 2 |
| B | 0 | 10962 | 5 |
| C | 0 | 9884 | 2 |
| D | 0 | 14872 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33 | 0 |
| B | 0 | 34 | 0 |
| C | 0 | 34 | 0 |
| D | 0 | 34 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 98 | 0 |
| B | 0 | 98 | 0 |
| C | 0 | 98 | 0 |
| D | 0 | 98 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4797 | 31 | 0.646237% |
| B | 4796 | 65 | 1.355296% |
| C | 4796 | 9 | 0.187656% |
| D | 4796 | 275 | 5.733945% |

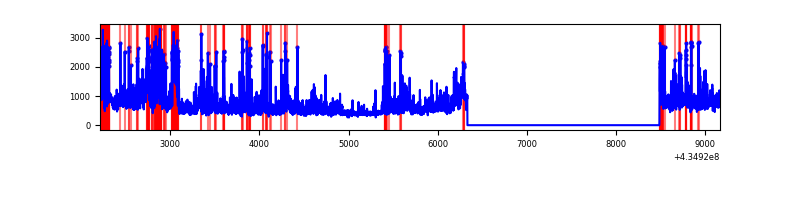

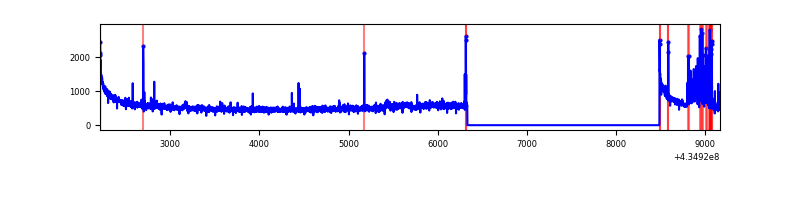

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

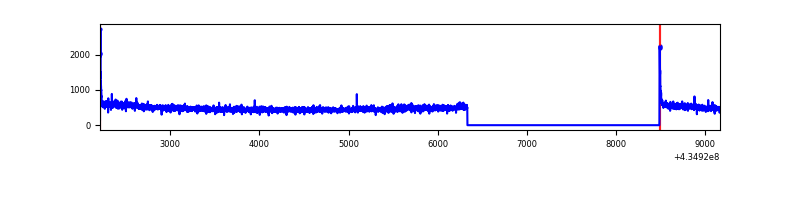

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6950 | 4798 | 28 | 28 | 0.40% | 0.58% |  |
| B | 6949 | 4797 | 59 | 59 | 0.85% | 1.23% |  |
| C | 6949 | 4797 | 6 | 6 | 0.09% | 0.13% |  |
| D | 6949 | 4797 | 271 | 271 | 3.90% | 5.65% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 551335 | 5198.61 | 516 | 506 | 106.0 |
| A | 7 | 3 | 176041 | 1656.66 | 516 | 506 | 106.0 |
| A | 15 | 237 | 73858 | 692.28 | 516 | 506 | 106.0 |
| B | 0 | 189 | 226712 | 2289.82 | 521 | 507 | 98.8 |
| B | 5 | 255 | 157123 | 1585.38 | 521 | 507 | 98.8 |
| B | 0 | 245 | 89323 | 899.06 | 521 | 507 | 98.8 |
| C | 15 | 214 | 196507 | 1630.2 | 518 | 522 | 120.2 |
| C | 3 | 233 | 98459 | 814.64 | 518 | 522 | 120.2 |
| C | 12 | 2 | 3792 | 27.2 | 518 | 522 | 120.2 |
| D | 2 | 16 | 675249 | 5613.43 | 495 | 480 | 120.2 |
| D | 1 | 52 | 651719 | 5417.69 | 495 | 480 | 120.2 |
| D | 12 | 233 | 155301 | 1287.96 | 495 | 480 | 120.2 |

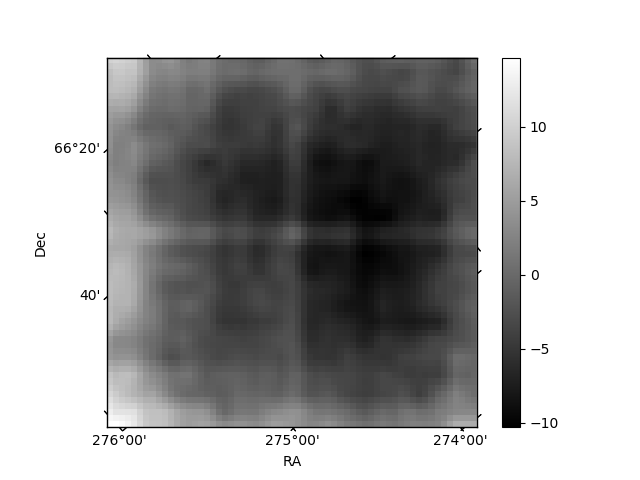

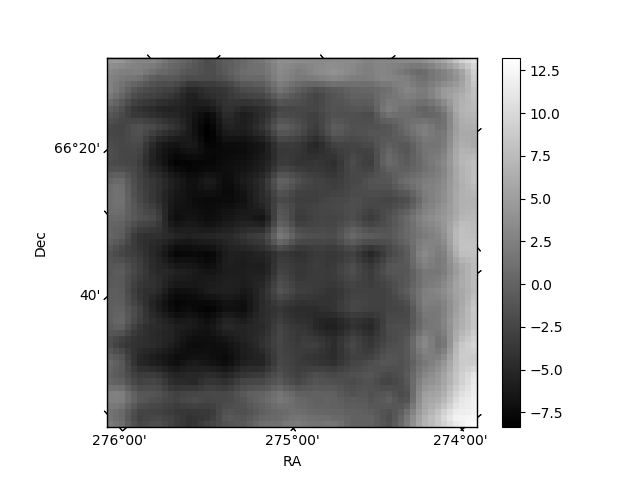

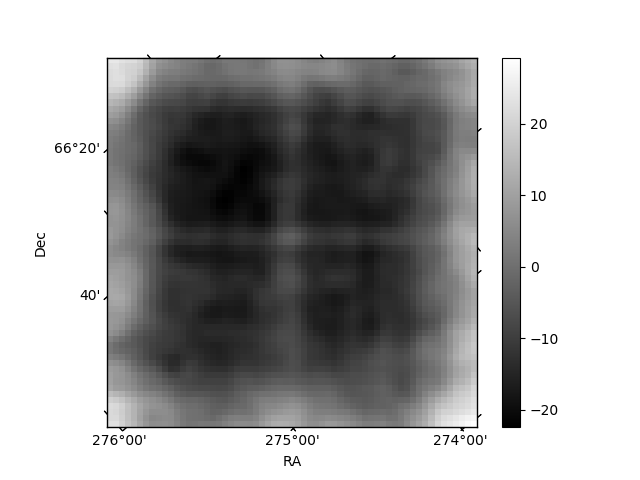

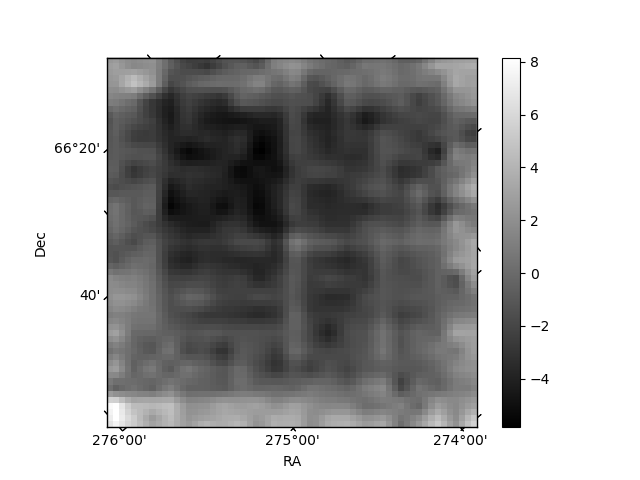

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

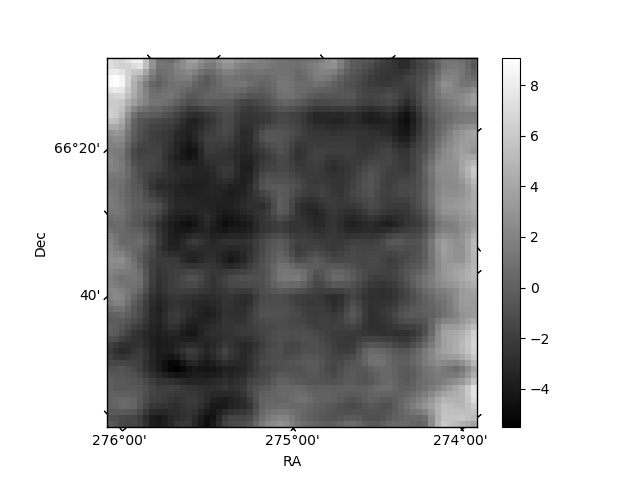

| Plot type | Count rate plots | Images |
|---|---|---|

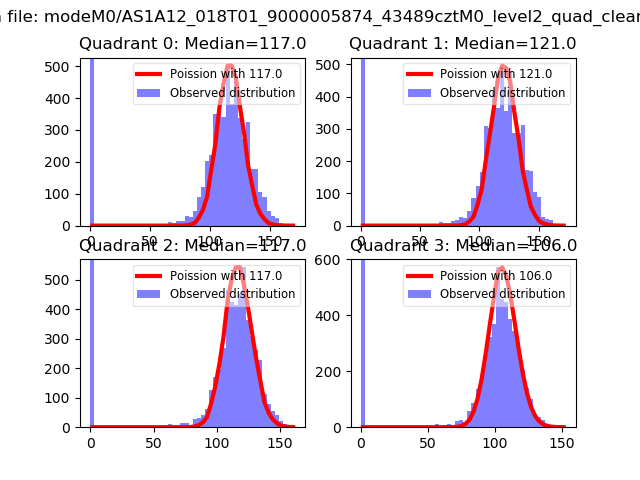

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

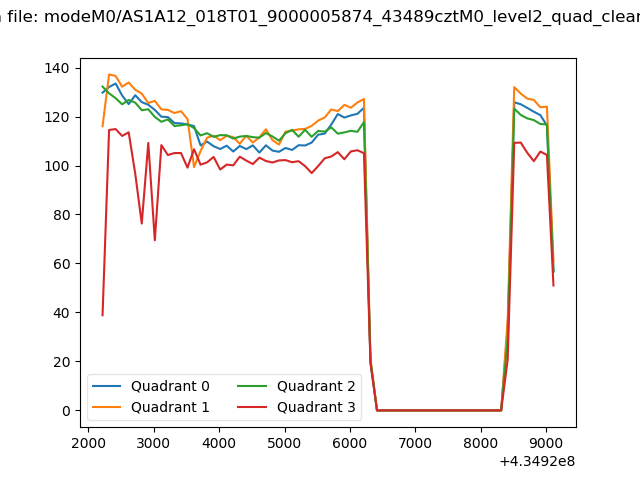

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

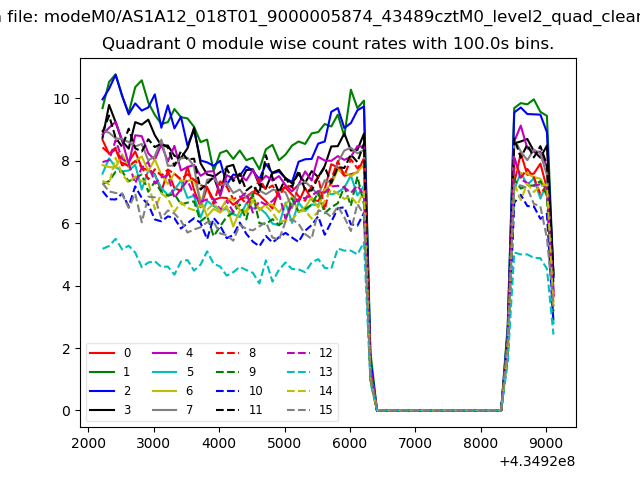

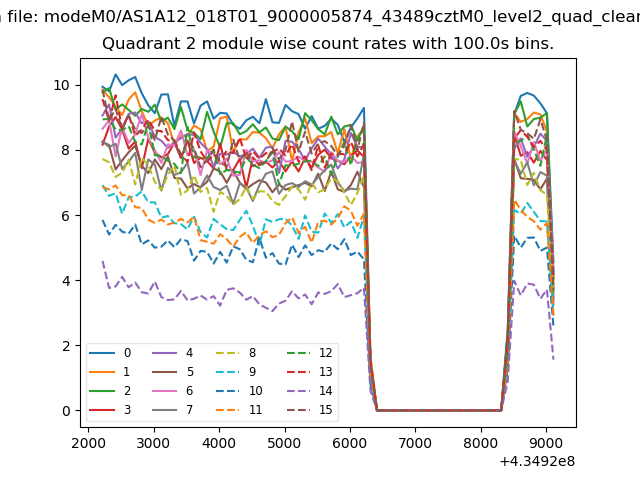

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

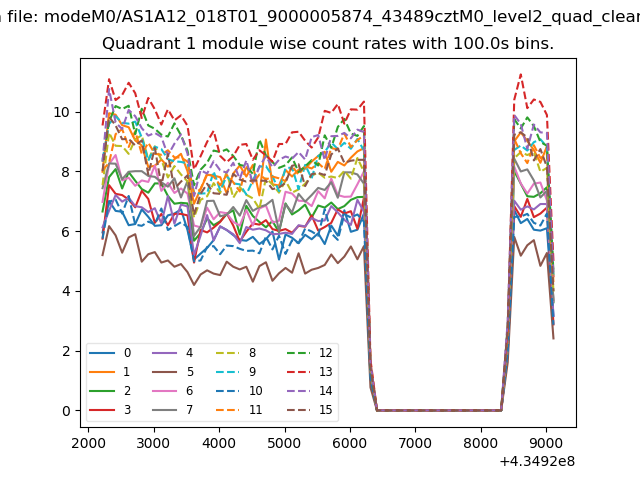

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

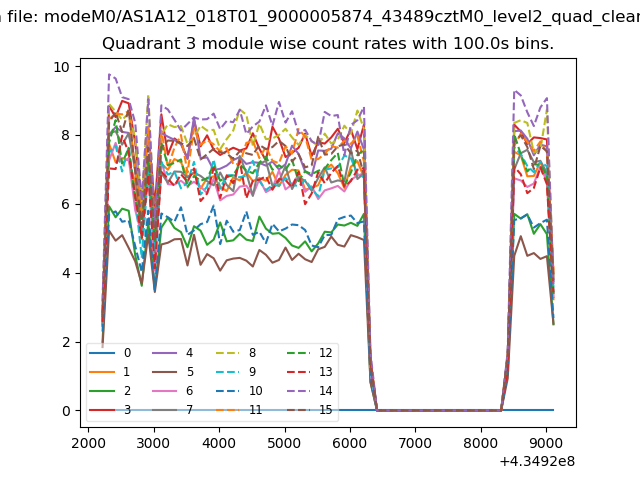

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

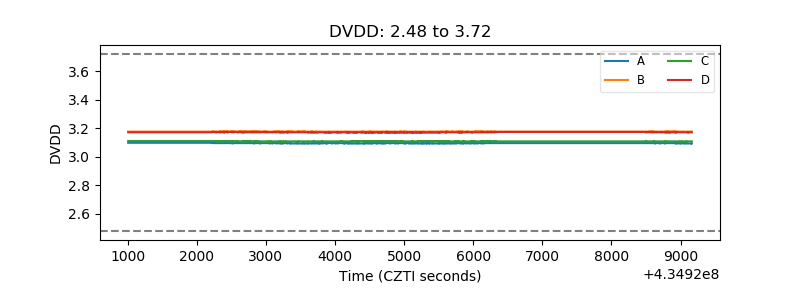

| D_VDD |  |

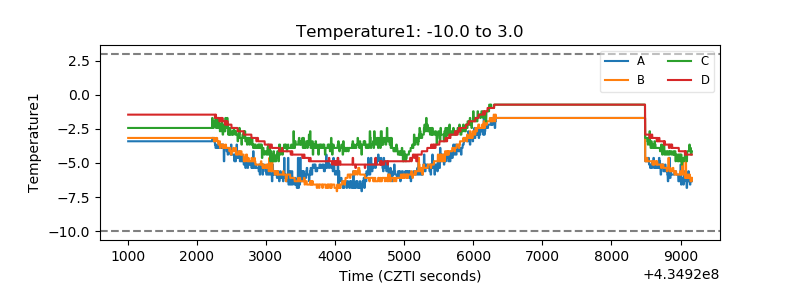

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

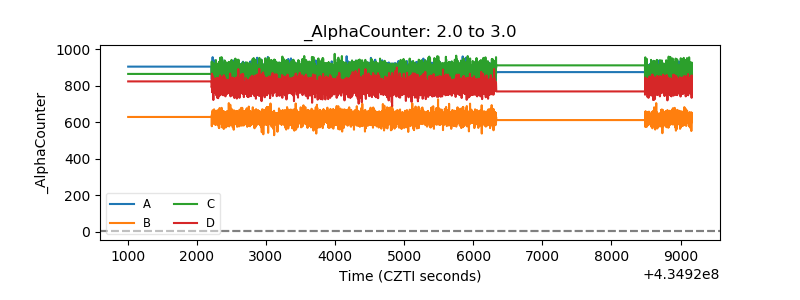

| Alpha Counter |  |

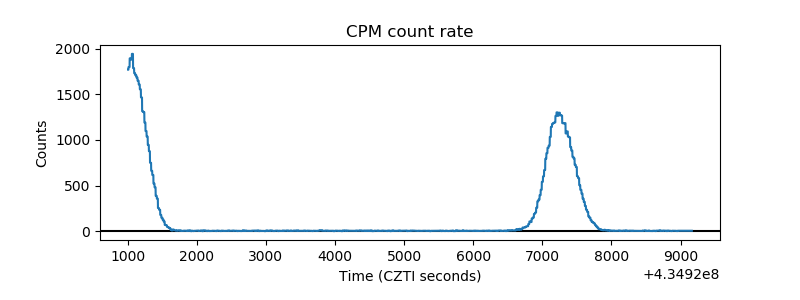

| _CPM_Rate |  |

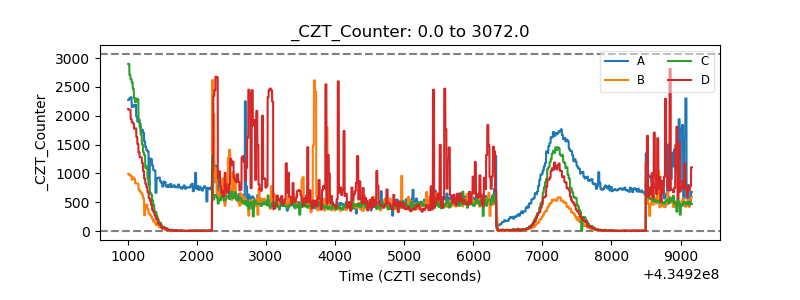

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

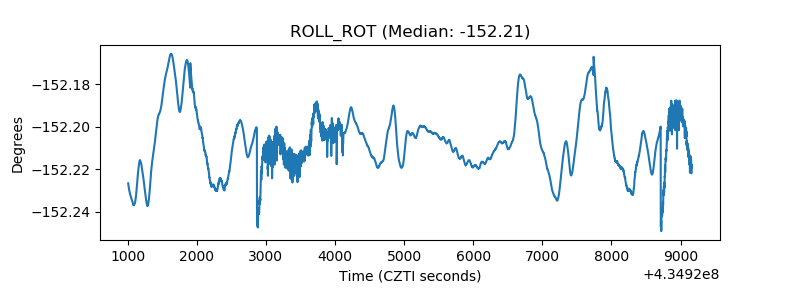

| _ROLL_ROT |  |
| _Roll_DEC |  |

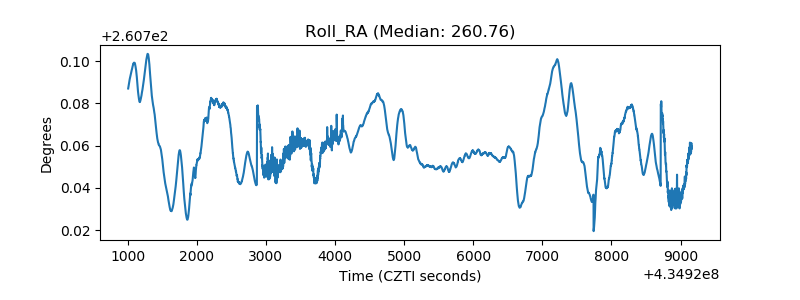

| _Roll_RA |  |

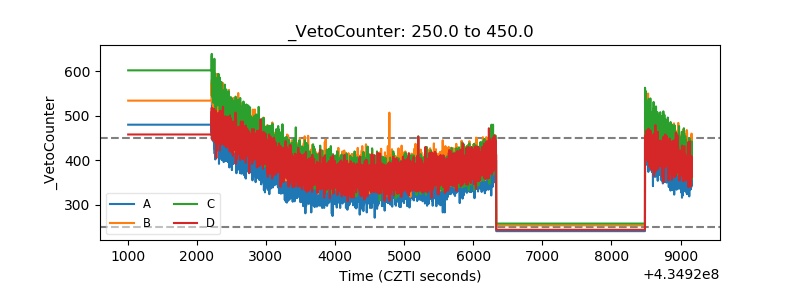

| Veto Counter |  |
