| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_018T01_9000005874_43500cztM0_level2.fits | modeM0/AS1A12_018T01_9000005874_43500cztM0_level2_quad_clean.evt |
| Size (bytes) | 367,836,480 | 89,153,280 |
| Size | 350.8 MB | 85.0 MB |
| Events in quadrant A | 3,029,666 | 608,235 |
| Events in quadrant B | 2,563,998 | 617,634 |
| Events in quadrant C | 2,639,712 | 584,072 |
| Events in quadrant D | 4,958,011 | 507,237 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12304 | 2 |
| B | 0 | 11384 | 2 |
| C | 0 | 11210 | 2 |
| D | 0 | 18540 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5457 | 17 | 0.311526% |
| B | 5458 | 11 | 0.201539% |
| C | 5458 | 7 | 0.128252% |
| D | 5458 | 466 | 8.537926% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7219 | 5458 | 5 | 5 | 0.07% | 0.09% |  |
| B | 7220 | 5459 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7220 | 5459 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7220 | 5459 | 480 | 480 | 6.65% | 8.79% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 666109 | 5495.86 | 588 | 576 | 121.1 |
| A | 15 | 222 | 72089 | 590.54 | 588 | 576 | 121.1 |
| A | 13 | 254 | 7886 | 60.36 | 588 | 576 | 121.1 |
| B | 0 | 189 | 64062 | 567.67 | 584 | 568 | 111.8 |
| B | 0 | 186 | 48107 | 425.03 | 584 | 568 | 111.8 |
| B | 0 | 245 | 45007 | 397.31 | 584 | 568 | 111.8 |
| C | 15 | 214 | 225795 | 1687.87 | 575 | 577 | 133.4 |
| C | 3 | 233 | 157255 | 1174.2 | 575 | 577 | 133.4 |
| C | 15 | 208 | 8427 | 58.83 | 575 | 577 | 133.4 |
| D | 1 | 52 | 1302062 | 9662.83 | 556 | 540 | 134.7 |
| D | 2 | 16 | 759366 | 5633.71 | 556 | 540 | 134.7 |
| D | 1 | 20 | 169391 | 1253.59 | 556 | 540 | 134.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

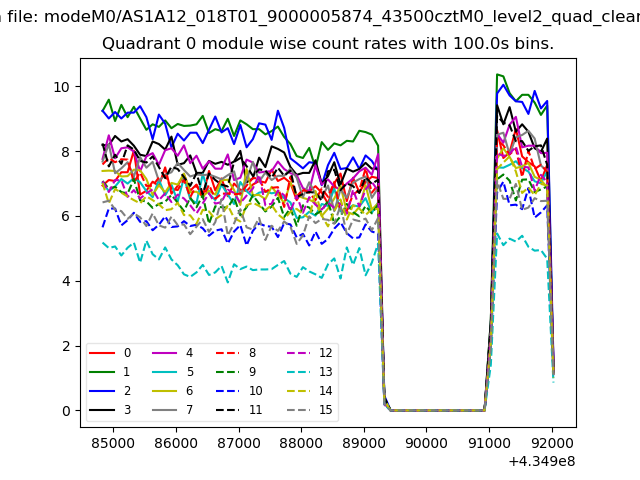

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

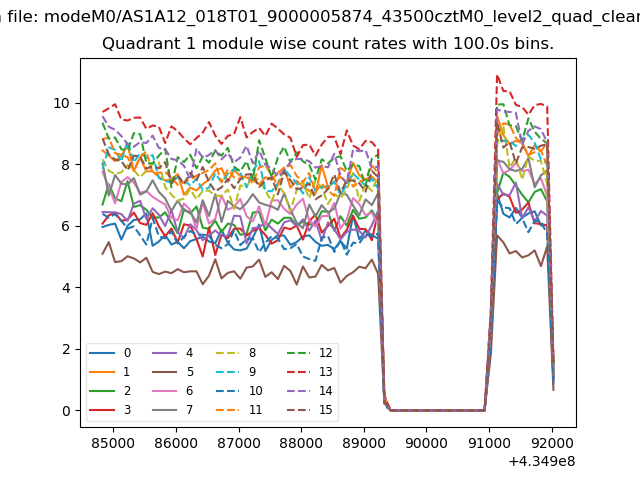

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

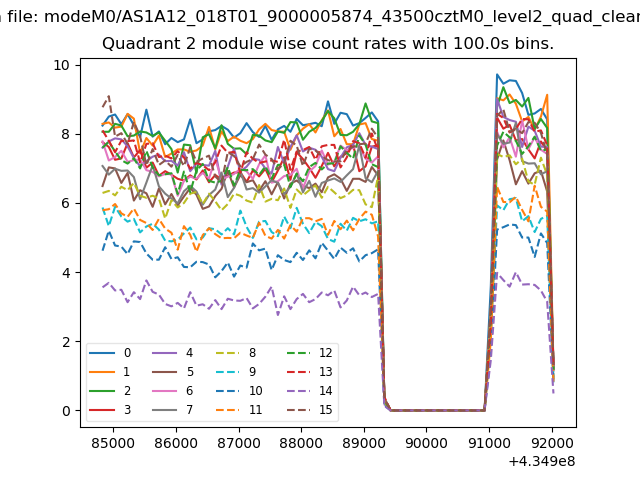

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

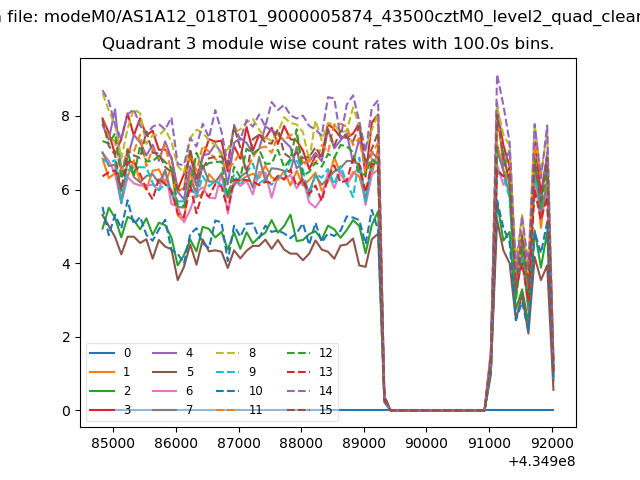

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

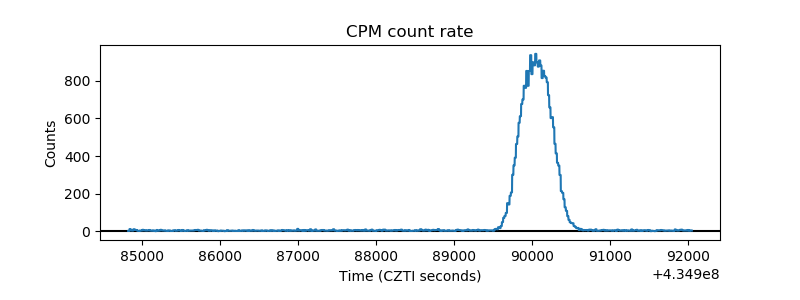

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

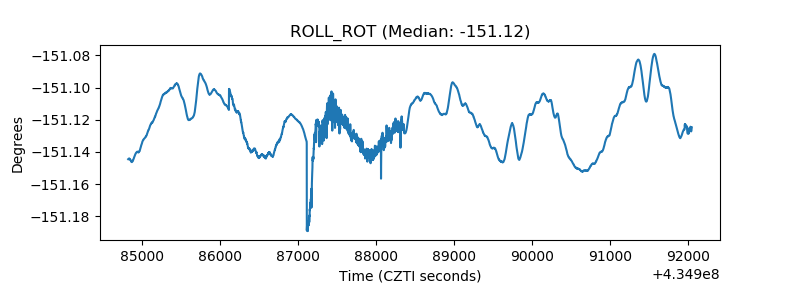

| _ROLL_ROT |  |

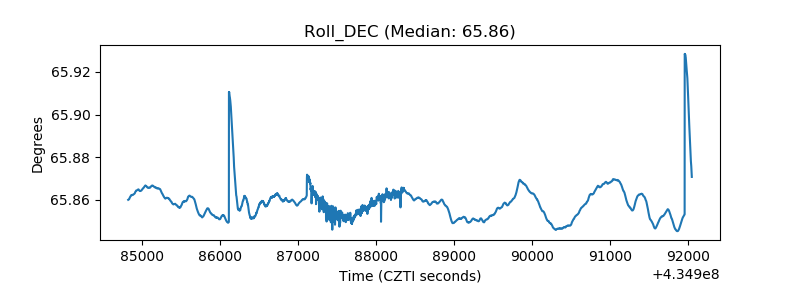

| _Roll_DEC |  |
| _Roll_RA |  |

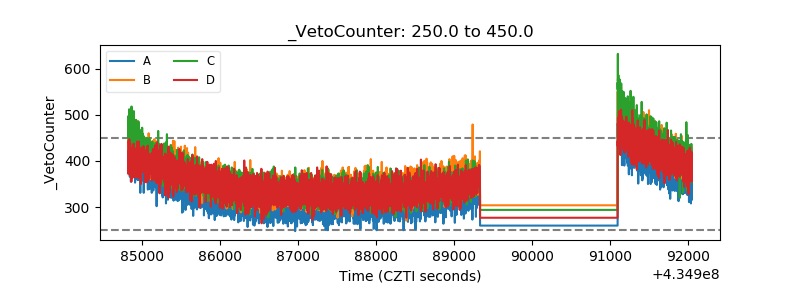

| Veto Counter |  |
