| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_018T01_9000005874_43520cztM0_level2.fits | modeM0/AS1A12_018T01_9000005874_43520cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,019,646,080 | 113,653,440 |
| Size | 1.9 GB | 108.4 MB |
| Events in quadrant A | 19,603,224 | 1,132,111 |
| Events in quadrant B | 16,583,904 | 1,162,335 |
| Events in quadrant C | 29,862,674 | 316,214 |
| Events in quadrant D | 7,808,064 | 8,295 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 66378 | 2 |
| B | 0 | 57335 | 2 |
| C | 0 | 96692 | 3 |
| D | 0 | 31496 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 236 | 0 |
| B | 0 | 236 | 0 |
| C | 0 | 236 | 0 |
| D | 0 | 236 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 11664 | 4675 | 40.080590% |
| B | 11665 | 4090 | 35.062152% |
| C | 11664 | 11654 | 99.914266% |
| D | 11664 | 11664 | 100.000000% |

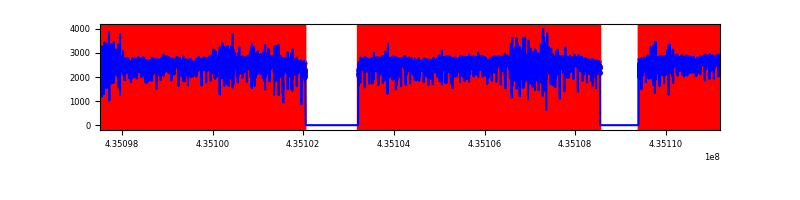

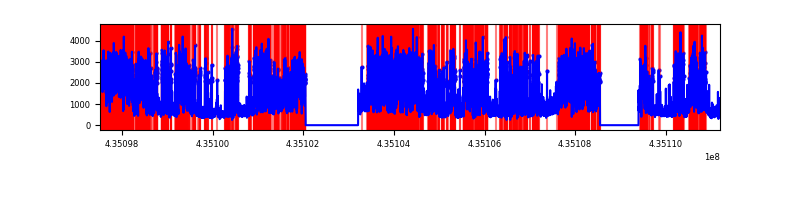

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

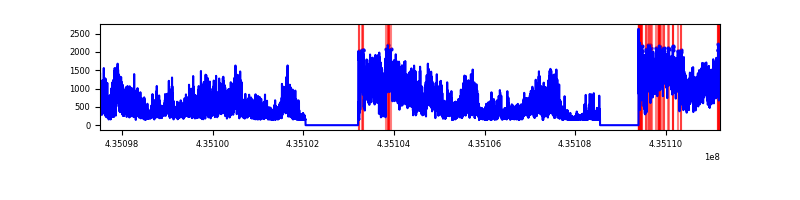

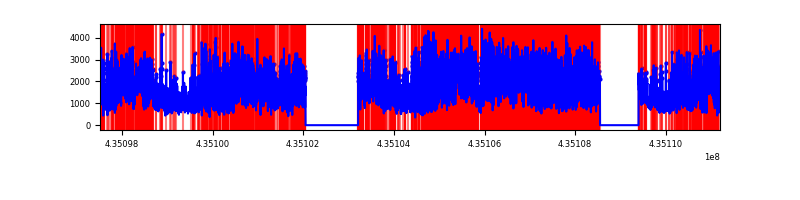

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13674 | 11665 | 3666 | 3666 | 26.81% | 31.43% |  |
| B | 13675 | 11665 | 3222 | 3222 | 23.56% | 27.62% |  |
| C | 13673 | 11663 | 11376 | 11376 | 83.20% | 97.54% |  |
| D | 13673 | 11663 | 61 | 61 | 0.45% | 0.52% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 228 | 4802477 | 21177.34 | 1109 | 1089 | 226.7 |
| A | 14 | 235 | 3891912 | 17161.14 | 1109 | 1089 | 226.7 |
| A | 0 | 175 | 3248113 | 14321.55 | 1109 | 1089 | 226.7 |
| B | 3 | 42 | 5495246 | 25834.39 | 1120 | 1091 | 212.7 |
| B | 3 | 25 | 4872234 | 22904.89 | 1120 | 1091 | 212.7 |
| B | 0 | 200 | 267447 | 1252.45 | 1120 | 1091 | 212.7 |
| C | 15 | 158 | 16838586 | 201738.38 | 346 | 347 | 83.5 |
| C | 5 | 80 | 5576698 | 66810.08 | 346 | 347 | 83.5 |
| C | 15 | 142 | 2152537 | 25785.32 | 346 | 347 | 83.5 |
| D | 4 | 216 | 1333053 | 66438.64 | 14 | 12 | 20.1 |
| D | 4 | 214 | 1302932 | 64937.41 | 14 | 12 | 20.1 |
| D | 4 | 215 | 719909 | 35879.6 | 14 | 12 | 20.1 |

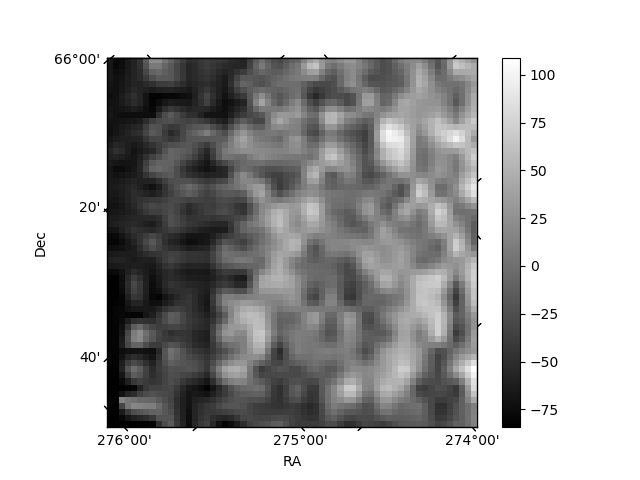

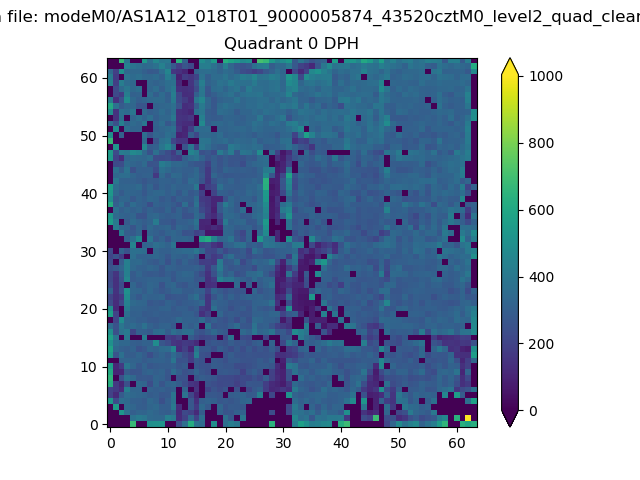

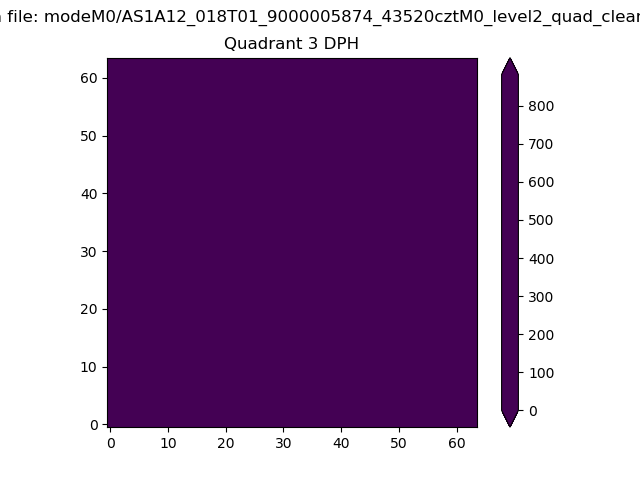

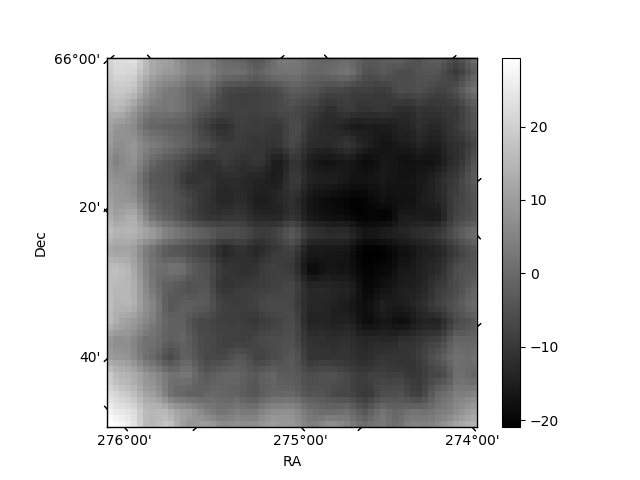

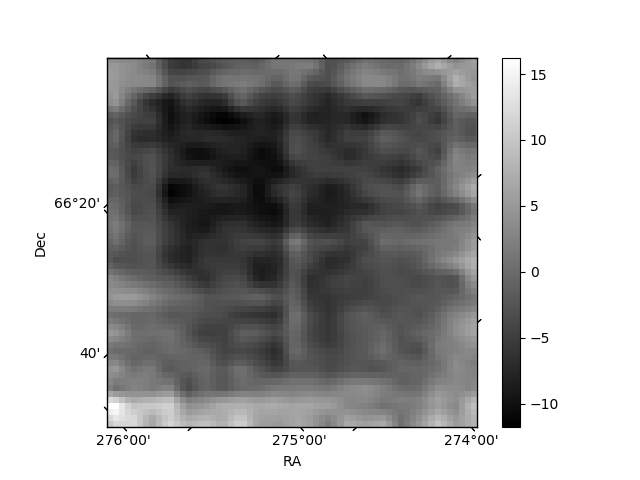

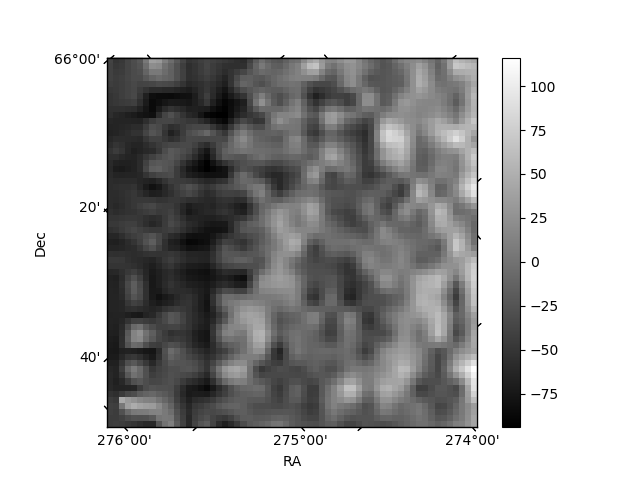

Histogram calculated using DETX and DETY for each event in the final _common_clean file

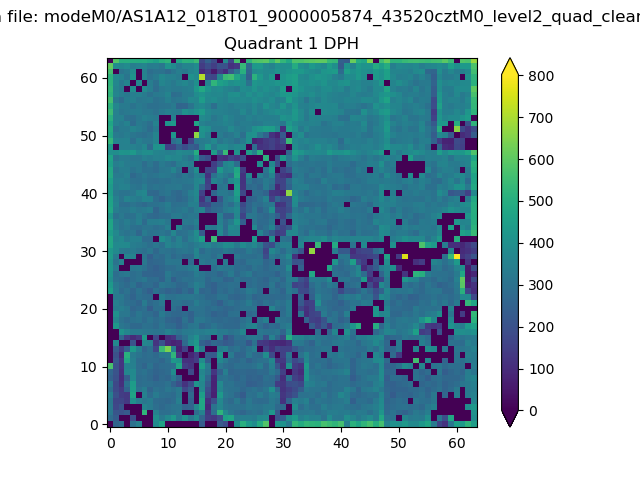

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|

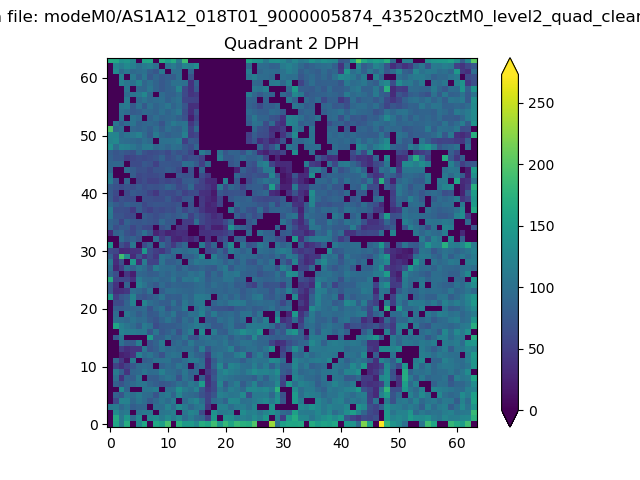

| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

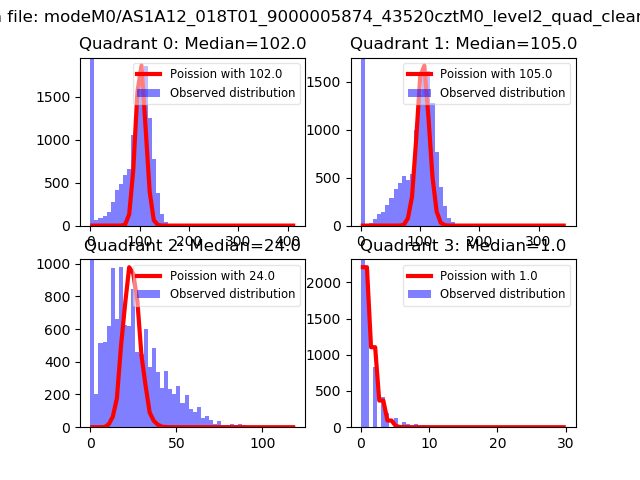

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

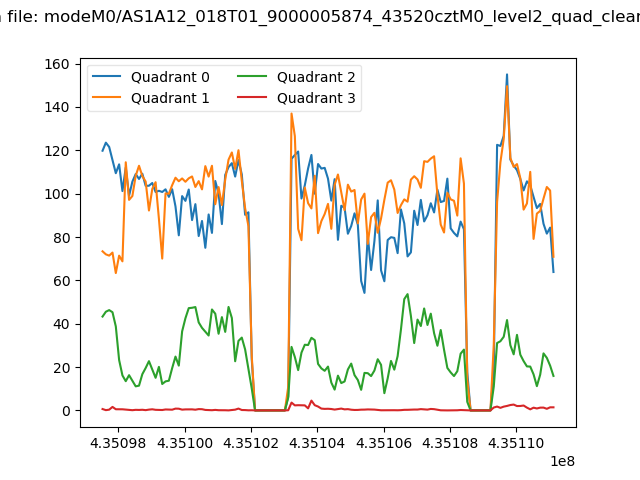

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

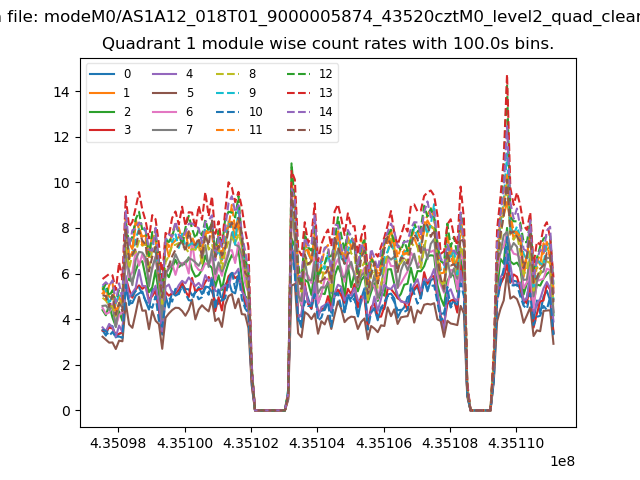

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

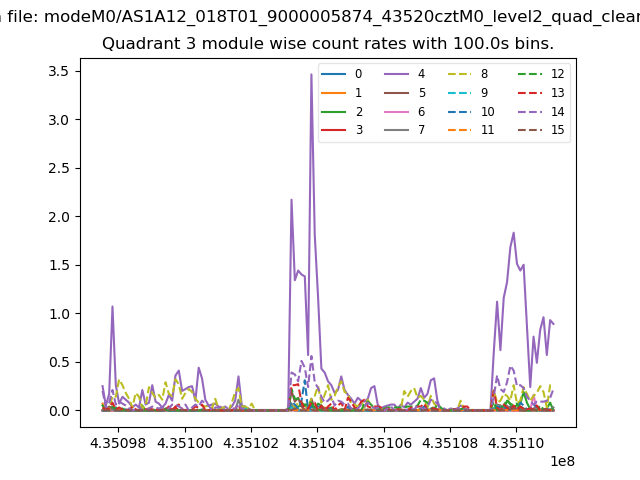

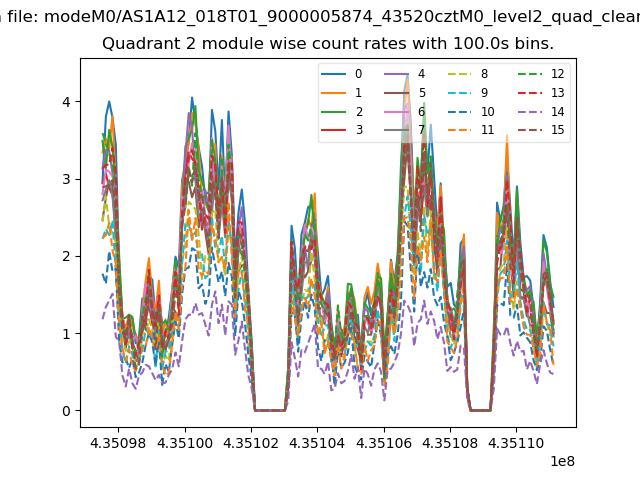

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

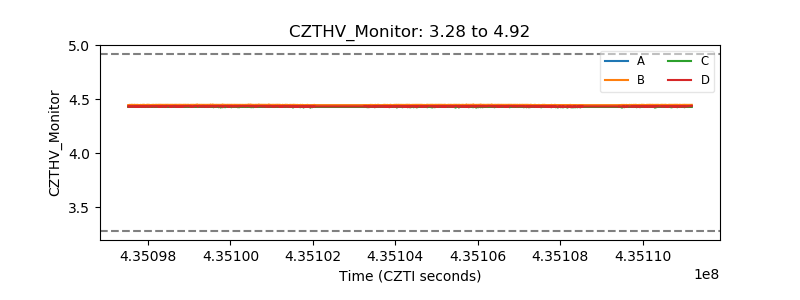

| CZT HV Monitor |  |

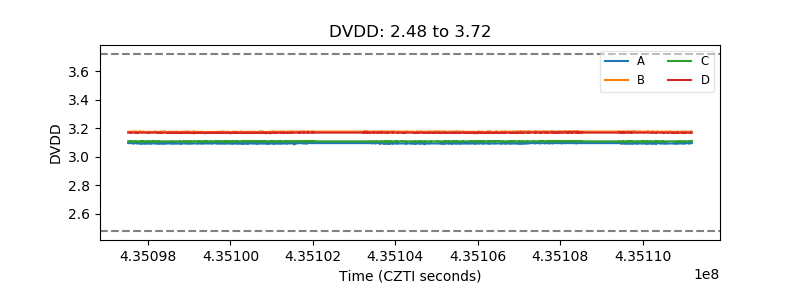

| D_VDD |  |

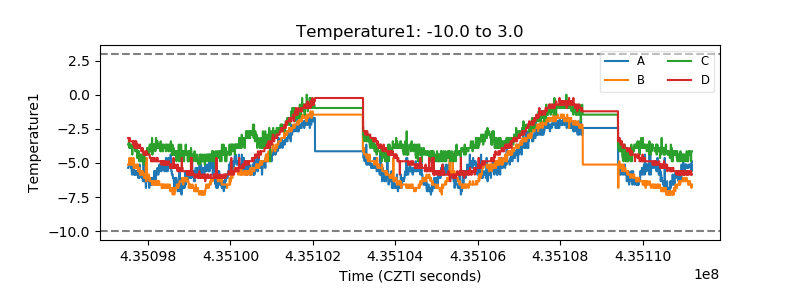

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

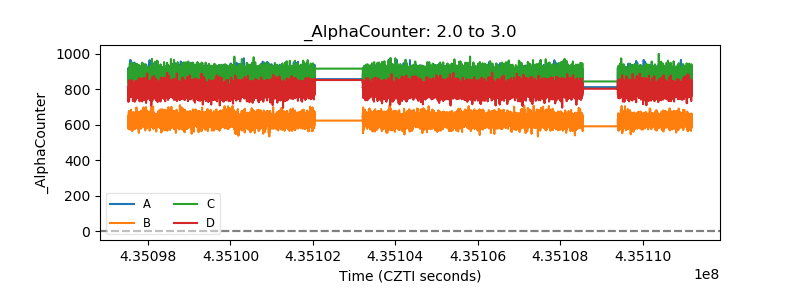

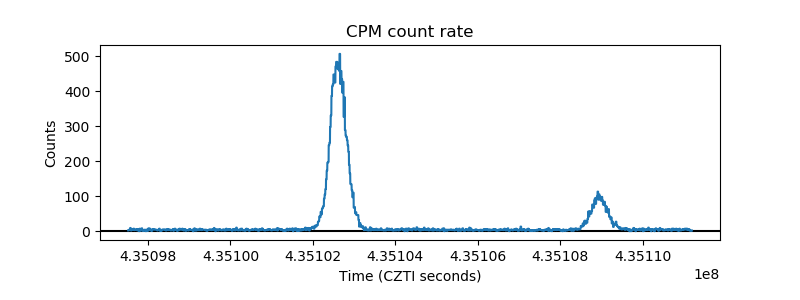

| Alpha Counter |  |
| _CPM_Rate |  |

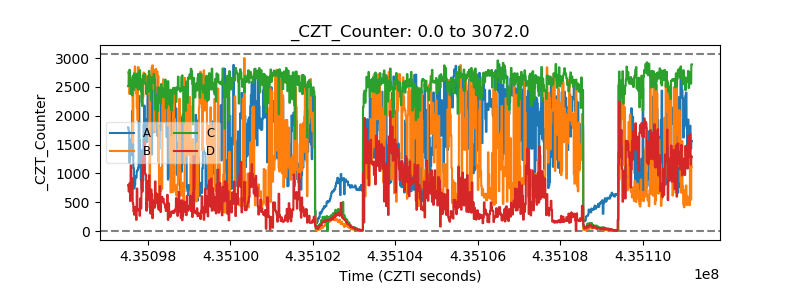

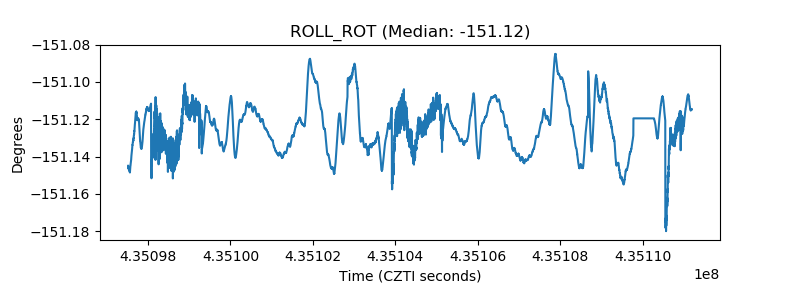

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

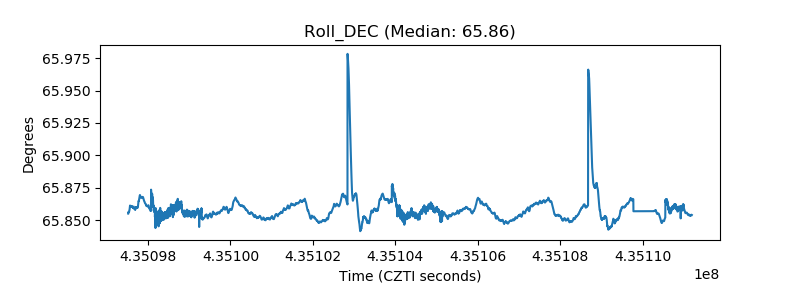

| _Roll_DEC |  |

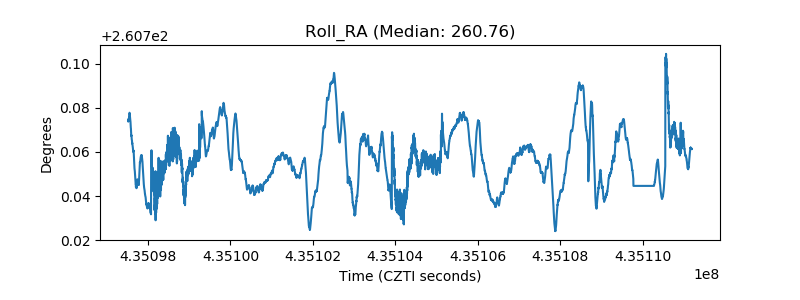

| _Roll_RA |  |

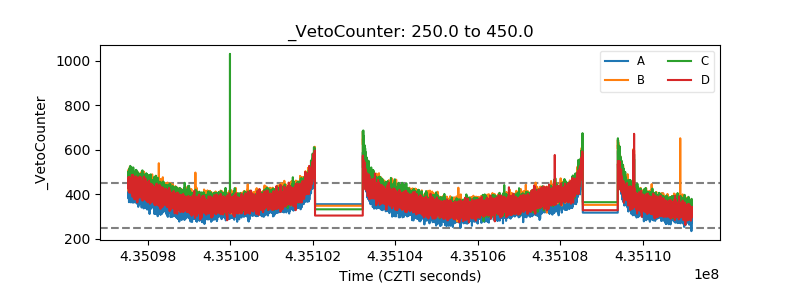

| Veto Counter |  |
