| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_102T01_9000005876_43531cztM0_level2.fits | modeM0/AS1A12_102T01_9000005876_43531cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,177,053,120 | 60,338,880 |
| Size | 1.1 GB | 57.5 MB |
| Events in quadrant A | 9,664,519 | 601,854 |
| Events in quadrant B | 7,364,164 | 658,021 |
| Events in quadrant C | 15,210,010 | 151,595 |
| Events in quadrant D | 10,898,202 | 14,373 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32617 | 1 |
| B | 0 | 25744 | 1 |
| C | 0 | 48849 | 1 |
| D | 0 | 36274 | 6 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5635 | 2217 | 39.343390% |
| B | 5636 | 1465 | 25.993612% |
| C | 5636 | 5615 | 99.627395% |
| D | 5635 | 5635 | 100.000000% |

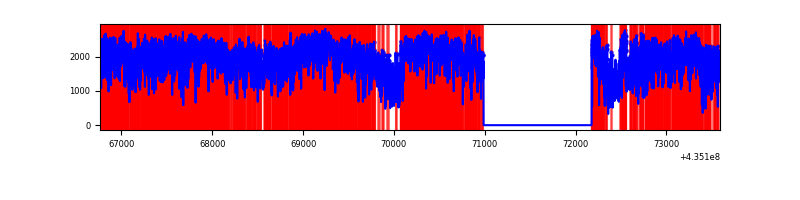

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6825 | 5635 | 1829 | 1829 | 26.80% | 32.46% |  |
| B | 6825 | 5635 | 1219 | 1219 | 17.86% | 21.63% |  |
| C | 6825 | 5635 | 5509 | 5509 | 80.72% | 97.76% |  |
| D | 6824 | 5634 | 2828 | 2828 | 41.44% | 50.20% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 222 | 2906760 | 24685.9 | 571 | 559 | 117.7 |
| A | 0 | 228 | 1857929 | 15776.9 | 571 | 559 | 117.7 |
| A | 15 | 223 | 1008893 | 8565.01 | 571 | 559 | 117.7 |
| B | 3 | 42 | 2932330 | 25462.1 | 608 | 592 | 115.1 |
| B | 3 | 25 | 1557515 | 13521.85 | 608 | 592 | 115.1 |
| B | 0 | 189 | 71377 | 614.77 | 608 | 592 | 115.1 |
| C | 15 | 126 | 6976643 | 183992.22 | 155 | 156 | 37.9 |
| C | 15 | 174 | 3396121 | 89562.43 | 155 | 156 | 37.9 |
| C | 15 | 142 | 2738583 | 72221.06 | 155 | 156 | 37.9 |
| D | 4 | 216 | 4931100 | 205283.27 | 38 | 35 | 24.0 |
| D | 4 | 214 | 1255715 | 52274.73 | 38 | 35 | 24.0 |
| D | 4 | 212 | 630683 | 26254.26 | 38 | 35 | 24.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

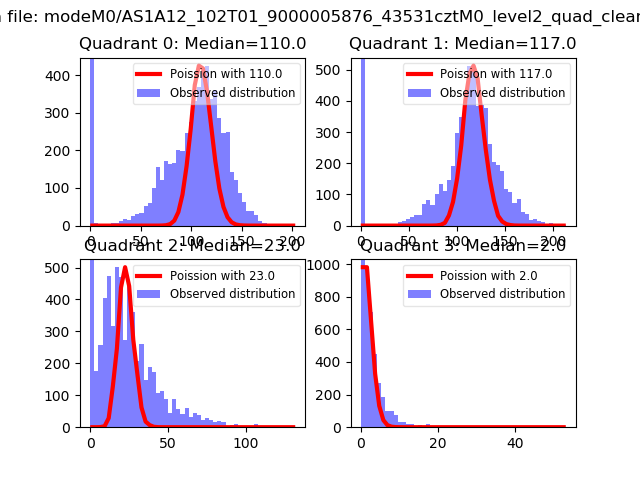

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

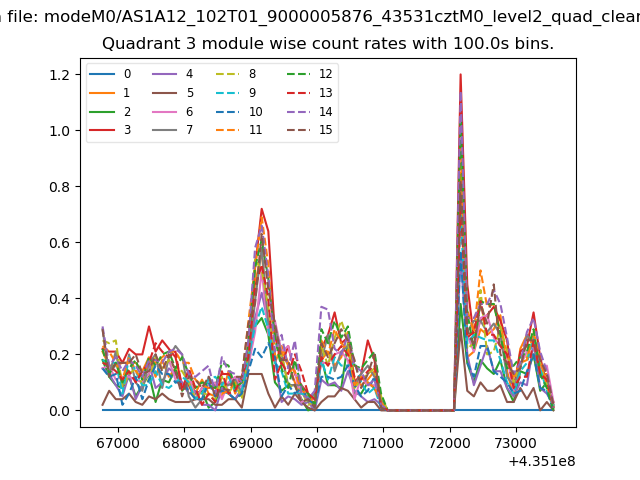

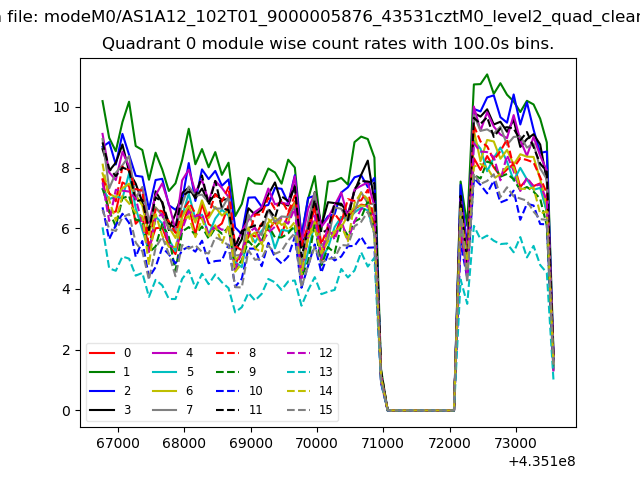

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

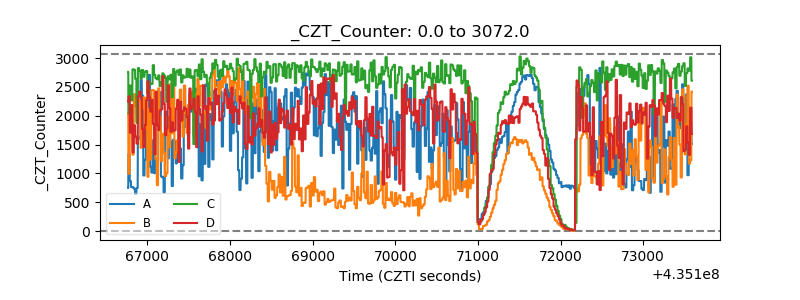

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

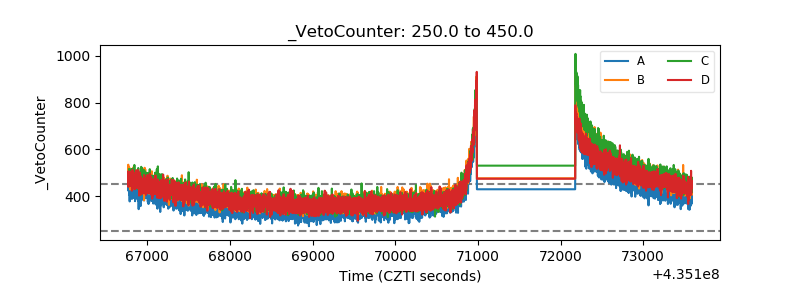

| Veto Counter |  |
