| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_102T01_9000005876_43532cztM0_level2.fits | modeM0/AS1A12_102T01_9000005876_43532cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,190,136,960 | 73,696,320 |
| Size | 1.1 GB | 70.3 MB |
| Events in quadrant A | 8,897,895 | 711,624 |
| Events in quadrant B | 8,361,202 | 732,244 |
| Events in quadrant C | 14,868,182 | 337,315 |
| Events in quadrant D | 11,455,122 | 15,122 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30718 | 1 |
| B | 0 | 29169 | 1 |
| C | 0 | 48285 | 1 |
| D | 0 | 38270 | 6 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6141 | 1397 | 22.748738% |
| B | 6141 | 1445 | 23.530370% |
| C | 6141 | 5018 | 81.713076% |
| D | 6140 | 6140 | 100.000000% |

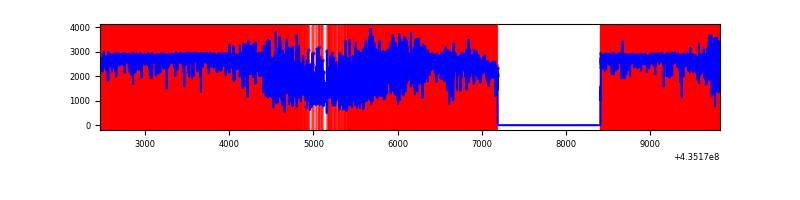

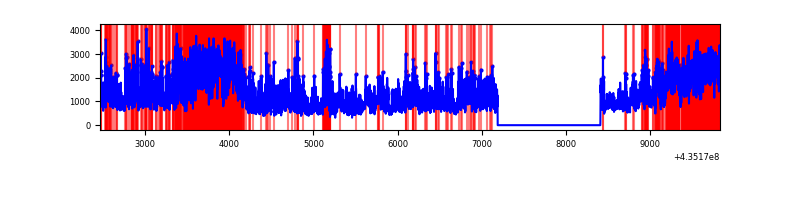

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7361 | 6142 | 1013 | 1013 | 13.76% | 16.49% |  |
| B | 7360 | 6141 | 1159 | 1159 | 15.75% | 18.87% |  |
| C | 7360 | 6140 | 4903 | 4903 | 66.62% | 79.85% |  |
| D | 7359 | 6139 | 2756 | 2756 | 37.45% | 44.89% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 228 | 2316219 | 17013.76 | 670 | 658 | 136.1 |
| A | 15 | 222 | 1770937 | 13007.26 | 670 | 658 | 136.1 |
| A | 10 | 83 | 719144 | 5279.13 | 670 | 658 | 136.1 |
| B | 3 | 42 | 3218449 | 25454.61 | 670 | 652 | 126.4 |
| B | 3 | 25 | 1901455 | 15036.43 | 670 | 652 | 126.4 |
| B | 5 | 235 | 174752 | 1377.23 | 670 | 652 | 126.4 |
| C | 15 | 142 | 5542217 | 72238.27 | 326 | 328 | 76.7 |
| C | 15 | 174 | 4523412 | 58958.19 | 326 | 328 | 76.7 |
| C | 15 | 190 | 1272506 | 16582.78 | 326 | 328 | 76.7 |
| D | 4 | 216 | 6094168 | 173460.15 | 41 | 37 | 35.1 |
| D | 4 | 212 | 648306 | 18451.99 | 41 | 37 | 35.1 |
| D | 4 | 200 | 629451 | 17915.31 | 41 | 37 | 35.1 |

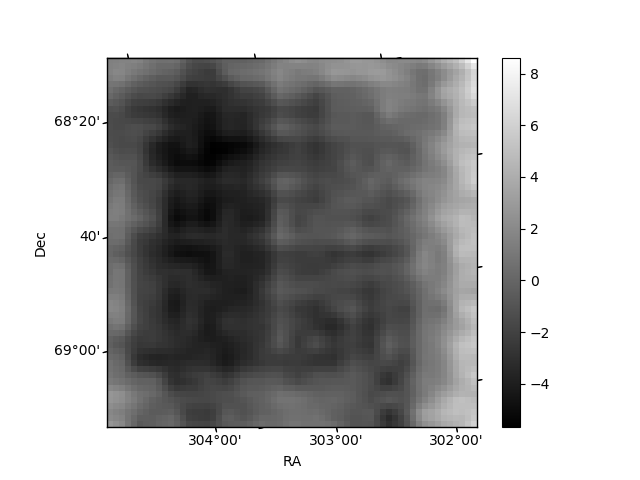

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

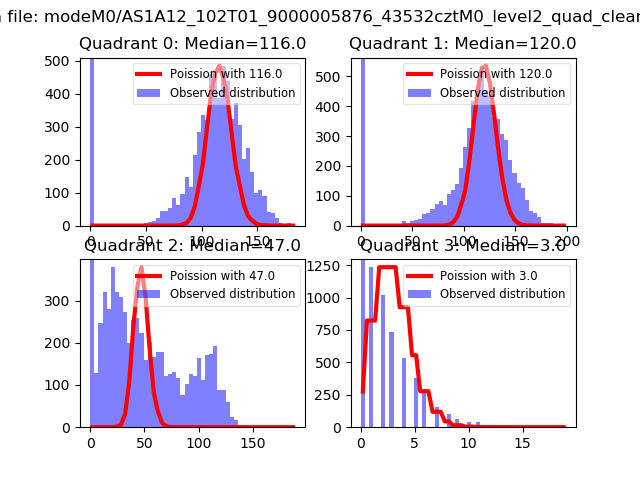

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

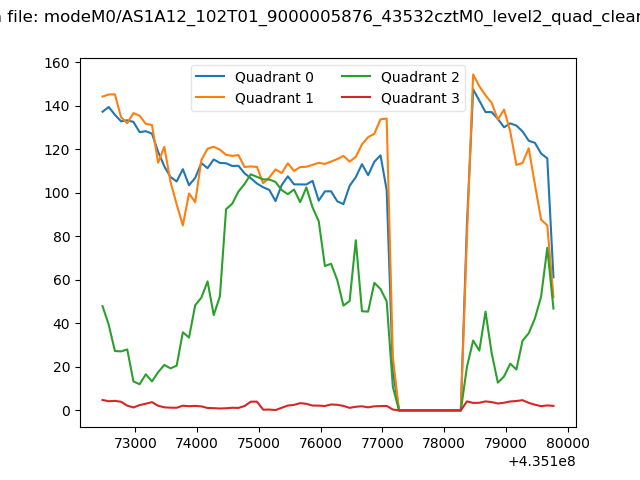

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

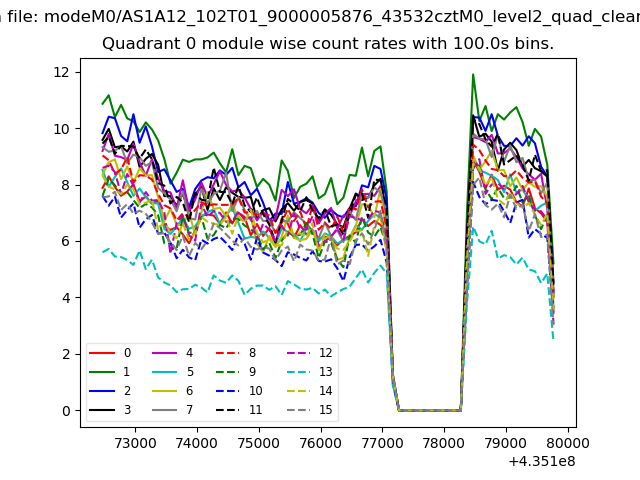

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

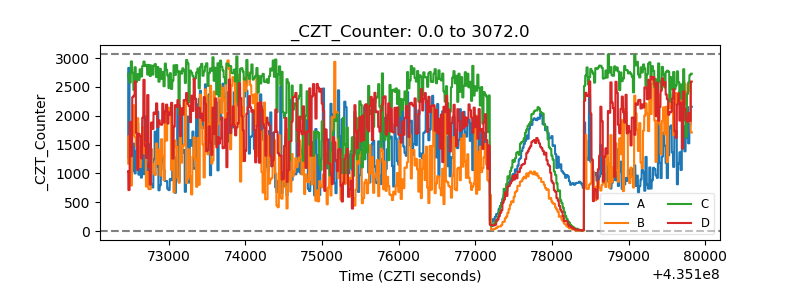

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

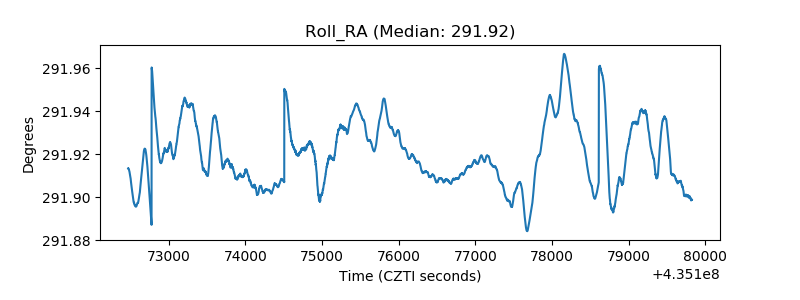

| _Roll_RA |  |
| Veto Counter |  |
