| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_102T01_9000005876_43536cztM0_level2.fits | modeM0/AS1A12_102T01_9000005876_43536cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,443,807,360 | 75,303,360 |
| Size | 1.3 GB | 71.8 MB |
| Events in quadrant A | 9,049,620 | 746,719 |
| Events in quadrant B | 9,580,193 | 731,435 |
| Events in quadrant C | 19,386,215 | 238,773 |
| Events in quadrant D | 14,866,823 | 45,746 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32139 | 1 |
| B | 0 | 33502 | 6 |
| C | 0 | 62441 | 1 |
| D | 0 | 49185 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7305 | 1443 | 19.753593% |
| B | 7305 | 2258 | 30.910335% |
| C | 7305 | 7274 | 99.575633% |
| D | 7305 | 7305 | 100.000000% |

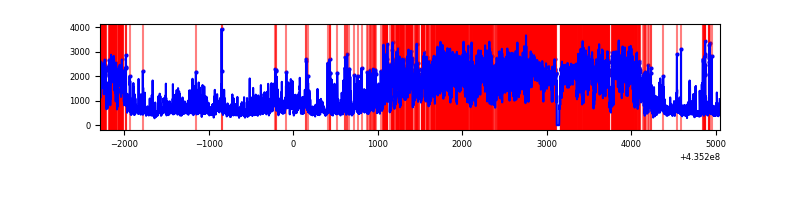

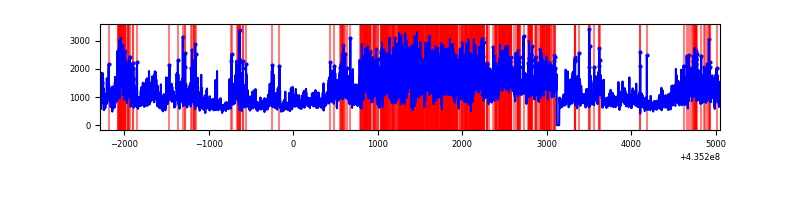

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7335 | 7306 | 717 | 717 | 9.78% | 9.81% |  |
| B | 7334 | 7304 | 1675 | 1675 | 22.84% | 22.93% |  |
| C | 7334 | 7304 | 7137 | 7137 | 97.31% | 97.71% |  |
| D | 7334 | 7304 | 4231 | 4231 | 57.69% | 57.93% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 228 | 3754733 | 23945.29 | 759 | 743 | 156.8 |
| A | 10 | 83 | 673756 | 4292.9 | 759 | 743 | 156.8 |
| A | 0 | 227 | 581022 | 3701.38 | 759 | 743 | 156.8 |
| B | 3 | 25 | 3794798 | 27709.25 | 716 | 697 | 136.9 |
| B | 3 | 42 | 1931117 | 14098.33 | 716 | 697 | 136.9 |
| B | 0 | 199 | 219586 | 1598.6 | 716 | 697 | 136.9 |
| C | 15 | 142 | 6281516 | 103998.7 | 253 | 254 | 60.4 |
| C | 15 | 126 | 6113791 | 101221.68 | 253 | 254 | 60.4 |
| C | 15 | 158 | 1844648 | 30537.58 | 253 | 254 | 60.4 |
| D | 4 | 216 | 6898417 | 153257.24 | 71 | 65 | 45.0 |
| D | 8 | 160 | 1321551 | 29358.79 | 71 | 65 | 45.0 |
| D | 2 | 153 | 1222833 | 27165.63 | 71 | 65 | 45.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

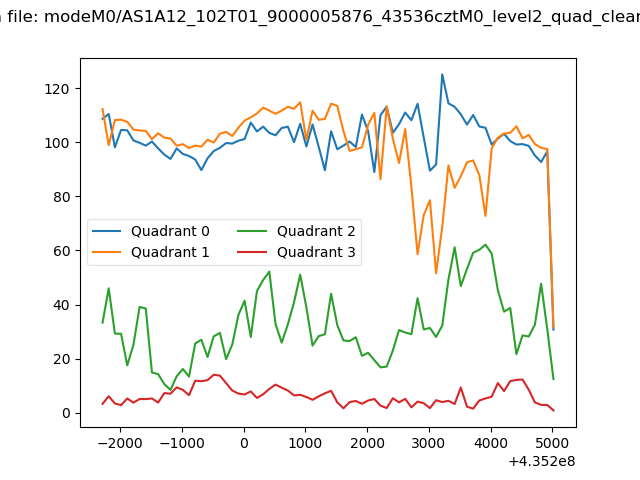

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

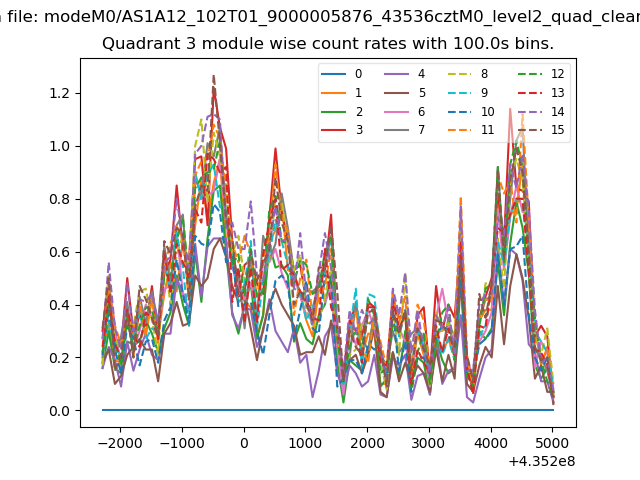

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

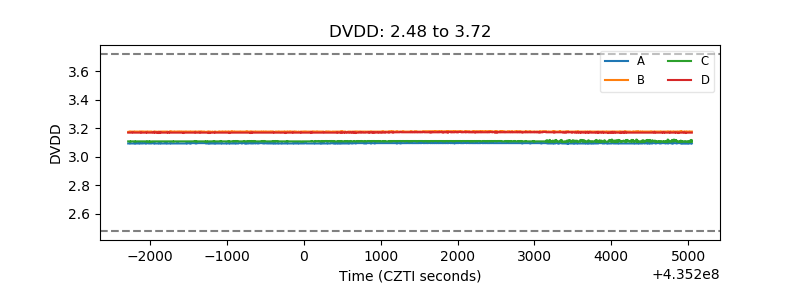

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

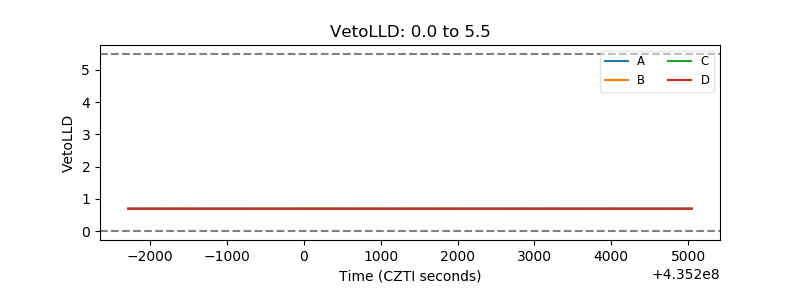

| Veto LLD |  |

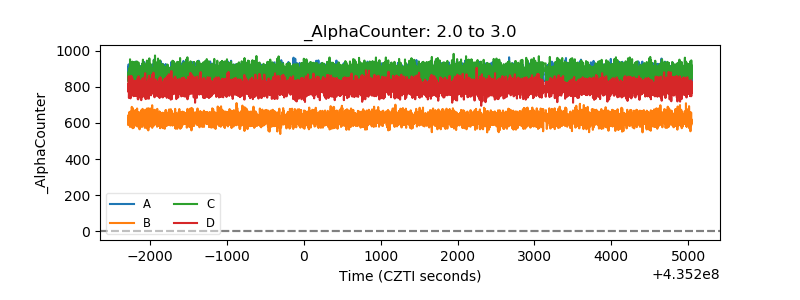

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

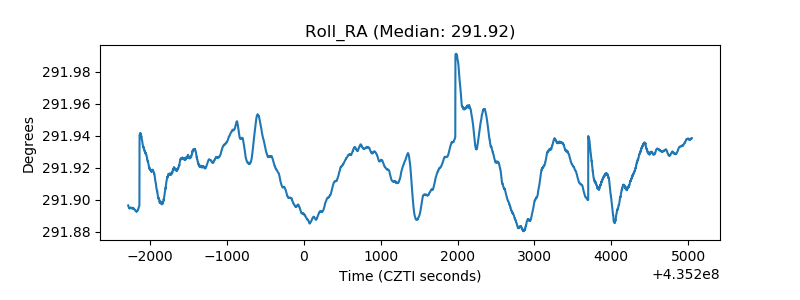

| _Roll_RA |  |
| Veto Counter |  |
