| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_174T01_9000005880_43551cztM0_level2.fits | modeM0/AS1A05_174T01_9000005880_43551cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,267,787,520 | 80,850,240 |
| Size | 1.2 GB | 77.1 MB |
| Events in quadrant A | 7,692,306 | 767,256 |
| Events in quadrant B | 4,059,974 | 808,203 |
| Events in quadrant C | 17,581,671 | 289,694 |
| Events in quadrant D | 17,031,496 | 66,952 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28148 | 0 |
| B | 0 | 17165 | 0 |
| C | 0 | 57229 | 0 |
| D | 0 | 55533 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7312 | 637 | 8.711707% |
| B | 7312 | 105 | 1.435996% |
| C | 7312 | 6263 | 85.653720% |
| D | 7311 | 7311 | 100.000000% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7312 | 7312 | 207 | 207 | 2.83% | 2.83% |  |
| B | 7312 | 7312 | 56 | 56 | 0.77% | 0.77% |  |
| C | 7312 | 7312 | 5970 | 5970 | 81.65% | 81.65% |  |
| D | 7310 | 7310 | 6749 | 6749 | 92.33% | 92.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 228 | 2891703 | 17386.43 | 800 | 786 | 166.3 |
| A | 10 | 83 | 625878 | 3759.4 | 800 | 786 | 166.3 |
| A | 10 | 99 | 517719 | 3108.92 | 800 | 786 | 166.3 |
| B | 3 | 42 | 309962 | 1928.56 | 817 | 792 | 160.3 |
| B | 3 | 25 | 152019 | 943.33 | 817 | 792 | 160.3 |
| B | 0 | 230 | 143767 | 891.86 | 817 | 792 | 160.3 |
| C | 15 | 174 | 5102574 | 68066.39 | 314 | 316 | 75.0 |
| C | 15 | 142 | 4851503 | 64716.99 | 314 | 316 | 75.0 |
| C | 15 | 126 | 3482876 | 46458.9 | 314 | 316 | 75.0 |
| D | 4 | 216 | 11745560 | 285098.16 | 98 | 91 | 41.2 |
| D | 4 | 212 | 1452050 | 35243.45 | 98 | 91 | 41.2 |
| D | 8 | 48 | 747845 | 18150.26 | 98 | 91 | 41.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

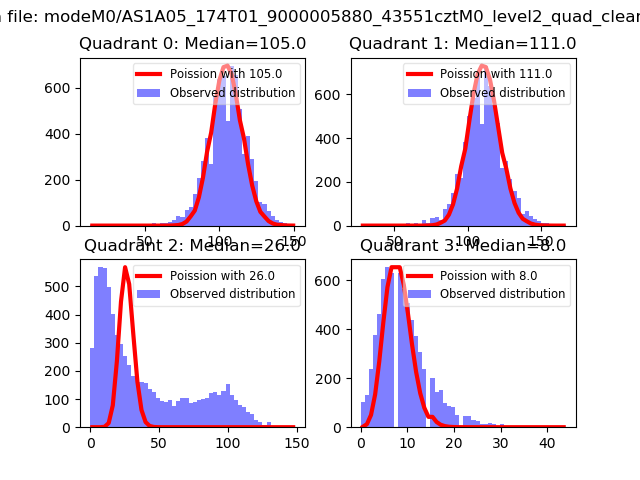

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

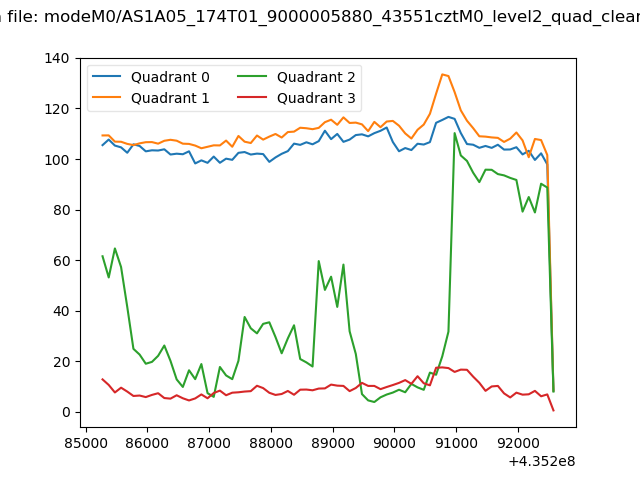

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

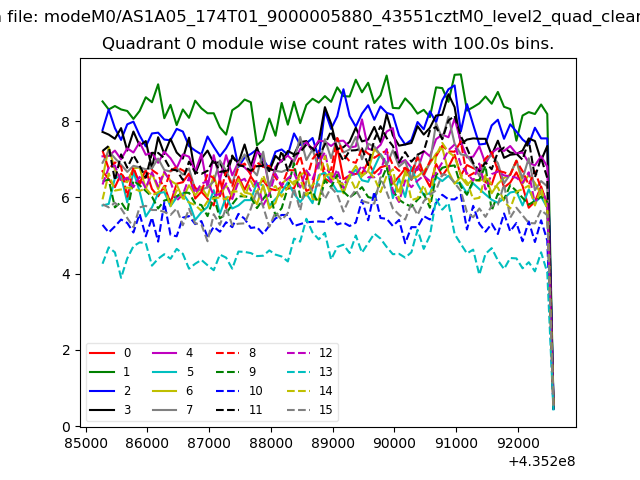

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

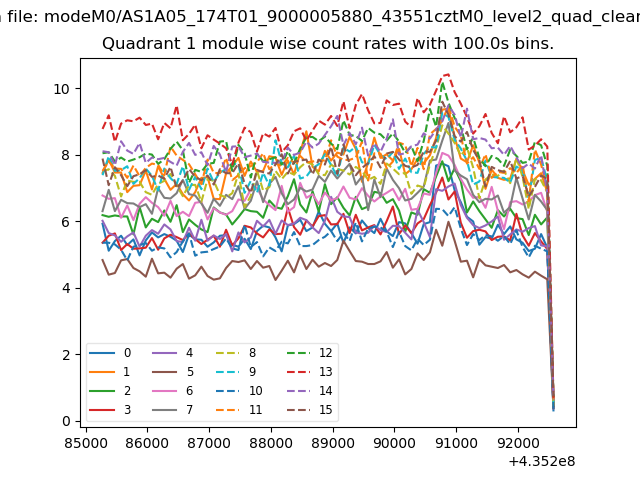

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

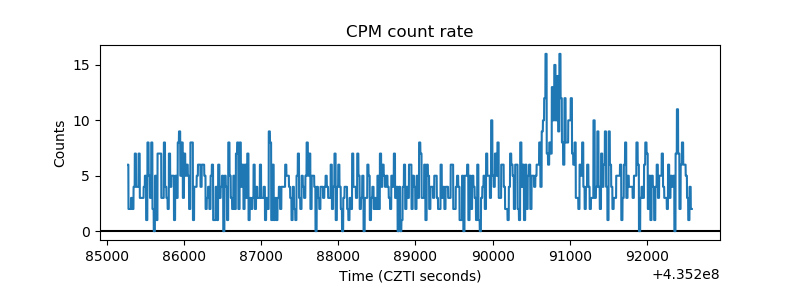

| _CPM_Rate |  |
| CZT Counter |  |

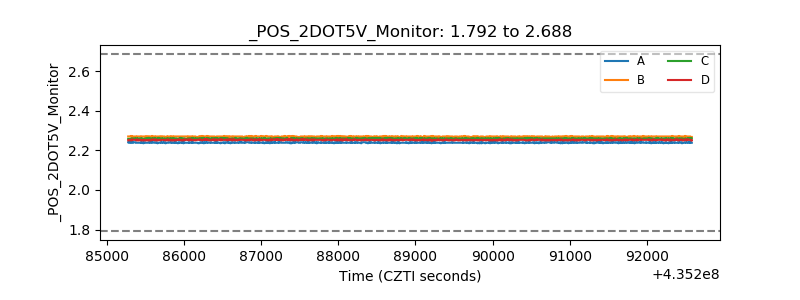

| +2.5 Volts monitor |  |

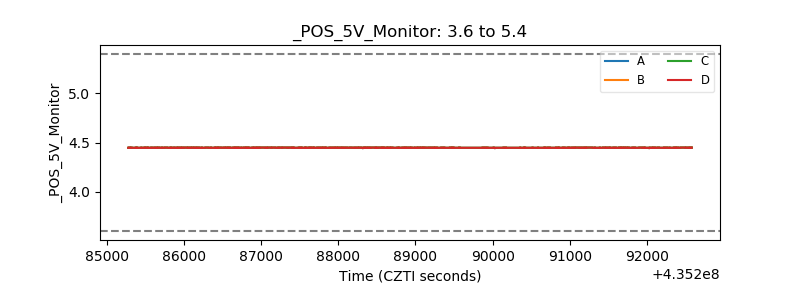

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
