| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_174T01_9000005880_43563cztM0_level2.fits | modeM0/AS1A05_174T01_9000005880_43563cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,061,326,080 | 82,895,040 |
| Size | 1012.2 MB | 79.1 MB |
| Events in quadrant A | 5,391,803 | 741,717 |
| Events in quadrant B | 3,724,687 | 774,195 |
| Events in quadrant C | 16,389,472 | 398,091 |
| Events in quadrant D | 13,266,288 | 126,714 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20584 | 1 |
| B | 0 | 15594 | 1 |
| C | 0 | 53096 | 1 |
| D | 0 | 43974 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6647 | 261 | 3.926583% |
| B | 6647 | 142 | 2.136302% |
| C | 6648 | 5507 | 82.836943% |
| D | 6648 | 6641 | 99.894705% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7607 | 6648 | 36 | 36 | 0.47% | 0.54% |  |
| B | 7607 | 6648 | 65 | 65 | 0.85% | 0.98% |  |
| C | 7608 | 6648 | 5588 | 5588 | 73.45% | 84.06% |  |
| D | 7607 | 6647 | 3628 | 3628 | 47.69% | 54.58% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 228 | 792860 | 5144.37 | 748 | 733 | 154.0 |
| A | 10 | 83 | 698003 | 4528.33 | 748 | 733 | 154.0 |
| A | 15 | 222 | 546243 | 3542.74 | 748 | 733 | 154.0 |
| B | 3 | 25 | 180216 | 1207.67 | 757 | 736 | 148.6 |
| B | 4 | 251 | 127233 | 851.16 | 757 | 736 | 148.6 |
| B | 3 | 42 | 110733 | 740.14 | 757 | 736 | 148.6 |
| C | 15 | 142 | 6122712 | 63280.63 | 405 | 407 | 96.7 |
| C | 15 | 174 | 6057685 | 62608.5 | 405 | 407 | 96.7 |
| C | 15 | 158 | 1560102 | 16121.13 | 405 | 407 | 96.7 |
| D | 4 | 216 | 5385479 | 107170.97 | 156 | 149 | 50.2 |
| D | 4 | 212 | 3733106 | 74287.86 | 156 | 149 | 50.2 |
| D | 14 | 210 | 647435 | 12881.34 | 156 | 149 | 50.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

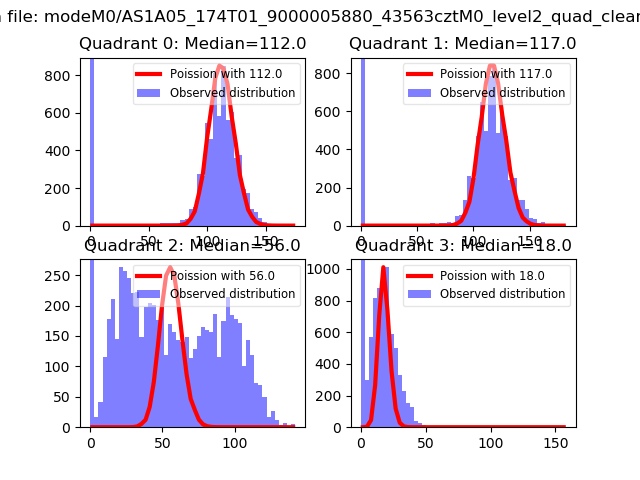

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

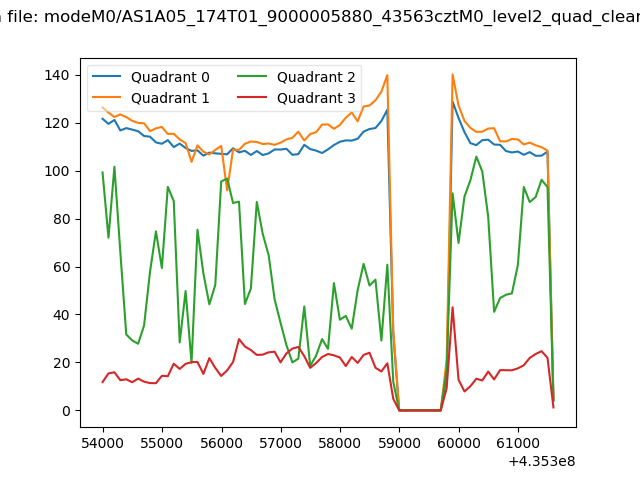

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

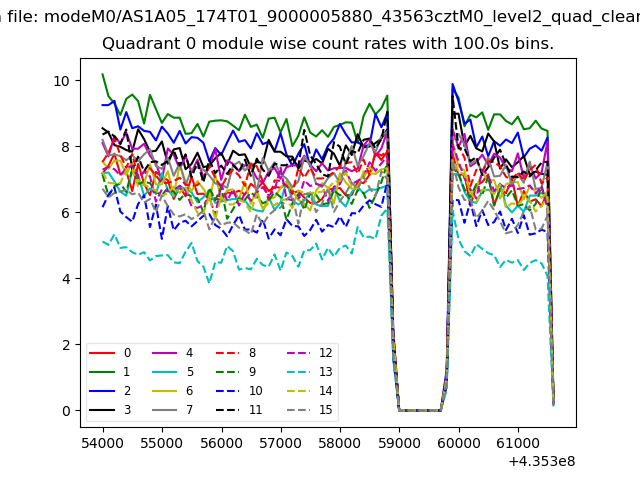

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

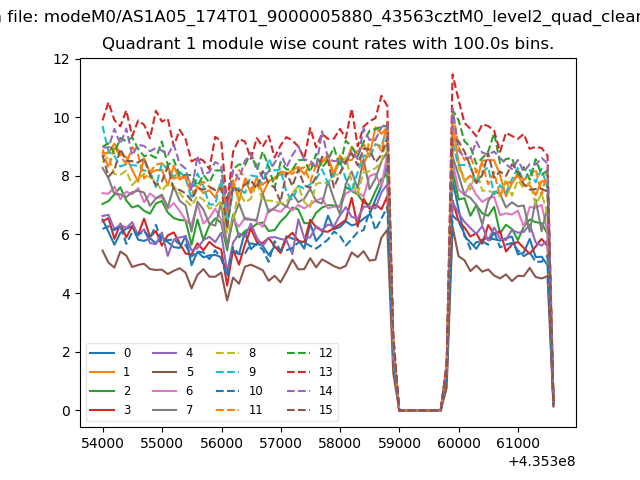

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

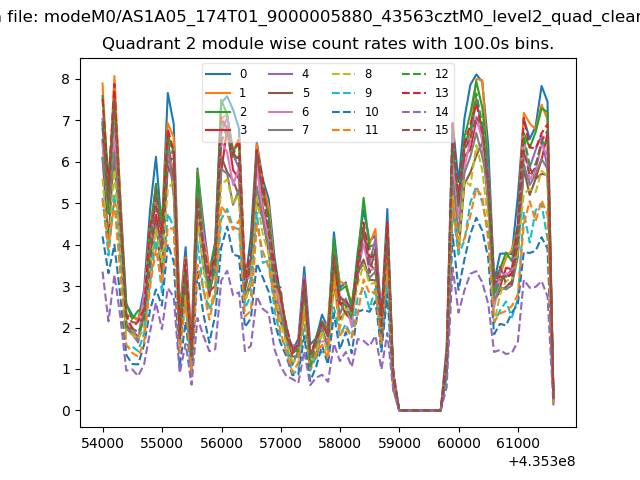

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

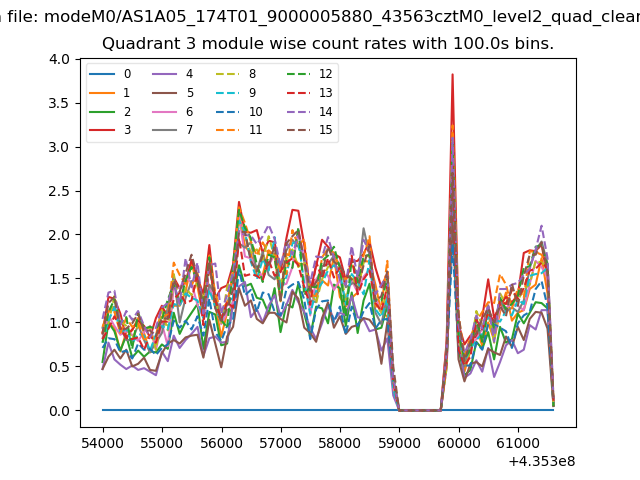

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

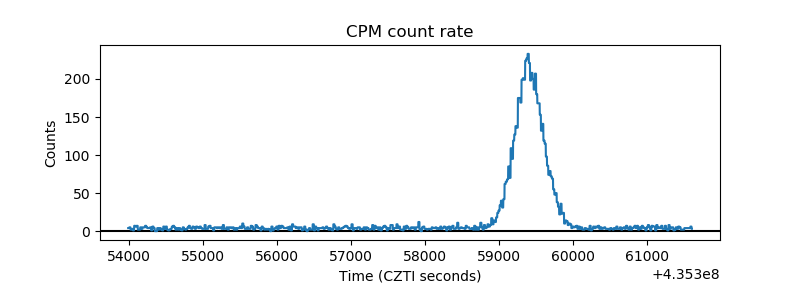

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

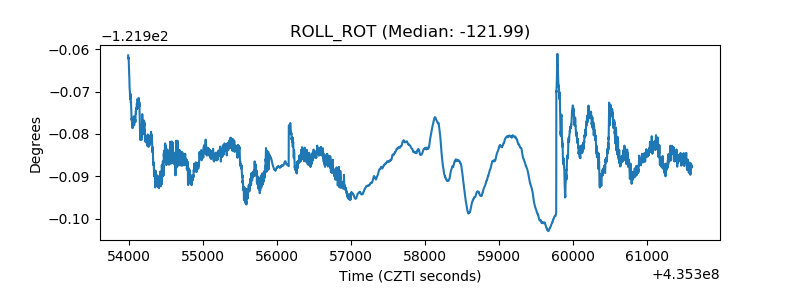

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
