| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_068T04_9000005888_43592cztM0_level2.fits | modeM0/AS1A12_068T04_9000005888_43592cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,058,777,280 | 68,319,360 |
| Size | 1009.7 MB | 65.2 MB |
| Events in quadrant A | 4,305,711 | 708,504 |
| Events in quadrant B | 4,041,772 | 714,788 |
| Events in quadrant C | 16,133,771 | 141,677 |
| Events in quadrant D | 14,234,618 | 67,064 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17104 | 2 |
| B | 0 | 16249 | 1 |
| C | 0 | 52170 | 1 |
| D | 0 | 46516 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6163 | 110 | 1.784845% |
| B | 6163 | 185 | 3.001785% |
| C | 6163 | 6148 | 99.756612% |
| D | 6163 | 6163 | 100.000000% |

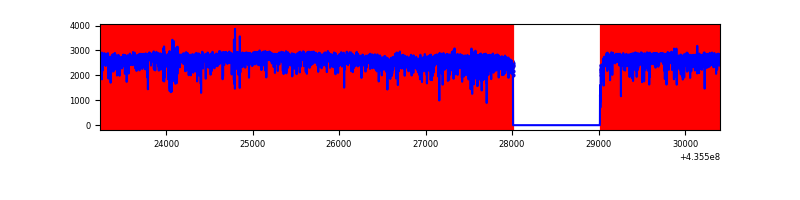

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7168 | 6164 | 19 | 19 | 0.27% | 0.31% |  |
| B | 7168 | 6164 | 74 | 74 | 1.03% | 1.20% |  |
| C | 7167 | 6162 | 6024 | 6024 | 84.05% | 97.76% |  |
| D | 7167 | 6162 | 4962 | 4962 | 69.23% | 80.53% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 774013 | 5471.56 | 688 | 673 | 141.3 |
| A | 12 | 189 | 419508 | 2963.36 | 688 | 673 | 141.3 |
| A | 15 | 222 | 144187 | 1015.4 | 688 | 673 | 141.3 |
| B | 4 | 206 | 436631 | 3304.25 | 686 | 665 | 131.9 |
| B | 0 | 219 | 319777 | 2418.6 | 686 | 665 | 131.9 |
| B | 0 | 199 | 162705 | 1228.13 | 686 | 665 | 131.9 |
| C | 15 | 142 | 9846637 | 269405.83 | 150 | 151 | 36.5 |
| C | 15 | 174 | 3782773 | 103494.83 | 150 | 151 | 36.5 |
| C | 15 | 175 | 571038 | 15619.81 | 150 | 151 | 36.5 |
| D | 8 | 192 | 8470679 | 291280.29 | 89 | 86 | 29.1 |
| D | 4 | 216 | 1792394 | 61632.52 | 89 | 86 | 29.1 |
| D | 4 | 212 | 1766311 | 60735.6 | 89 | 86 | 29.1 |

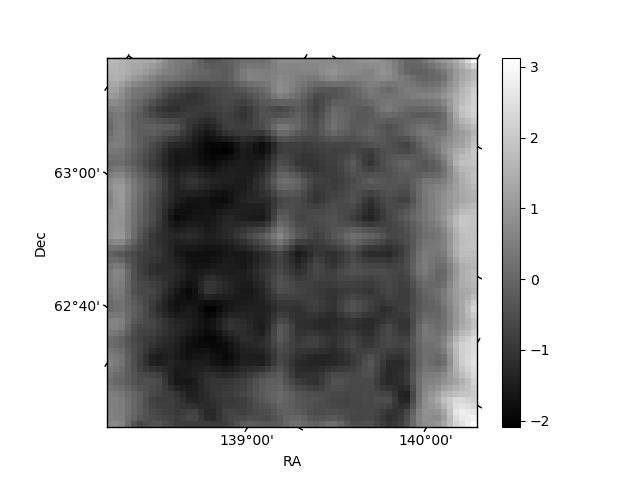

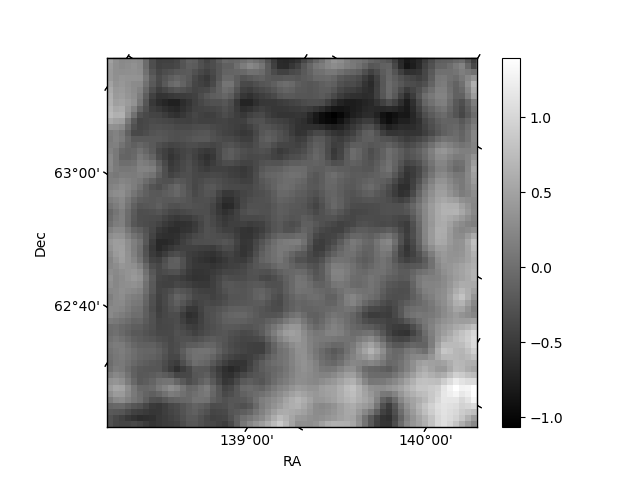

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

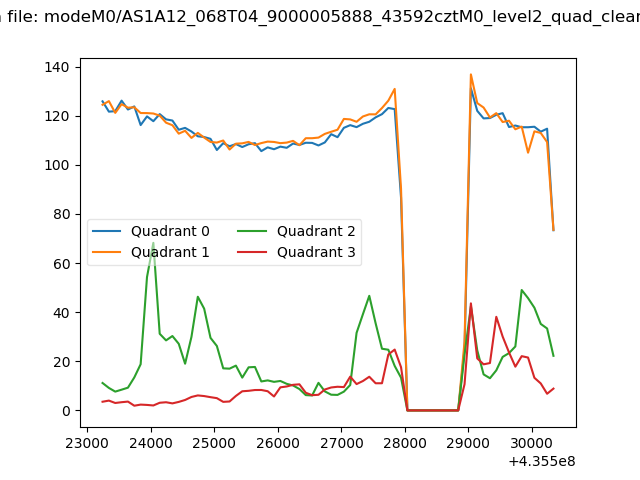

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

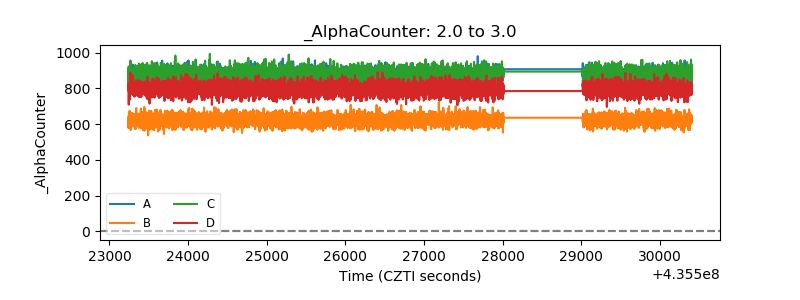

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

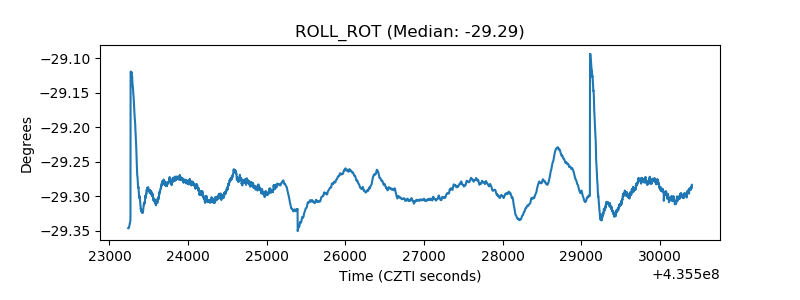

| _ROLL_ROT |  |
| _Roll_DEC |  |

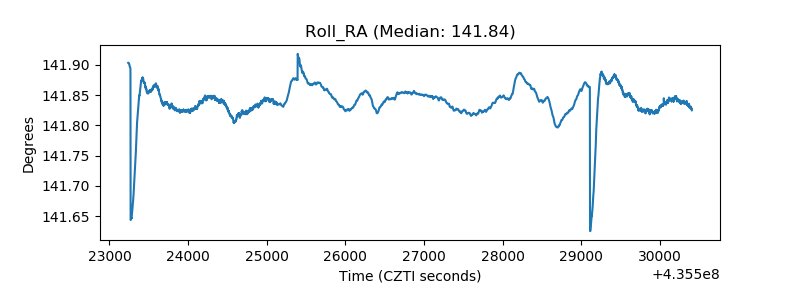

| _Roll_RA |  |

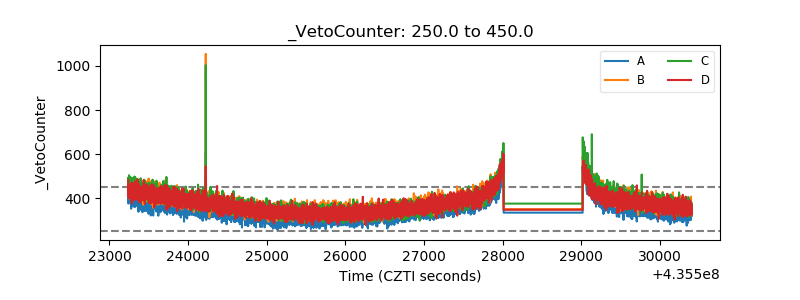

| Veto Counter |  |
