| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T10_9000005890_43599cztM0_level2.fits | modeM0/AS1C07_001T10_9000005890_43599cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,705,976,640 | 101,427,840 |
| Size | 1.6 GB | 96.7 MB |
| Events in quadrant A | 8,009,707 | 1,001,404 |
| Events in quadrant B | 9,456,084 | 994,528 |
| Events in quadrant C | 23,276,447 | 205,139 |
| Events in quadrant D | 21,692,965 | 216,253 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 188 | 0 |
| B | 0 | 188 | 0 |
| C | 0 | 188 | 0 |
| D | 0 | 188 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30288 | 2 |
| B | 0 | 34526 | 4 |
| C | 0 | 75426 | 2 |
| D | 0 | 70750 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 9287 | 761 | 8.194250% |
| B | 9287 | 1176 | 12.662862% |
| C | 9287 | 9230 | 99.386239% |
| D | 9287 | 9195 | 99.009368% |

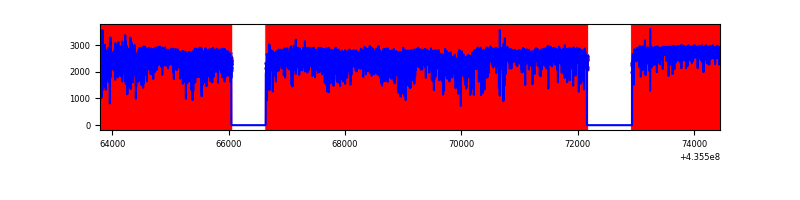

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 10653 | 9287 | 401 | 401 | 3.76% | 4.32% |  |
| B | 10653 | 9288 | 808 | 808 | 7.58% | 8.70% |  |
| C | 10652 | 9286 | 8640 | 8640 | 81.11% | 93.04% |  |
| D | 10652 | 9286 | 8053 | 8053 | 75.60% | 86.72% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 1194285 | 5619.23 | 1028 | 1006 | 212.4 |
| A | 10 | 83 | 1138868 | 5358.27 | 1028 | 1006 | 212.4 |
| A | 12 | 189 | 711907 | 3347.68 | 1028 | 1006 | 212.4 |
| B | 4 | 206 | 3079036 | 15765.02 | 1007 | 978 | 195.2 |
| B | 5 | 235 | 584968 | 2991.05 | 1007 | 978 | 195.2 |
| B | 0 | 219 | 289868 | 1479.62 | 1007 | 978 | 195.2 |
| C | 15 | 142 | 10482032 | 190241.92 | 232 | 232 | 55.1 |
| C | 15 | 174 | 4317073 | 78349.53 | 232 | 232 | 55.1 |
| C | 15 | 126 | 3412988 | 61940.63 | 232 | 232 | 55.1 |
| D | 8 | 192 | 7093782 | 82694.69 | 272 | 261 | 85.8 |
| D | 4 | 212 | 5515892 | 64300.0 | 272 | 261 | 85.8 |
| D | 4 | 216 | 2885744 | 33638.32 | 272 | 261 | 85.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

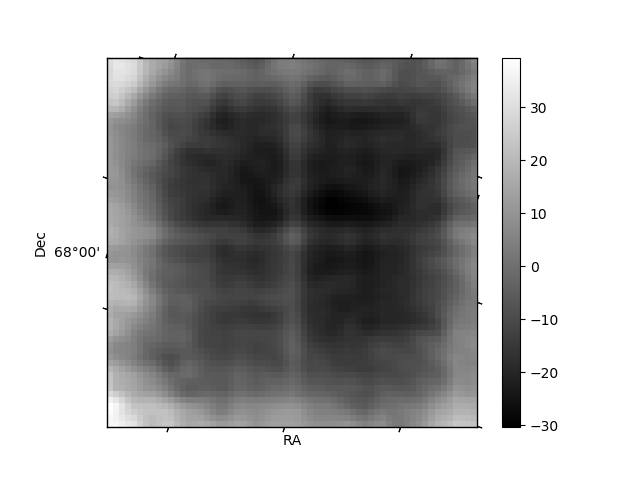

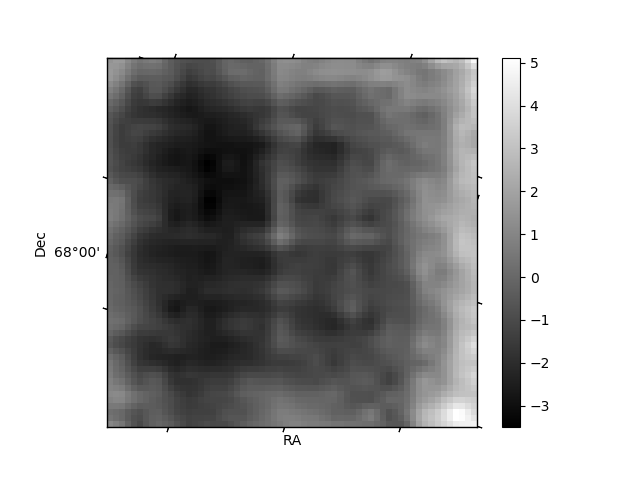

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

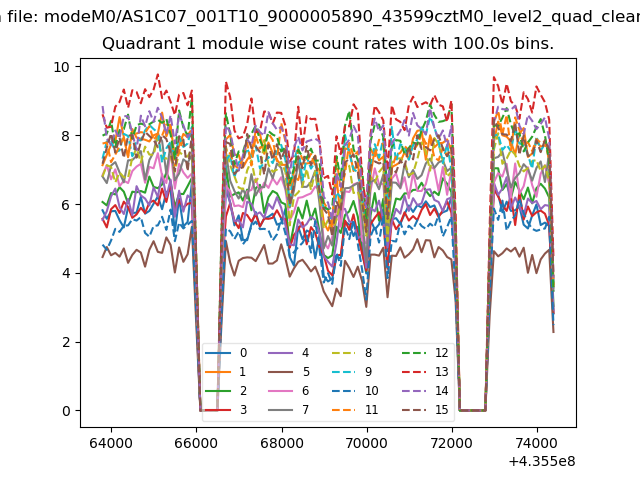

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

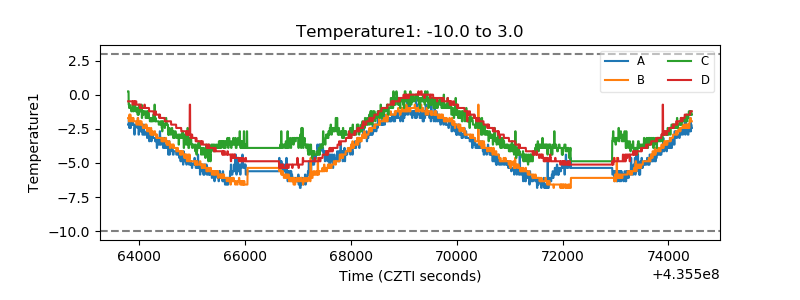

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

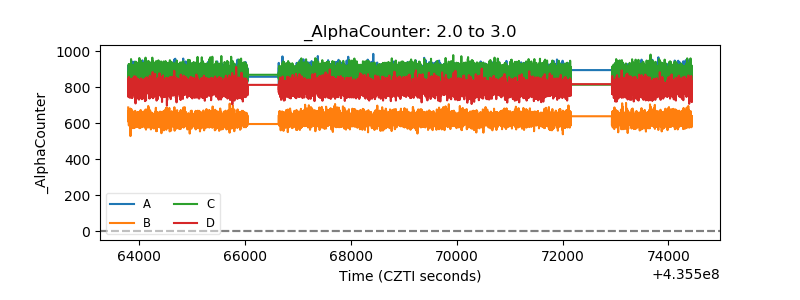

| Alpha Counter |  |

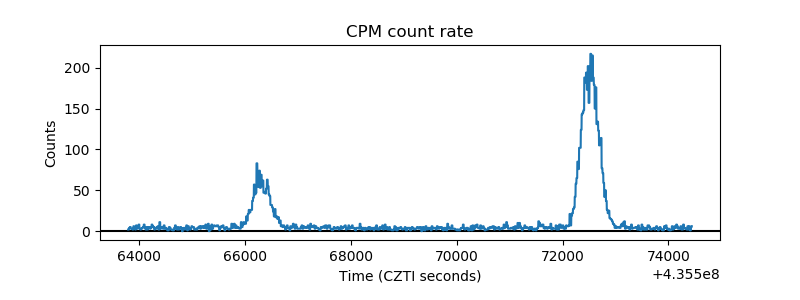

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

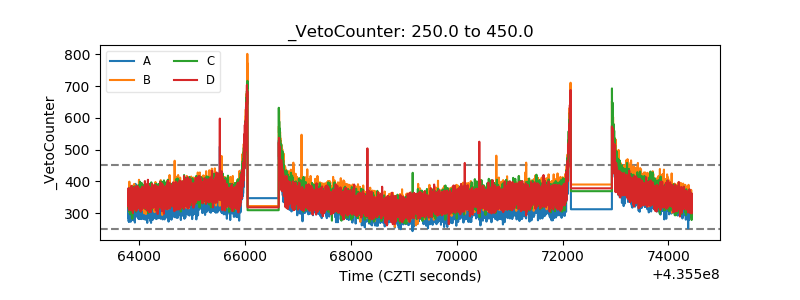

| Veto Counter |  |
