| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T10_9000005890_43607cztM0_level2.fits | modeM0/AS1C07_001T10_9000005890_43607cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,198,287,360 | 76,613,760 |
| Size | 1.1 GB | 73.1 MB |
| Events in quadrant A | 4,615,095 | 749,604 |
| Events in quadrant B | 6,199,012 | 741,104 |
| Events in quadrant C | 17,932,402 | 200,401 |
| Events in quadrant D | 15,086,370 | 148,651 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18172 | 1 |
| B | 0 | 23114 | 1 |
| C | 0 | 57882 | 8 |
| D | 0 | 49434 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6787 | 267 | 3.933991% |
| B | 6788 | 780 | 11.490866% |
| C | 6787 | 6727 | 99.115957% |
| D | 6787 | 6628 | 97.657286% |

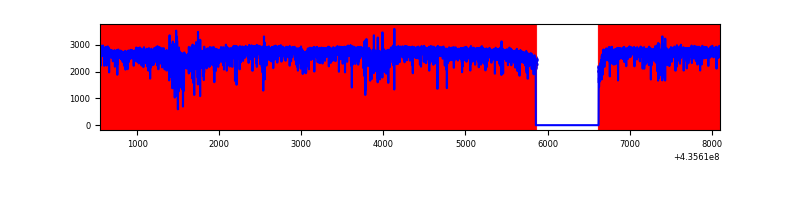

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7552 | 6788 | 145 | 145 | 1.92% | 2.14% |  |
| B | 7553 | 6789 | 508 | 508 | 6.73% | 7.48% |  |
| C | 7551 | 6786 | 6629 | 6629 | 87.79% | 97.69% |  |
| D | 7551 | 6786 | 5175 | 5175 | 68.53% | 76.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 883349 | 5810.01 | 741 | 725 | 151.9 |
| A | 15 | 223 | 596769 | 3923.56 | 741 | 725 | 151.9 |
| A | 15 | 222 | 84454 | 551.16 | 741 | 725 | 151.9 |
| B | 4 | 206 | 2282470 | 16637.74 | 722 | 701 | 137.1 |
| B | 5 | 235 | 434533 | 3163.33 | 722 | 701 | 137.1 |
| B | 0 | 219 | 155194 | 1126.5 | 722 | 701 | 137.1 |
| C | 15 | 142 | 11258161 | 226783.9 | 210 | 210 | 49.6 |
| C | 15 | 158 | 2553688 | 51438.11 | 210 | 210 | 49.6 |
| C | 15 | 126 | 1476919 | 29747.32 | 210 | 210 | 49.6 |
| D | 4 | 212 | 9670168 | 187743.54 | 179 | 172 | 51.5 |
| D | 4 | 216 | 2129722 | 41345.34 | 179 | 172 | 51.5 |
| D | 13 | 187 | 429911 | 8343.41 | 179 | 172 | 51.5 |

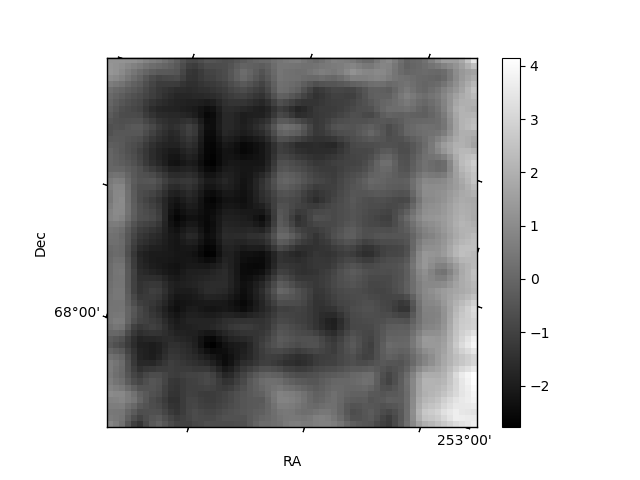

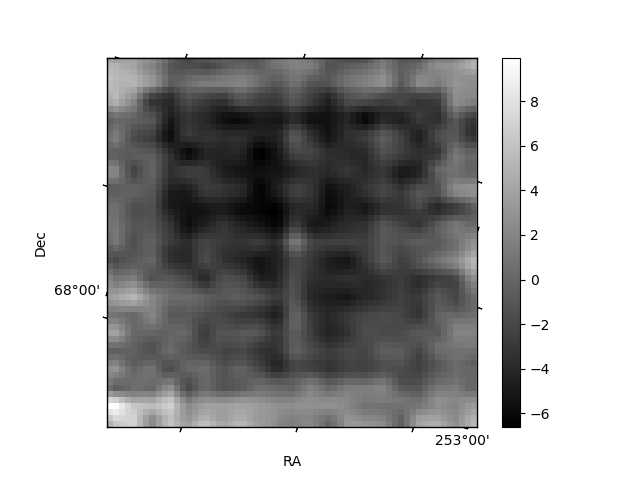

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

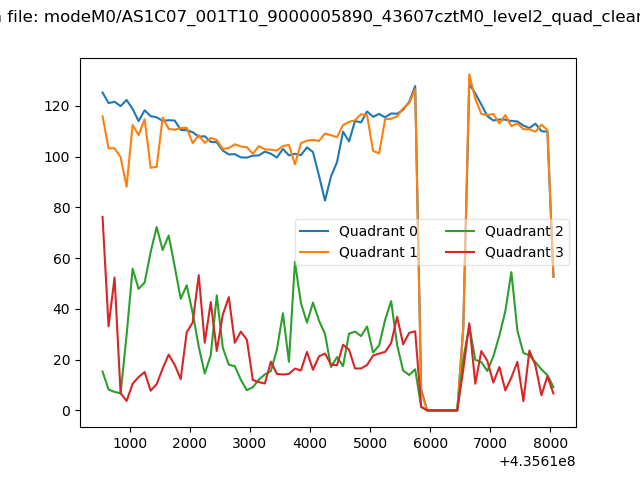

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

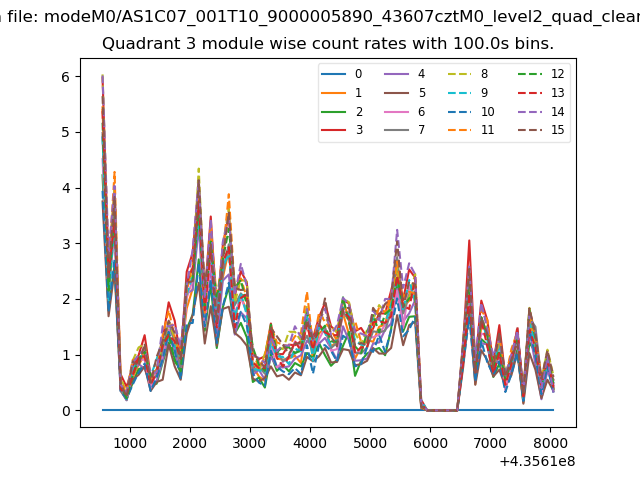

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

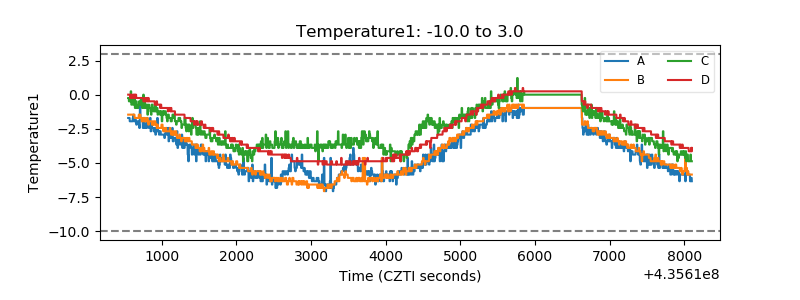

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

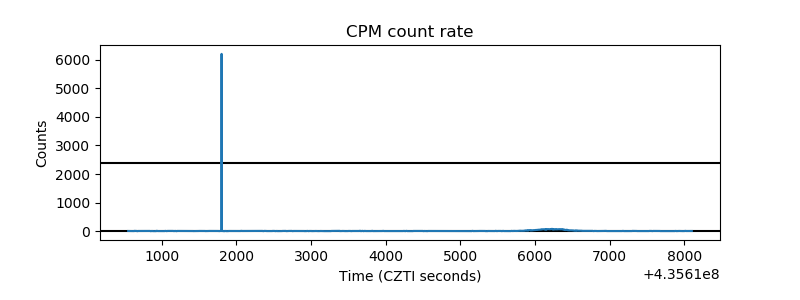

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

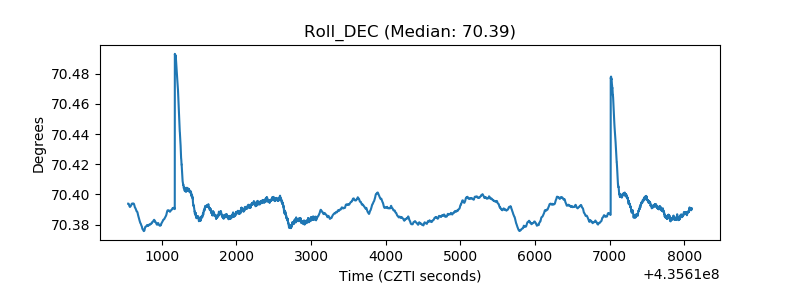

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
