| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_095T02_9000005892_43619cztM0_level2.fits | modeM0/AS1A12_095T02_9000005892_43619cztM0_level2_quad_clean.evt |
| Size (bytes) | 973,414,080 | 100,955,520 |
| Size | 928.3 MB | 96.3 MB |
| Events in quadrant A | 5,581,459 | 765,953 |
| Events in quadrant B | 5,061,311 | 811,197 |
| Events in quadrant C | 14,363,631 | 458,729 |
| Events in quadrant D | 10,530,488 | 569,382 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20957 | 1 |
| B | 0 | 19624 | 1 |
| C | 0 | 47156 | 8 |
| D | 0 | 35793 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6417 | 812 | 12.653888% |
| B | 6417 | 299 | 4.659498% |
| C | 6416 | 4806 | 74.906484% |
| D | 6416 | 2871 | 44.747506% |

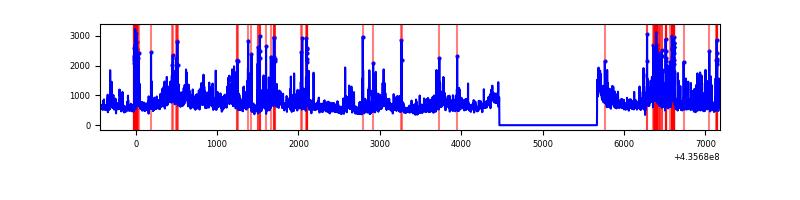

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7617 | 6417 | 629 | 629 | 8.26% | 9.80% |  |
| B | 7617 | 6417 | 126 | 126 | 1.65% | 1.96% |  |
| C | 7615 | 6415 | 4628 | 4628 | 60.77% | 72.14% |  |
| D | 7615 | 6415 | 2278 | 2278 | 29.91% | 35.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 1144701 | 7358.28 | 759 | 745 | 155.5 |
| A | 10 | 83 | 819113 | 5264.0 | 759 | 745 | 155.5 |
| A | 14 | 239 | 395780 | 2540.99 | 759 | 745 | 155.5 |
| B | 4 | 206 | 667940 | 4438.45 | 783 | 761 | 150.3 |
| B | 5 | 235 | 417738 | 2773.97 | 783 | 761 | 150.3 |
| B | 0 | 155 | 203539 | 1348.99 | 783 | 761 | 150.3 |
| C | 15 | 174 | 4788691 | 43760.8 | 470 | 473 | 109.4 |
| C | 15 | 142 | 3520939 | 32174.48 | 470 | 473 | 109.4 |
| C | 3 | 233 | 1724242 | 15753.98 | 470 | 473 | 109.4 |
| D | 4 | 212 | 1460510 | 8853.26 | 637 | 619 | 164.9 |
| D | 4 | 216 | 1369964 | 8304.16 | 637 | 619 | 164.9 |
| D | 4 | 211 | 624939 | 3786.08 | 637 | 619 | 164.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

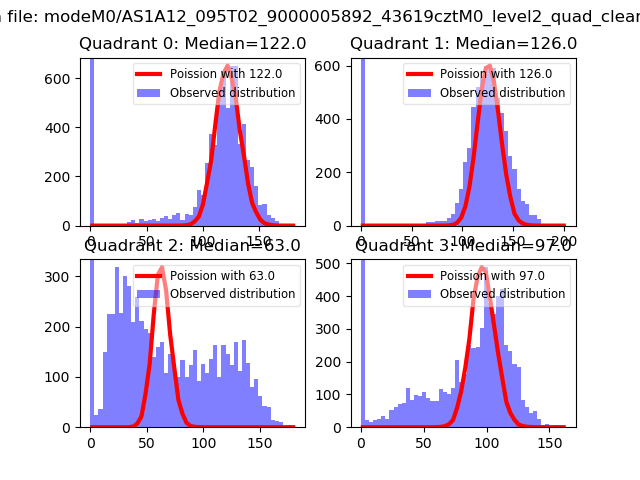

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

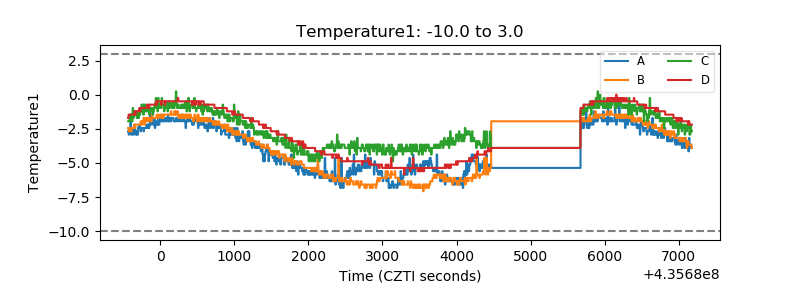

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

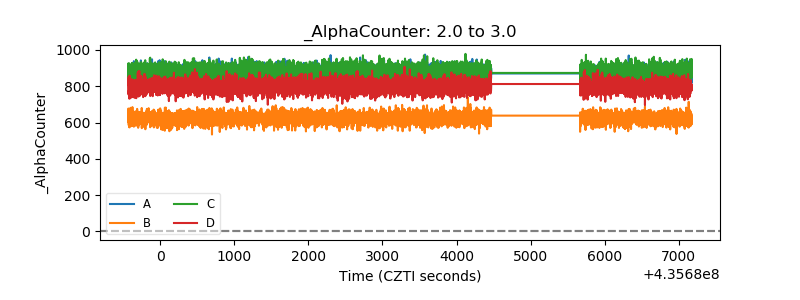

| Alpha Counter |  |
| _CPM_Rate |  |

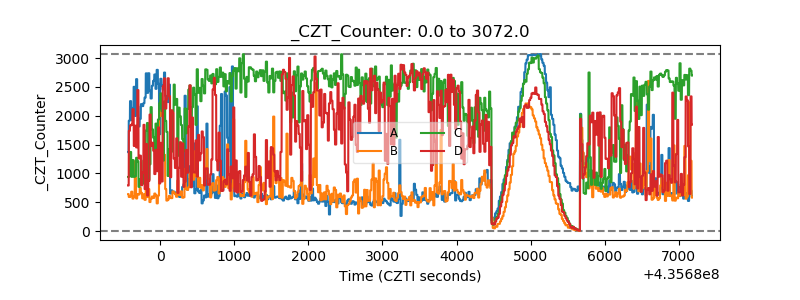

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

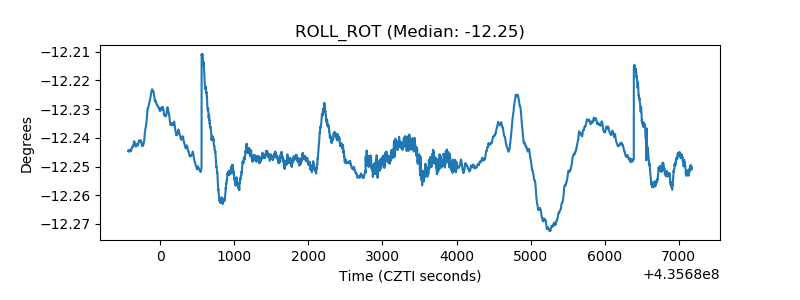

| _ROLL_ROT |  |
| _Roll_DEC |  |

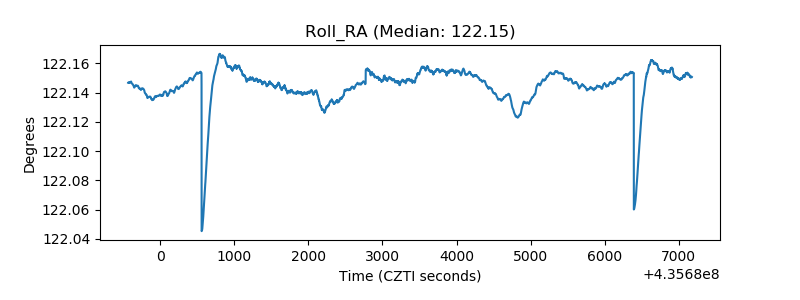

| _Roll_RA |  |
| Veto Counter |  |
