| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_095T02_9000005892_43620cztM0_level2.fits | modeM0/AS1A12_095T02_9000005892_43620cztM0_level2_quad_clean.evt |
| Size (bytes) | 984,467,520 | 98,709,120 |
| Size | 938.9 MB | 94.1 MB |
| Events in quadrant A | 4,419,535 | 783,726 |
| Events in quadrant B | 5,106,624 | 791,676 |
| Events in quadrant C | 14,648,951 | 402,296 |
| Events in quadrant D | 11,768,110 | 557,052 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17575 | 2 |
| B | 0 | 19653 | 2 |
| C | 0 | 48022 | 2 |
| D | 0 | 39435 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6454 | 174 | 2.696002% |
| B | 6454 | 362 | 5.608925% |
| C | 6454 | 5063 | 78.447474% |
| D | 6454 | 3477 | 53.873567% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7604 | 6454 | 51 | 51 | 0.67% | 0.79% |  |
| B | 7604 | 6454 | 153 | 153 | 2.01% | 2.37% |  |
| C | 7603 | 6453 | 4842 | 4842 | 63.69% | 75.03% |  |
| D | 7603 | 6453 | 2939 | 2939 | 38.66% | 45.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 909986 | 5625.08 | 785 | 772 | 161.6 |
| A | 15 | 223 | 152535 | 938.92 | 785 | 772 | 161.6 |
| A | 15 | 222 | 97160 | 596.33 | 785 | 772 | 161.6 |
| B | 4 | 206 | 610621 | 4105.67 | 775 | 756 | 148.5 |
| B | 5 | 235 | 528489 | 3552.75 | 775 | 756 | 148.5 |
| B | 3 | 42 | 146006 | 977.84 | 775 | 756 | 148.5 |
| C | 15 | 174 | 3529786 | 35884.19 | 420 | 423 | 98.4 |
| C | 15 | 126 | 3293856 | 33485.41 | 420 | 423 | 98.4 |
| C | 15 | 142 | 2862293 | 29097.57 | 420 | 423 | 98.4 |
| D | 4 | 216 | 2126699 | 11873.3 | 625 | 609 | 179.1 |
| D | 8 | 192 | 1448474 | 8085.71 | 625 | 609 | 179.1 |
| D | 4 | 212 | 1296788 | 7238.6 | 625 | 609 | 179.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

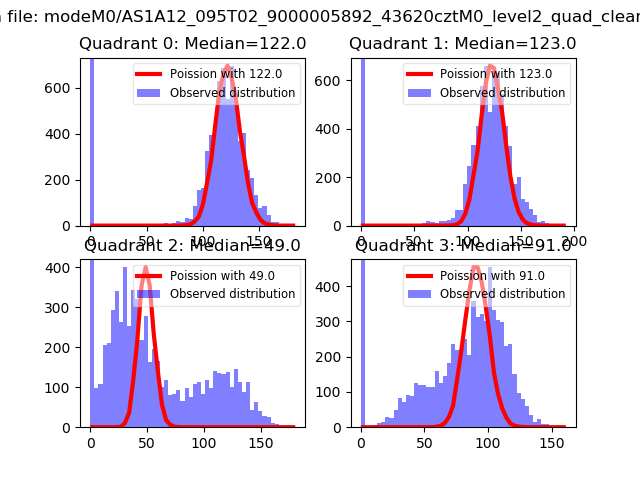

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

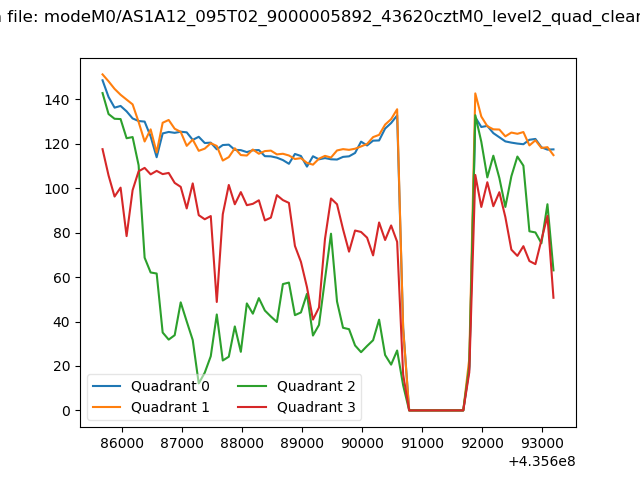

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

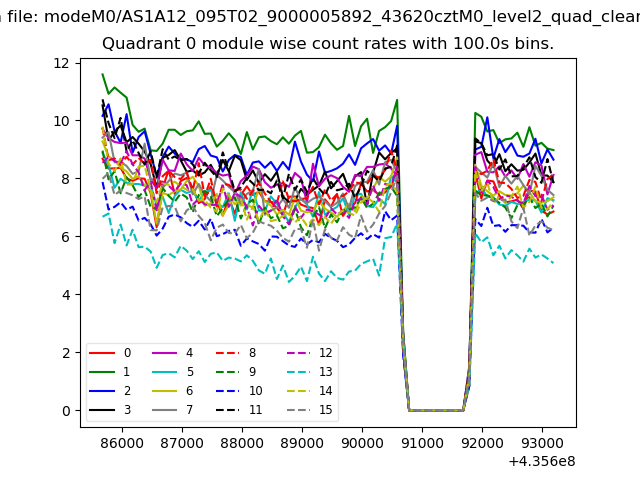

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

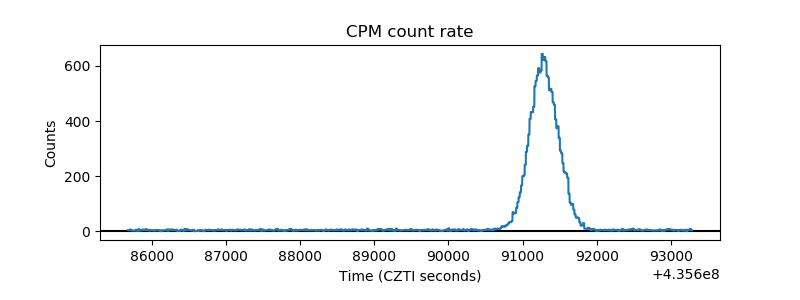

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

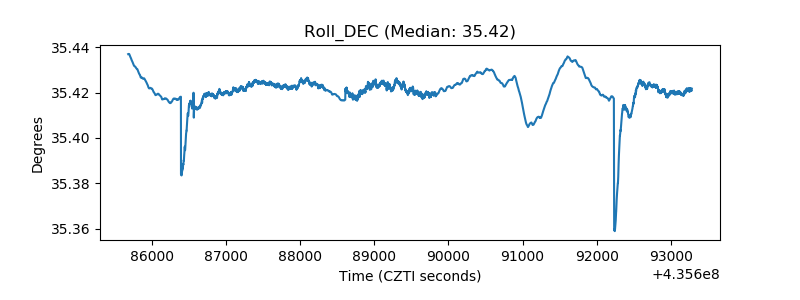

| _Roll_DEC |  |
| _Roll_RA |  |

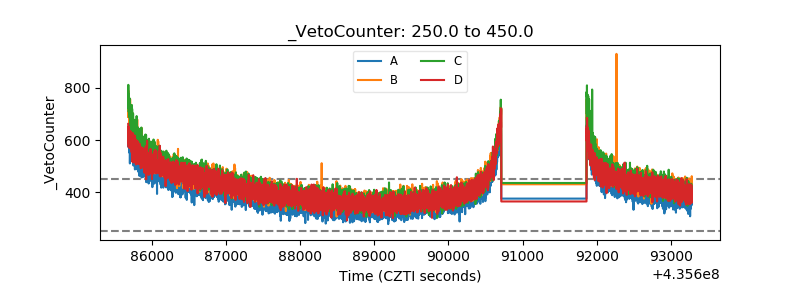

| Veto Counter |  |
