| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_068T05_9000005894_43634cztM0_level2.fits | modeM0/AS1A12_068T05_9000005894_43634cztM0_level2_quad_clean.evt |
| Size (bytes) | 898,030,080 | 94,970,880 |
| Size | 856.4 MB | 90.6 MB |
| Events in quadrant A | 4,812,397 | 711,786 |
| Events in quadrant B | 5,310,340 | 732,507 |
| Events in quadrant C | 13,333,640 | 446,922 |
| Events in quadrant D | 9,317,239 | 557,755 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18693 | 1 |
| B | 0 | 19989 | 2 |
| C | 0 | 43783 | 1 |
| D | 0 | 31968 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6069 | 593 | 9.770967% |
| B | 6068 | 434 | 7.152274% |
| C | 6068 | 4383 | 72.231378% |
| D | 6068 | 2030 | 33.454186% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7229 | 6069 | 358 | 358 | 4.95% | 5.90% |  |
| B | 7228 | 6068 | 233 | 233 | 3.22% | 3.84% |  |
| C | 7228 | 6068 | 4288 | 4288 | 59.32% | 70.67% |  |
| D | 7228 | 6068 | 1768 | 1768 | 24.46% | 29.14% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 1155554 | 8168.57 | 691 | 677 | 141.4 |
| A | 10 | 83 | 739632 | 5226.71 | 691 | 677 | 141.4 |
| A | 8 | 4 | 56534 | 395.08 | 691 | 677 | 141.4 |
| B | 4 | 206 | 1691465 | 12875.48 | 694 | 675 | 131.3 |
| B | 5 | 235 | 553439 | 4209.33 | 694 | 675 | 131.3 |
| B | 12 | 32 | 82375 | 622.15 | 694 | 675 | 131.3 |
| C | 15 | 142 | 7785751 | 74265.52 | 445 | 447 | 104.8 |
| C | 15 | 174 | 1598345 | 15242.66 | 445 | 447 | 104.8 |
| C | 3 | 233 | 1359146 | 12960.89 | 445 | 447 | 104.8 |
| D | 12 | 6 | 1052364 | 6699.55 | 612 | 593 | 157.0 |
| D | 1 | 52 | 733091 | 4665.85 | 612 | 593 | 157.0 |
| D | 2 | 249 | 730058 | 4646.53 | 612 | 593 | 157.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

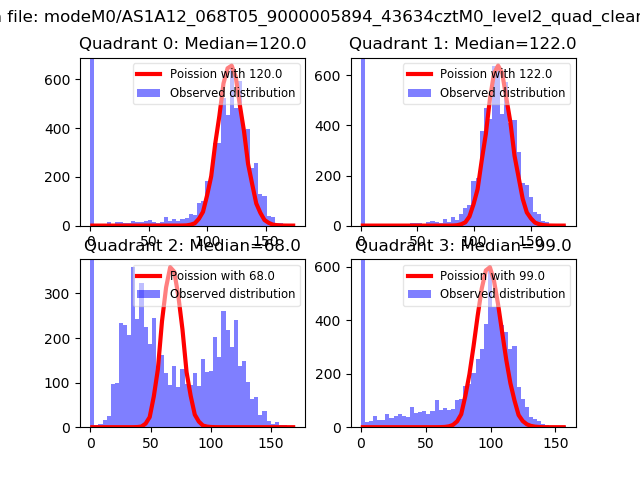

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

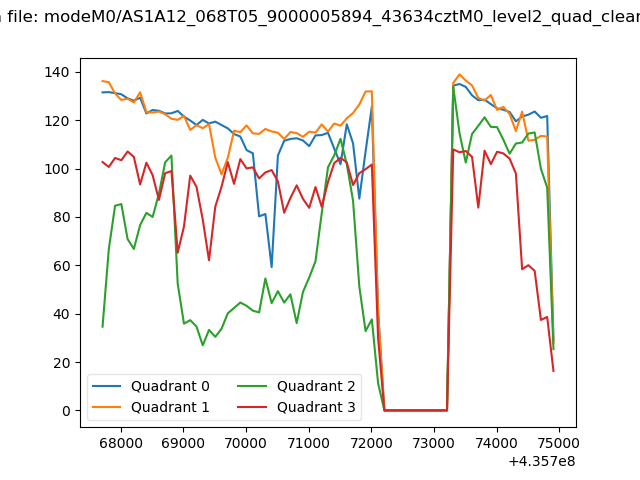

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

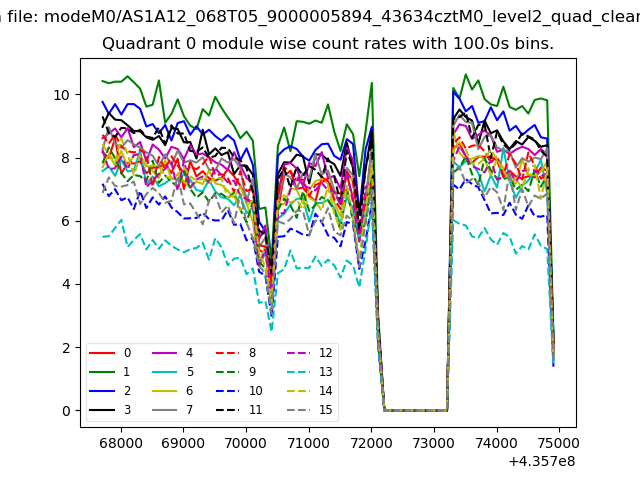

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

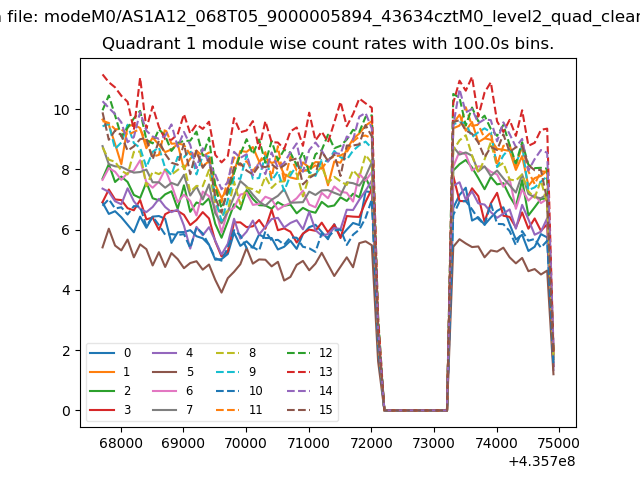

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

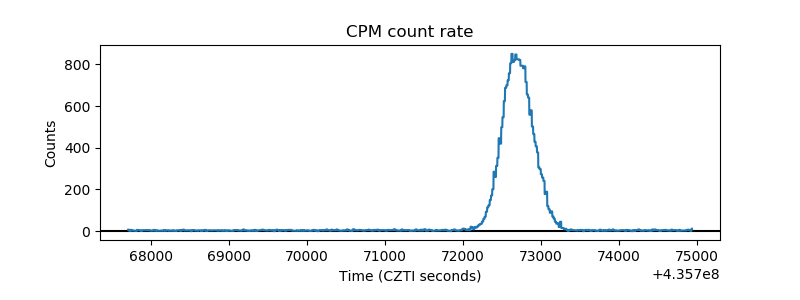

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

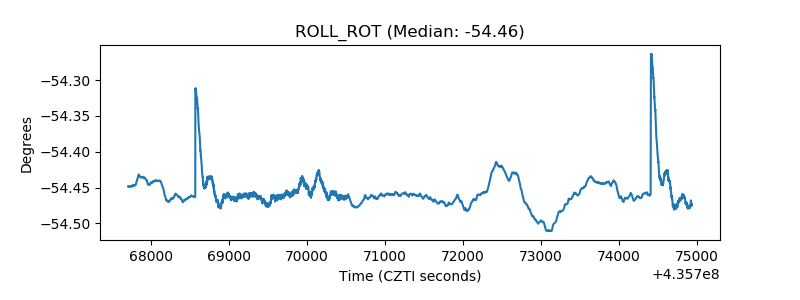

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
