| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_068T05_9000005894_43643cztM0_level2.fits | modeM0/AS1A12_068T05_9000005894_43643cztM0_level2_quad_clean.evt |
| Size (bytes) | 863,389,440 | 93,142,080 |
| Size | 823.4 MB | 88.8 MB |
| Events in quadrant A | 5,610,259 | 669,865 |
| Events in quadrant B | 3,434,563 | 715,207 |
| Events in quadrant C | 15,198,898 | 398,465 |
| Events in quadrant D | 7,216,569 | 582,815 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20955 | 1 |
| B | 0 | 14707 | 2 |
| C | 0 | 49537 | 1 |
| D | 0 | 25935 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6453 | 779 | 12.071905% |
| B | 6452 | 120 | 1.859888% |
| C | 6453 | 5111 | 79.203471% |
| D | 6453 | 1145 | 17.743685% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7343 | 6453 | 639 | 639 | 8.70% | 9.90% |  |
| B | 7342 | 6452 | 48 | 48 | 0.65% | 0.74% |  |
| C | 7342 | 6452 | 5213 | 5213 | 71.00% | 80.80% |  |
| D | 7343 | 6453 | 838 | 838 | 11.41% | 12.99% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 1865018 | 13310.43 | 681 | 668 | 140.1 |
| A | 10 | 83 | 760354 | 5423.74 | 681 | 668 | 140.1 |
| A | 13 | 248 | 112432 | 797.93 | 681 | 668 | 140.1 |
| B | 12 | 32 | 228450 | 1657.31 | 705 | 683 | 137.4 |
| B | 5 | 235 | 173761 | 1259.38 | 705 | 683 | 137.4 |
| B | 0 | 219 | 89285 | 644.7 | 705 | 683 | 137.4 |
| C | 15 | 142 | 9807544 | 100927.77 | 411 | 414 | 97.2 |
| C | 3 | 233 | 971706 | 9995.82 | 411 | 414 | 97.2 |
| C | 15 | 157 | 829987 | 8537.36 | 411 | 414 | 97.2 |
| D | 4 | 221 | 1049412 | 6187.46 | 652 | 630 | 169.5 |
| D | 13 | 249 | 571504 | 3367.97 | 652 | 630 | 169.5 |
| D | 7 | 80 | 495581 | 2920.05 | 652 | 630 | 169.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

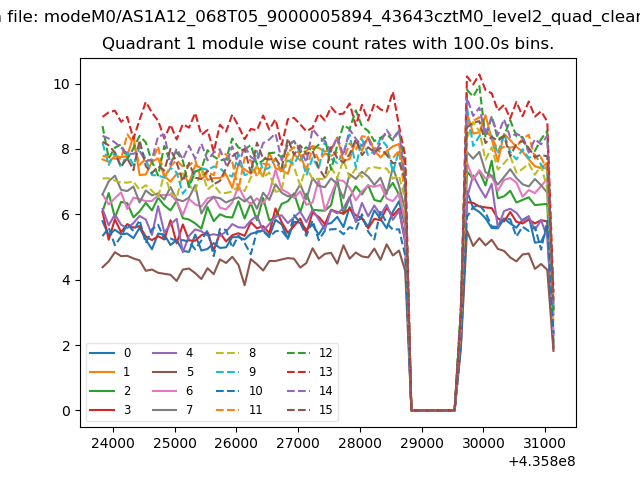

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

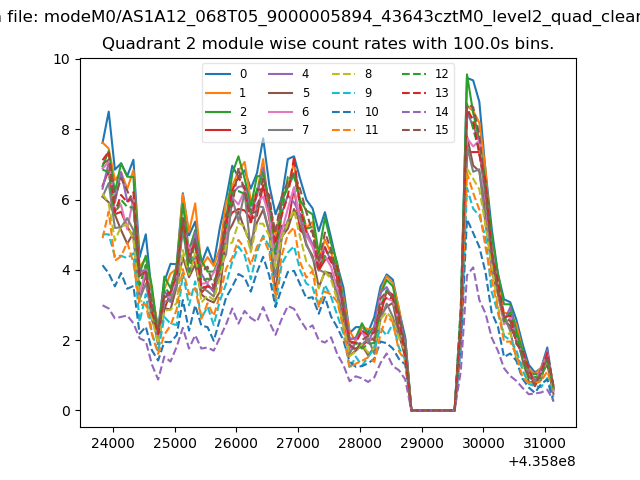

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
