| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_068T05_9000005894_43646cztM0_level2.fits | modeM0/AS1A12_068T05_9000005894_43646cztM0_level2_quad_clean.evt |
| Size (bytes) | 860,592,960 | 94,631,040 |
| Size | 820.7 MB | 90.2 MB |
| Events in quadrant A | 4,411,596 | 730,484 |
| Events in quadrant B | 3,994,699 | 737,889 |
| Events in quadrant C | 14,618,243 | 418,275 |
| Events in quadrant D | 8,352,804 | 543,128 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17259 | 1 |
| B | 0 | 15907 | 1 |
| C | 0 | 47697 | 2 |
| D | 0 | 29112 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6191 | 213 | 3.440478% |
| B | 6192 | 288 | 4.651163% |
| C | 6191 | 5012 | 80.956227% |
| D | 6191 | 1828 | 29.526732% |

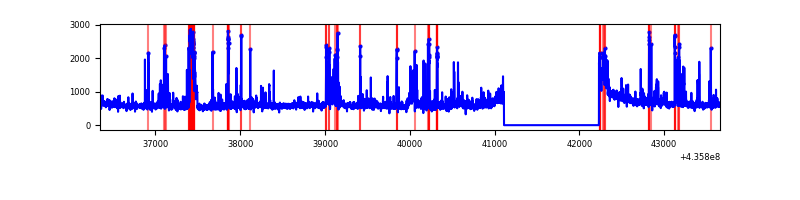

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7310 | 6191 | 120 | 120 | 1.64% | 1.94% |  |
| B | 7311 | 6191 | 197 | 197 | 2.69% | 3.18% |  |
| C | 7310 | 6190 | 5067 | 5067 | 69.32% | 81.86% |  |
| D | 7310 | 6190 | 1690 | 1690 | 23.12% | 27.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 777352 | 5345.65 | 710 | 697 | 145.3 |
| A | 15 | 223 | 443220 | 3045.85 | 710 | 697 | 145.3 |
| A | 13 | 248 | 262205 | 1799.94 | 710 | 697 | 145.3 |
| B | 5 | 235 | 809719 | 6061.63 | 699 | 681 | 133.5 |
| B | 12 | 32 | 225596 | 1685.15 | 699 | 681 | 133.5 |
| B | 4 | 206 | 48319 | 356.92 | 699 | 681 | 133.5 |
| C | 15 | 142 | 8953882 | 92561.32 | 413 | 416 | 96.7 |
| C | 15 | 126 | 1307541 | 13513.11 | 413 | 416 | 96.7 |
| C | 3 | 233 | 940174 | 9715.26 | 413 | 416 | 96.7 |
| D | 12 | 6 | 2730092 | 16326.42 | 600 | 583 | 167.2 |
| D | 13 | 249 | 909024 | 5433.79 | 600 | 583 | 167.2 |
| D | 14 | 210 | 278977 | 1665.2 | 600 | 583 | 167.2 |

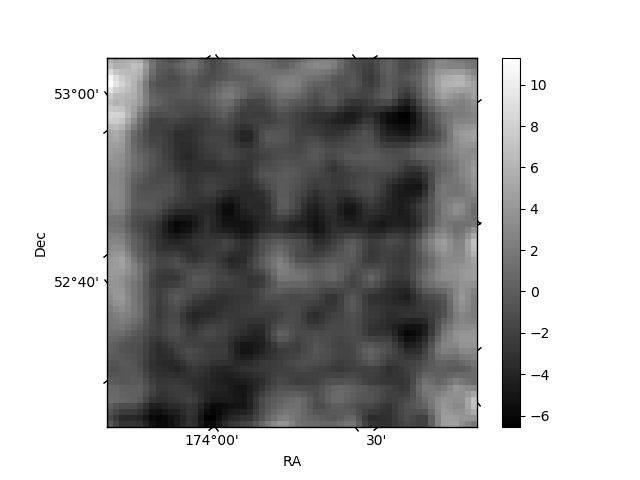

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

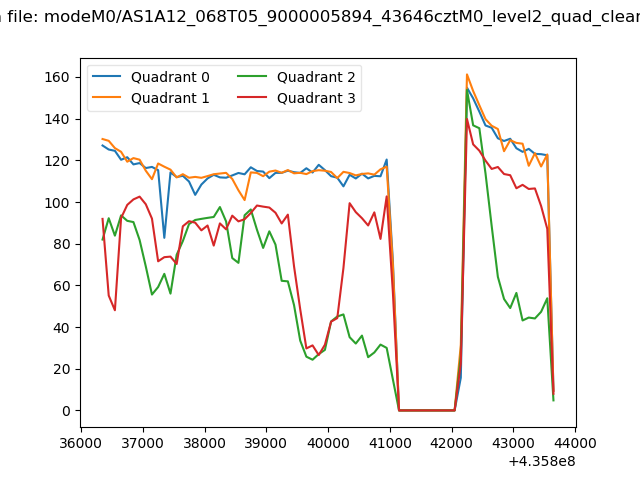

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

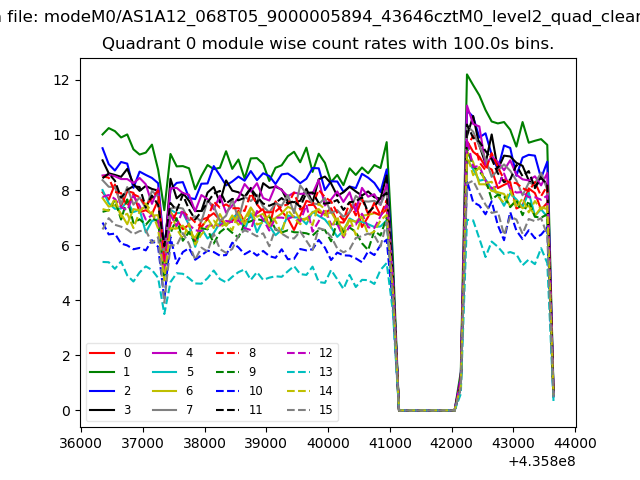

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

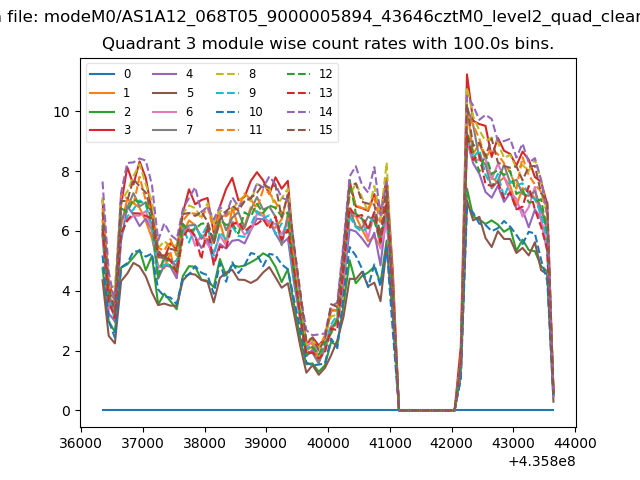

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

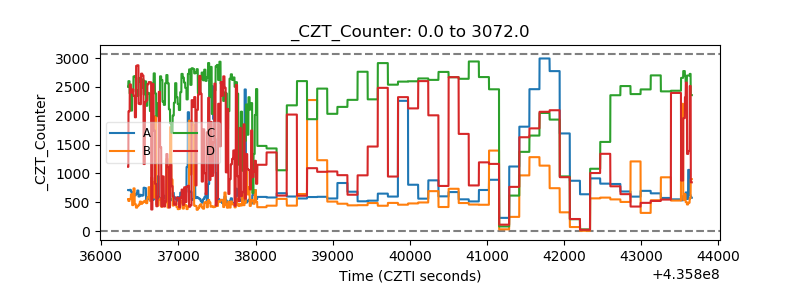

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

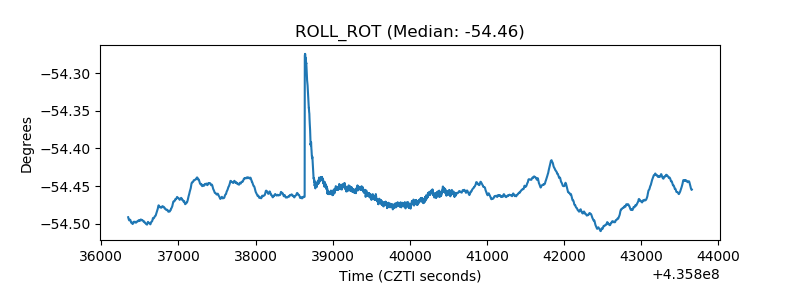

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

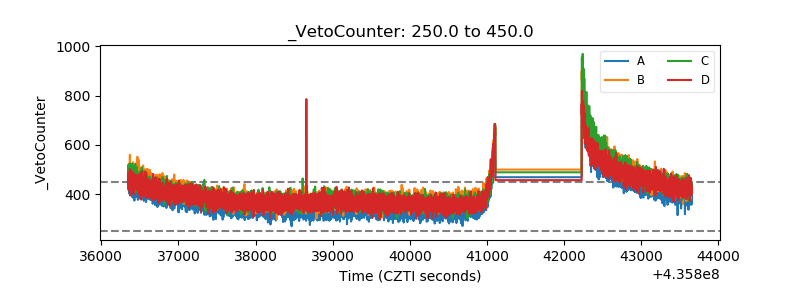

| Veto Counter |  |
