| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_068T05_9000005894_43649cztM0_level2.fits | modeM0/AS1A12_068T05_9000005894_43649cztM0_level2_quad_clean.evt |
| Size (bytes) | 830,488,320 | 94,351,680 |
| Size | 792.0 MB | 90.0 MB |
| Events in quadrant A | 4,549,344 | 721,778 |
| Events in quadrant B | 3,758,350 | 728,492 |
| Events in quadrant C | 14,478,144 | 379,288 |
| Events in quadrant D | 7,484,553 | 598,512 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17989 | 2 |
| B | 0 | 15233 | 1 |
| C | 0 | 47191 | 1 |
| D | 0 | 26456 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6092 | 243 | 3.988838% |
| B | 6093 | 182 | 2.987034% |
| C | 6093 | 5172 | 84.884293% |
| D | 6093 | 1138 | 18.677171% |

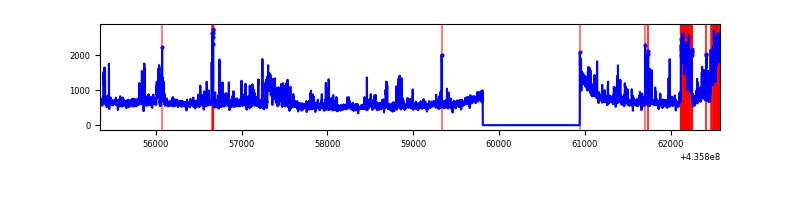

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7222 | 6093 | 126 | 126 | 1.74% | 2.07% |  |
| B | 7223 | 6093 | 71 | 71 | 0.98% | 1.17% |  |
| C | 7223 | 6094 | 5110 | 5110 | 70.75% | 83.85% |  |
| D | 7223 | 6093 | 967 | 967 | 13.39% | 15.87% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 796586 | 5496.56 | 704 | 690 | 144.8 |
| A | 15 | 223 | 453260 | 3125.51 | 704 | 690 | 144.8 |
| A | 15 | 222 | 264593 | 1822.55 | 704 | 690 | 144.8 |
| B | 5 | 235 | 186052 | 1390.01 | 697 | 675 | 133.4 |
| B | 10 | 128 | 145427 | 1085.39 | 697 | 675 | 133.4 |
| B | 5 | 255 | 142481 | 1063.3 | 697 | 675 | 133.4 |
| C | 15 | 142 | 8330983 | 92460.9 | 386 | 388 | 90.1 |
| C | 3 | 233 | 2007467 | 22276.48 | 386 | 388 | 90.1 |
| C | 15 | 126 | 1045338 | 11597.85 | 386 | 388 | 90.1 |
| D | 12 | 6 | 1433153 | 8446.5 | 659 | 637 | 169.6 |
| D | 13 | 187 | 741423 | 4367.87 | 659 | 637 | 169.6 |
| D | 14 | 210 | 391853 | 2306.71 | 659 | 637 | 169.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

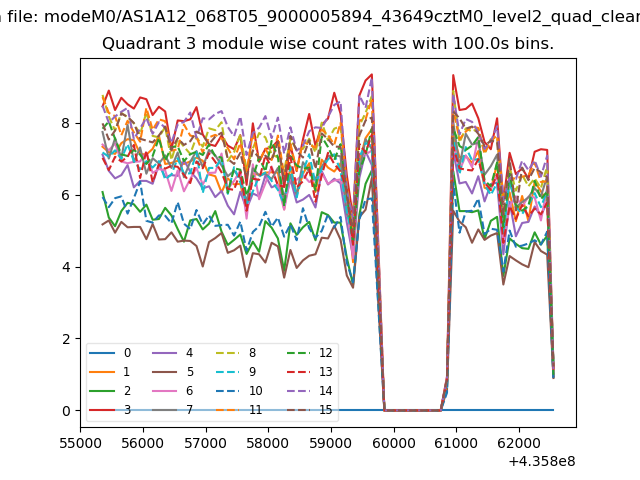

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

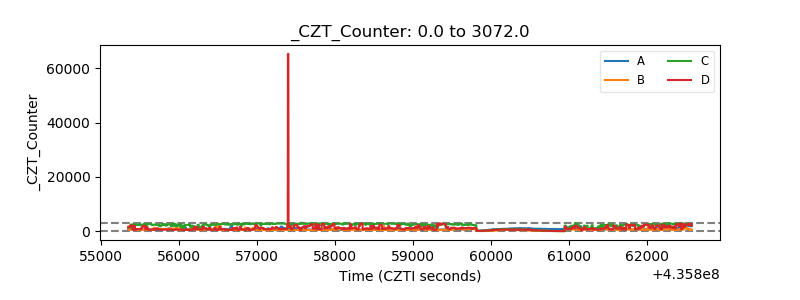

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

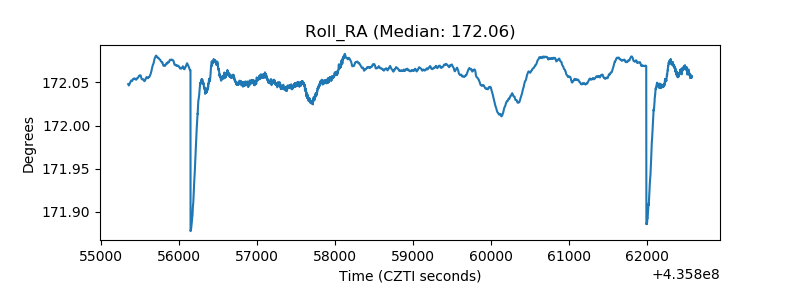

| _Roll_RA |  |
| Veto Counter |  |
