| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_068T05_9000005894_43658cztM0_level2.fits | modeM0/AS1A12_068T05_9000005894_43658cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,037,174,400 | 70,295,040 |
| Size | 989.1 MB | 67.0 MB |
| Events in quadrant A | 4,652,568 | 660,546 |
| Events in quadrant B | 3,357,836 | 668,819 |
| Events in quadrant C | 15,529,492 | 193,559 |
| Events in quadrant D | 14,393,044 | 184,144 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17988 | 2 |
| B | 0 | 13915 | 1 |
| C | 0 | 50062 | 1 |
| D | 0 | 46845 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5960 | 127 | 2.130872% |
| B | 5961 | 83 | 1.392384% |
| C | 5961 | 5616 | 94.212380% |
| D | 5961 | 5160 | 86.562657% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6960 | 5961 | 23 | 23 | 0.33% | 0.39% |  |
| B | 6961 | 5962 | 27 | 27 | 0.39% | 0.45% |  |
| C | 6961 | 5962 | 5502 | 5502 | 79.04% | 92.28% |  |
| D | 6961 | 5962 | 5036 | 5036 | 72.35% | 84.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 761038 | 5598.6 | 657 | 644 | 135.8 |
| A | 15 | 222 | 502239 | 3693.13 | 657 | 644 | 135.8 |
| A | 14 | 63 | 483391 | 3554.35 | 657 | 644 | 135.8 |
| B | 0 | 230 | 224261 | 1770.33 | 653 | 634 | 126.3 |
| B | 4 | 206 | 146572 | 1155.31 | 653 | 634 | 126.3 |
| B | 5 | 235 | 99199 | 780.28 | 653 | 634 | 126.3 |
| C | 15 | 142 | 10760890 | 226055.69 | 199 | 199 | 47.6 |
| C | 15 | 126 | 1738248 | 36512.14 | 199 | 199 | 47.6 |
| C | 15 | 158 | 1146739 | 24085.99 | 199 | 199 | 47.6 |
| D | 8 | 192 | 11512816 | 206575.48 | 206 | 199 | 55.7 |
| D | 14 | 242 | 399578 | 7166.22 | 206 | 199 | 55.7 |
| D | 13 | 187 | 312494 | 5603.63 | 206 | 199 | 55.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

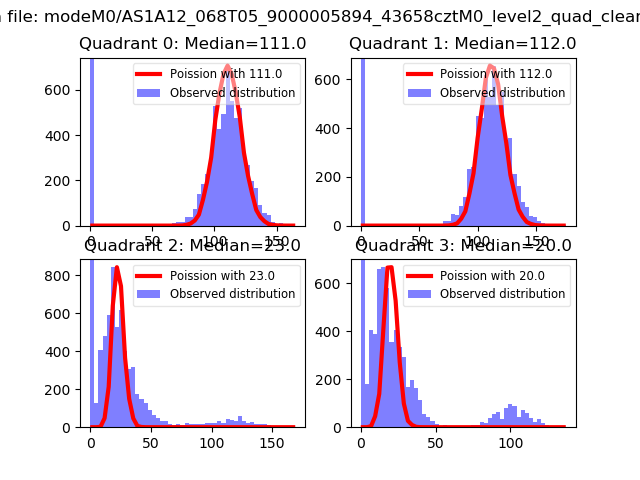

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

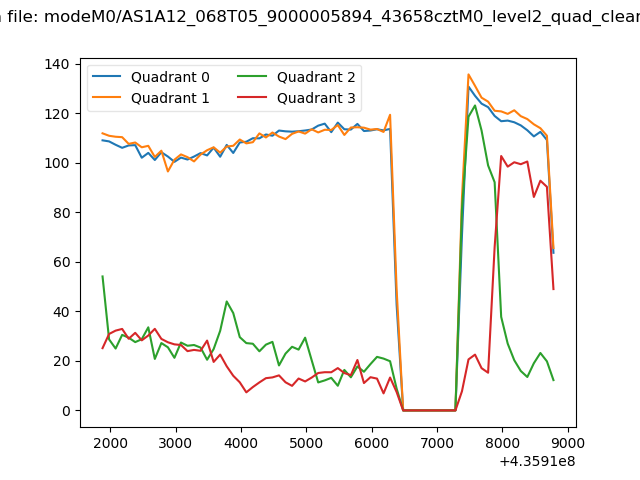

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

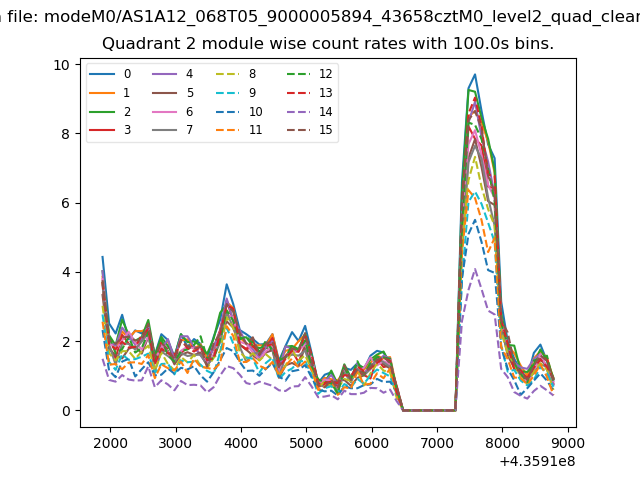

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

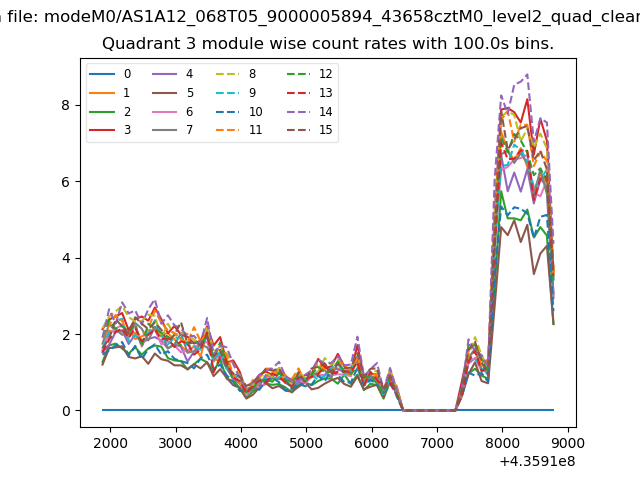

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
