| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_008T01_9000005898_43689cztM0_level2.fits | modeM0/AS1A13_008T01_9000005898_43689cztM0_level2_quad_clean.evt |
| Size (bytes) | 930,467,520 | 104,788,800 |
| Size | 887.4 MB | 99.9 MB |
| Events in quadrant A | 11,377,493 | 727,130 |
| Events in quadrant B | 3,623,324 | 802,805 |
| Events in quadrant C | 13,757,772 | 499,316 |
| Events in quadrant D | 5,179,375 | 684,201 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38364 | 2 |
| B | 0 | 14879 | 2 |
| C | 0 | 45424 | 6 |
| D | 0 | 19685 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6537 | 2124 | 32.491969% |
| B | 6538 | 121 | 1.850719% |
| C | 6537 | 4574 | 69.970935% |
| D | 6537 | 477 | 7.296925% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7607 | 6538 | 1496 | 1496 | 19.67% | 22.88% |  |
| B | 7608 | 6539 | 17 | 17 | 0.22% | 0.26% |  |
| C | 7607 | 6537 | 3563 | 3563 | 46.84% | 54.51% |  |
| D | 7607 | 6537 | 283 | 283 | 3.72% | 4.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 222 | 5493400 | 35889.89 | 742 | 726 | 153.0 |
| A | 14 | 63 | 1692688 | 11055.51 | 742 | 726 | 153.0 |
| A | 10 | 83 | 821723 | 5364.51 | 742 | 726 | 153.0 |
| B | 4 | 171 | 149716 | 950.31 | 796 | 773 | 156.7 |
| B | 5 | 235 | 69996 | 441.67 | 796 | 773 | 156.7 |
| B | 4 | 206 | 65798 | 414.88 | 796 | 773 | 156.7 |
| C | 15 | 142 | 8521855 | 71492.67 | 512 | 517 | 119.2 |
| C | 15 | 157 | 2284012 | 19158.16 | 512 | 517 | 119.2 |
| C | 3 | 233 | 802634 | 6729.63 | 512 | 517 | 119.2 |
| D | 14 | 210 | 309309 | 1469.0 | 762 | 742 | 210.1 |
| D | 2 | 120 | 270227 | 1282.94 | 762 | 742 | 210.1 |
| D | 5 | 235 | 269760 | 1280.72 | 762 | 742 | 210.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

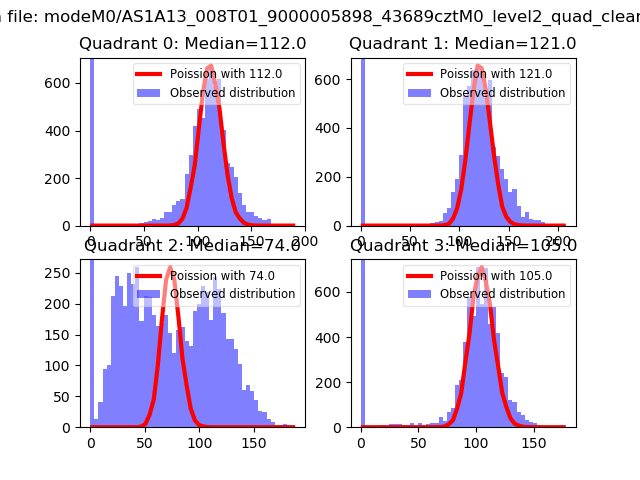

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

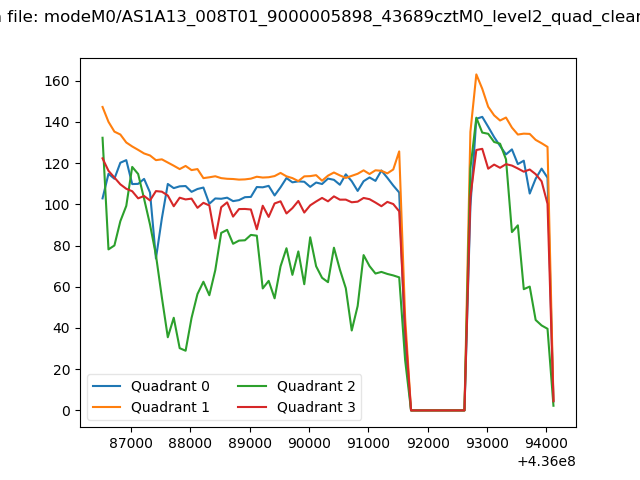

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

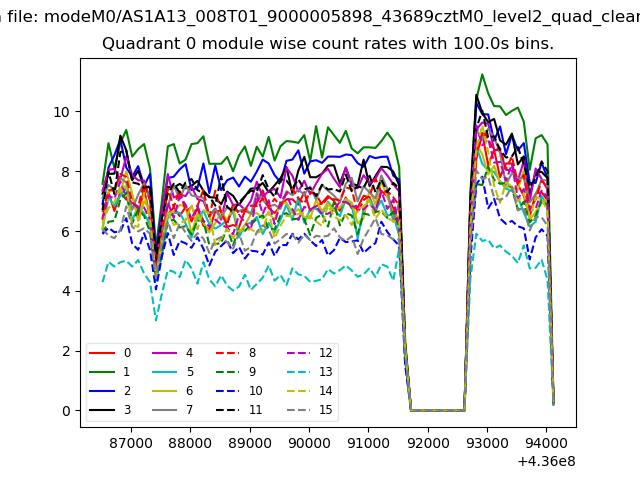

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

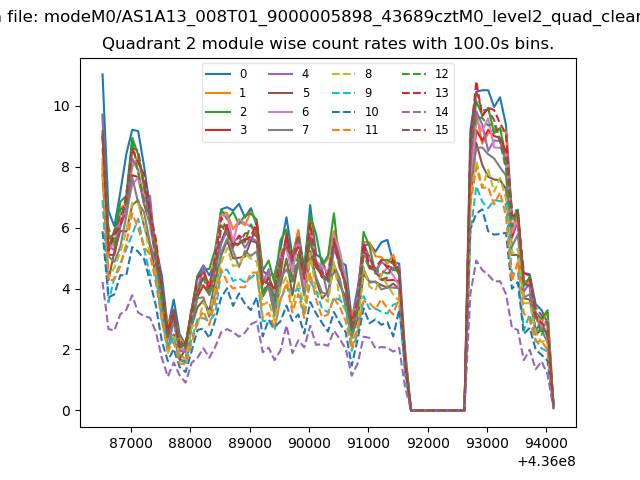

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

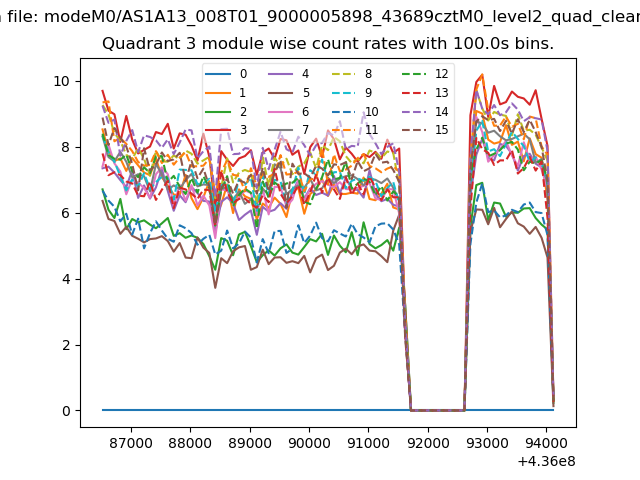

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

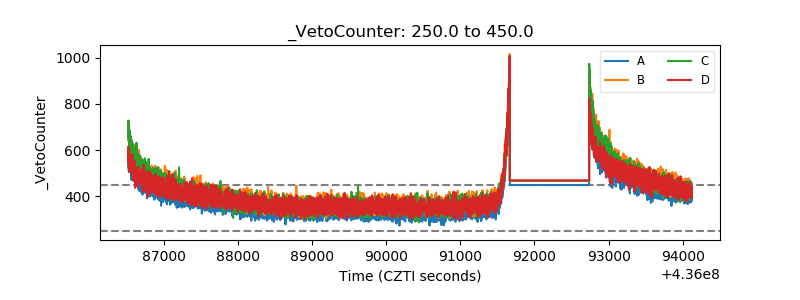

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

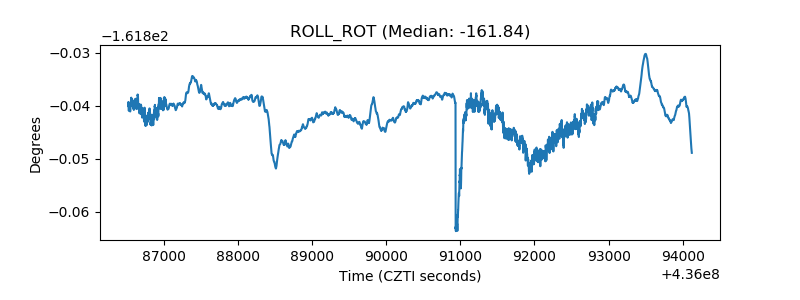

| _ROLL_ROT |  |

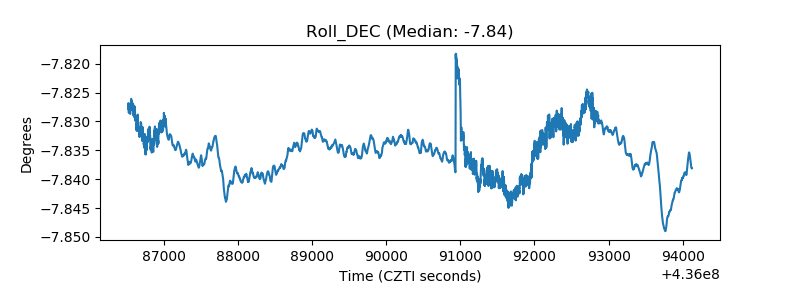

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
