| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_008T02_9000005900_43708cztM0_level2.fits | modeM0/AS1A13_008T02_9000005900_43708cztM0_level2_quad_clean.evt |
| Size (bytes) | 699,304,320 | 108,466,560 |
| Size | 666.9 MB | 103.4 MB |
| Events in quadrant A | 8,011,742 | 731,196 |
| Events in quadrant B | 4,005,646 | 764,248 |
| Events in quadrant C | 4,799,683 | 727,193 |
| Events in quadrant D | 8,552,477 | 595,544 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28535 | 1 |
| B | 0 | 16276 | 1 |
| C | 0 | 18739 | 1 |
| D | 0 | 30096 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6687 | 488 | 7.297742% |
| B | 6688 | 283 | 4.231459% |
| C | 6688 | 342 | 5.113636% |
| D | 6688 | 1209 | 18.077153% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7503 | 6688 | 104 | 104 | 1.39% | 1.56% |  |
| B | 7504 | 6689 | 117 | 117 | 1.56% | 1.75% |  |
| C | 7504 | 6689 | 232 | 232 | 3.09% | 3.47% |  |
| D | 7504 | 6689 | 1052 | 1052 | 14.02% | 15.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 222 | 3203585 | 19753.12 | 781 | 765 | 162.1 |
| A | 10 | 83 | 865911 | 5335.71 | 781 | 765 | 162.1 |
| A | 14 | 63 | 629385 | 3876.96 | 781 | 765 | 162.1 |
| B | 5 | 235 | 467874 | 3025.34 | 782 | 761 | 154.4 |
| B | 12 | 32 | 116349 | 748.62 | 782 | 761 | 154.4 |
| B | 5 | 255 | 95995 | 616.8 | 782 | 761 | 154.4 |
| C | 15 | 157 | 1117832 | 6205.42 | 757 | 760 | 180.0 |
| C | 3 | 233 | 290473 | 1609.38 | 757 | 760 | 180.0 |
| C | 15 | 158 | 249116 | 1379.64 | 757 | 760 | 180.0 |
| D | 8 | 48 | 1636120 | 8354.89 | 736 | 713 | 195.7 |
| D | 12 | 33 | 1232744 | 6294.14 | 736 | 713 | 195.7 |
| D | 12 | 34 | 452682 | 2309.0 | 736 | 713 | 195.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

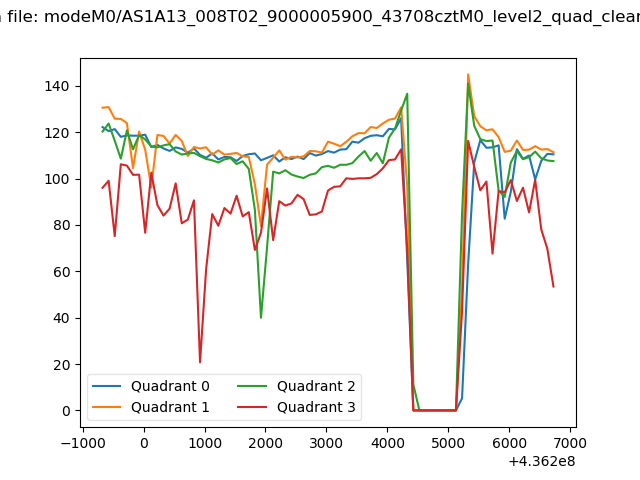

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

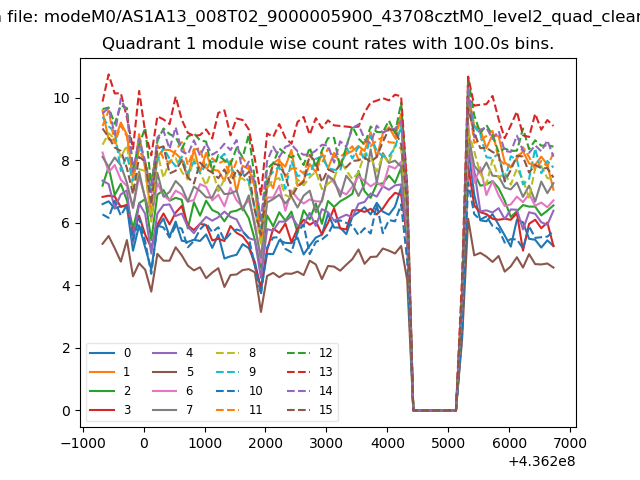

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

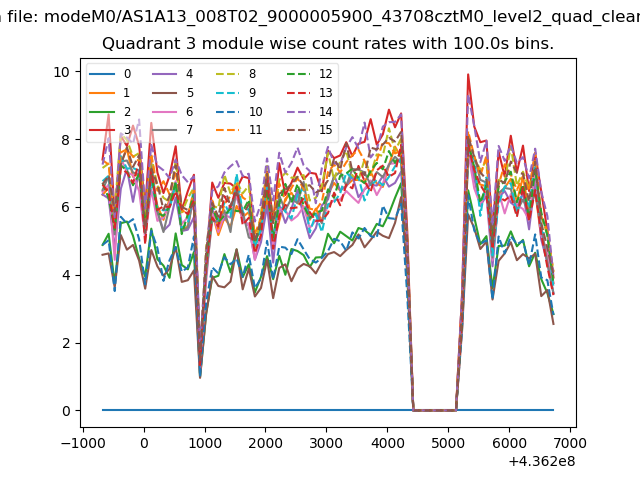

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

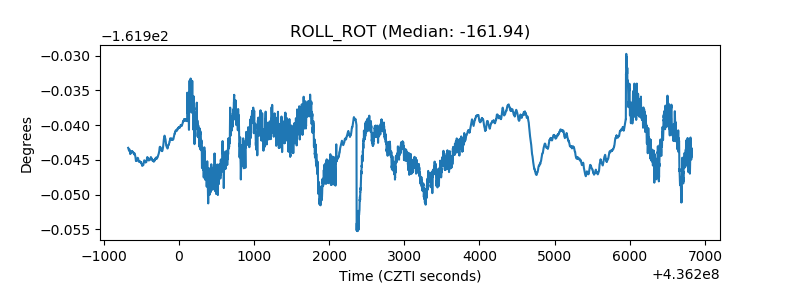

| _ROLL_ROT |  |

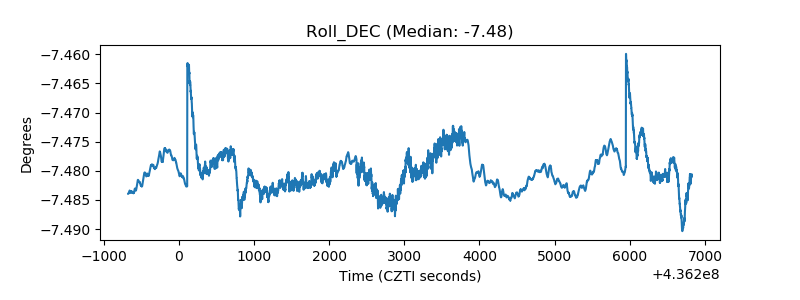

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
