| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_003T01_9000005902_43718cztM0_level2.fits | modeM0/AS1A13_003T01_9000005902_43718cztM0_level2_quad_clean.evt |
| Size (bytes) | 666,020,160 | 100,411,200 |
| Size | 635.2 MB | 95.8 MB |
| Events in quadrant A | 6,749,825 | 720,398 |
| Events in quadrant B | 3,659,555 | 759,700 |
| Events in quadrant C | 8,309,624 | 492,727 |
| Events in quadrant D | 5,440,080 | 621,597 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24584 | 2 |
| B | 0 | 14959 | 2 |
| C | 0 | 29106 | 2 |
| D | 0 | 20584 | 5 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6389 | 323 | 5.055564% |
| B | 6389 | 220 | 3.443418% |
| C | 6390 | 2280 | 35.680751% |
| D | 6389 | 591 | 9.250274% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7479 | 6390 | 127 | 127 | 1.70% | 1.99% |  |
| B | 7479 | 6390 | 71 | 71 | 0.95% | 1.11% |  |
| C | 7479 | 6386 | 1485 | 1485 | 19.86% | 23.25% |  |
| D | 7479 | 6389 | 430 | 430 | 5.75% | 6.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 222 | 2299784 | 14913.08 | 750 | 736 | 154.2 |
| A | 10 | 83 | 827728 | 5364.39 | 750 | 736 | 154.2 |
| A | 15 | 223 | 451674 | 2925.07 | 750 | 736 | 154.2 |
| B | 5 | 235 | 387034 | 2618.91 | 755 | 733 | 147.5 |
| B | 4 | 171 | 134875 | 909.41 | 755 | 733 | 147.5 |
| B | 0 | 199 | 85175 | 572.47 | 755 | 733 | 147.5 |
| C | 15 | 157 | 5284350 | 37188.81 | 602 | 606 | 142.1 |
| C | 3 | 233 | 342131 | 2403.77 | 602 | 606 | 142.1 |
| C | 15 | 158 | 228193 | 1601.84 | 602 | 606 | 142.1 |
| D | 7 | 80 | 936445 | 5099.66 | 718 | 696 | 183.5 |
| D | 12 | 33 | 241234 | 1310.89 | 718 | 696 | 183.5 |
| D | 1 | 52 | 160710 | 872.05 | 718 | 696 | 183.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

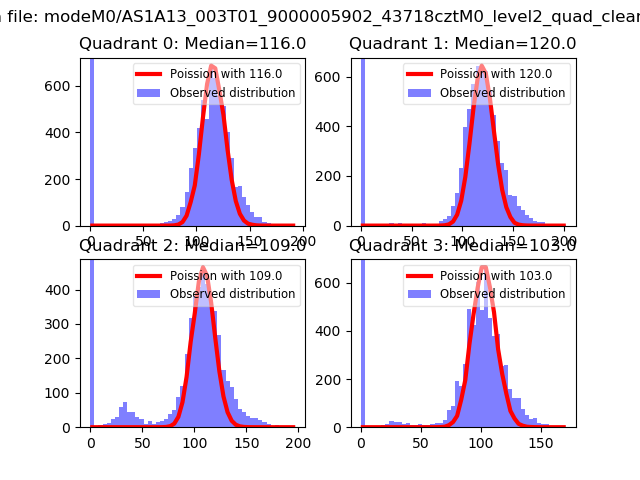

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

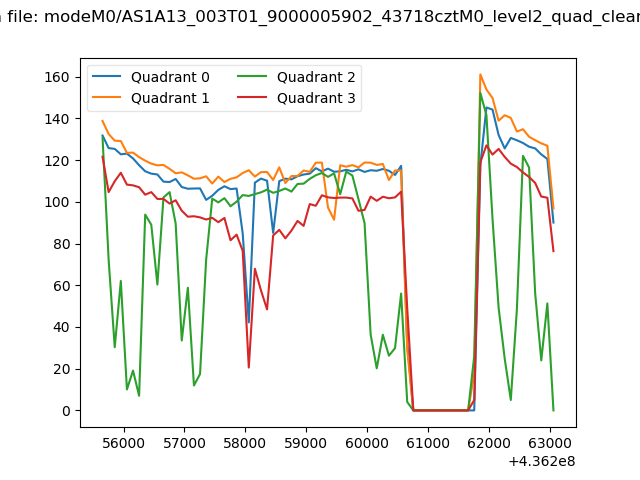

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

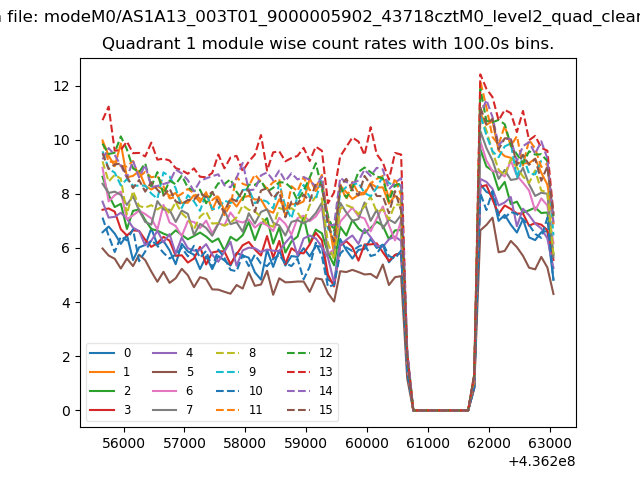

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

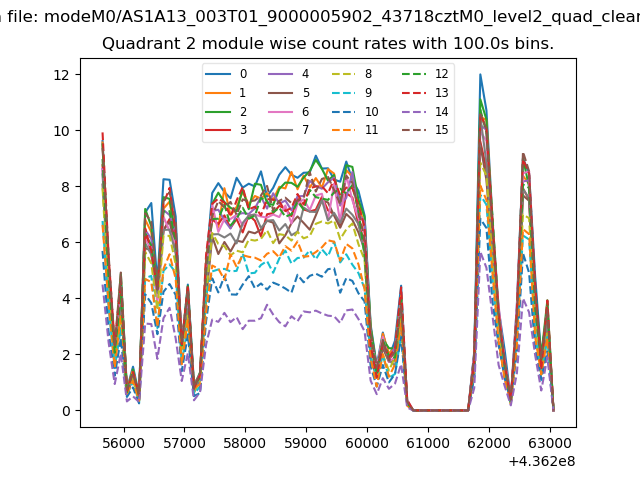

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

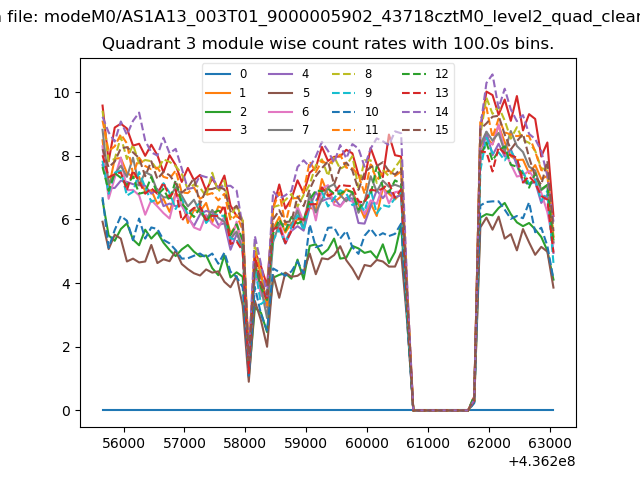

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

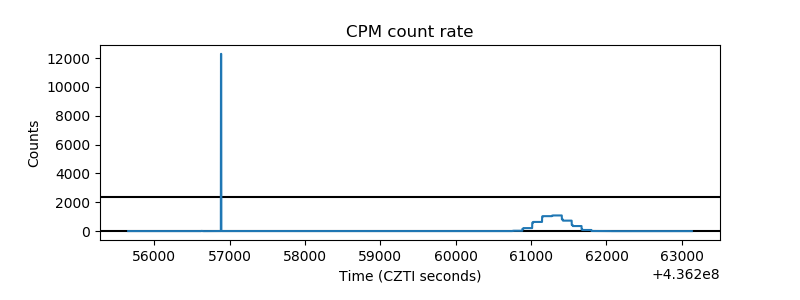

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

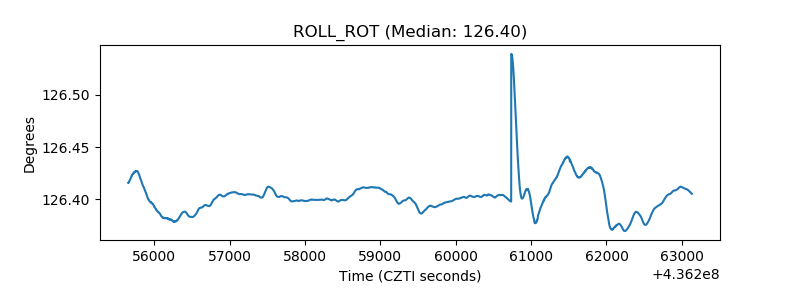

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

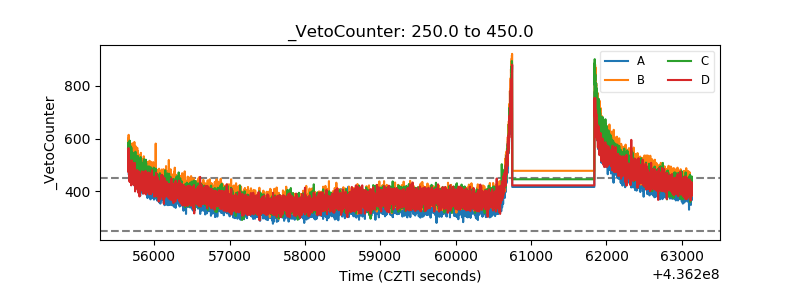

| Veto Counter |  |
