| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_003T01_9000005902_43719cztM0_level2.fits | modeM0/AS1A13_003T01_9000005902_43719cztM0_level2_quad_clean.evt |
| Size (bytes) | 833,417,280 | 96,586,560 |
| Size | 794.8 MB | 92.1 MB |
| Events in quadrant A | 7,302,435 | 785,105 |
| Events in quadrant B | 4,158,473 | 810,479 |
| Events in quadrant C | 7,749,899 | 511,135 |
| Events in quadrant D | 11,140,998 | 368,098 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26225 | 2 |
| B | 0 | 16460 | 2 |
| C | 0 | 27427 | 2 |
| D | 0 | 37424 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6442 | 286 | 4.439615% |
| B | 6442 | 303 | 4.703508% |
| C | 6442 | 2482 | 38.528407% |
| D | 6442 | 3461 | 53.725551% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7622 | 6443 | 44 | 44 | 0.58% | 0.68% |  |
| B | 7622 | 6443 | 123 | 123 | 1.61% | 1.91% |  |
| C | 7621 | 6434 | 1210 | 1210 | 15.88% | 18.81% |  |
| D | 7622 | 6442 | 2927 | 2927 | 38.40% | 45.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 222 | 2897061 | 18058.69 | 790 | 775 | 160.4 |
| A | 10 | 83 | 886353 | 5521.69 | 790 | 775 | 160.4 |
| A | 14 | 63 | 228525 | 1420.05 | 790 | 775 | 160.4 |
| B | 5 | 235 | 539619 | 3528.78 | 788 | 766 | 152.7 |
| B | 4 | 171 | 257506 | 1681.31 | 788 | 766 | 152.7 |
| B | 5 | 255 | 122551 | 797.53 | 788 | 766 | 152.7 |
| C | 15 | 157 | 4556038 | 32440.37 | 593 | 597 | 140.4 |
| C | 15 | 158 | 326030 | 2317.49 | 593 | 597 | 140.4 |
| C | 5 | 80 | 313930 | 2231.32 | 593 | 597 | 140.4 |
| D | 12 | 33 | 4523546 | 30799.55 | 579 | 562 | 146.9 |
| D | 4 | 237 | 2267398 | 15436.16 | 579 | 562 | 146.9 |
| D | 7 | 80 | 660161 | 4491.58 | 579 | 562 | 146.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

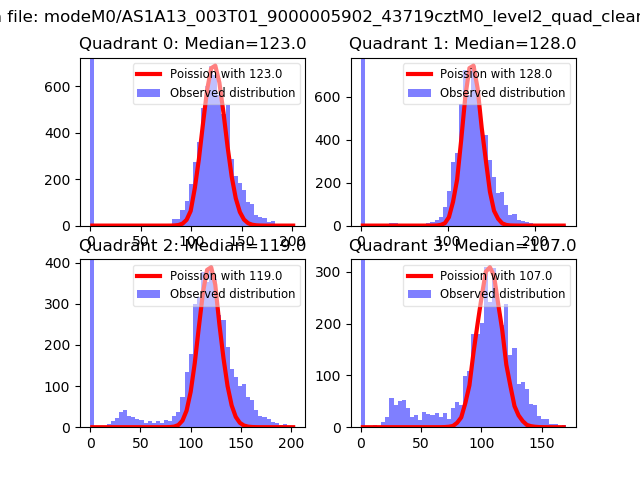

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

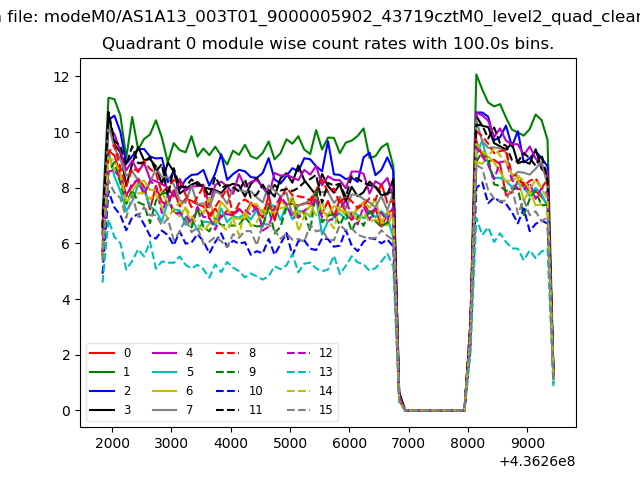

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

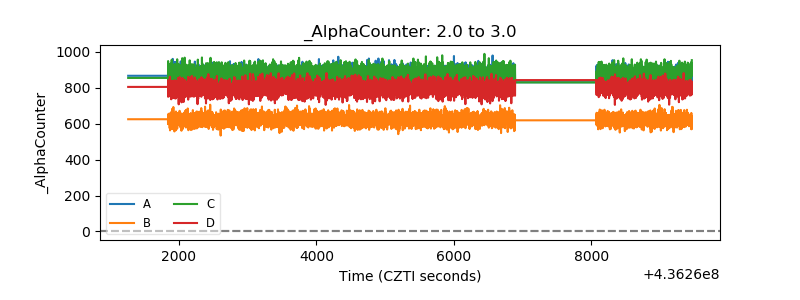

| Alpha Counter |  |

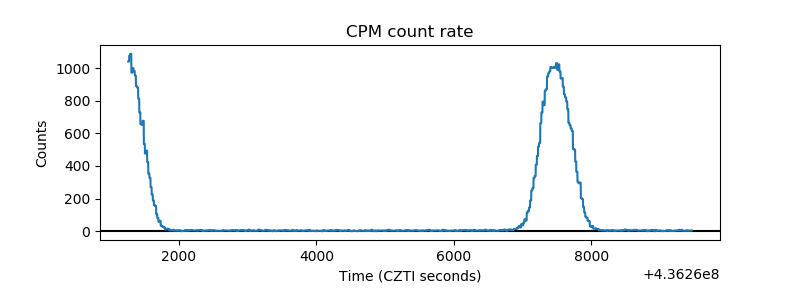

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

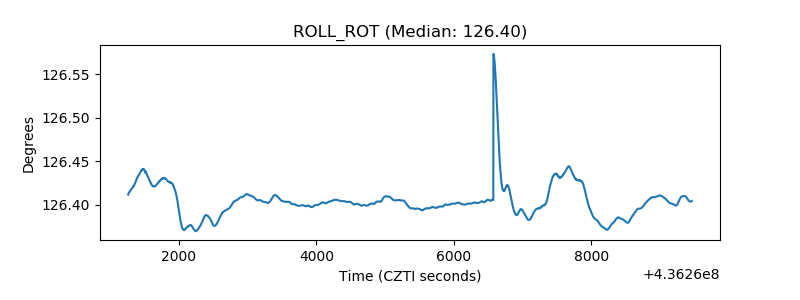

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

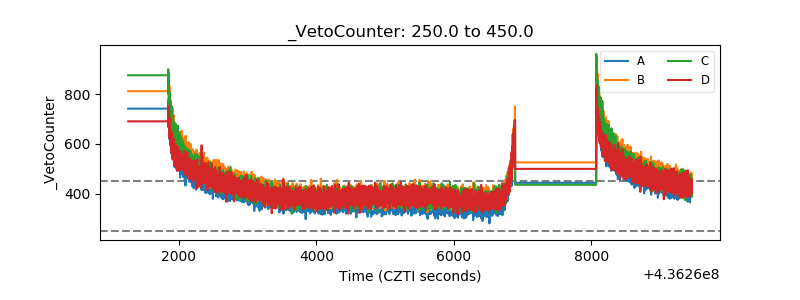

| Veto Counter |  |
