| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_003T01_9000005902_43721cztM0_level2.fits | modeM0/AS1A13_003T01_9000005902_43721cztM0_level2_quad_clean.evt |
| Size (bytes) | 699,638,400 | 95,791,680 |
| Size | 667.2 MB | 91.4 MB |
| Events in quadrant A | 5,834,020 | 715,321 |
| Events in quadrant B | 4,732,231 | 715,991 |
| Events in quadrant C | 9,153,464 | 441,713 |
| Events in quadrant D | 5,710,997 | 604,889 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21667 | 4 |
| B | 0 | 17962 | 1 |
| C | 0 | 31362 | 1 |
| D | 0 | 21155 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6044 | 255 | 4.219060% |
| B | 6045 | 504 | 8.337469% |
| C | 6045 | 2628 | 43.473945% |
| D | 6045 | 596 | 9.859388% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7184 | 6045 | 18 | 18 | 0.25% | 0.30% |  |
| B | 7185 | 6046 | 285 | 285 | 3.97% | 4.71% |  |
| C | 7185 | 6045 | 1753 | 1753 | 24.40% | 29.00% |  |
| D | 7185 | 6046 | 402 | 402 | 5.59% | 6.65% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 222 | 1815514 | 11928.02 | 733 | 717 | 152.1 |
| A | 10 | 83 | 749855 | 4923.82 | 733 | 717 | 152.1 |
| A | 14 | 63 | 313493 | 2055.77 | 733 | 717 | 152.1 |
| B | 4 | 171 | 918080 | 6614.08 | 714 | 694 | 138.7 |
| B | 5 | 235 | 753539 | 5427.79 | 714 | 694 | 138.7 |
| B | 0 | 199 | 120045 | 860.49 | 714 | 694 | 138.7 |
| C | 15 | 157 | 4962782 | 37132.17 | 567 | 571 | 133.6 |
| C | 15 | 158 | 1678863 | 12558.64 | 567 | 571 | 133.6 |
| C | 3 | 233 | 188470 | 1406.05 | 567 | 571 | 133.6 |
| D | 5 | 235 | 689140 | 3899.95 | 701 | 681 | 176.5 |
| D | 1 | 52 | 360296 | 2037.13 | 701 | 681 | 176.5 |
| D | 13 | 171 | 342571 | 1936.72 | 701 | 681 | 176.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

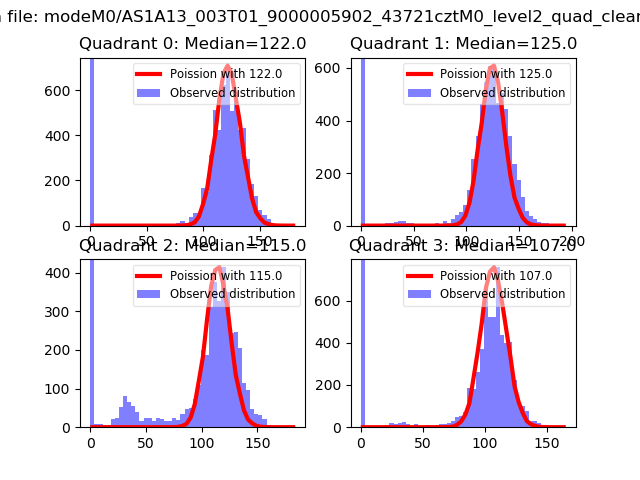

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

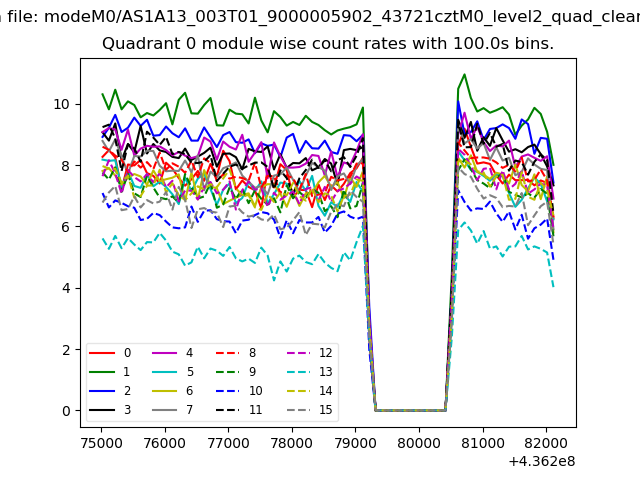

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

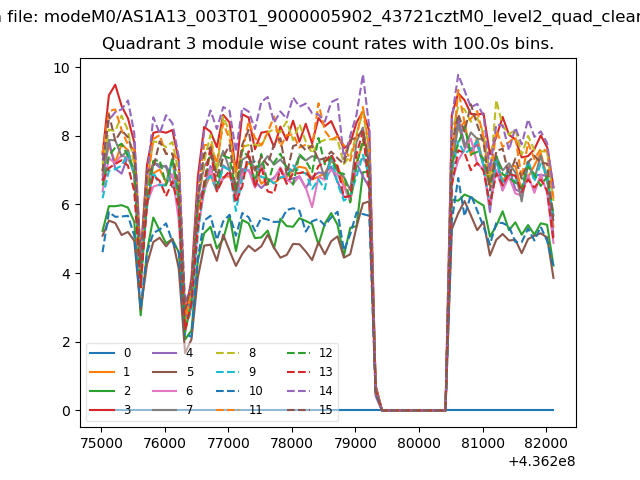

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

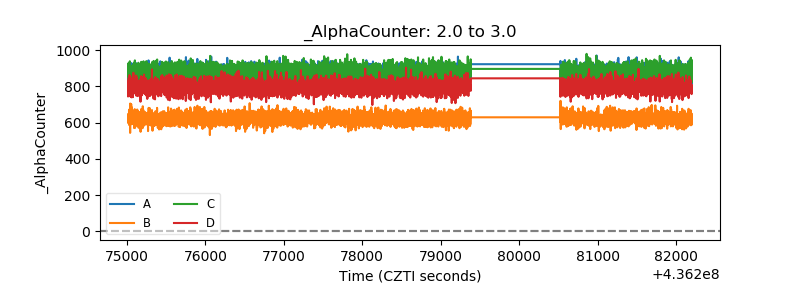

| Alpha Counter |  |

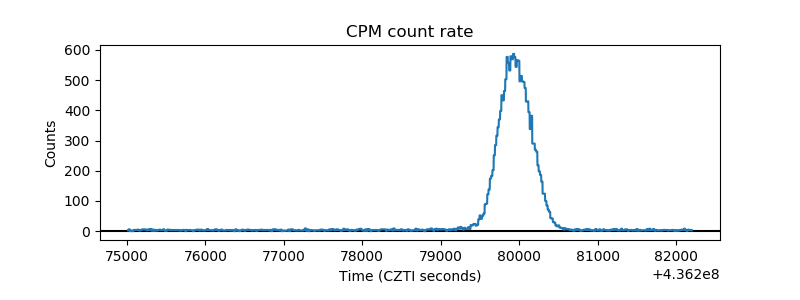

| _CPM_Rate |  |
| CZT Counter |  |

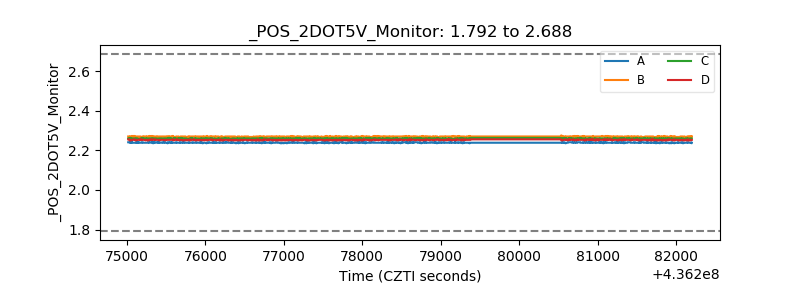

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
